Features

• Our Italian Industry series has loads of configurations to suit every need
• Fully manufactured in Italy
• Stainless swivel
• 600 and 800 BAR Options
• Brake and closed plate options for high OH&S applications
• HOSE NOT INCLUDE
• Note: Hose must be fully extended when reel is in operation

Specifications

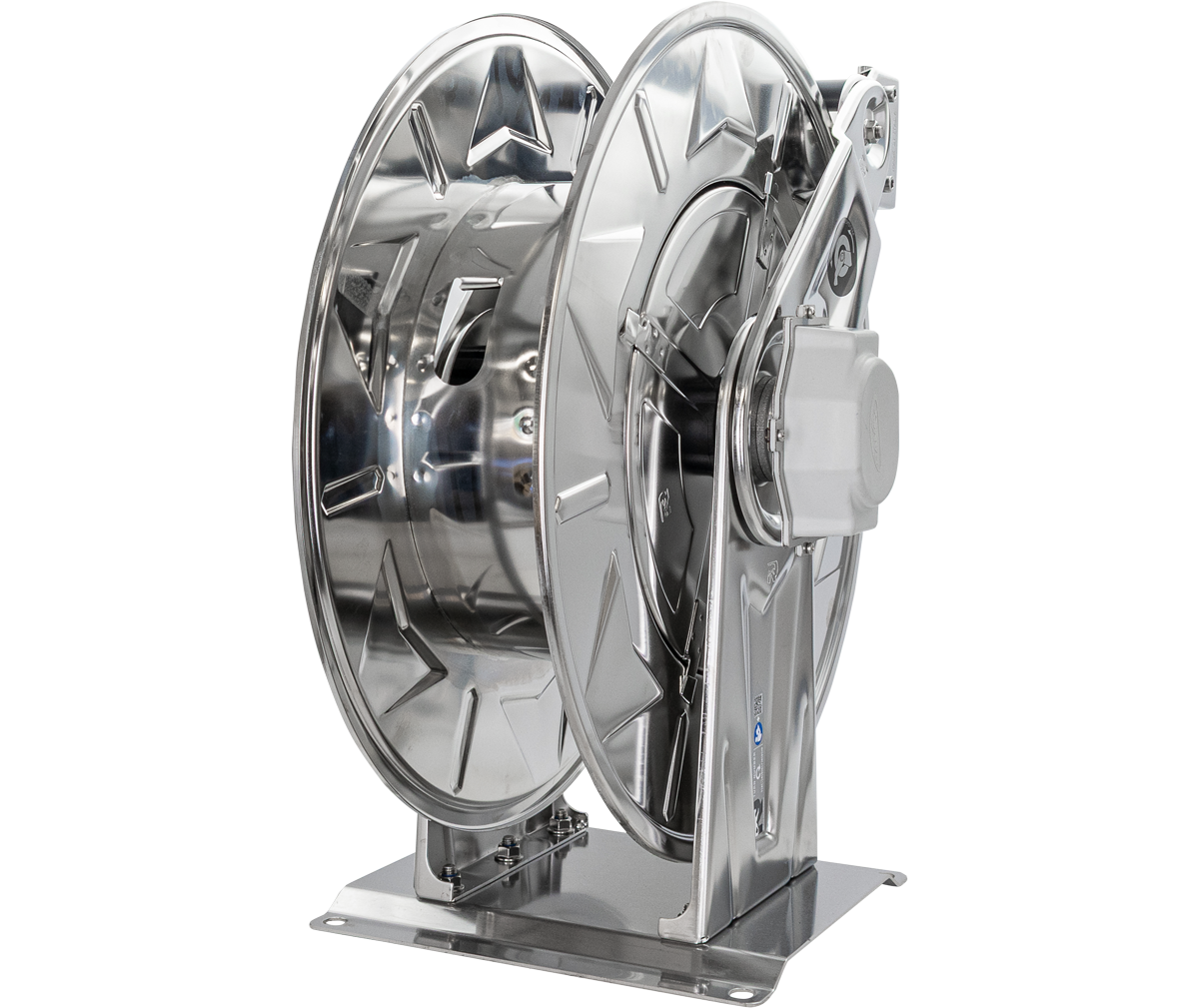

• Reel Style: Standard Bent Arm
• Capacity:
  • 35 m of 1/4” hose
  • 35 m of 3/8” hose
  • 35 m of 1/2” hose
• Pressure: 5,800 PSI
• Temperature: 90°C
• Material: Stainless Steel
• Spring Turns*: 4
• Dimensions: H 31 x W 70 x D 54

Hose installation instructions

• Wrap the hose around the reel turning the reel in the direction indicated by the arrow.
• Perform the rotation manually protecting hands with gloves;
• Determine the starting point of the spring work, this position can be found by rotating
  the reel to the point where it detects the start of the tension of opposition to the rotation of the spring;
• Rotate the reel (number of turning) indicated by the label in the opposite direction to the arrow, taking care to keep the hose attached to reel central band.
• Take out the hose from the roller guide, lock the reel by observation of the latch mechanism;
• Fix the hose bumper on the hose.
