Swivel Options for AV & AVM Reels

High Pressure Versions

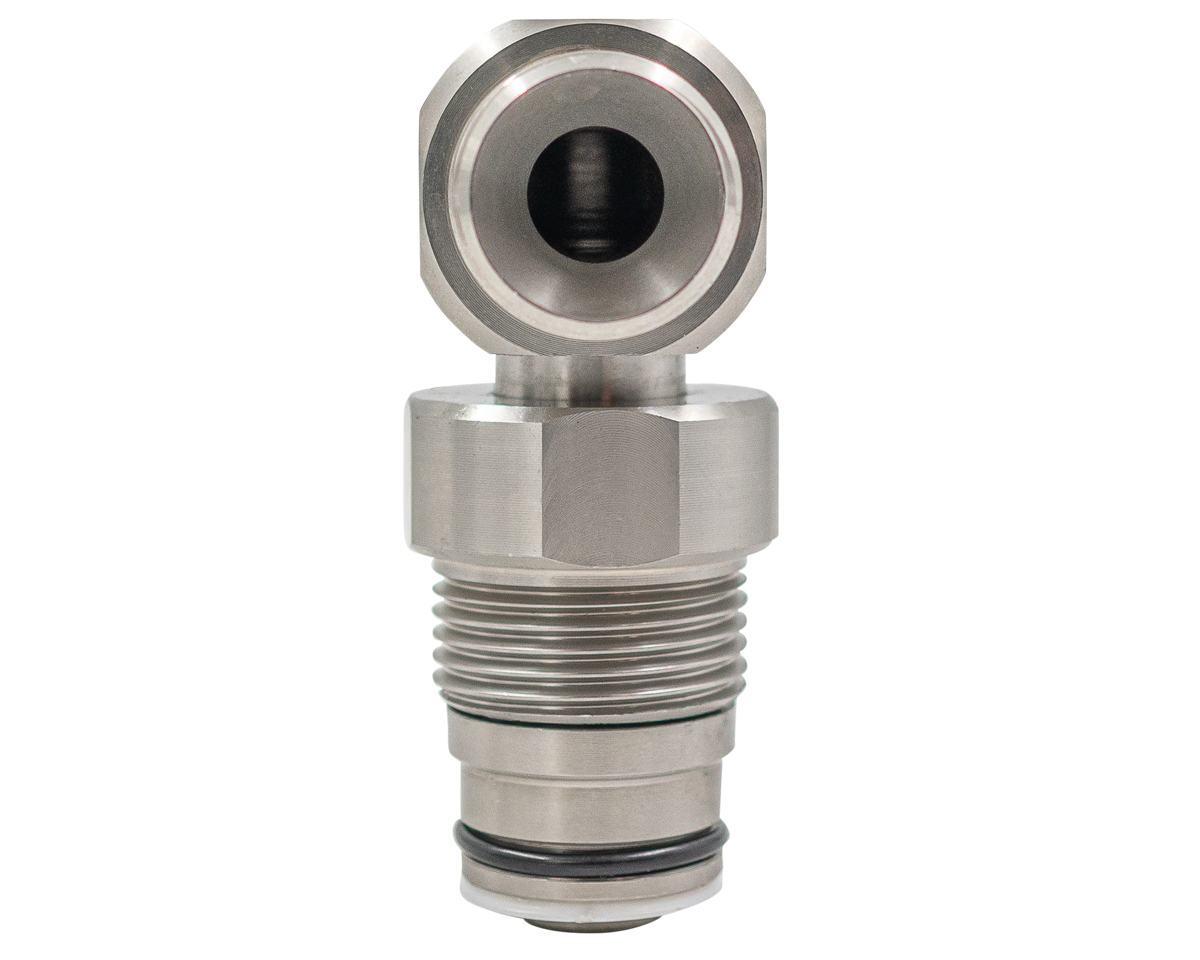

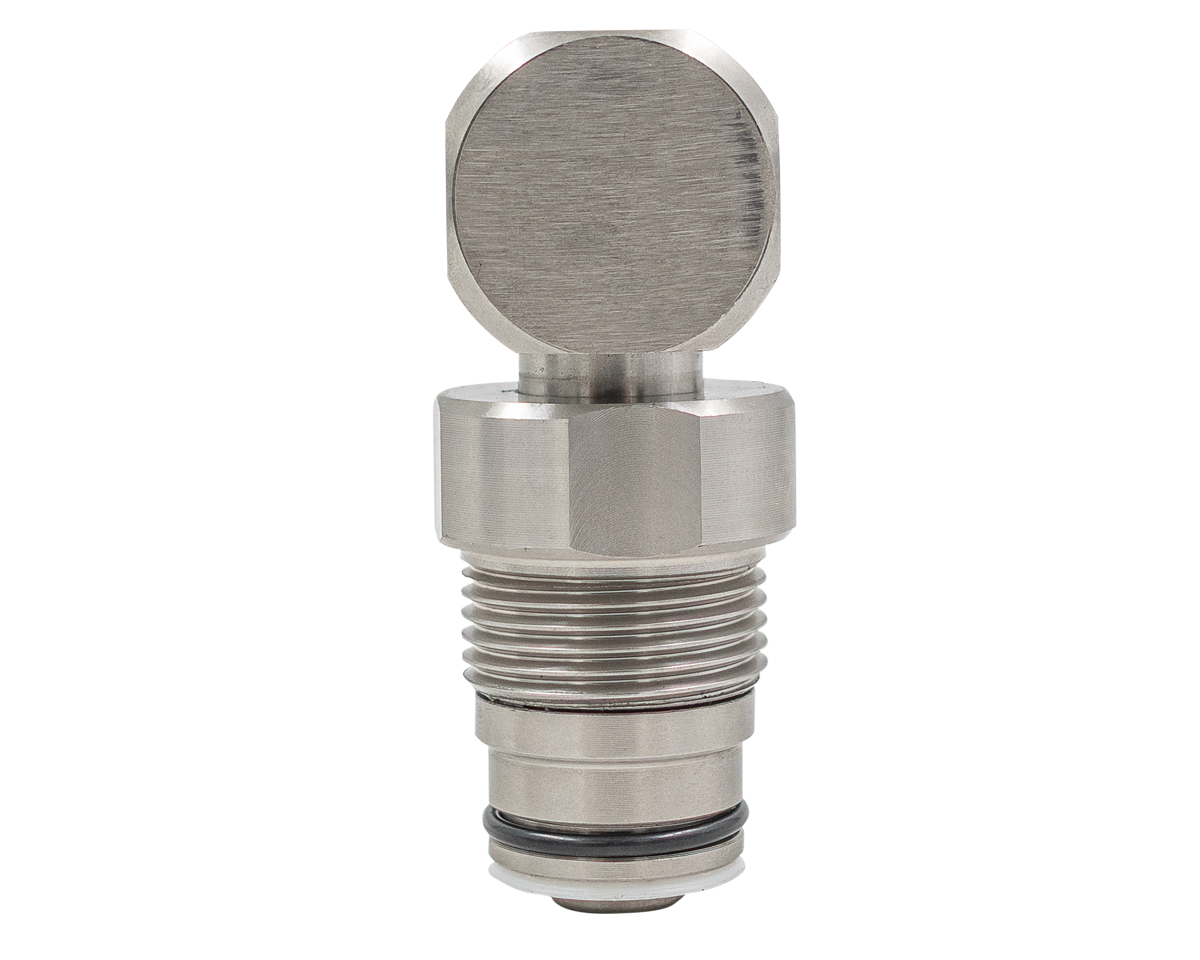

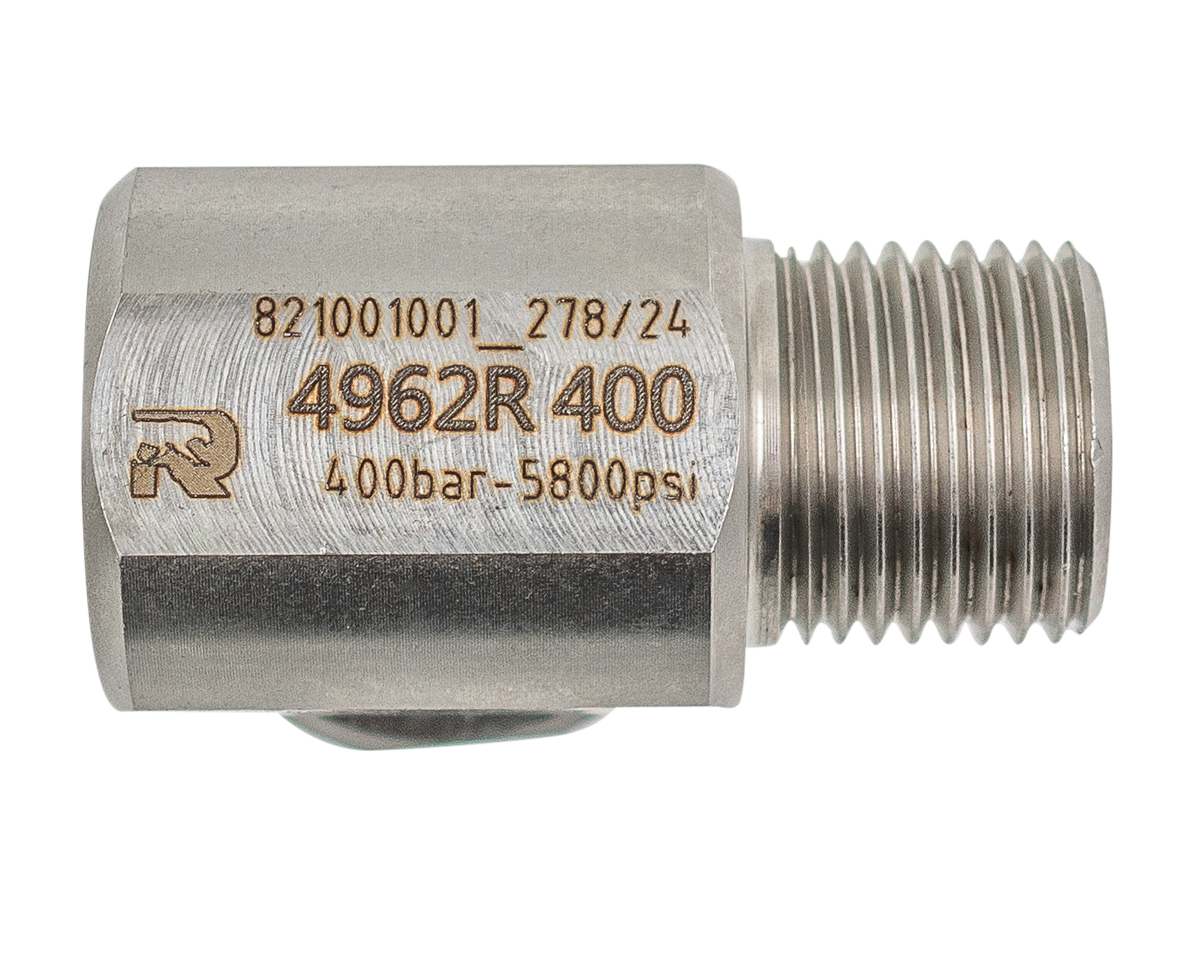

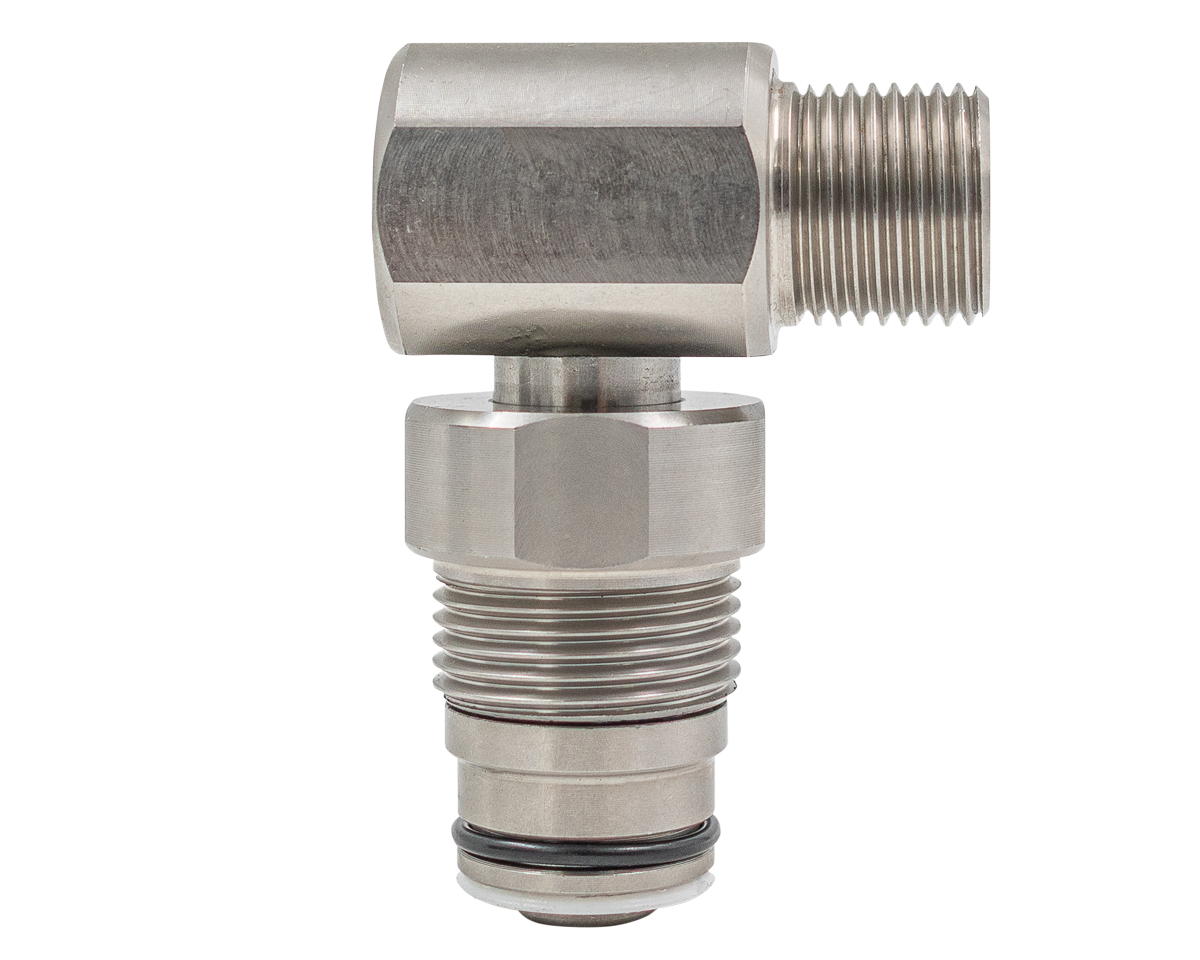

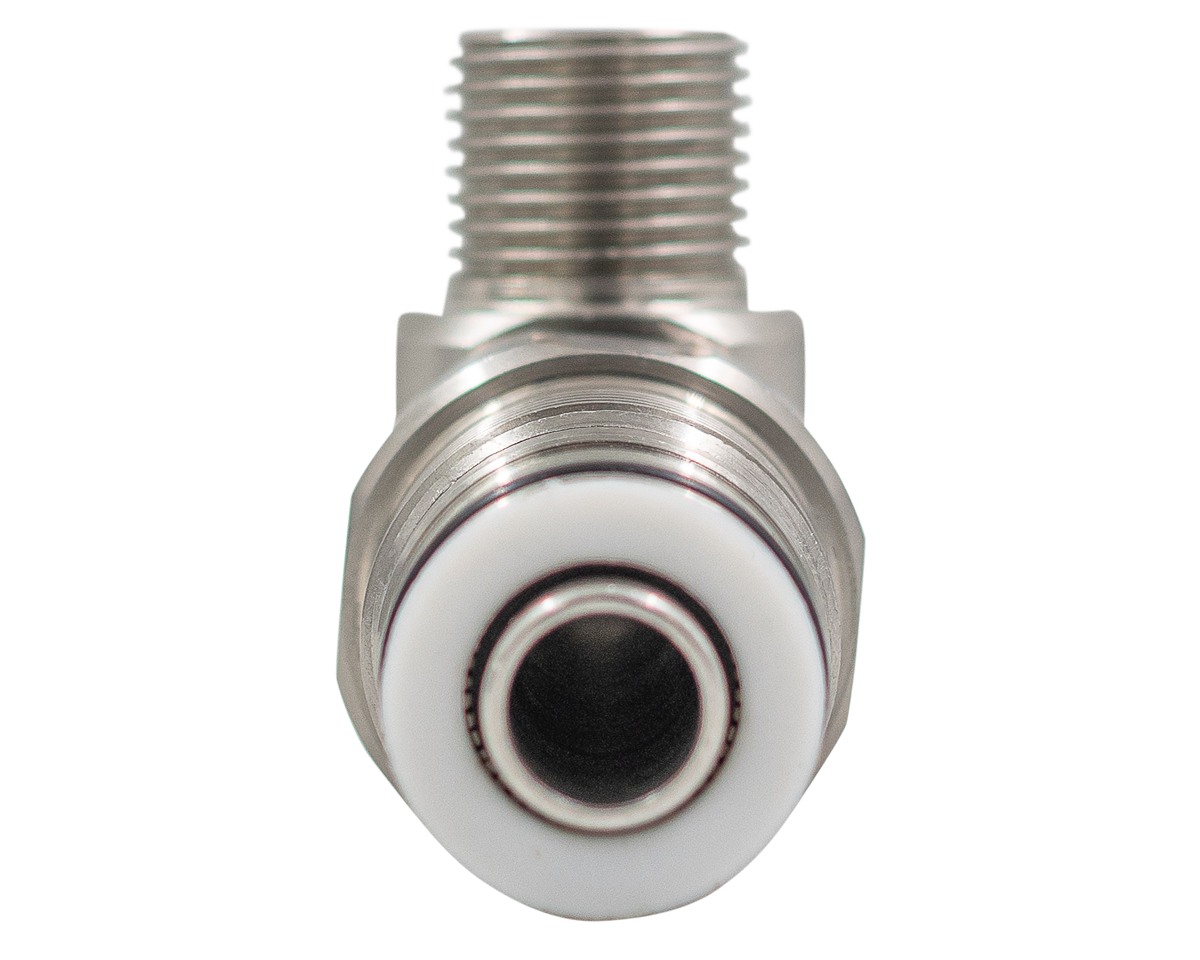

• •  175 4962 400   Inlet/Outlet: 1/2″ Rated to 5,800 PSI
  •  175 4962 600   Inlet/Outlet: 1/2″ Rated to 8,700 PSI
  •  175 4962 800   Inlet/Outlet: 1/2″ Rated to 10,700 PSI
• Material: AISI304
• Stainless AISI316 options available (Swap “4962” to “4960”)

Low Pressure Versions

• Reels using hose to 1/2″
  •  175 4962 400   Inlet/Outlet: 1/2″ Rated to 5,800 PSI
• Reels using hose greater than 1/2″ (ie 3/4″ or 1″)
  •  175 4971            Inlet/Outlet: 1″ Rated to 290 PSI
• Material: Stainless

Note on variations (June 2025)

• (Upgraded) 175 4962 400 – With bushing rather than bearing internal. Designed by Ramex to add extra life

• (Original) 175 4962RR 400 – For those who prefer to stay with the old version

• Replaces 175 4960 400
