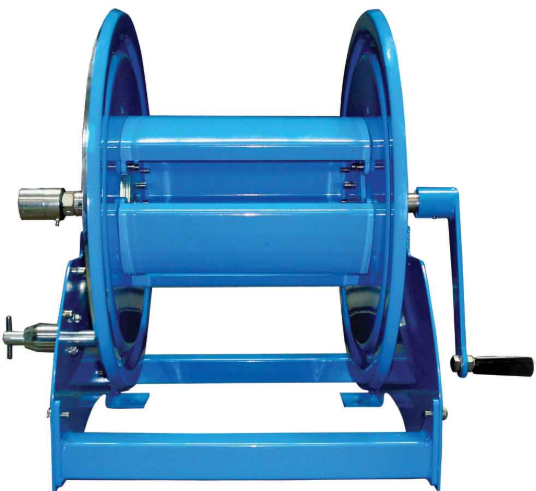

Crank Reel – High Pressure

SKU: 175 C25480300

Crank Reel – High Pressure Bare Reel (No Hose)
Capacity: 2 0m x 25 mm ID
Max Pressure: 3,000 PSI

POA

Compare

Recoila “C” Series Hose Reel

ReCoila C Series steel hose reels utilise the basic design from our popular T series range, whilst offering an economical price. A basic but practical hand operated design makes the C series ideally suited to a variety of applications. This simple but tough hose reel will handle a multitude of hose sizes, lengths and pressures. The main axle is supported by ball bearings, offering a smooth and reliable rotation, while the adjustable friction brake allows the user to add or remove drag to prevent over spooling. The positive lock spool-lock holds the spool fixed during transit, preventing overrun, and the open spool design allows air flow to help dry out wet areas. A bolt together frame and spool offers easy access for maintenance and service. The unique modular design of the C series also allows the user to add or change drive systems in the field or at a later date with a simple bolt-on feature.

Features

  • Compact Rugged Design
  • Main axle supported by ball bearings for smooth and reliable rotation
  • Heavy-Duty Spring-Loaded Pin lock
  • Stainless steel metric fasteners predominately socket head and button head cap screws
  • High flow swivels and fluid path Max 3,000 PSI
  • Positive lock spool-lock holds the spool fixed during transit, preventing overrun
  • Bolt together frame and spool offers easy access for maintenance
  • Unique modular design allows the user to add or change drive systems with a simple bolt on feature
  • Optional ring gear and spur gear (NO chain and sprockets to adjust)
  • Spun 2.4 mm flanges
  • 3 mm fabricated side frames
  • Right & Left-Hand configurations
  • Our open spool design allows for air flow and less prone to rust
  • Carbon Steel Construction (Other Construction Materials available on Request)
  • Powder coated blue
  • Powder coat with a zinc rich primer all components before assembly
  • Standard 1-year warranty
  • Dimensions – see Documents tab

Options for C Series Reels

  • Gear guards for Motor Drives only
  • Stainless steel roller guides

Exclusions

  • Hose Assembly
  • Roller Guides
