Features

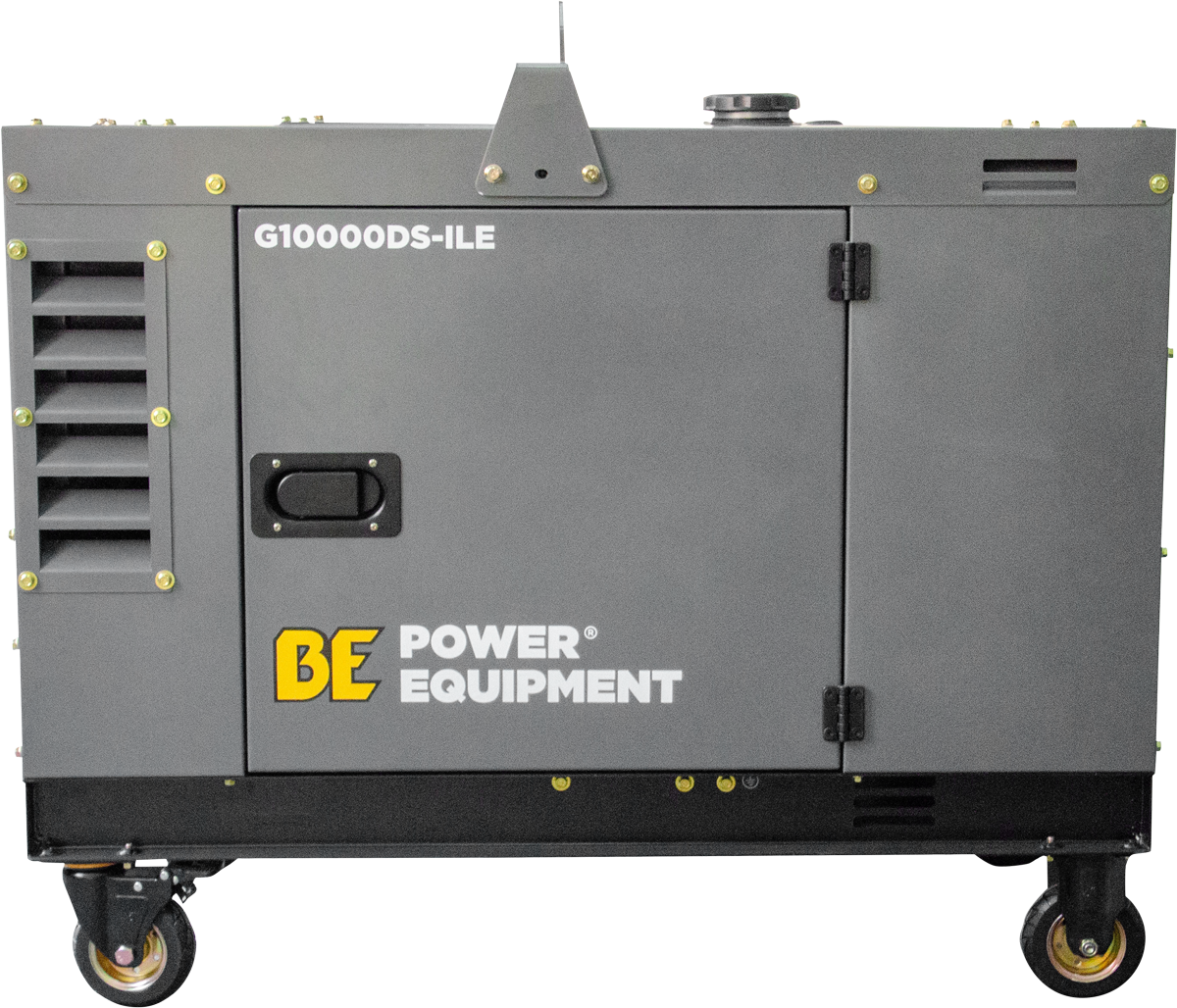

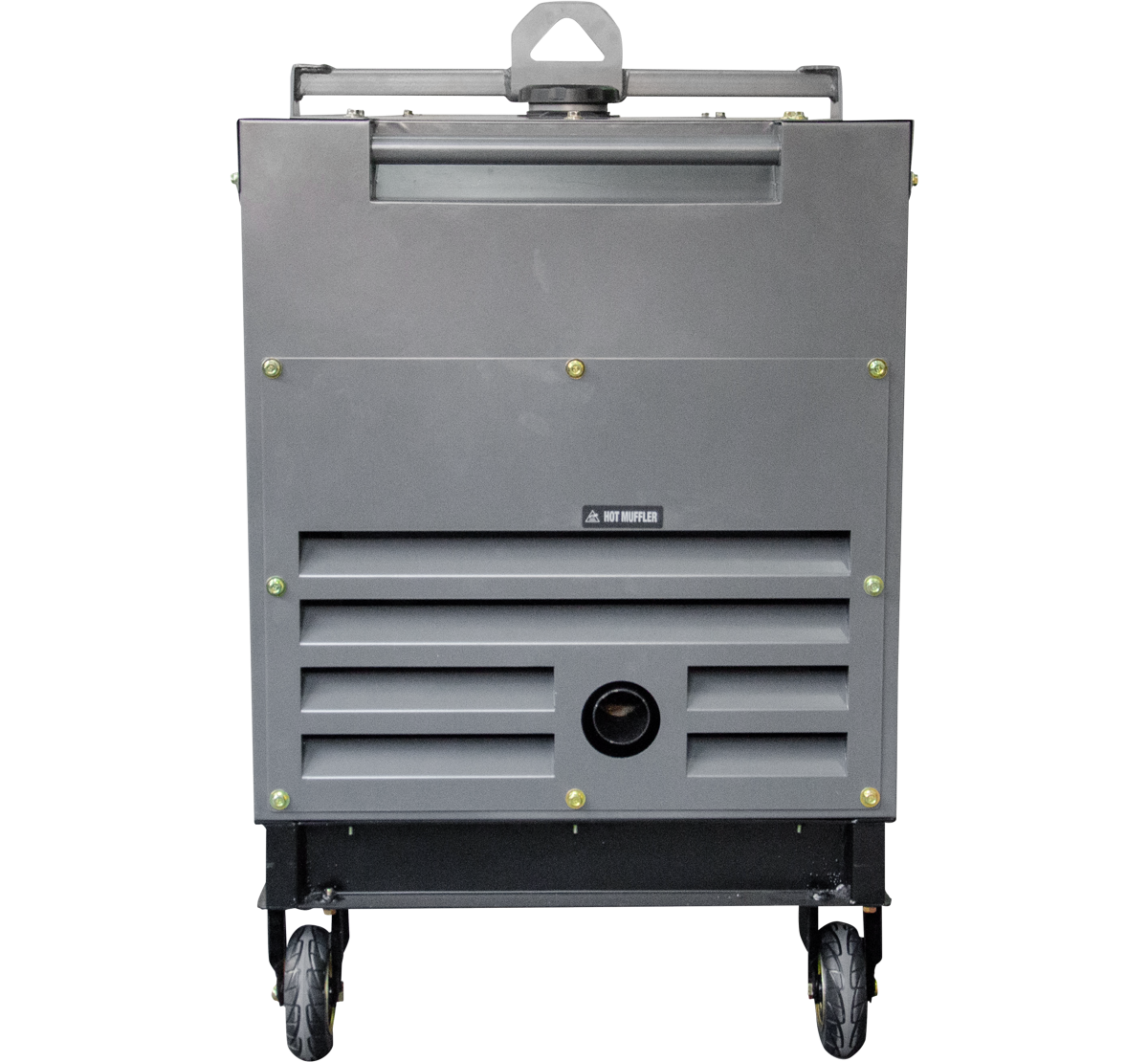

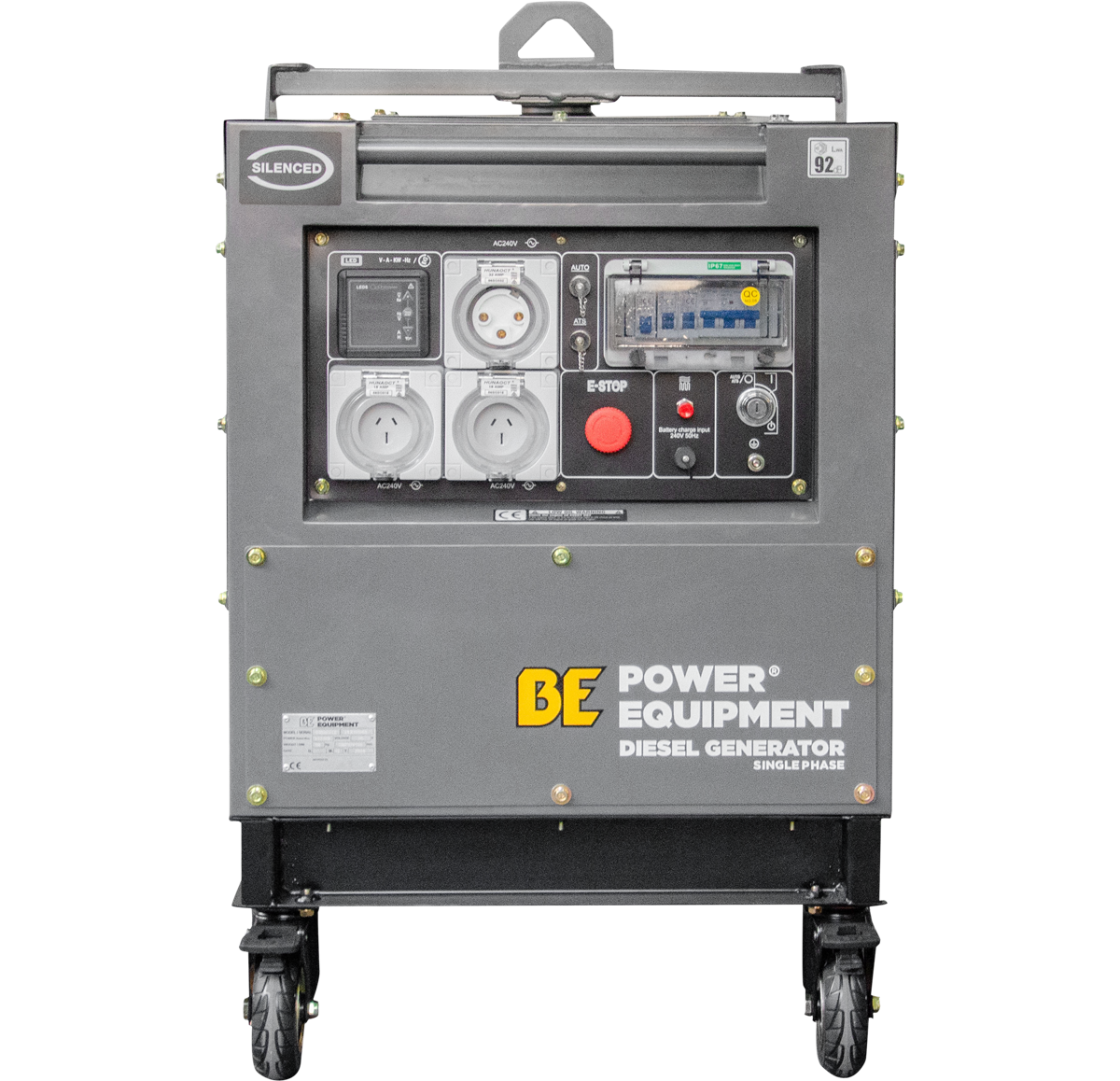

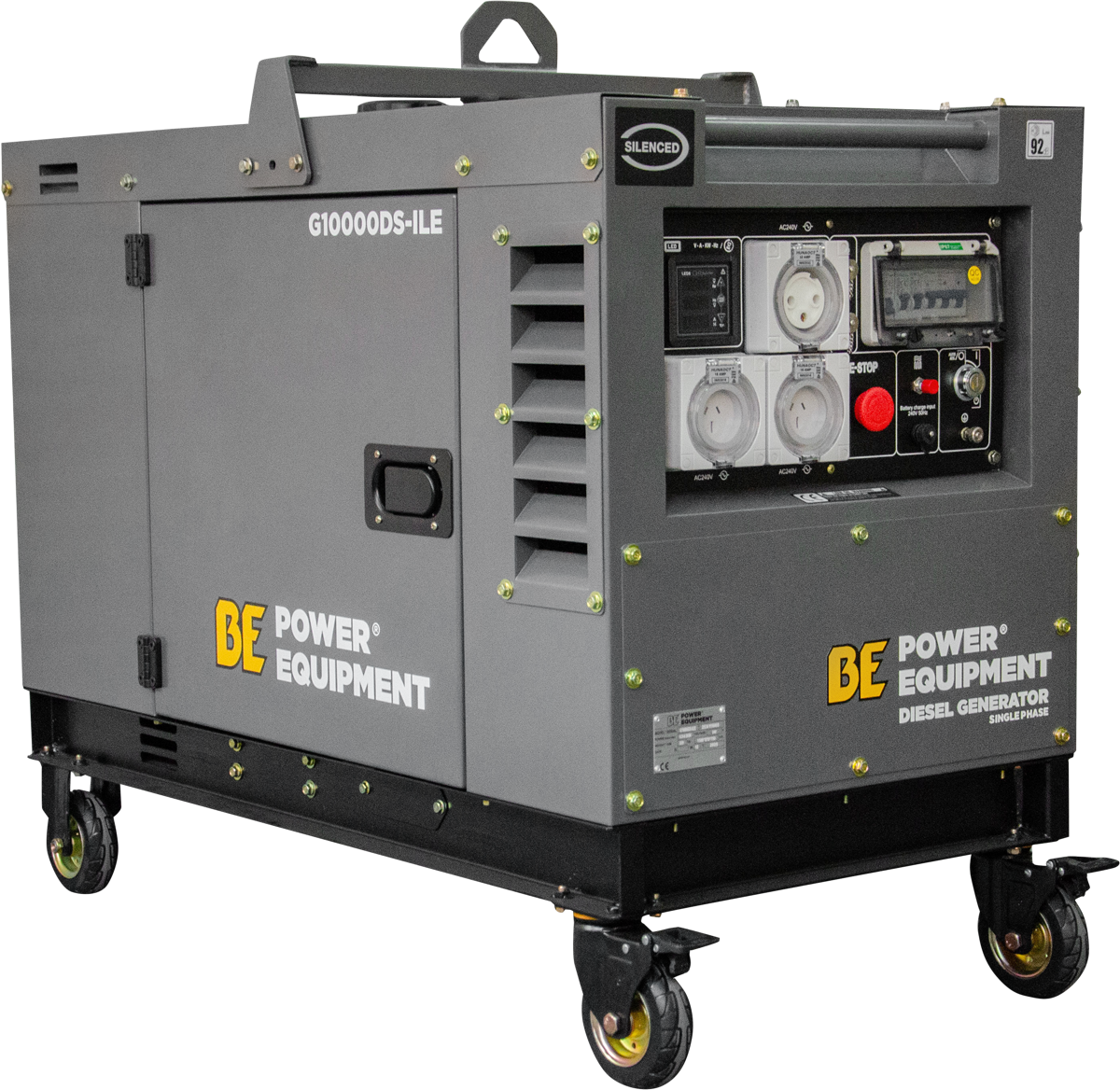

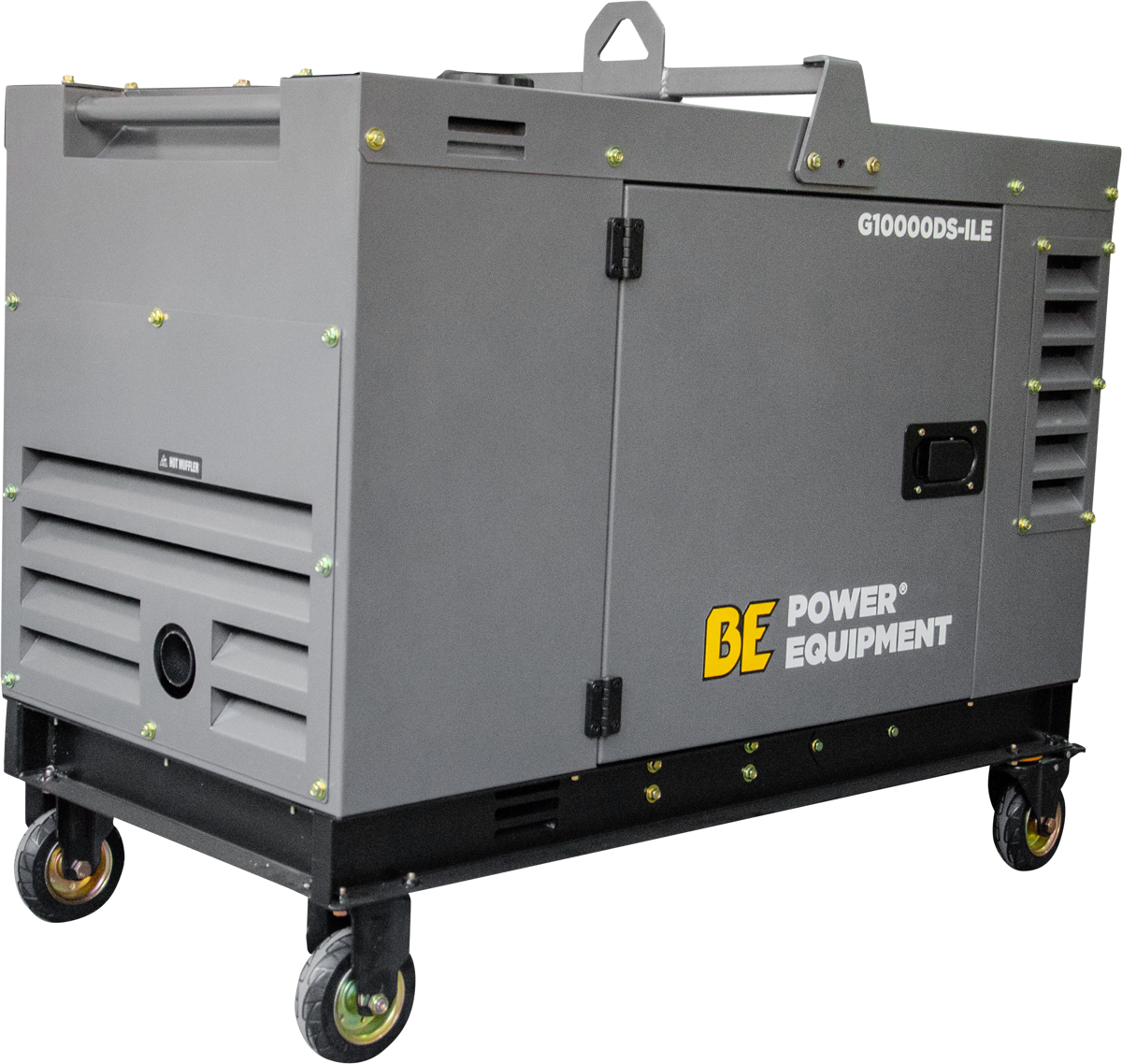

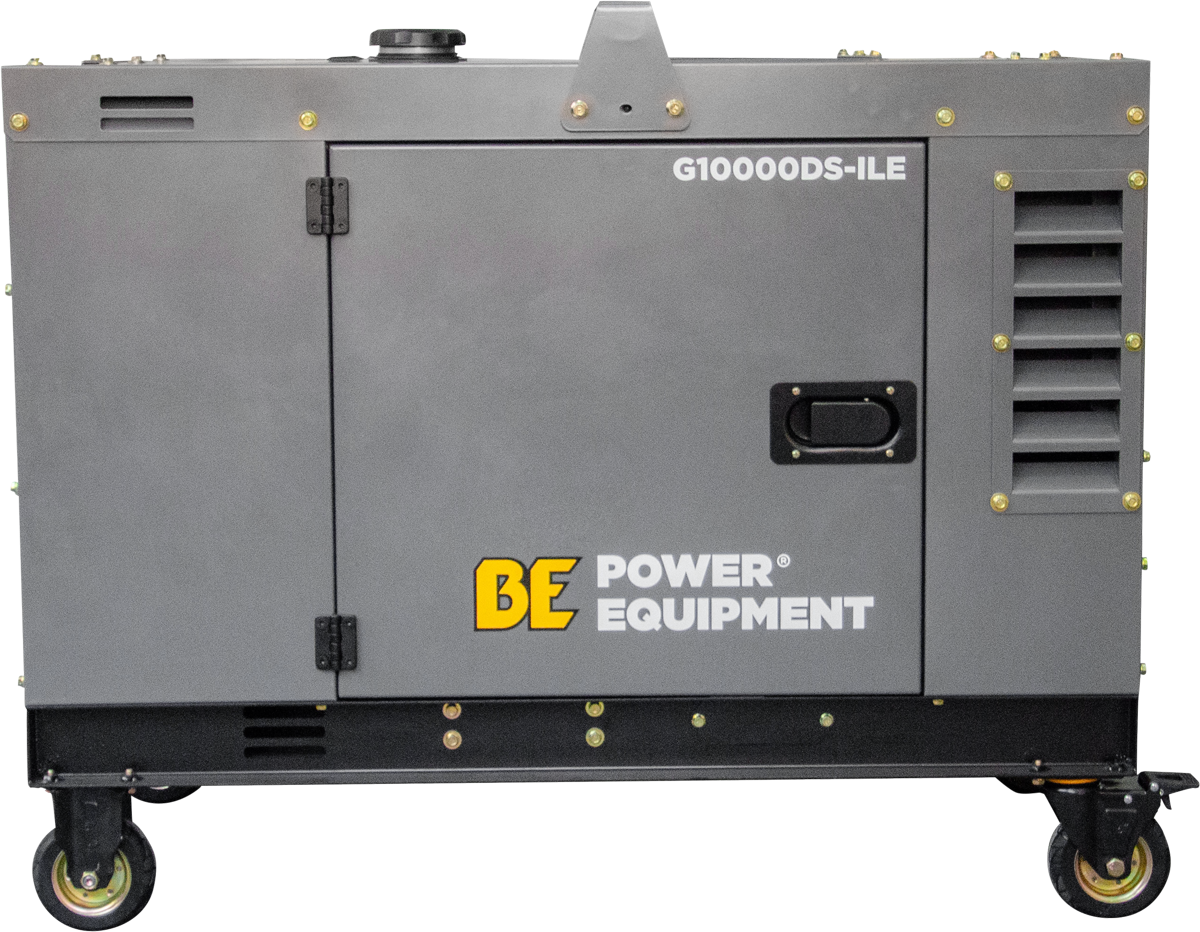

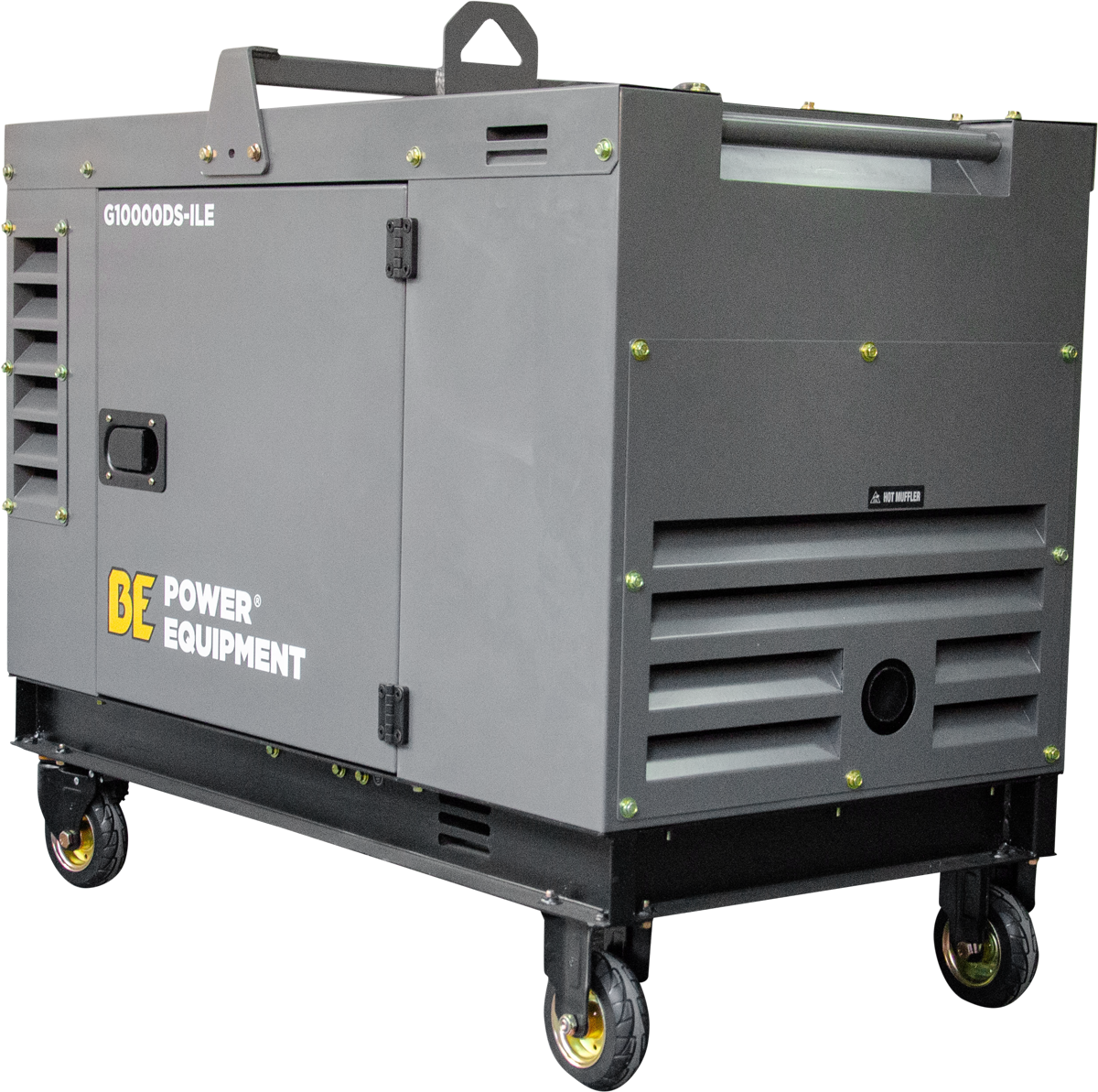

BE 10kVA Single Phase electric start single phase silent diesel generator. 123 G10000DS-ILE is the latest design of single cylinder diesel generator. 8kw 10kVA clean power output and low noise make it a reliable source of backup electrical power for your business or home yet is portable enough for field work.

• IP66 Outlets with MCB
• On Board Battery Charger
• Supler Clean Power Output <5% THD
• Automatic Voltage Regulation
• 2-Wire Start Ready
• ATS Ready
• Emergency Stop
• 4 Wheel Kit

Specifications

• Voltage: 240 V
• Continuous Rated Watts: 8 kW
• Peak Rated Power: 8.5 kW
• Frequency: 50 Hz
• MAX Current: 35 A
• Outlets (A): 2 x 15A 240V & 1 x 32A 240V
• Alternator Model: AL8
• Power Factor: 1
• Total Harmonic Distortion % (THD): <5%
• Engine Model: D680E
• Run Time @ 75% Load: 10
• Fuel Tank: 25 L
• Noise Level @ 7 M: 72 dBA
  Engine Power: 15 HP
• Engine Displacement: 678 CC
• Starting Type: Electric
• Voltage Regulation: Brush / AVR
• RCD/M.E.N Link: No
• On Board Battery Charger: Yes
• 2-Wire Start Ready: Yes
• ATS Ready: Yes
• Emergency Stop: Yes
• Wheel & Handle Kit: Castor Wheels
• Lifting Point / Bar: Yes
• Net Weight: 225 kg
• Gross Weight: 243 kg
• Product Dimensions (cm): 108 x 57 x 75
• Individual Carton Size (cm): 112 x 61 x 87
