Features

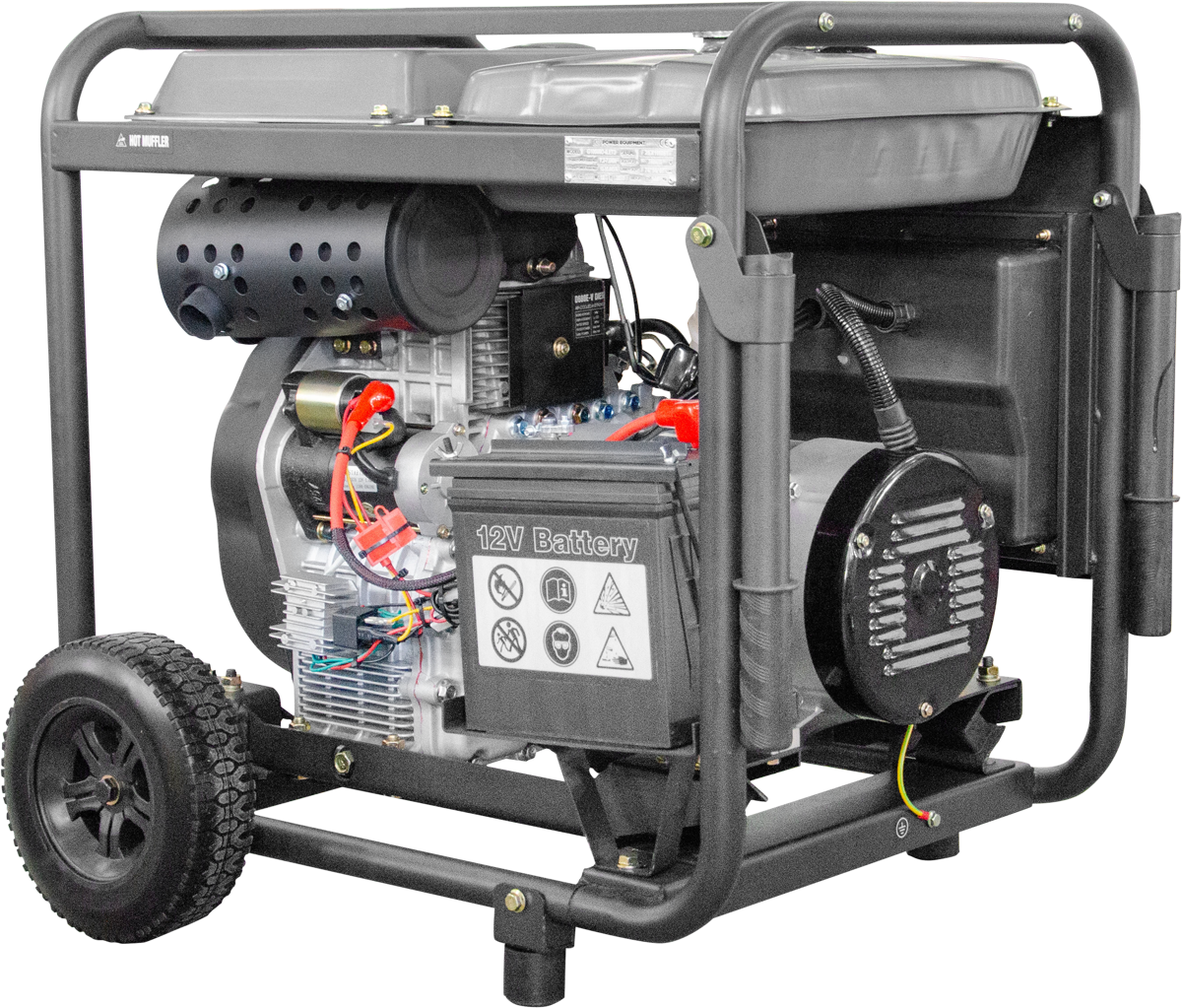

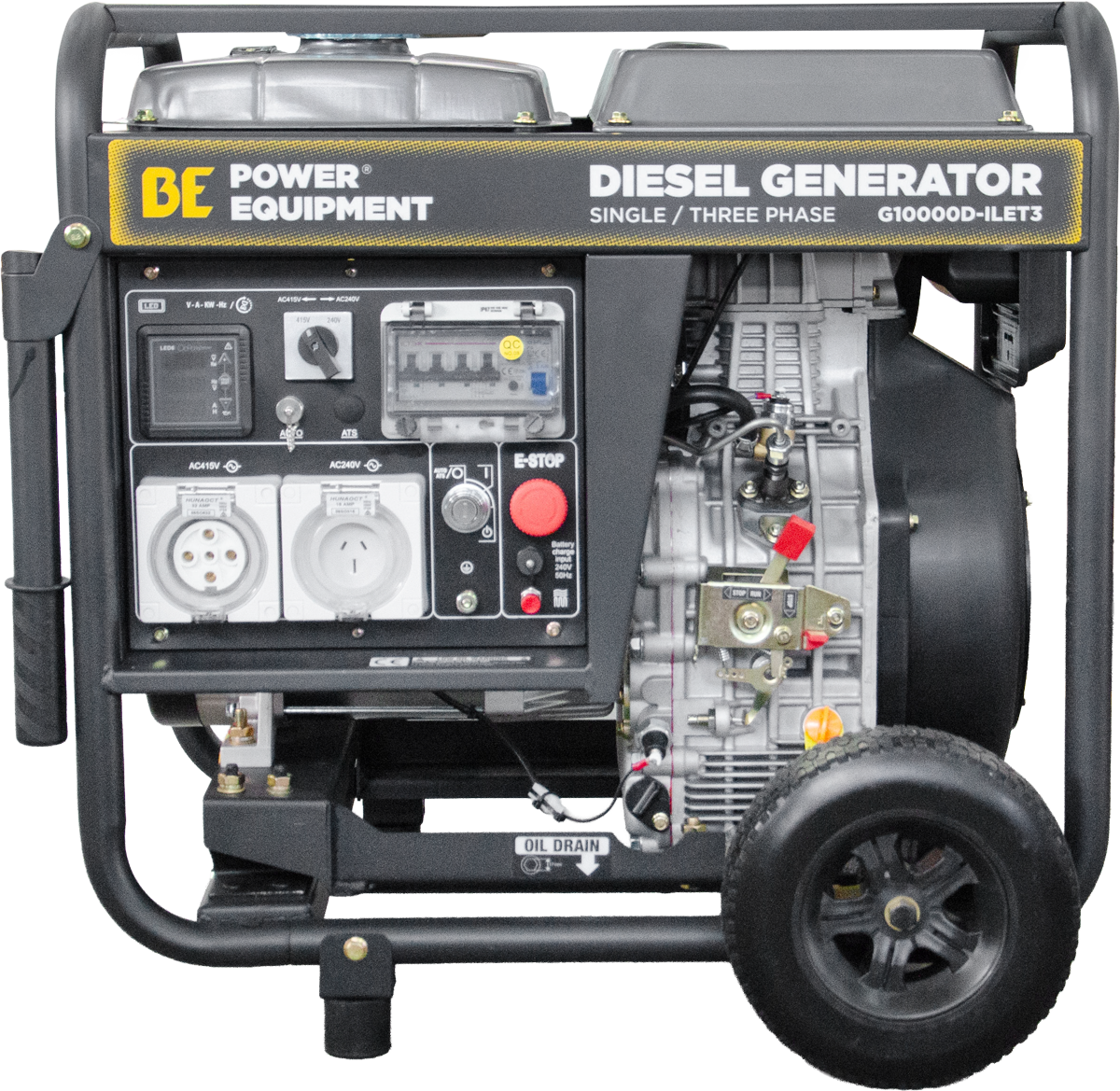

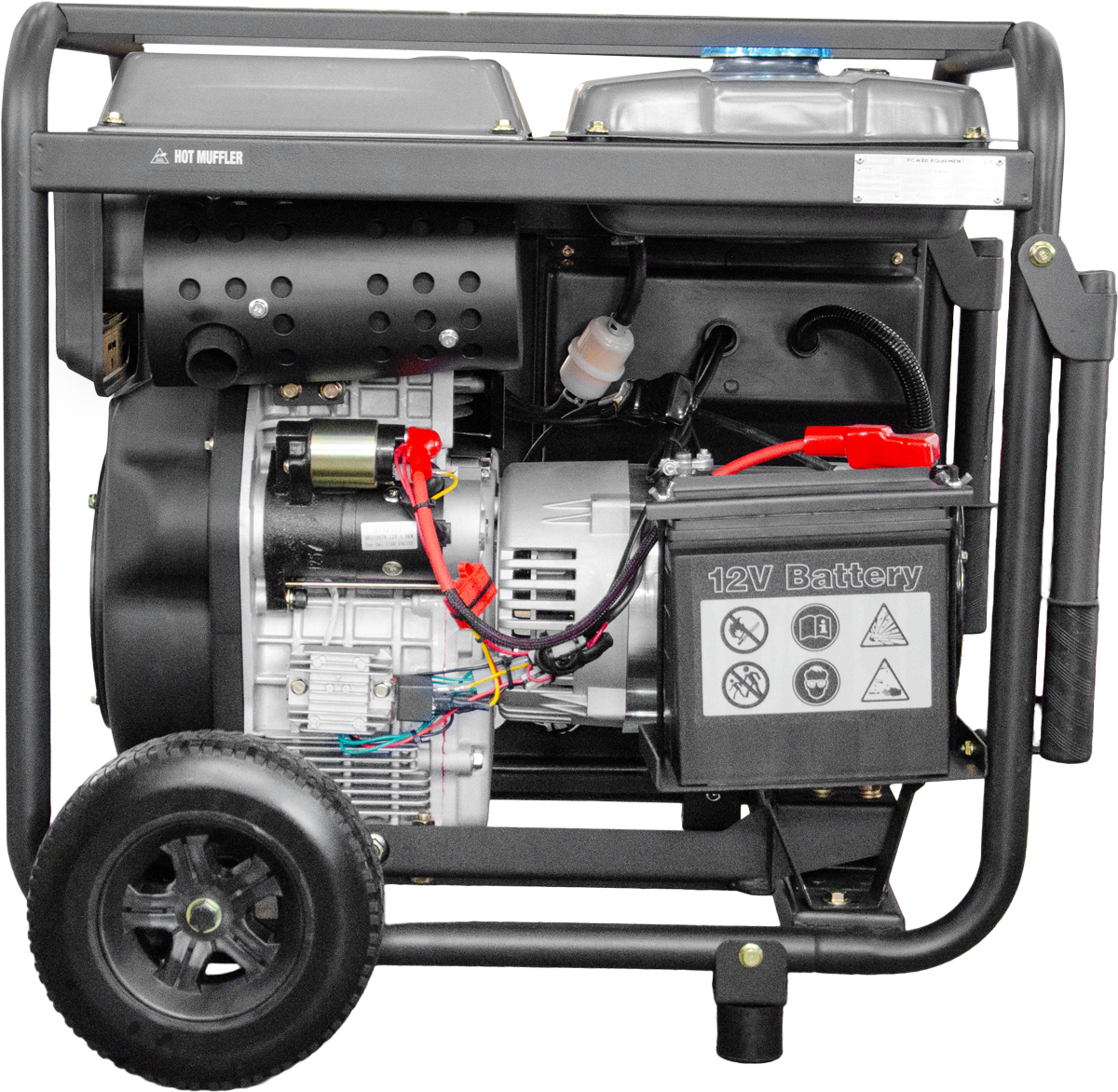

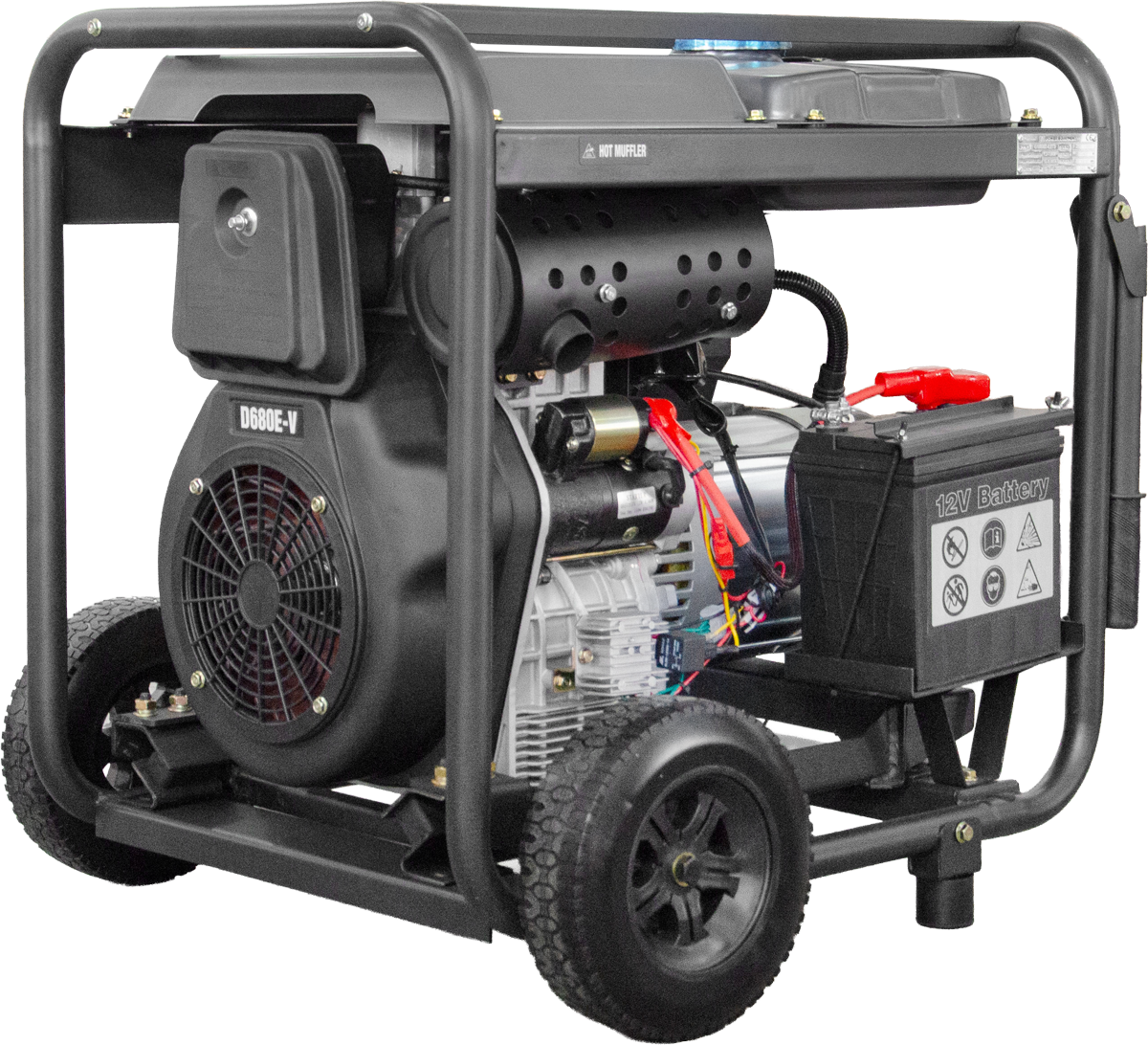

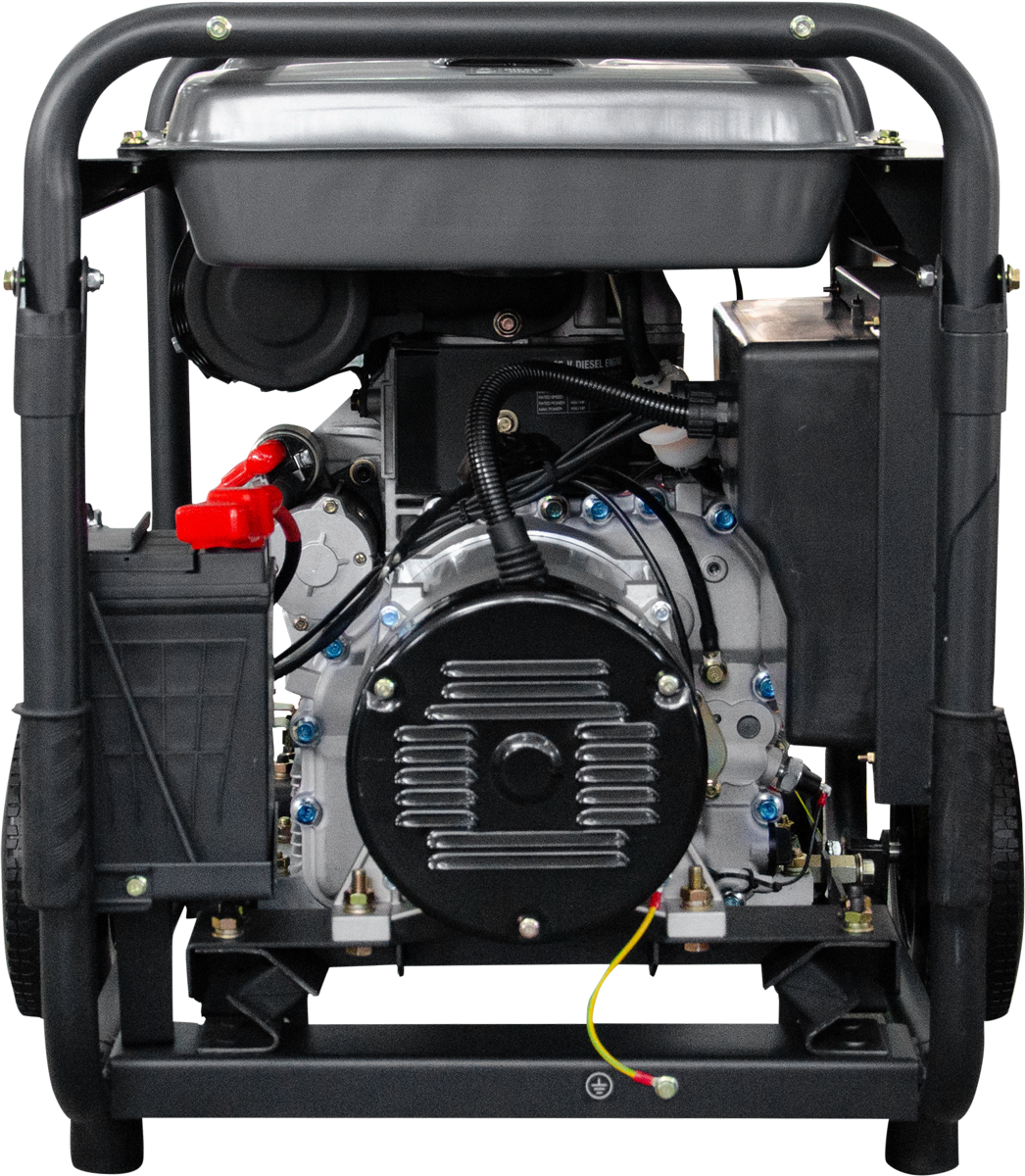

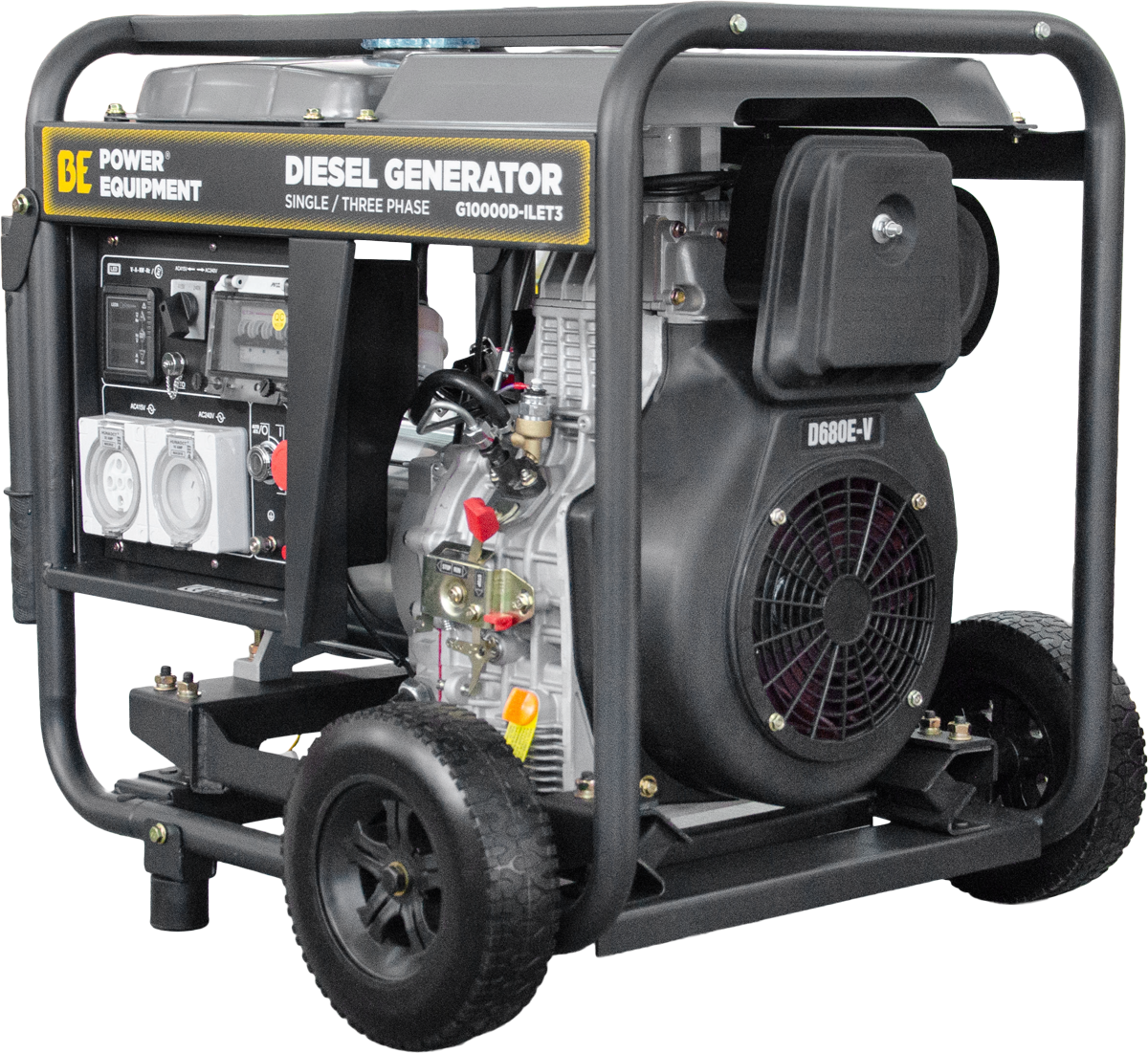

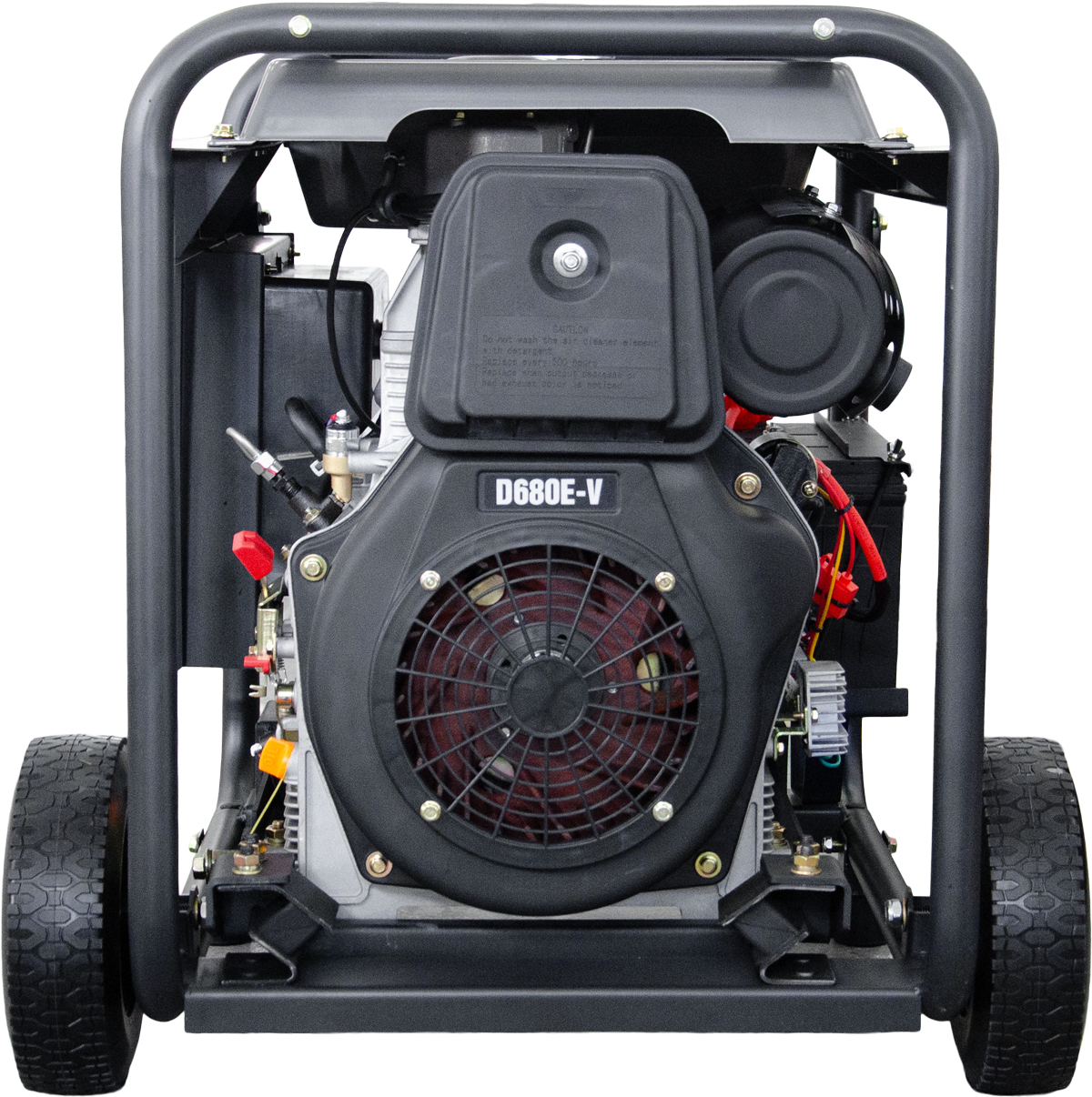

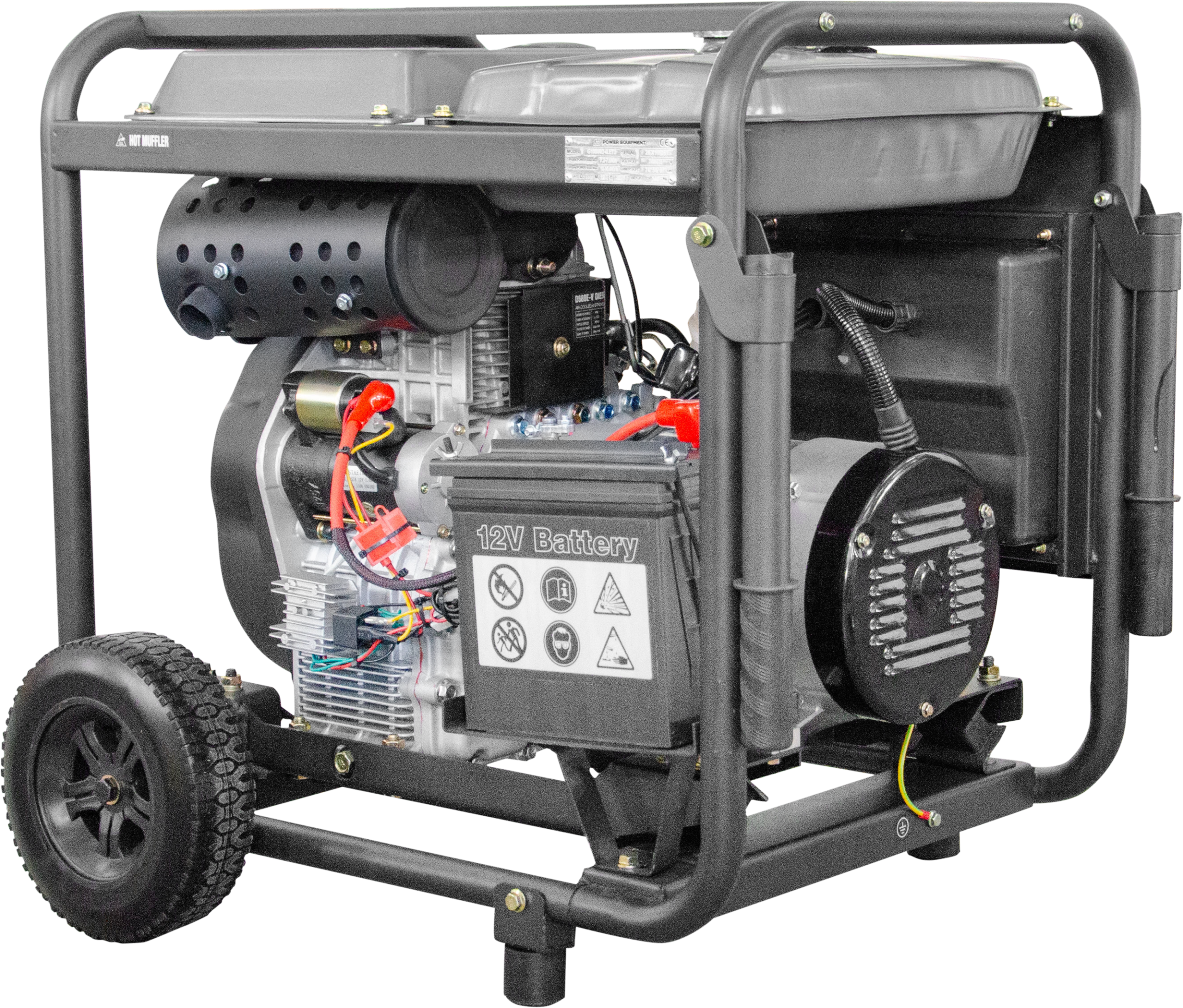

BE 10kVA Switchable 3-Phase / Single Phase electric start open frame diesel generator with RCD. Ideal for standby site use, commercial use, tradesmen or simply home / garage use. The 123 G10000D-ILET3 is powered by a 668cc / 15hp economical single cylinder 4-Stroke diesel engine.

• RCD & IP66 Outlets
• Supler Clean Power Output <5% THD
• Automatic Voltage Regulation
• On Board Battery Charger
• 2-Wire Start Ready
• Emergency Stop
• Wheel & Handle Kit

Specifications

• Voltage: 240 / 400 V
• Continuous Rated Watts: 7.2 kW / 10 kVA
• Peak Rated Power: 7.6 kW / 10.6 kVA
• Frequency: 50 Hz
• MAX Current: 33 / 15.3 A
• Outlets (A): 15A 240V & 32A 415V
• Alternator Model: AL8-3
• Power Factor: 1 / 0.8
• Total Harmonic Distortion % (THD): <5%
• Engine Model: D680E
• Run Time @ 75% Load: 4
• Fuel Tank: 10 L
• Noise Level @ 7 M: 79 dBA
  Engine Power: 15 HP
• Engine Displacement: 678 CC
• Starting Type: Electric
• Voltage Regulation: Brush / AVR
• RCD/M.E.N Link: Yes
• On Board Battery Charger: Yes
• 2-Wire Start Ready: Yes
• ATS Ready: No
• Emergency Stop: Yes
• Wheel & Handle Kit: Yes
• Lifting Point / Bar: No
• Net Weight: 140 kg
• Gross Weight: 148 kg
• Product Dimensions (cm): 76 x 55 x 67
• Individual Carton Size (cm): 78 x 57 x 70
