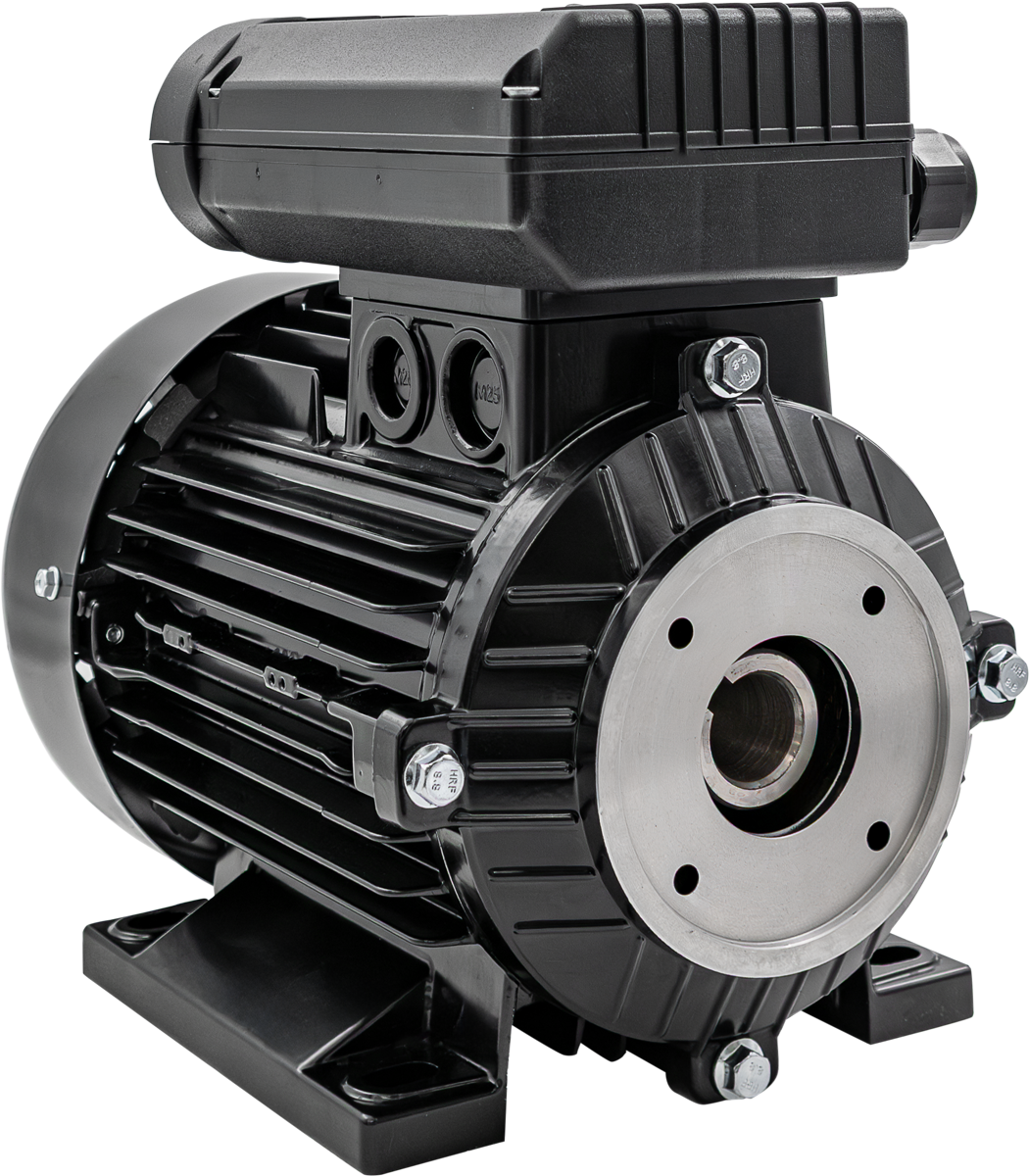

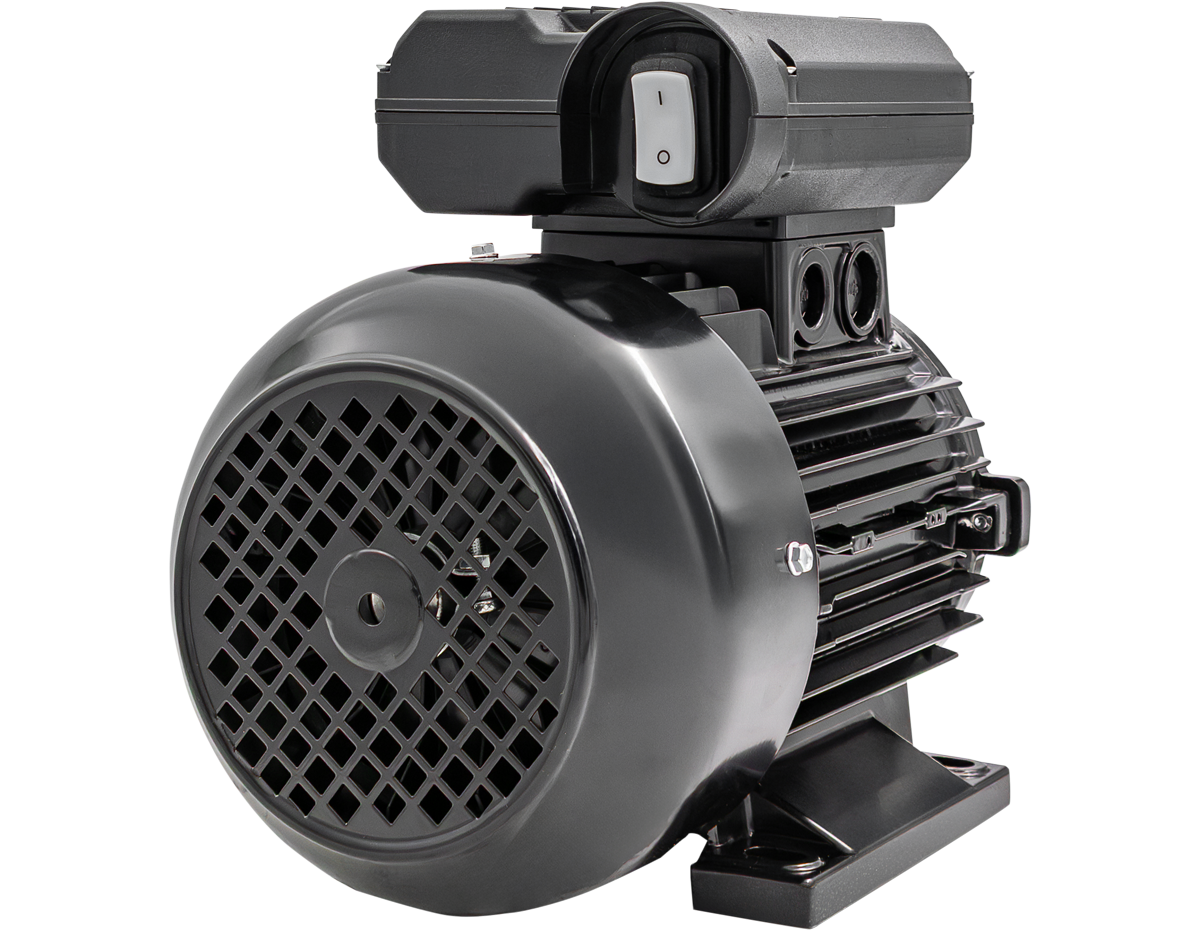

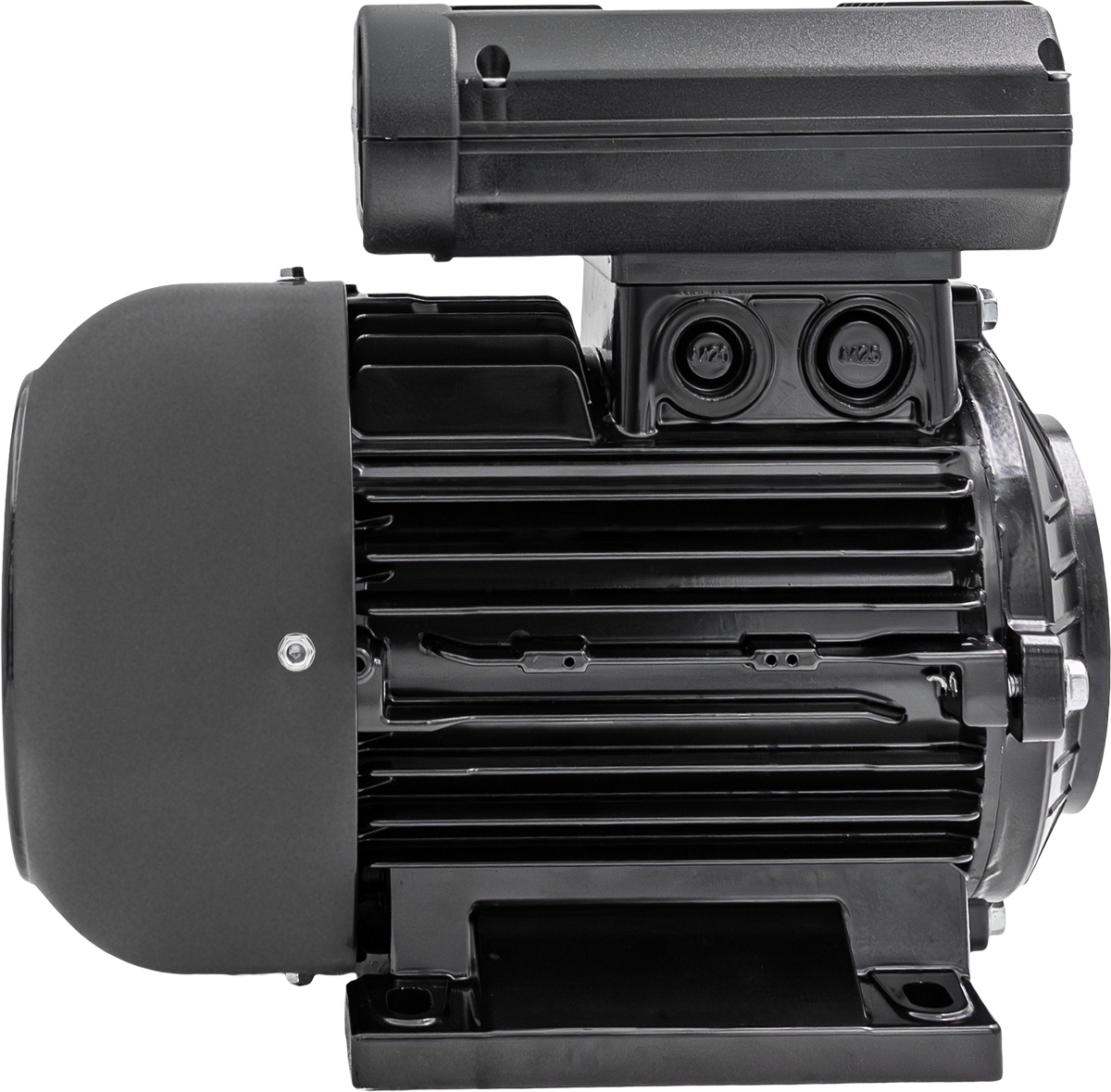

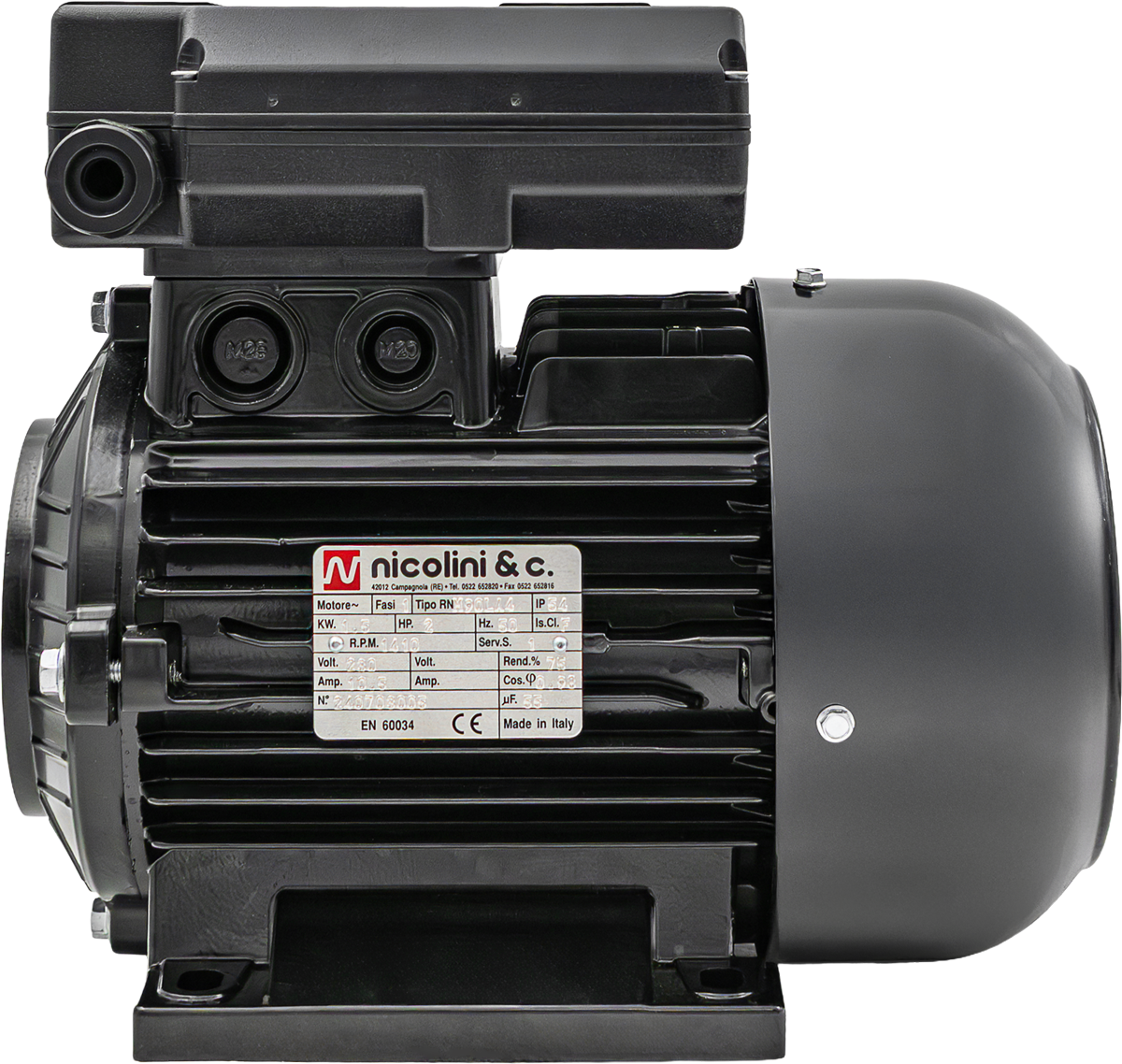

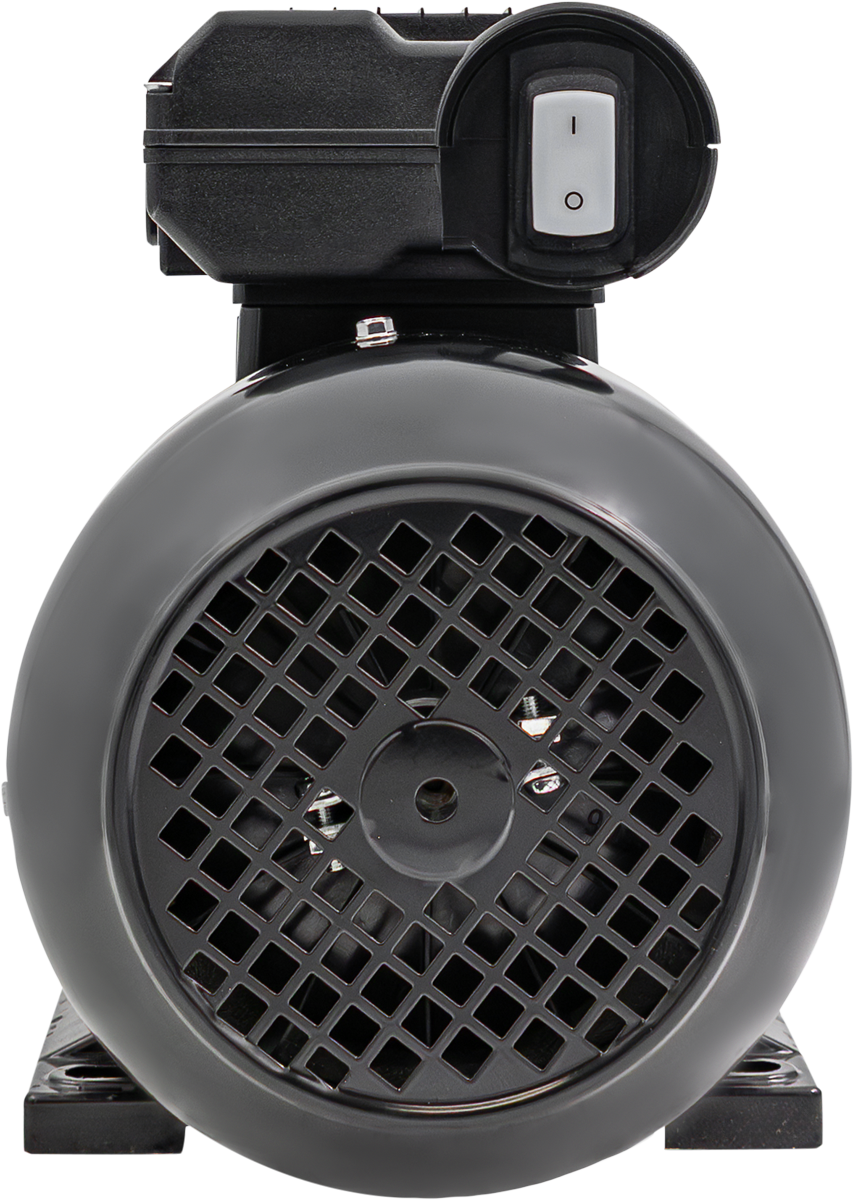

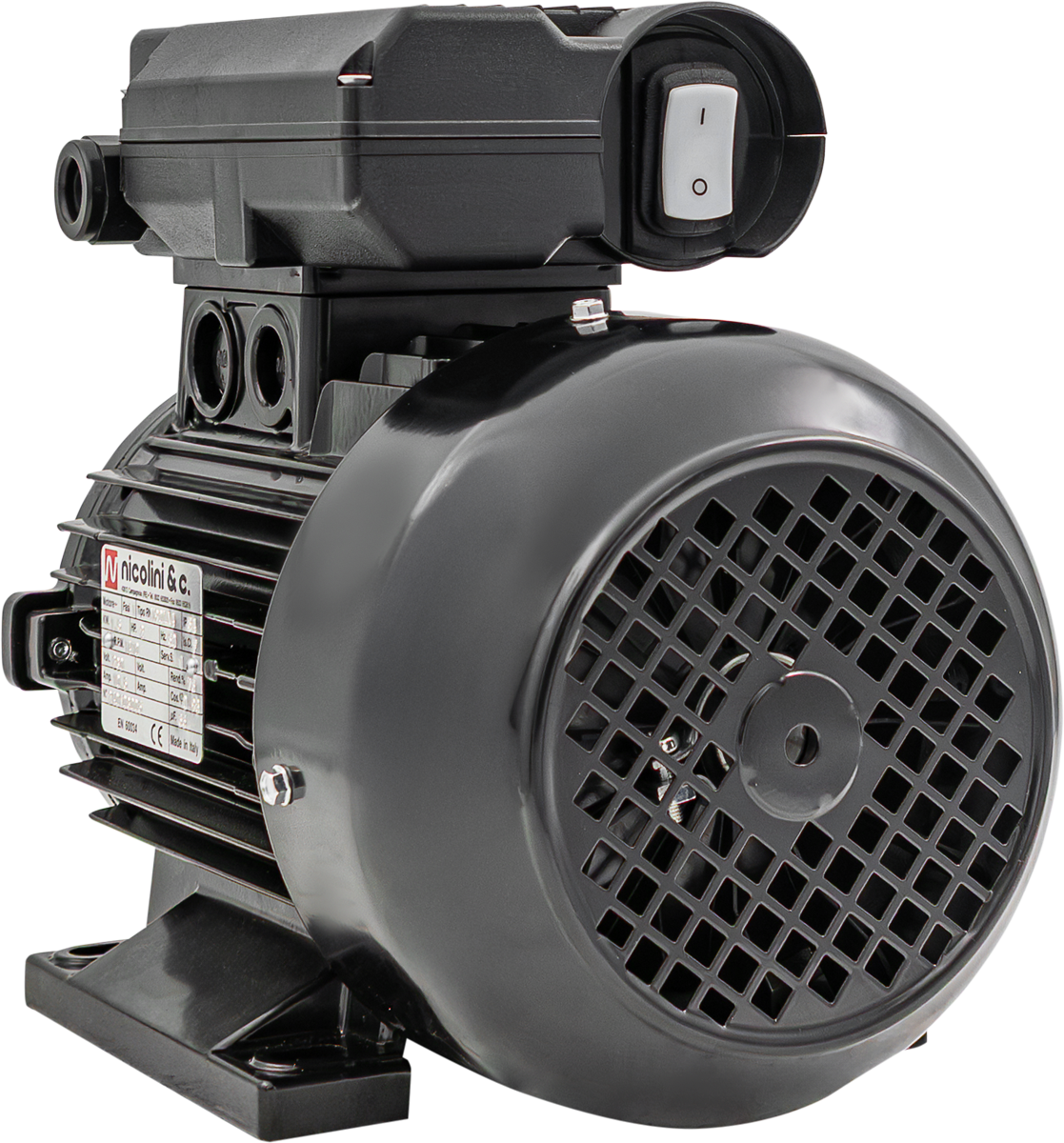

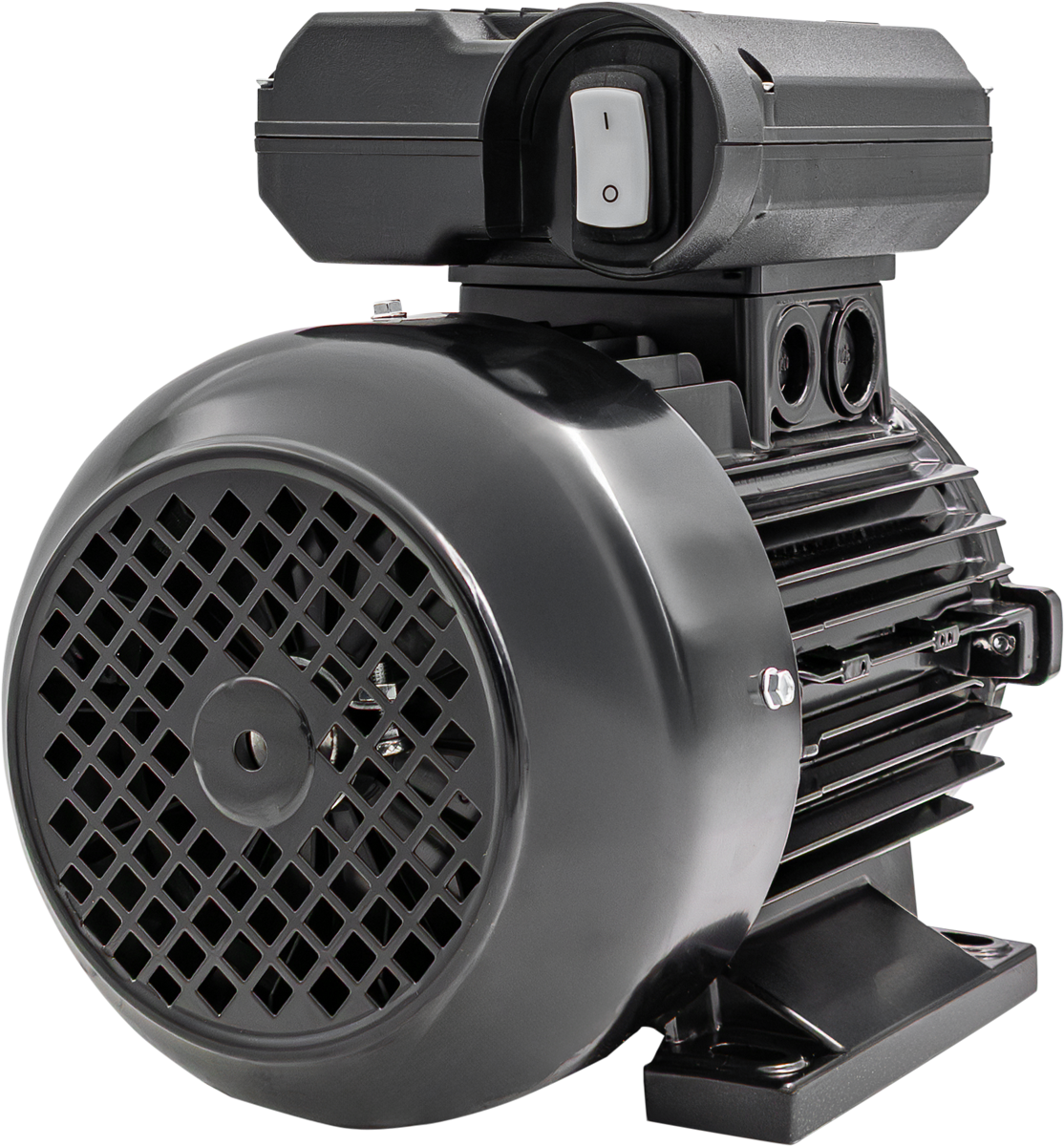

Nicolini 1.5 kW Hollow Shaft c/w Switch Box and Switch

Features

• The Italian made hollow shaft electric motors are designed to allow direct connection with plunger pumps.
• Nicolini & C hollow shaft motors are designed with a single-bearing configuration and high-precision machining.
• Tight tolerances and excellent concentricity ensure a perfect and natural coupling between motor and pump.
• Main advantages:
  • Automatic alignment
  • Reduced bearing wear
  • Long-term reliability

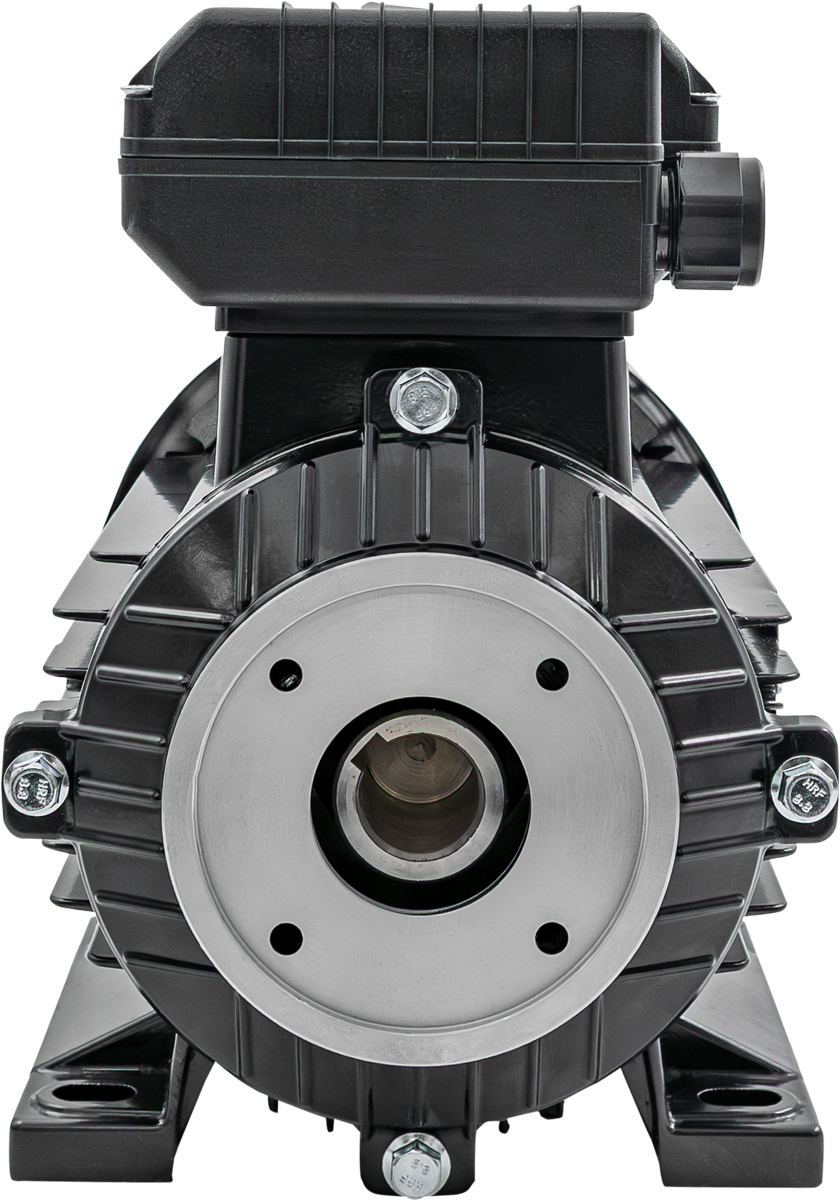

• The hollow shaft enables efficient torque transmission, eliminating mechanical constraints and preventing micro-misalignments.

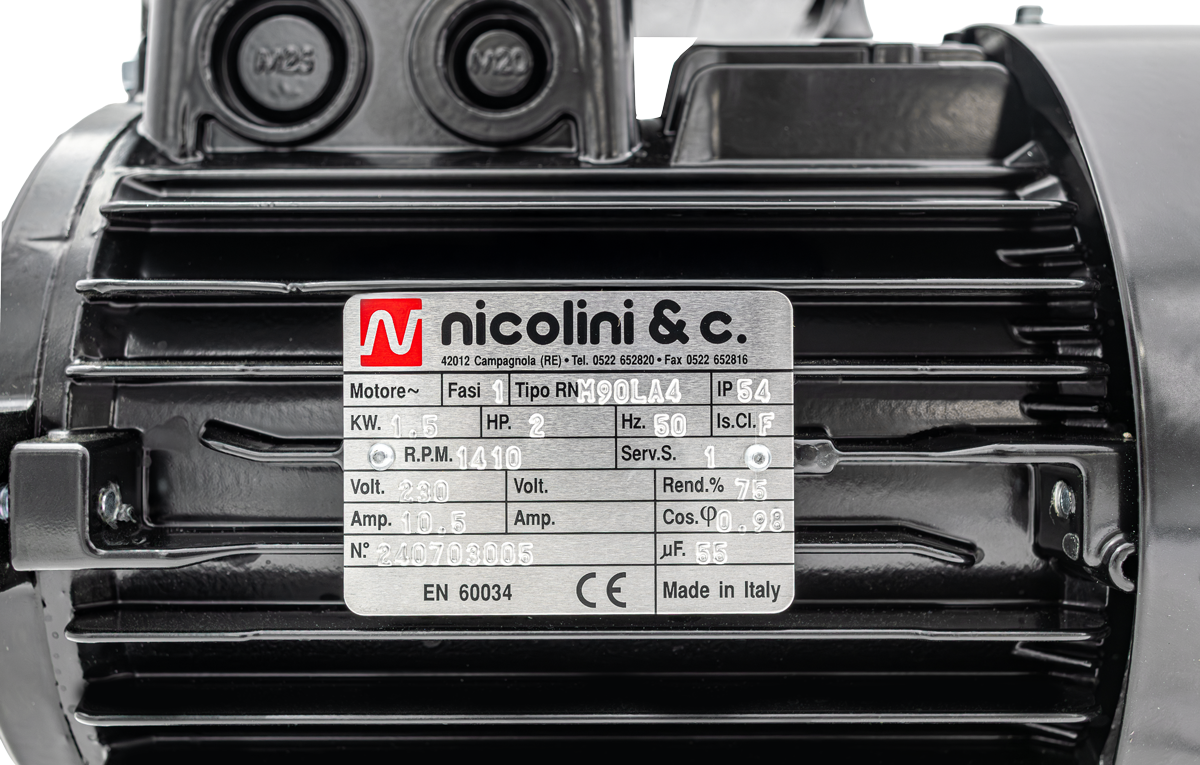

Specifications

• Type: RNM90La4
• Power: 1.5 kW – 2 HP
• Speed: 1,410 RPM – 4poles
• Voltage: 240V
• Frequency: 50Hz
• Service: S1 (IE1)
• Insulation: Class F
• Protection degree: – IP54

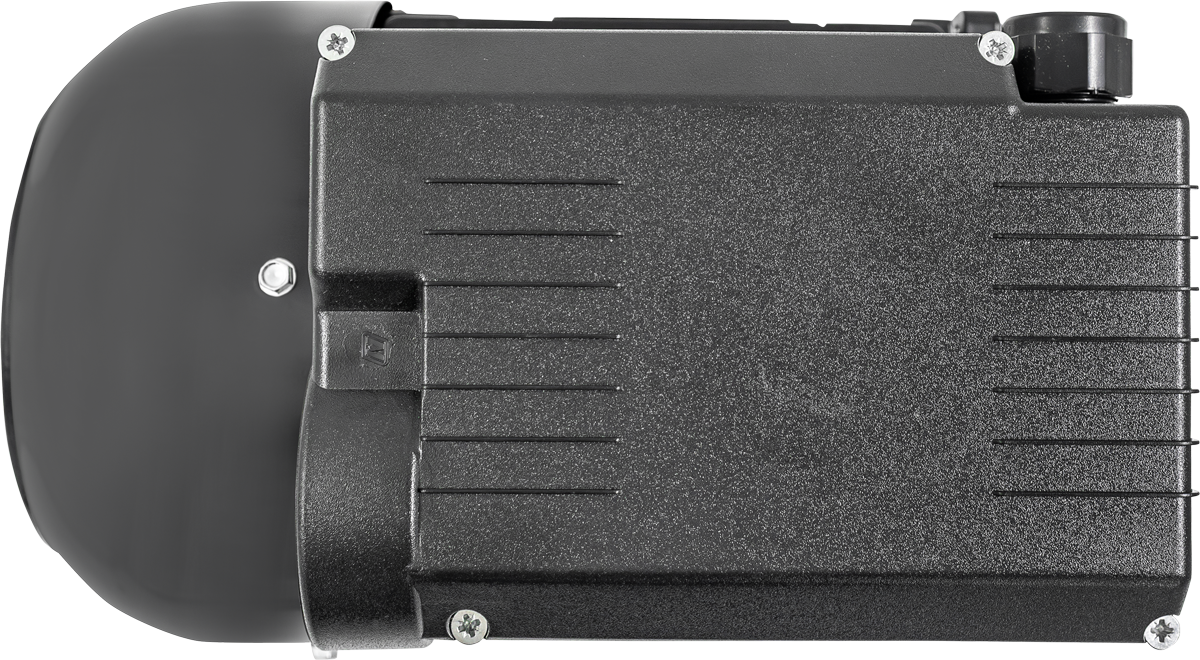

• Box cover: on top, in plastic
• Frame dimension: – IEC90L
• Form: Hollow Shaft
• Colour: Black RAL9005 (epoxy painted)
