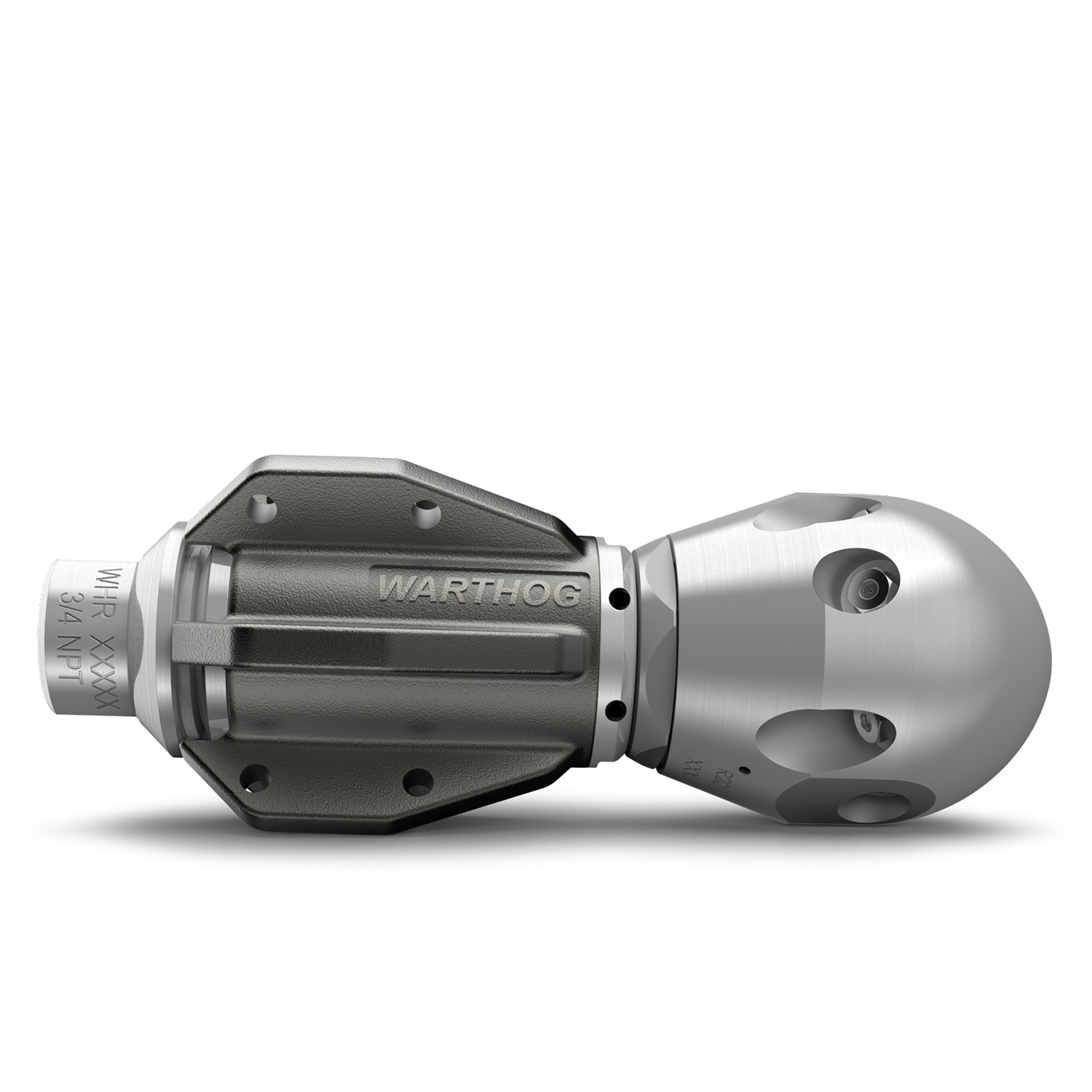

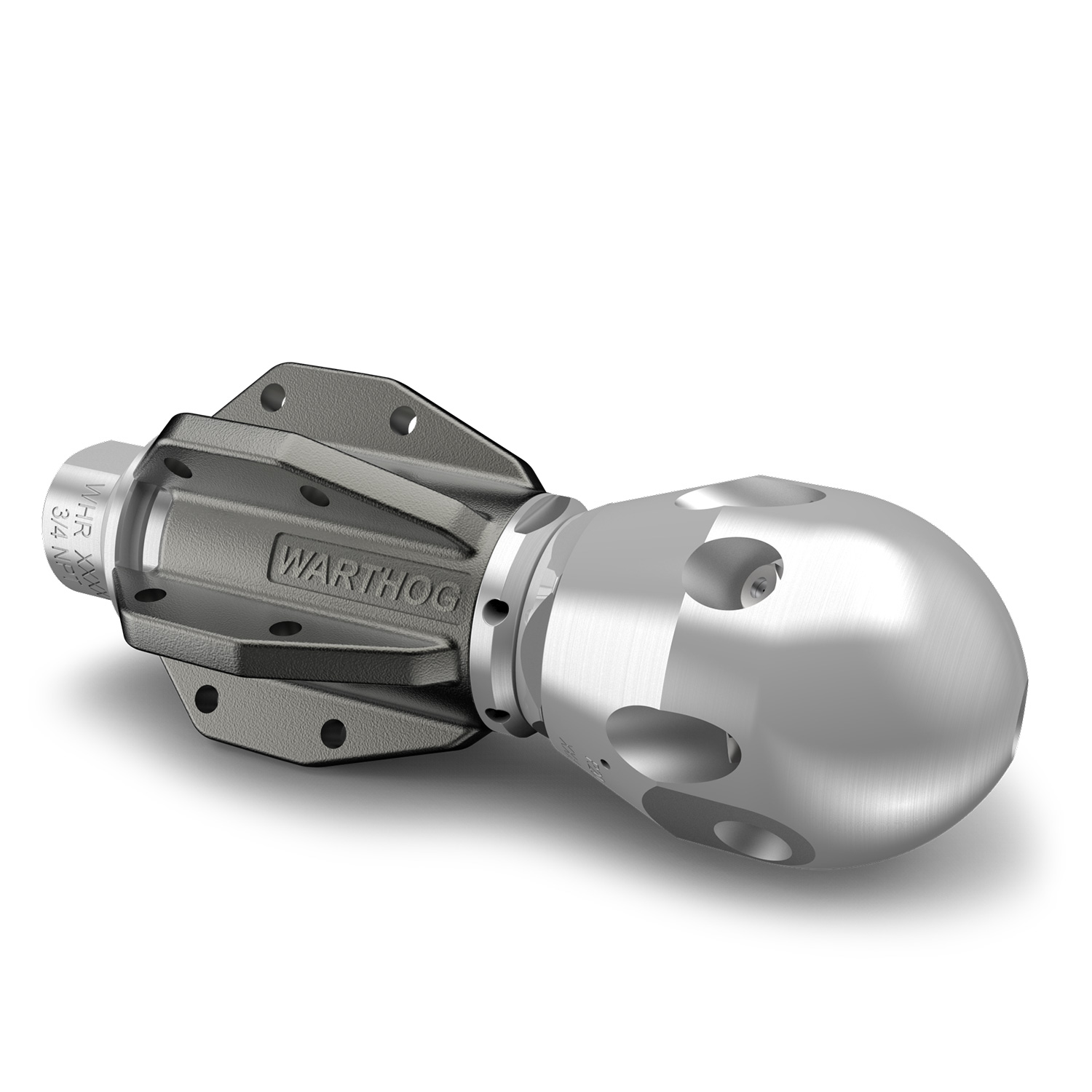

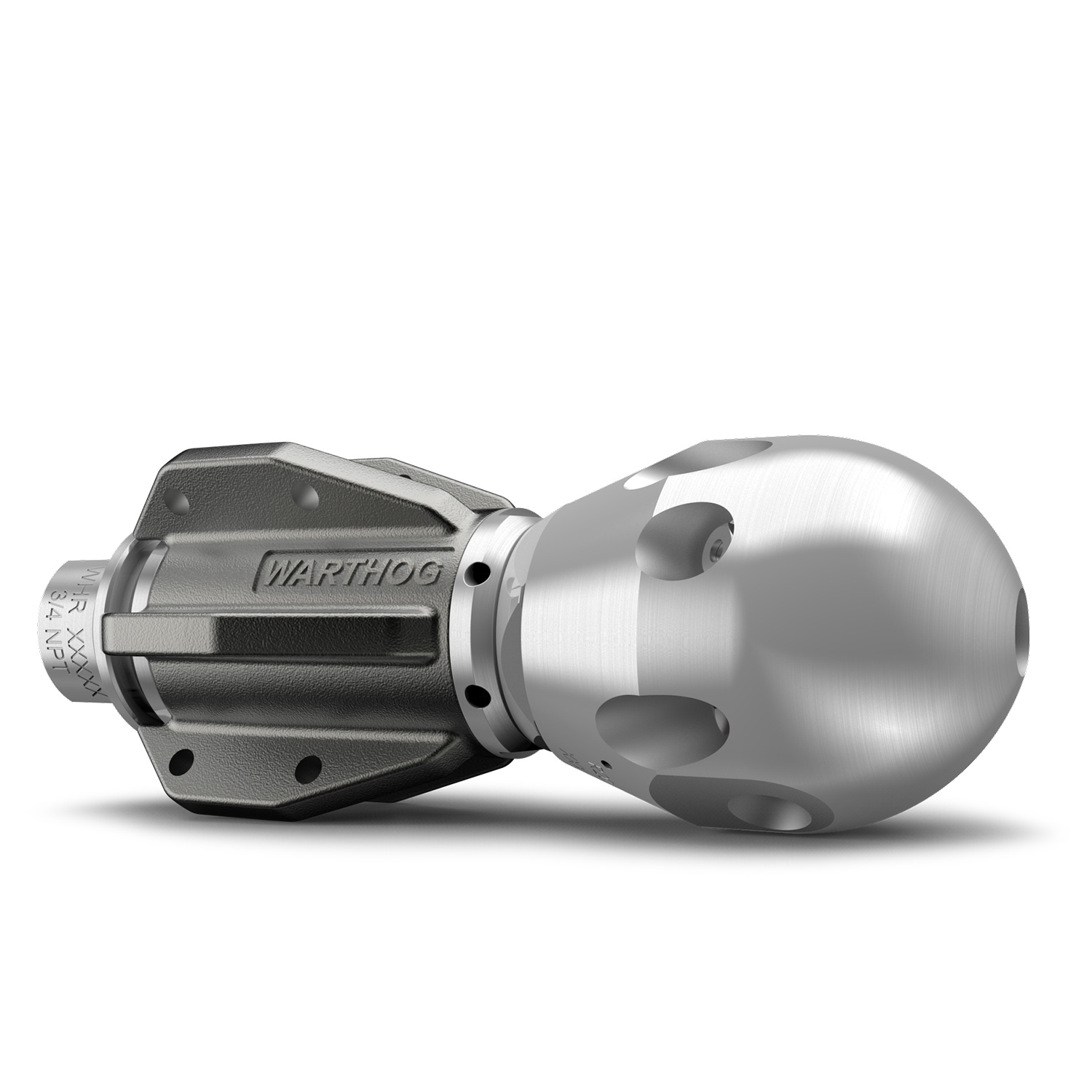

WHR Magnum Hybrid Switcher Package, 1″ NPT or BSPP (P16, BSPP16)
- The WHR Magnum is designed to penetrate tough deposits in 6-18″ lines and is often used with combination trucks and large trailer jetters.
- Like two tools in one, this Switcher model allows full flow to be sent to cleaning jets OR towards pulling and flushing – all while the tool remains in the pipe. Operators can turn on the pulling jets to run down the pipe, then switch to descaling jets to clean and unplug, completing jobs with half the runs and less water, time, and money.
Features
- The only nozzle of its kind in the industry
- Switches water between pulling and cleaning jets
- Engineered to handle recycled water
- Access ports enable viscous fluid change without disassembly for easy field maintenance
- Tool profile keeps seals protected and prevents hang-ups
- 1″ inlet option allows for higher flow
- 6-fin unibody design allows steeper rear jets for max pulling/flushing
- Extended service life for up to 1600 hours without maintenance
Specifications
- Length: 180 mm
- Weight: 3 kg
- Pressure Range: 1,200 – 5,000 PSI
- Max Pressure: 5,000 PSI
- Flow Range: 76 – 190 L/min
- Inlet Connection: 3/4″ NPT (P12), 3/4″ BSPP (BSPP12)
- Pipe Size: 150 – 450 mm
- Nozzle Type: CNP2
- Diameter: 92 mm
- Head Type: Switcher
- Recycled Water: Yes
- Service Interval: 1,600 hr
