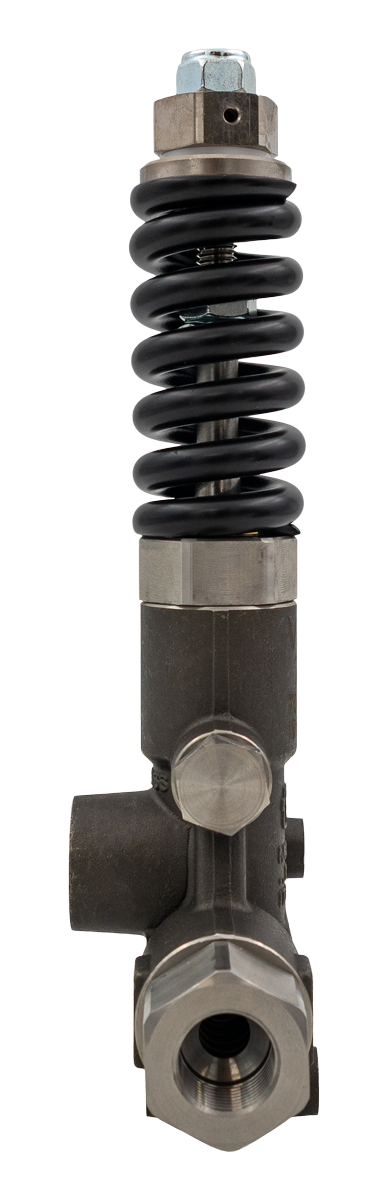

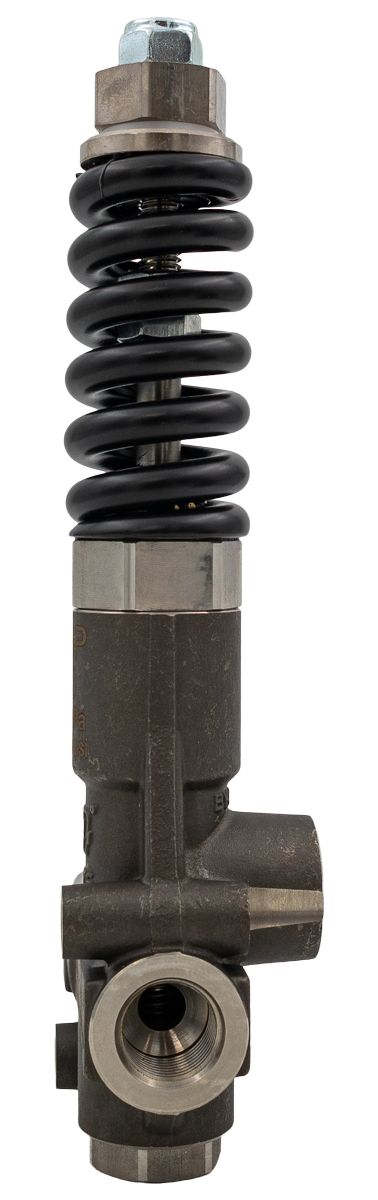

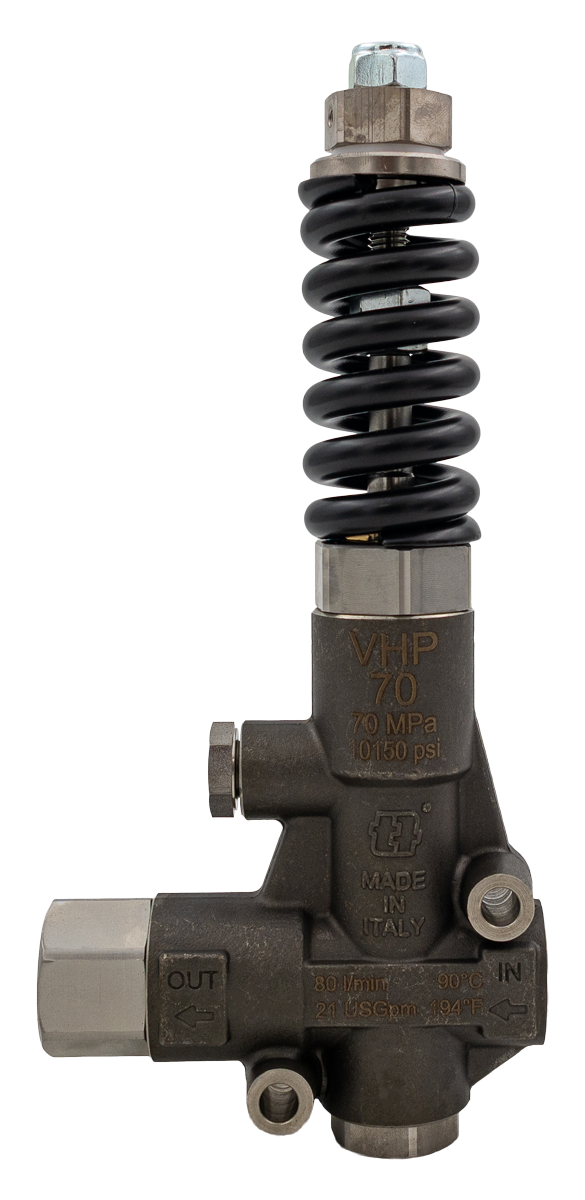

VHP70 Unloader 9280 PSI S/S
Features
- Positioning of all O-Ring seals before the threads, for greater mechanical strength.
- New shutter axially guided, for greater stability at high flow rates.
- Stainless Steel seat and shutter of new shape, designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life.
- Stem with new internal anti-rotation system, for greater life.
- Stem O-Ring seal Ø 3,53 (0.14”) is placed fixed on the connecting stem guide to allow the stroke of the Stainless Steel stem on O-Ring, increasing the life.
- Maximum pressure safety lock.
- Minimum and Maximum pressure regulation lock.
- All metallic parts are in stainless steel AISI 303.
Specifications
- Rated pressure: 9,000 PSI
- Permissible pressure: 10,150 PSI
- Max flow: 79.5 L/min
- Rated Temperature: 90?
- Spring colour: Black
- Inlet/Outlet/Bypass: G1/2 fF
- Weight: 2,150 g
