Features

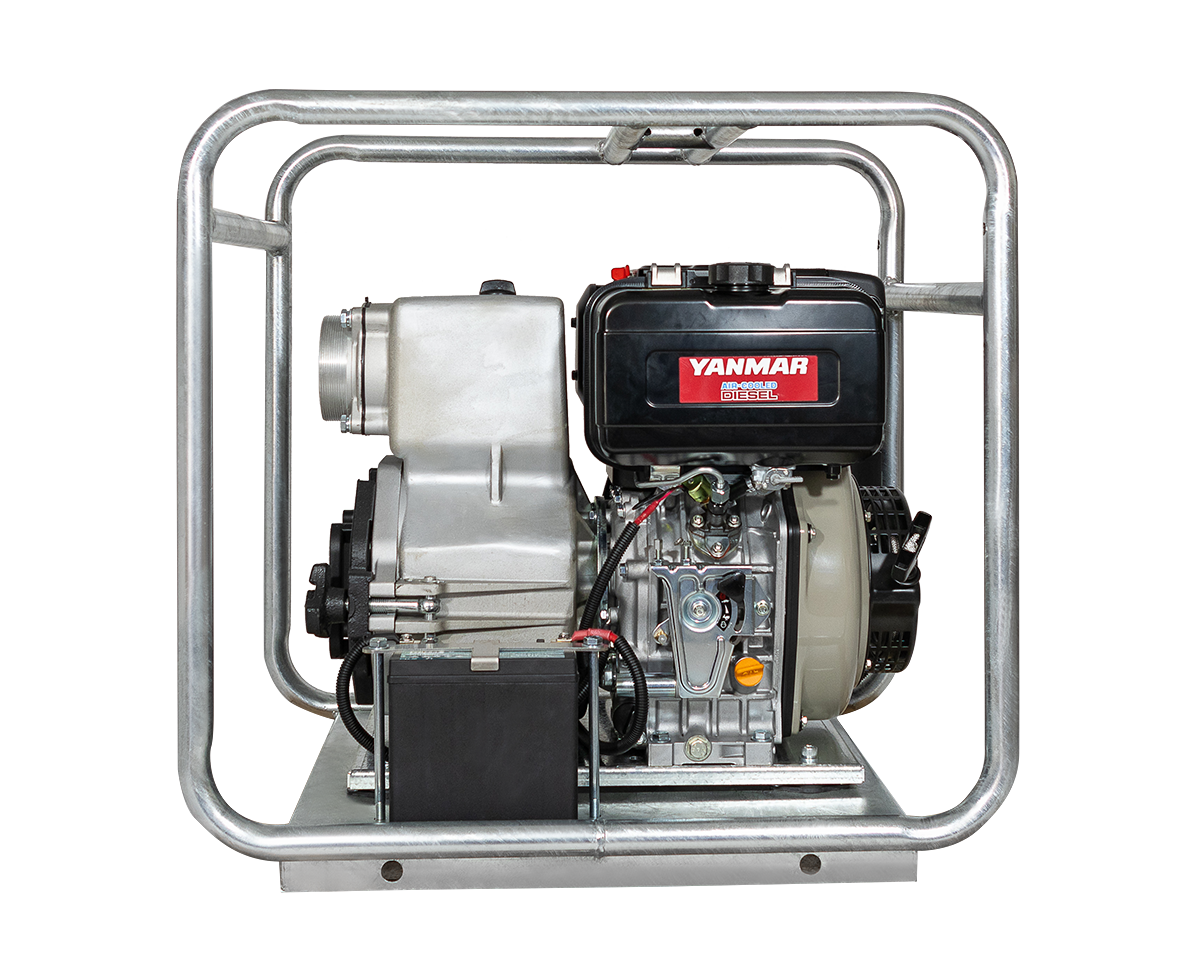

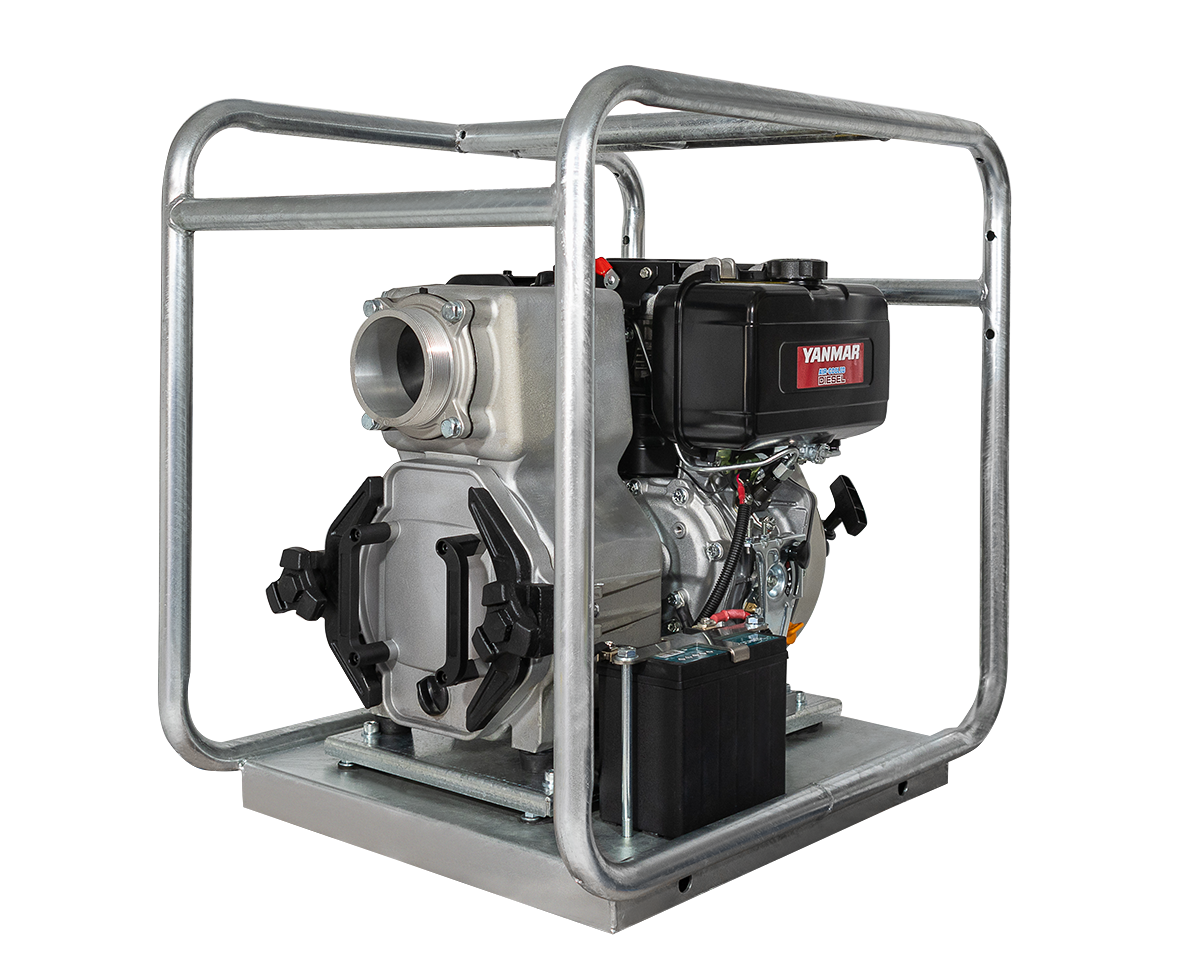

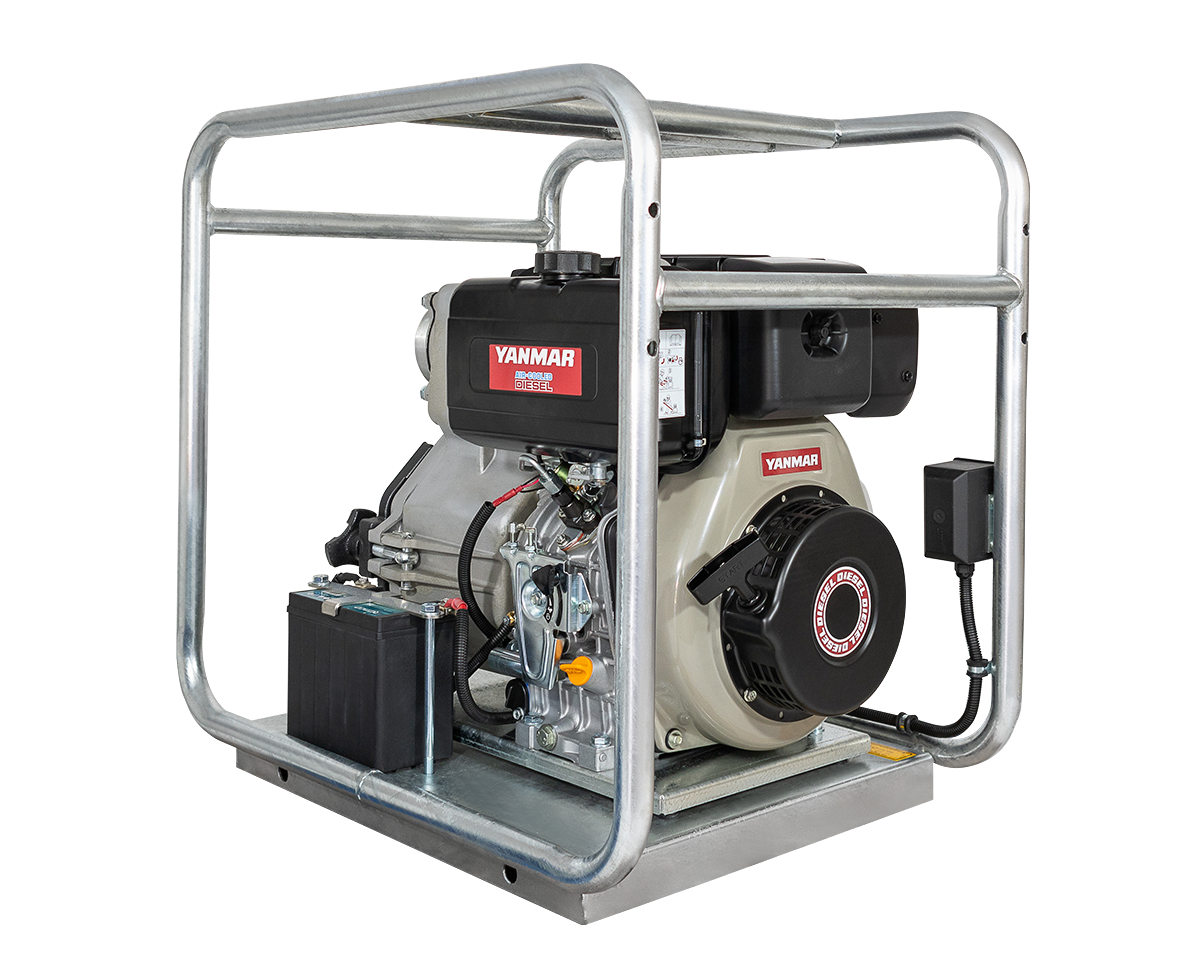

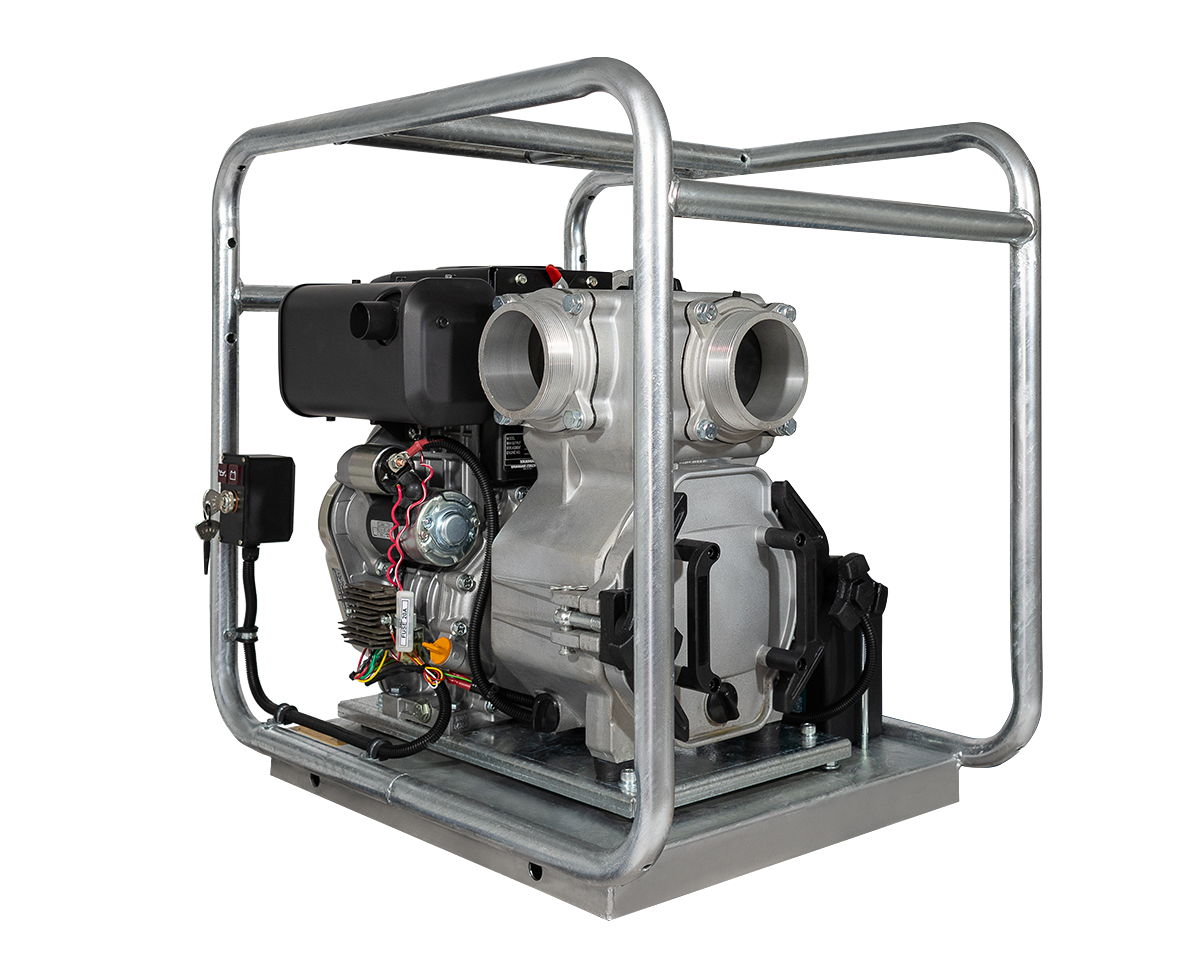

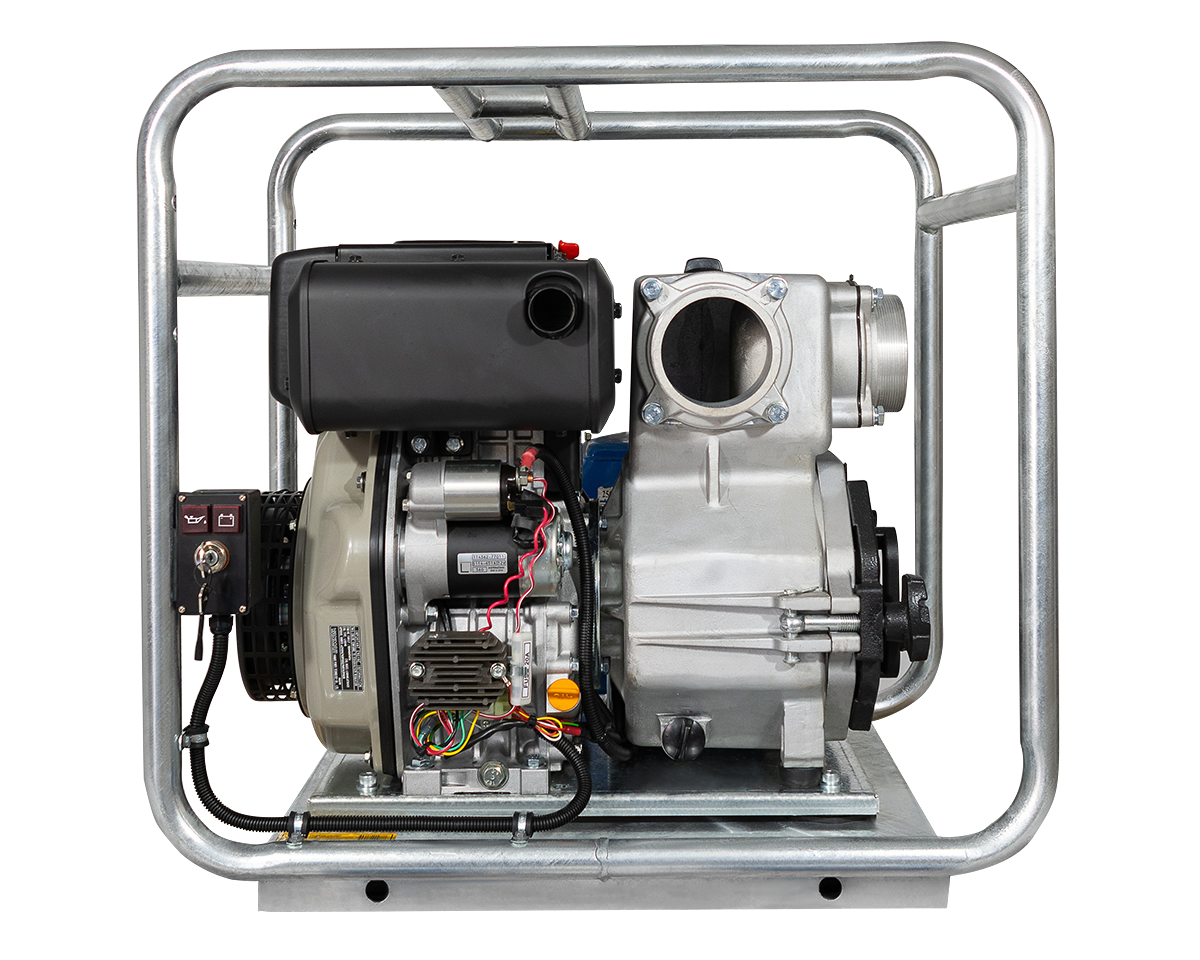

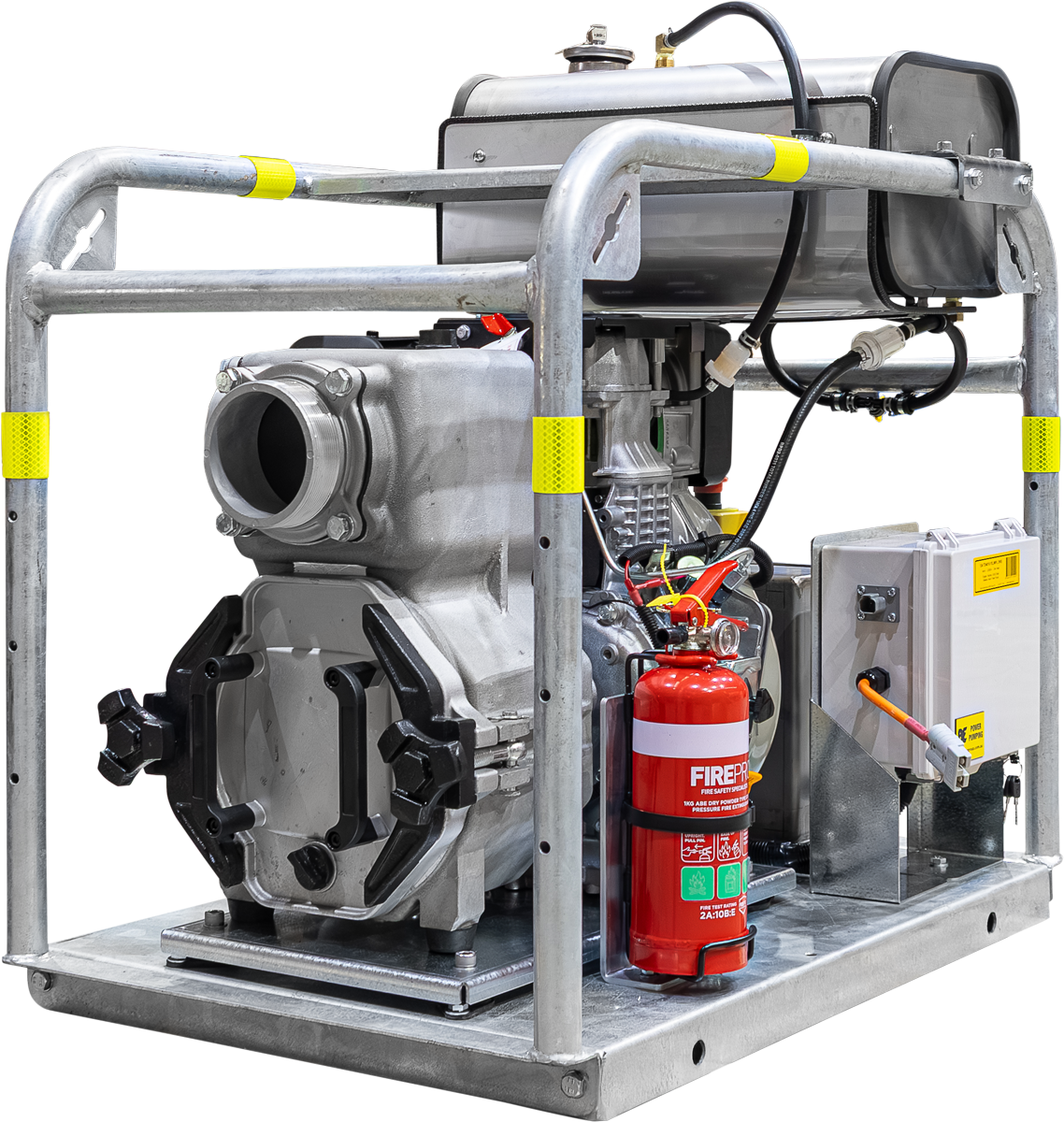

The ideal choice for moving water that contains solids and debris. Built in Australia, our BE Trash Pumps feature a heavy duty cast aluminium pump body with a cast iron open style impeller. A removable inspection door allows the operator to purge debris from in and around the impeller and volute without pipe work disconnection. Maximum solids capability is 25 mm. A great choice for tasks such as moving flood water, dewatering construction sites, wastewater handling, effluent pump out and mine waste pump out.

• Upgraded silicon carbide mechanical seal  best suited for handling dirty water
• High-grade ductile cast iron open impeller & volute

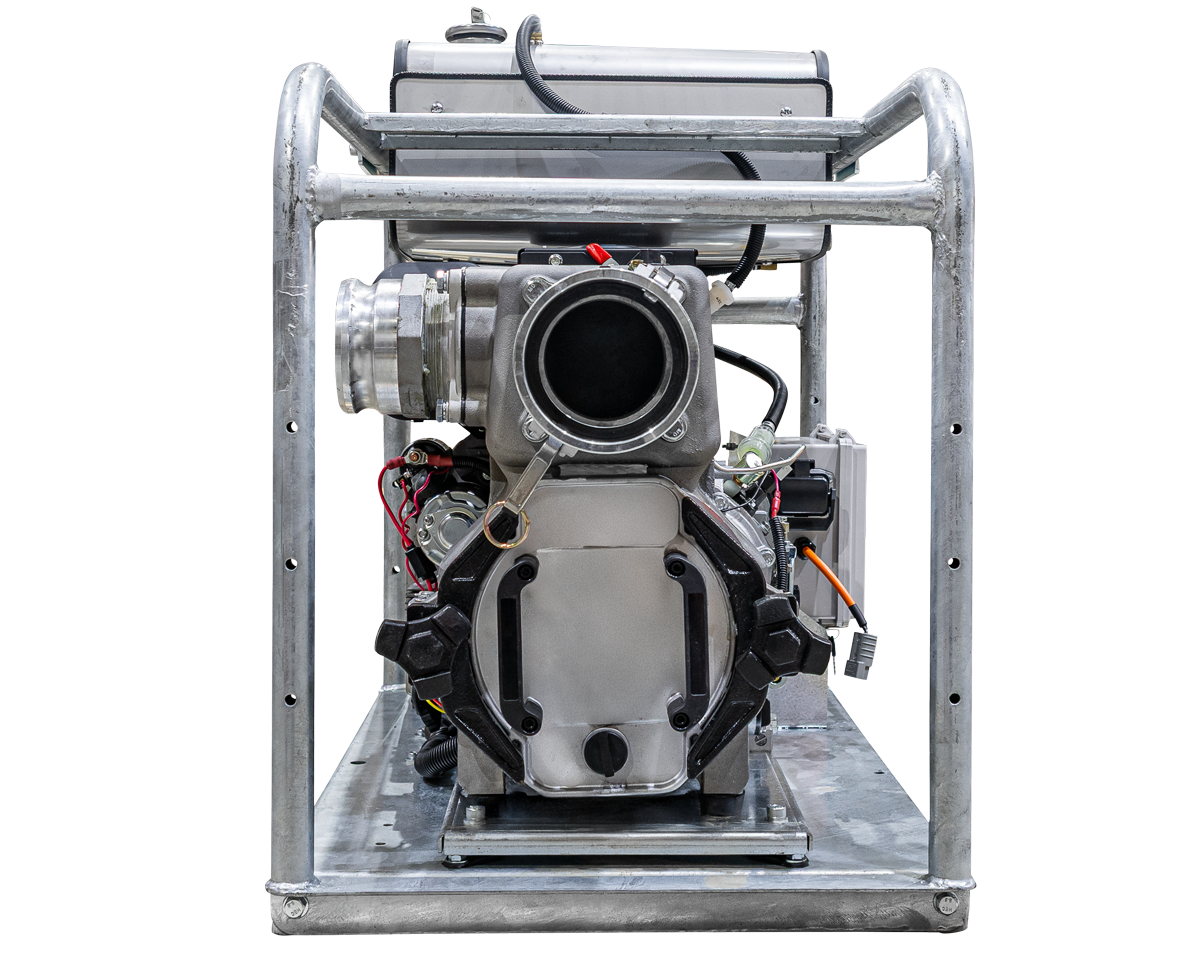

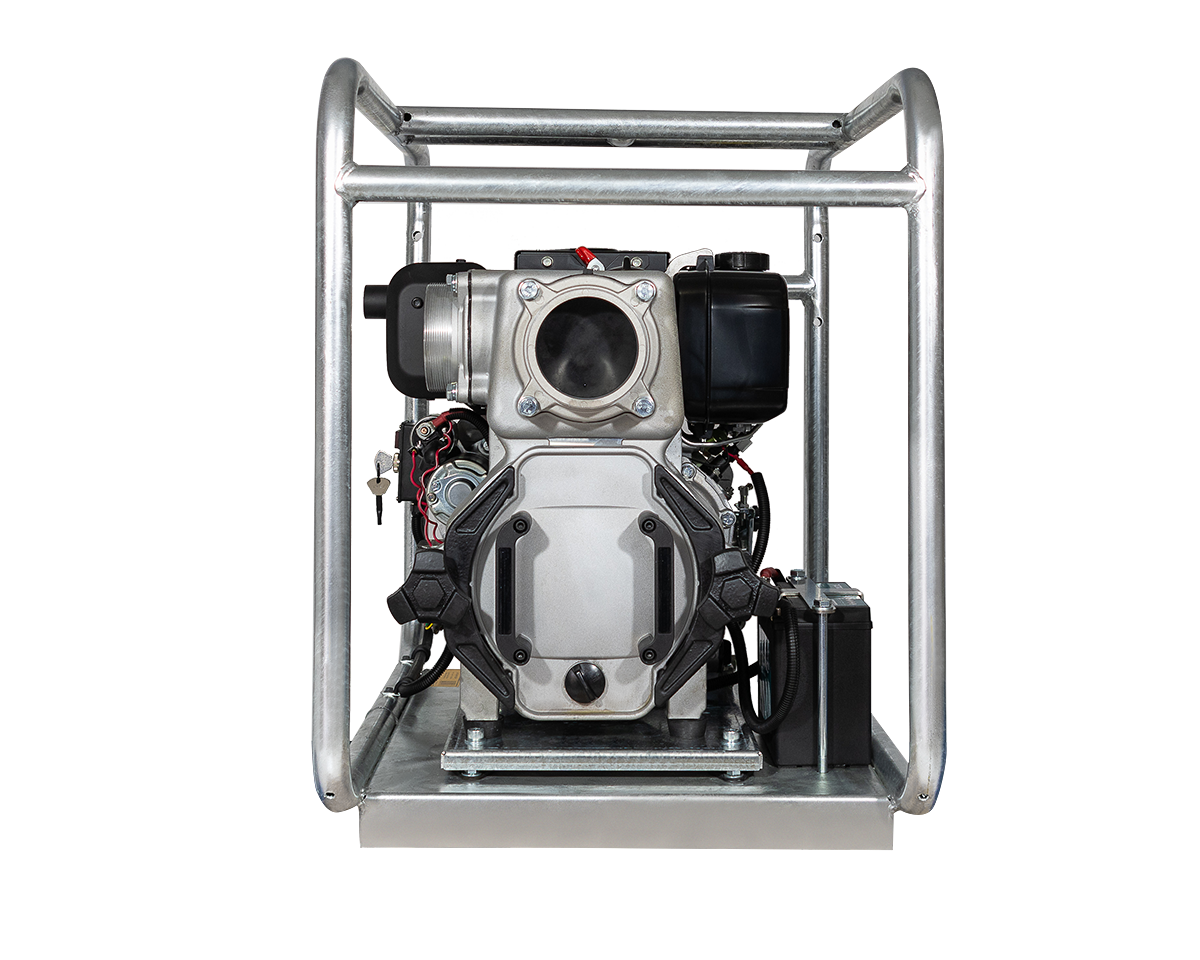

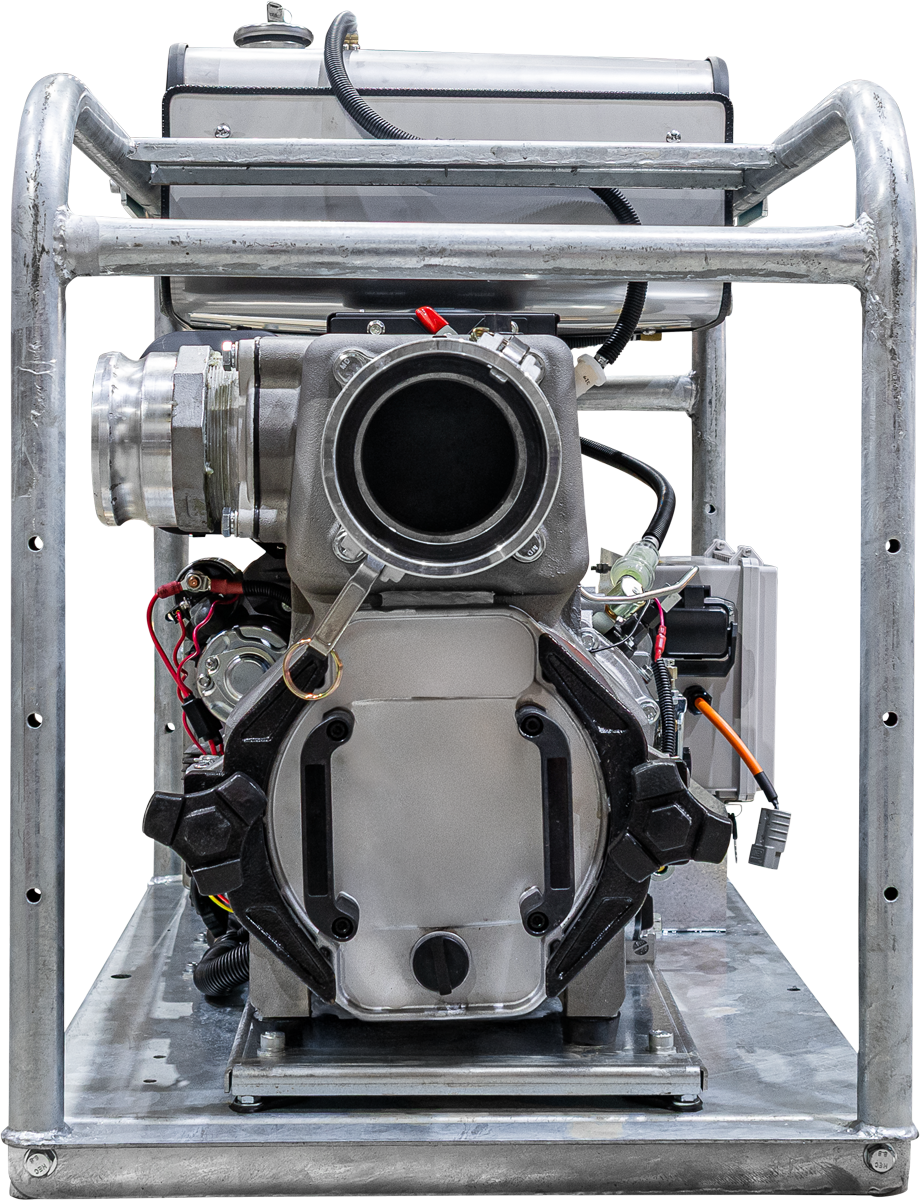

• User-friendly removable inspection door allowing operator to purge debris from in and around impeller without pipework disconnection
• Big open non clog style impeller
• Front-mounted clean-out port
• Strong cast aluminium cast iron pump body
• Unit mounted in rugged galvanised roll frame

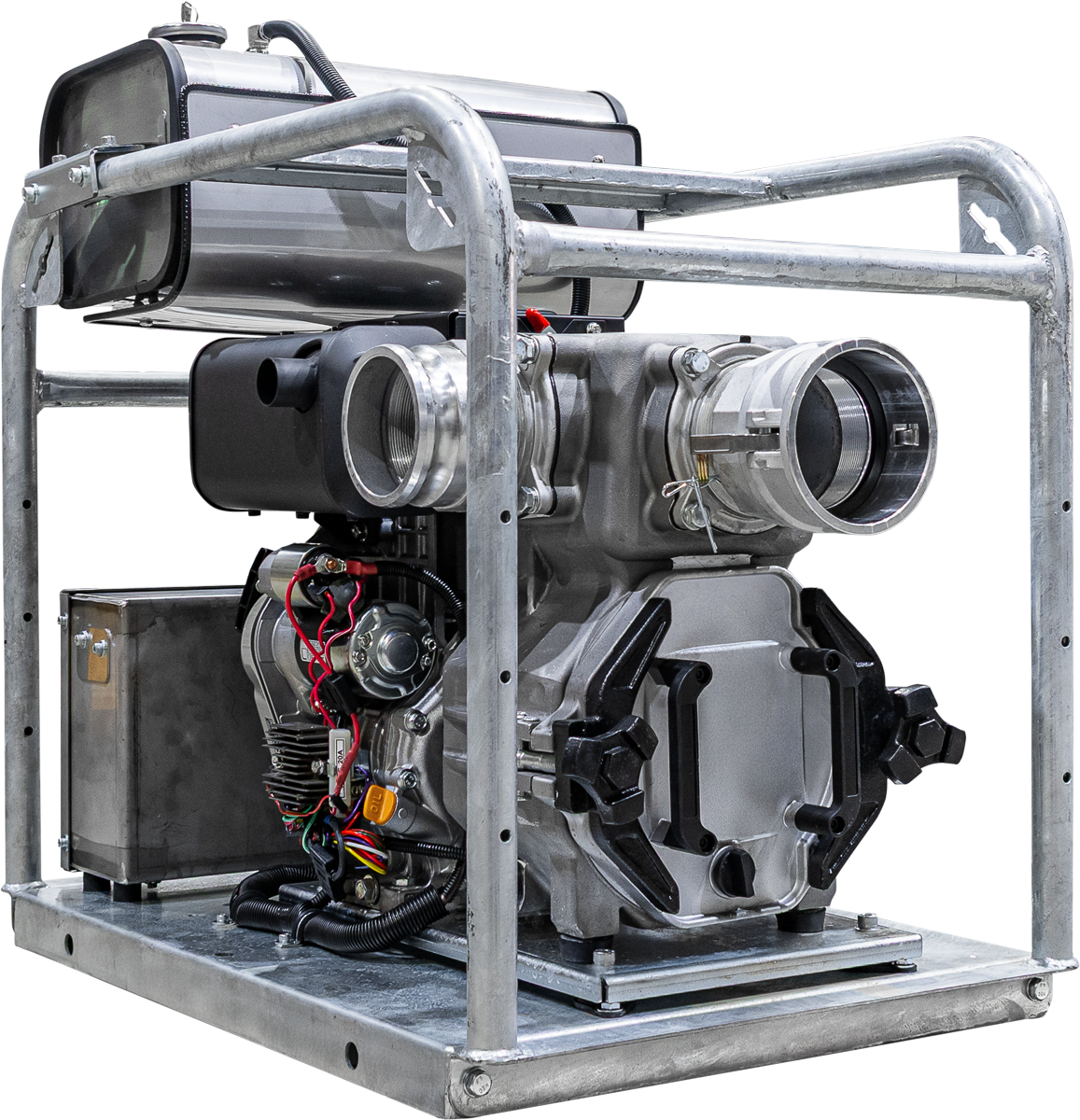

• Camlocks for inlet and outlet included

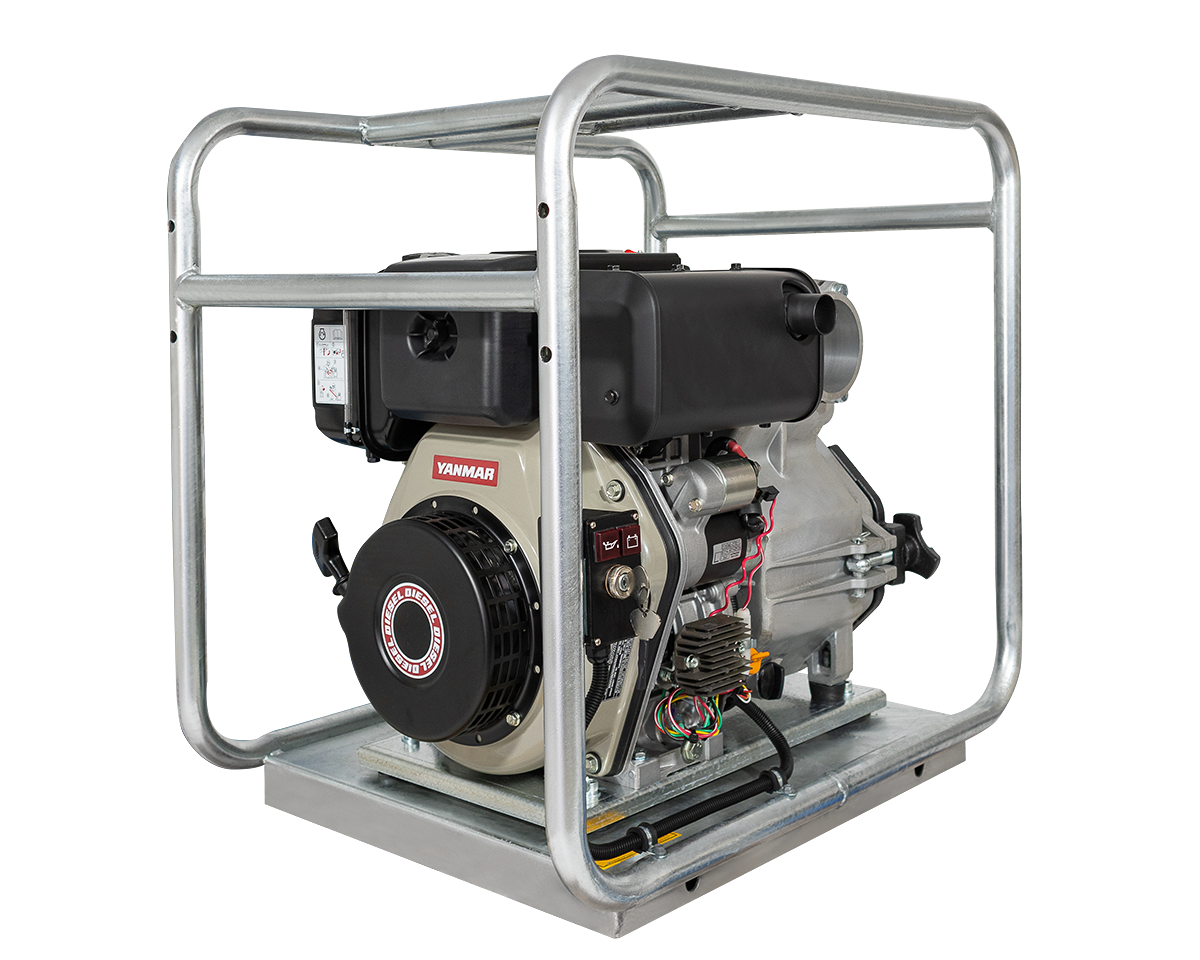

• Engine Power options include Yanmar L100 , 10 hp electric start single cylinder diesel engine or ITC Power D500E 10 hp electric start single cylinder diesel engine both with oil alert and low oil protection.

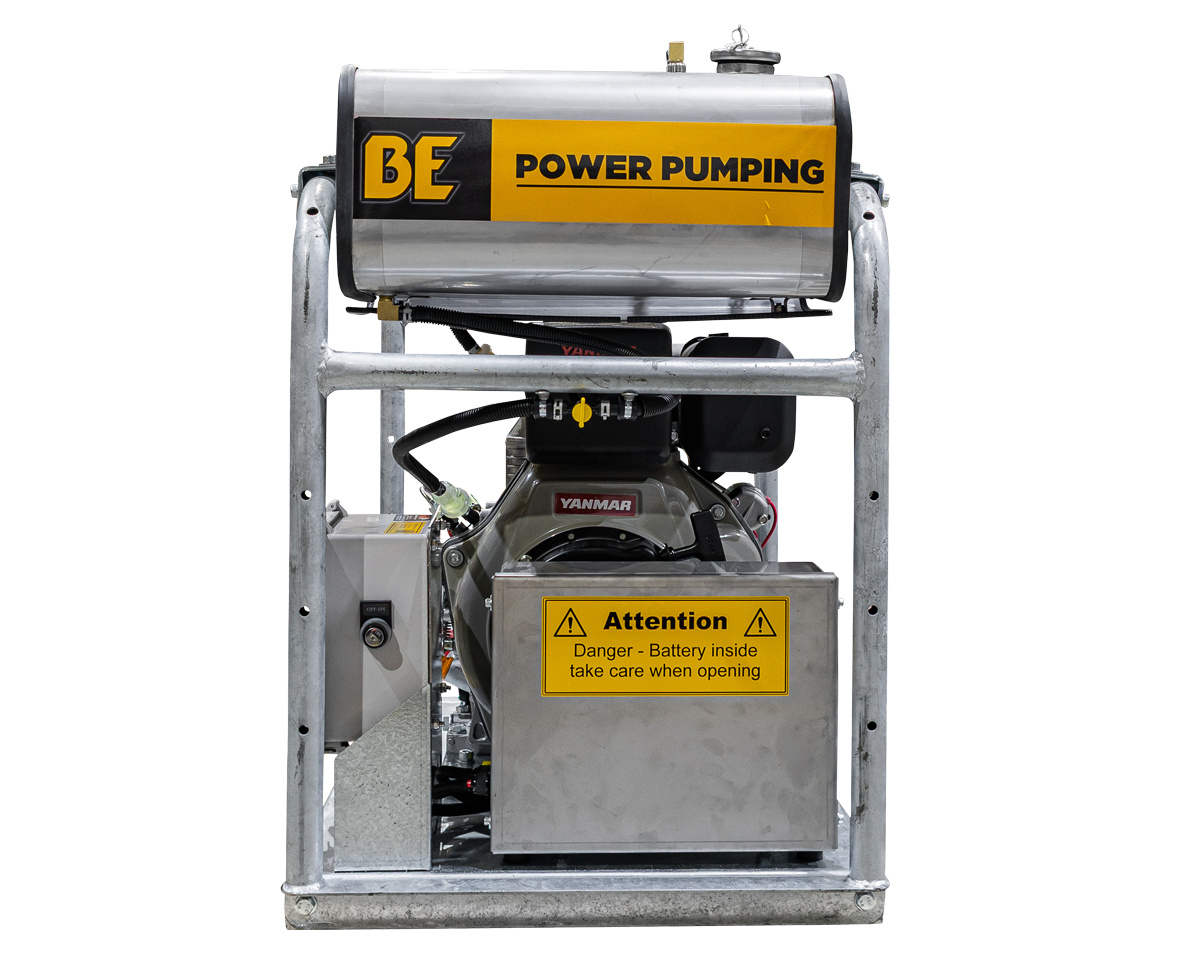

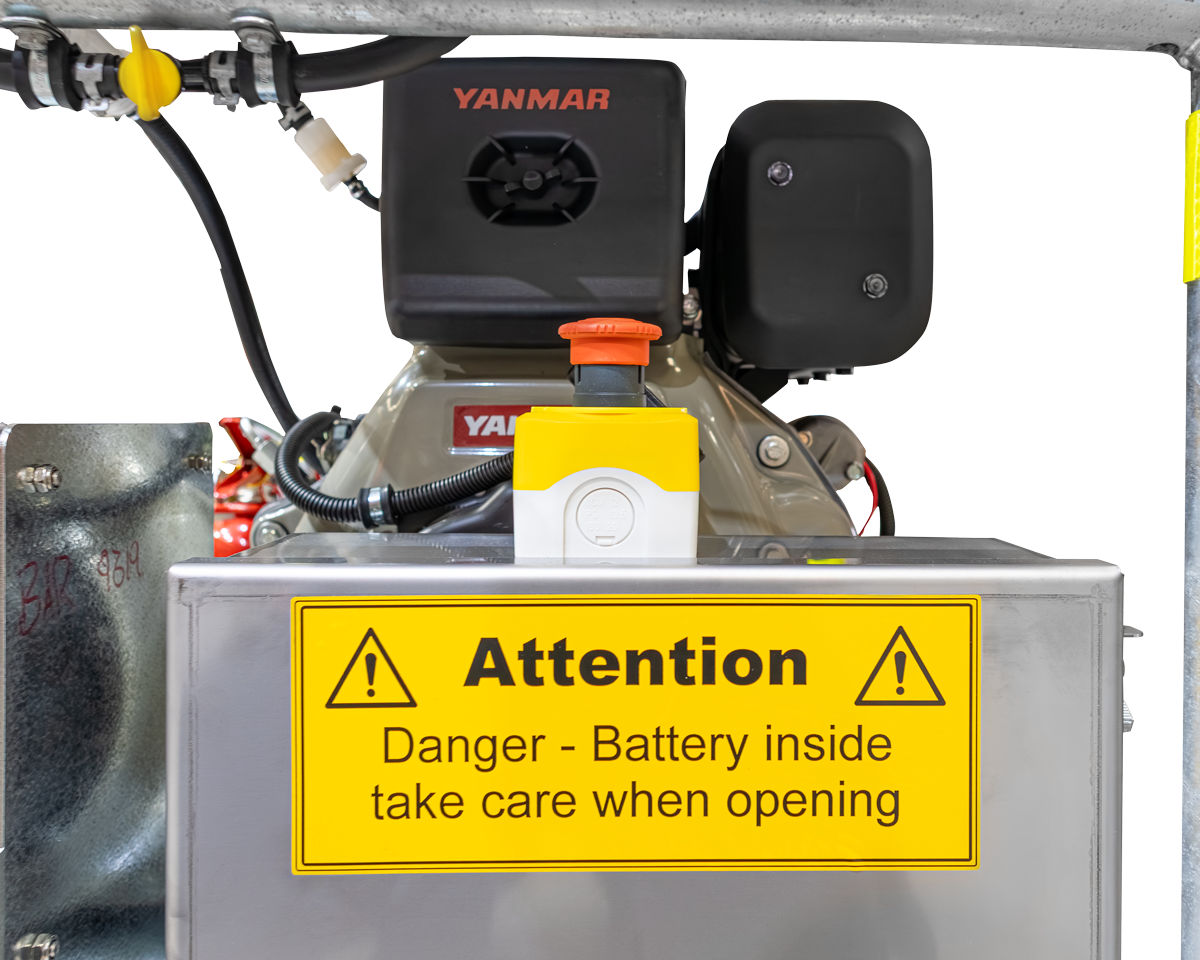

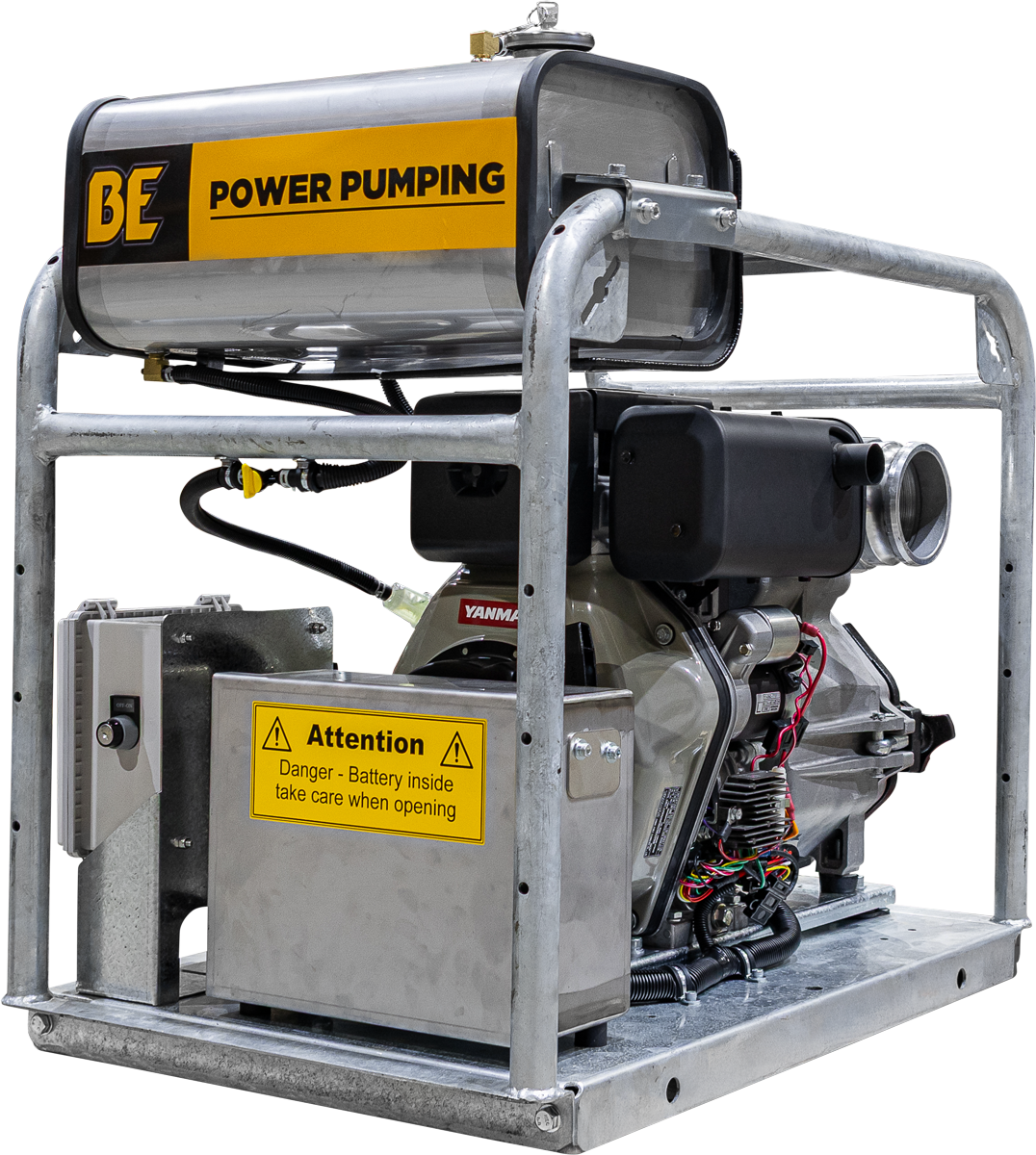

• Heavy duty metal battery box to protect 12V gel battery from elements
• Solar charging capability

Applications

• Flood Water Management
• Construction site dewatering
• Waste water handling
• Effluent pump out
• Livestock waste water handling
• Solid laden min waste pump

Pump Materials

• Pump Body: Cast Aluminium
• Impeller: High grade SG ductile cast iron, non clog open vein style impeller
• Volute: High grade SG ductile cast iron
• Mechanical Seal: Silicon carbide
• Casing Bolts: Zinc Plated Steel
• Check Valve: Nitrile Rubber
• Priming & Drain Plug: Polycarbonate
• Priming & Drain Plug O rings: Nitrile Rubber (NBR)

Control Panel

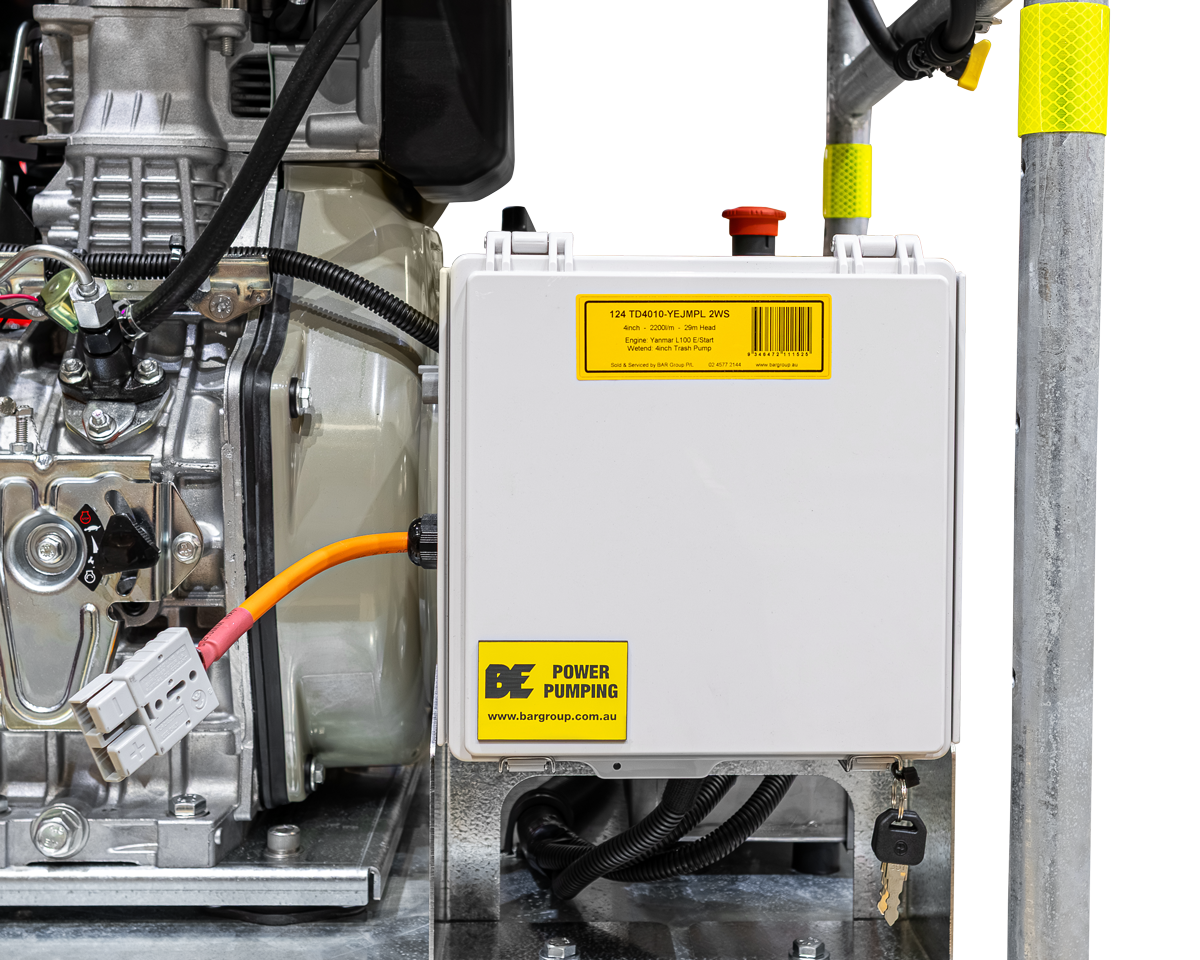

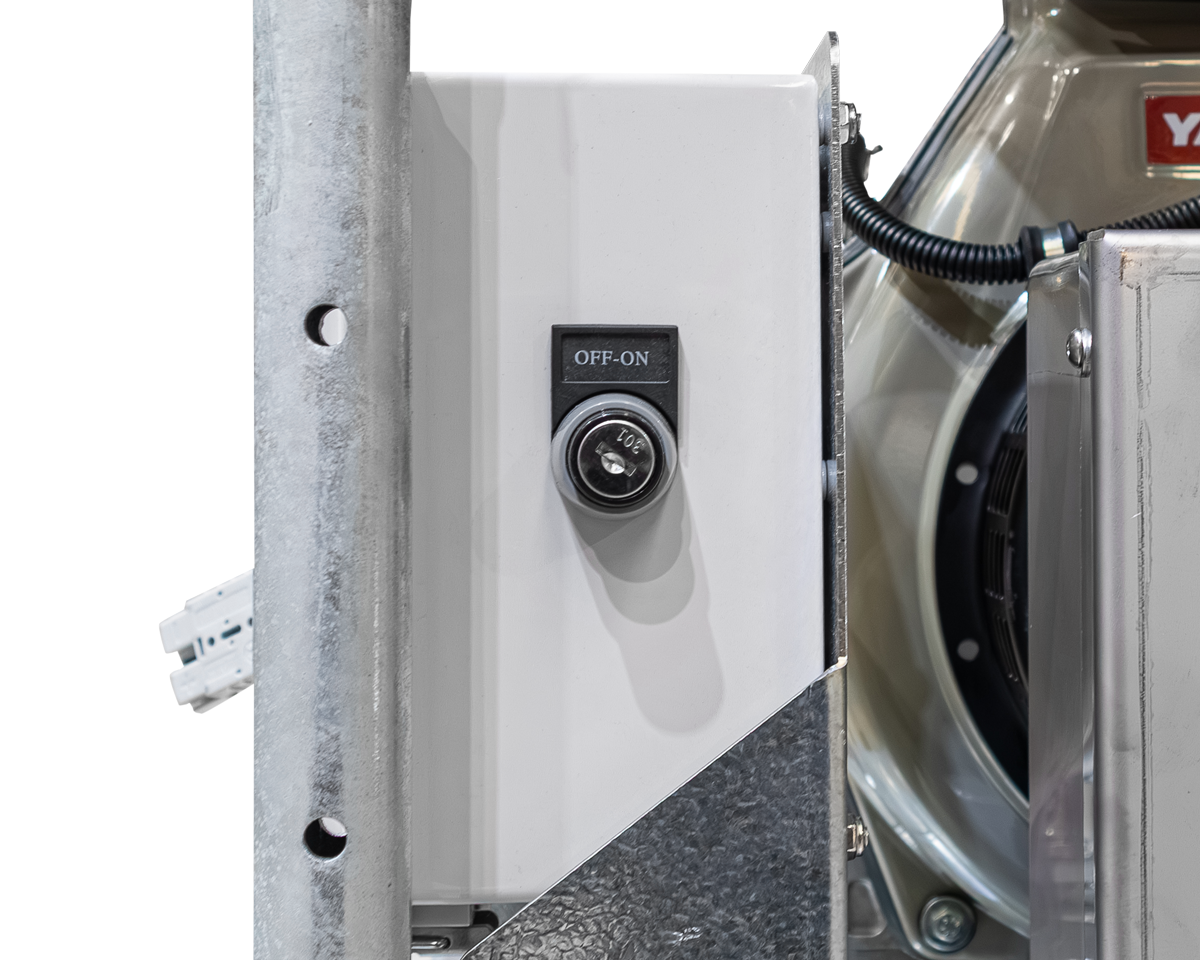

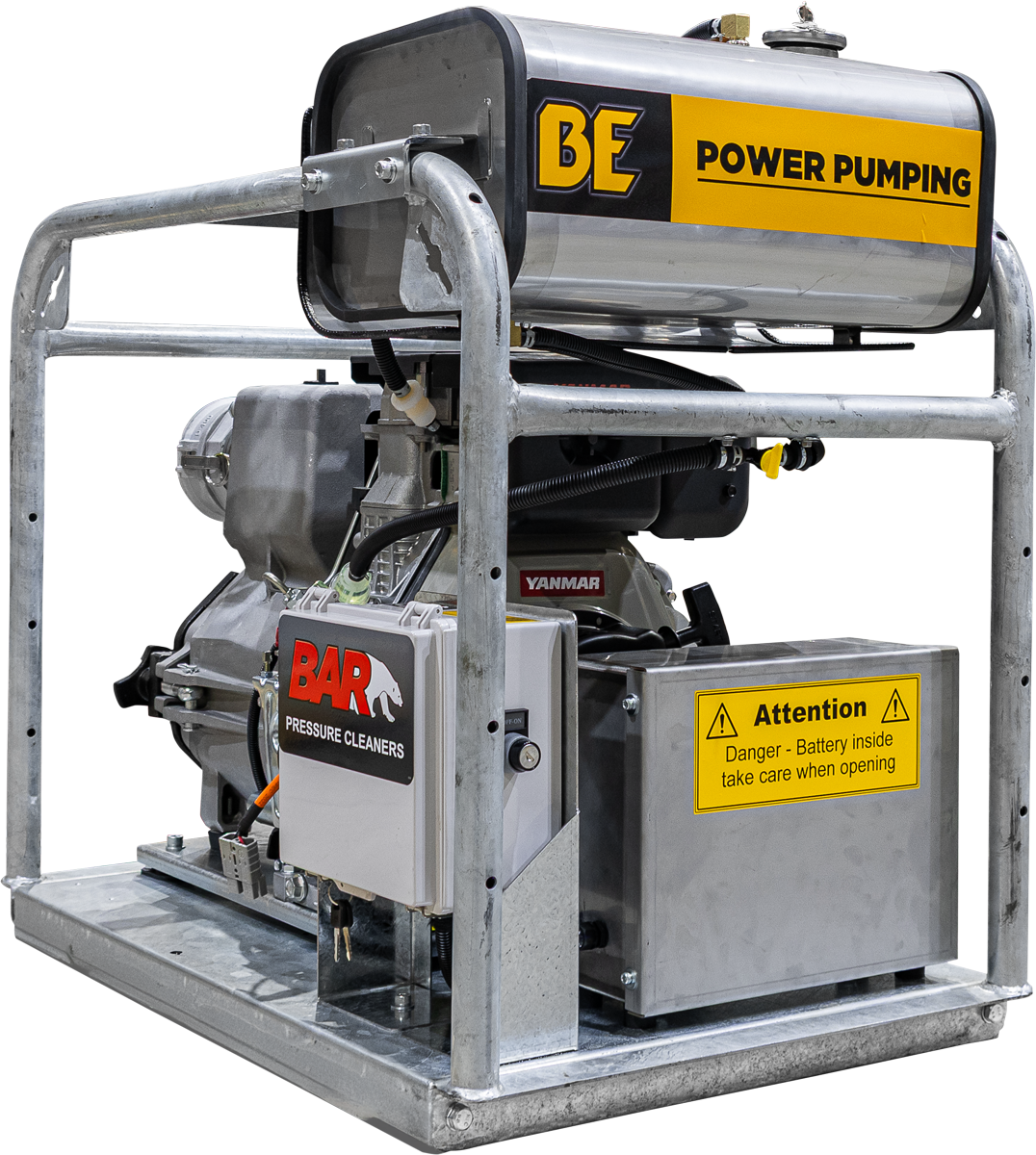

• Meccalte DC250 control included allowing pump to turn on/off by way of float switch mounted in ingress protection enclosure.
• DC250 Mecc-Alte Controller in Ip Enclosure
• RTX16 Gel Battery in S/S Battery Box

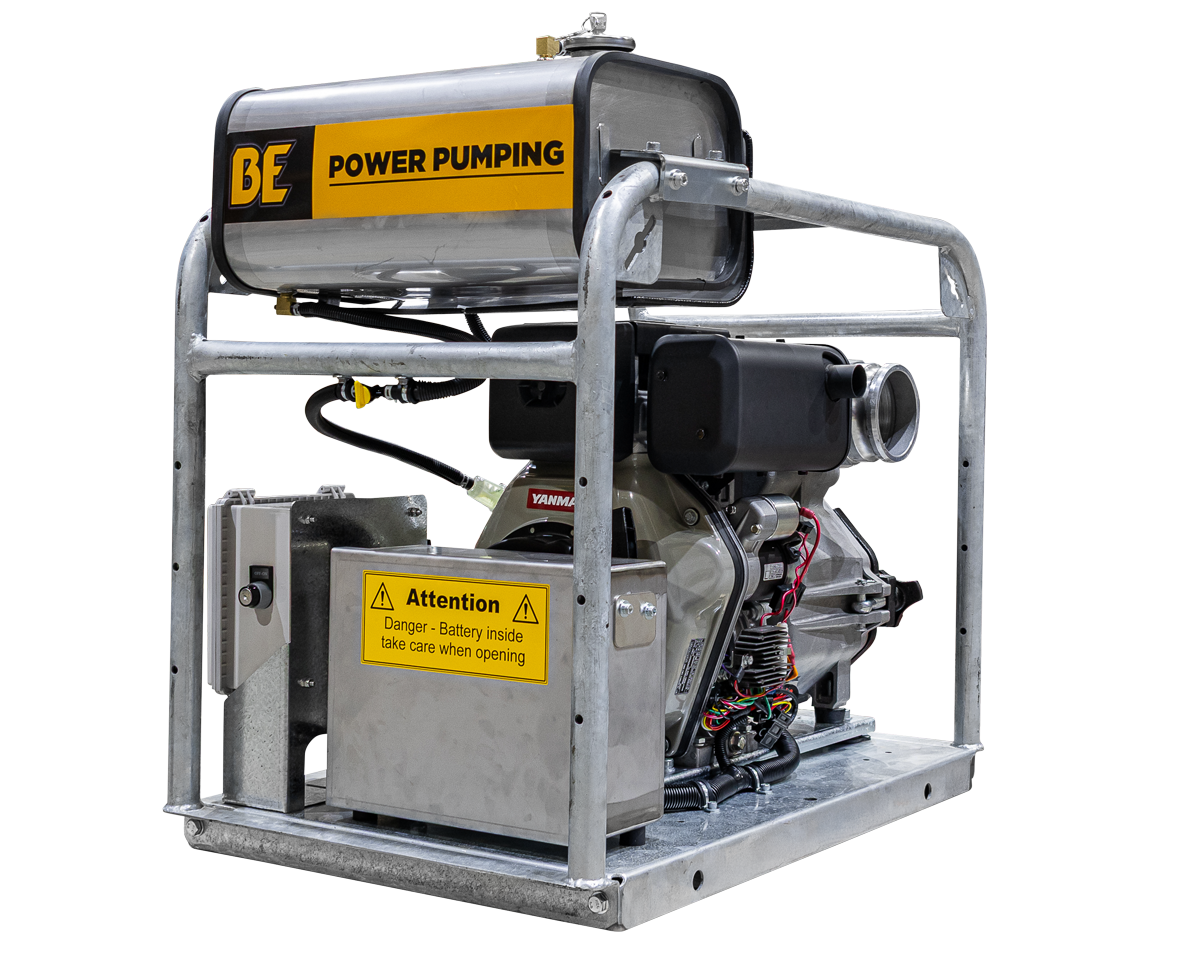

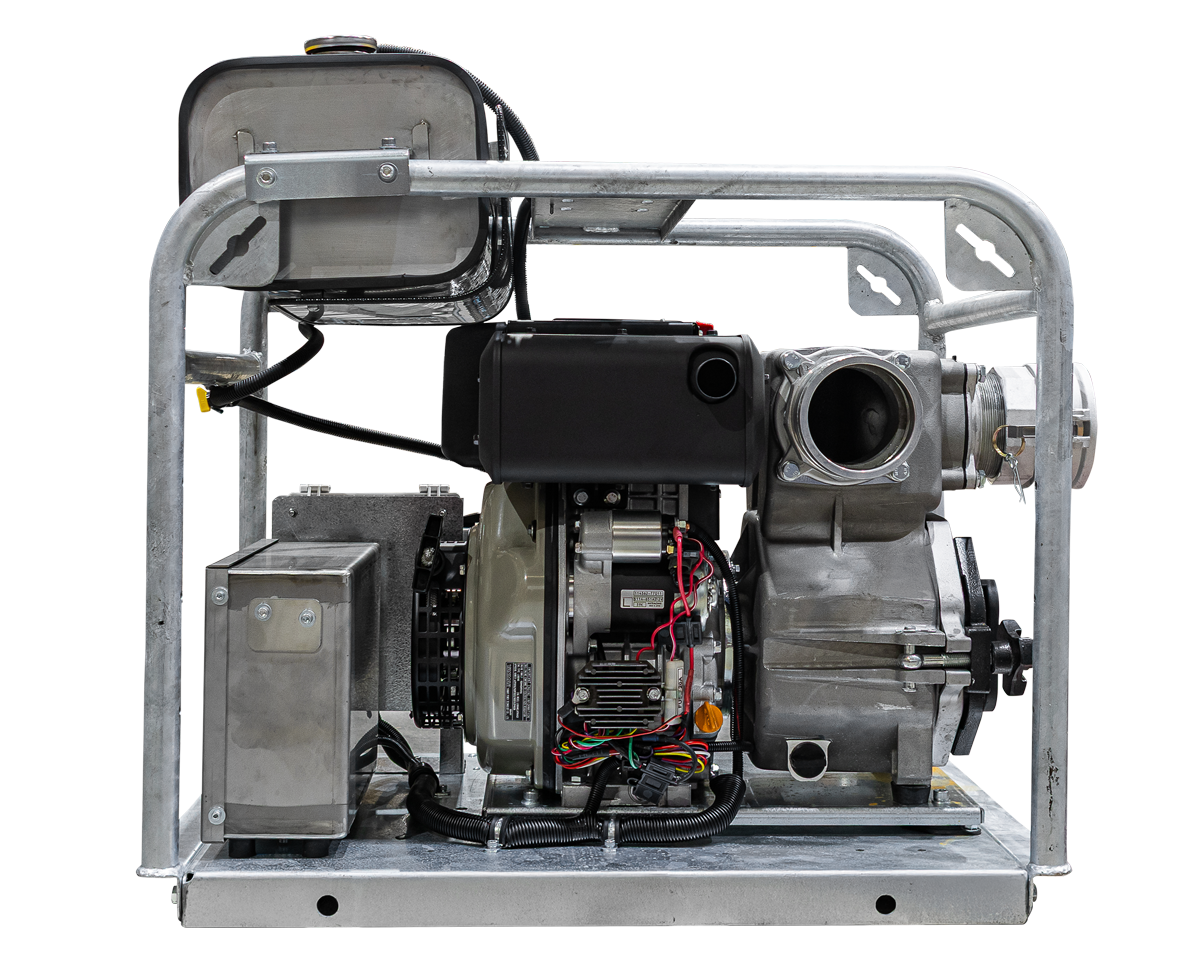

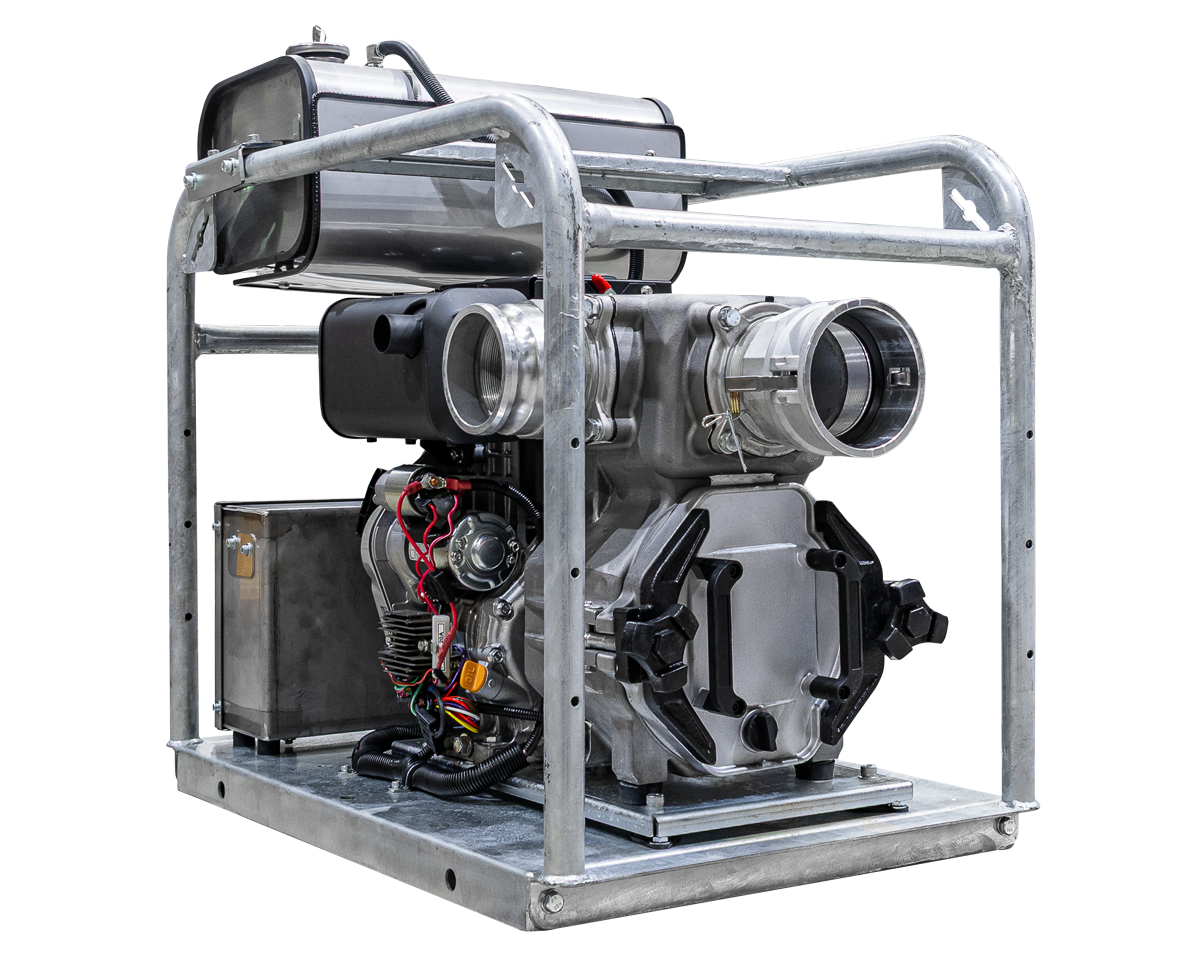

Long Range Fuel Tank

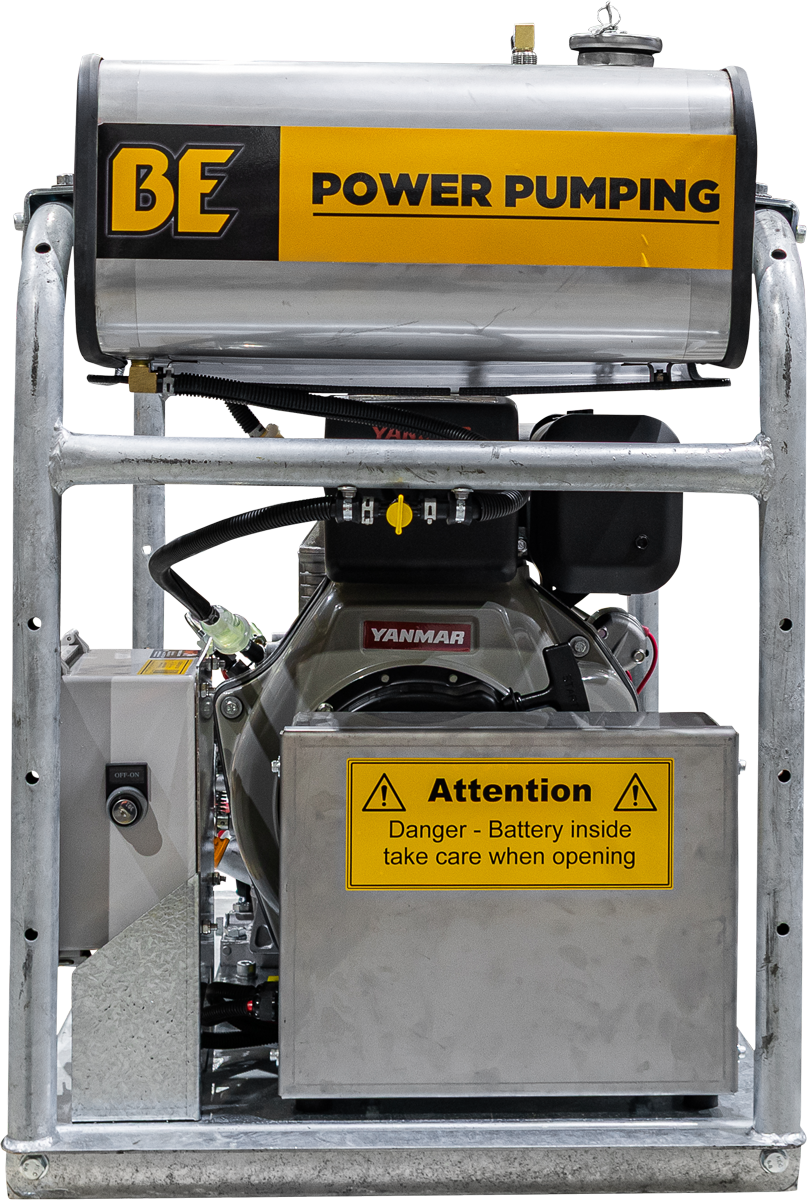

• 25 L long range fuel tank with lockable fuel cap providing running time up to 9 hours under full load.

Specifications

• Max Flow Rate: 2,200 L/min
• Max Head: 29 m

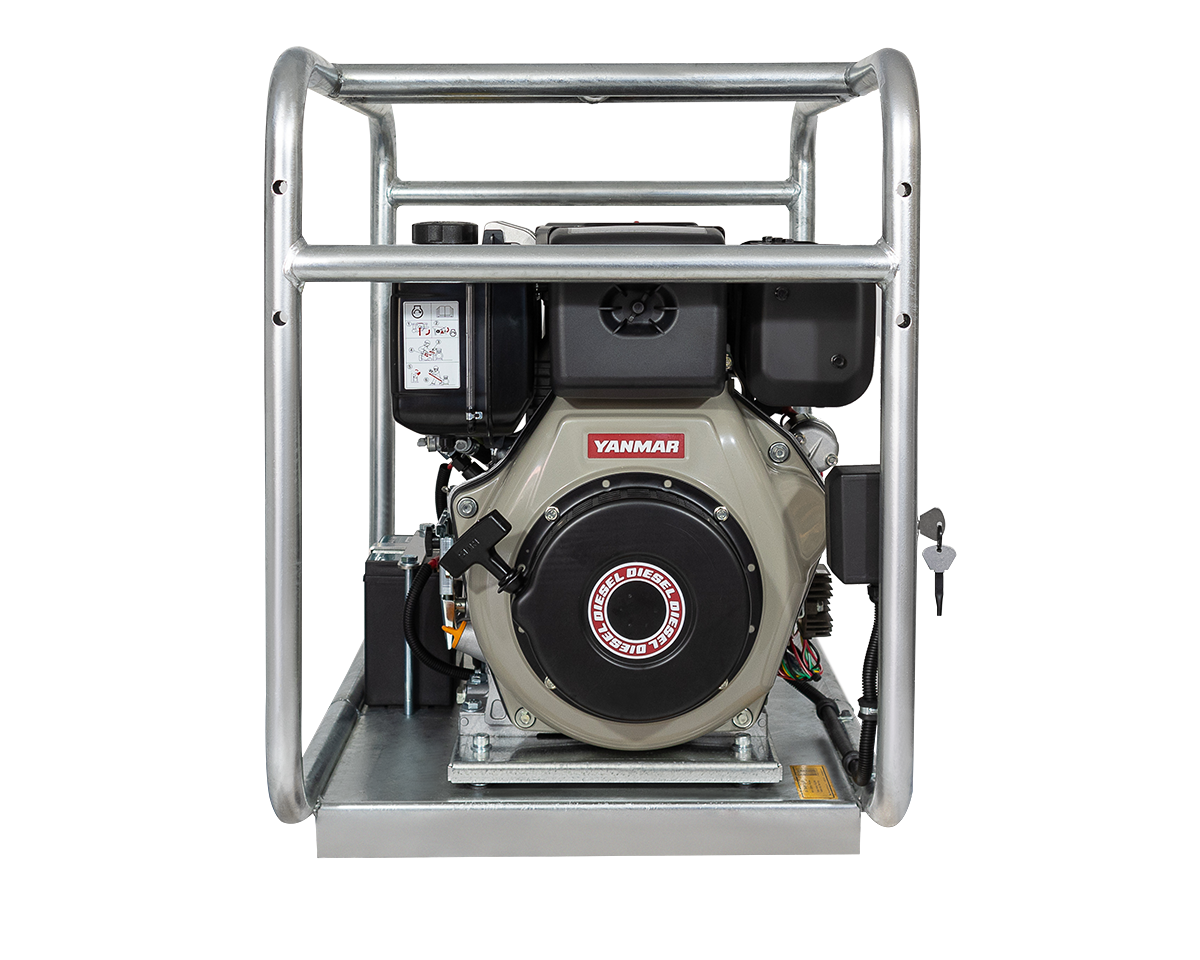

• Engine: Yanmar L100, 10 HP E/Start Diesel
• Suction Capacity: 7 m
• Inlet/Outlet: 4” Male BSP
• Frame: JMP XL
• Vertical suction lift: 7 m
• Weight: 120 kg
• Unit & Frame: Galvaised JMP XL frame with anti–vibration rubber mounts

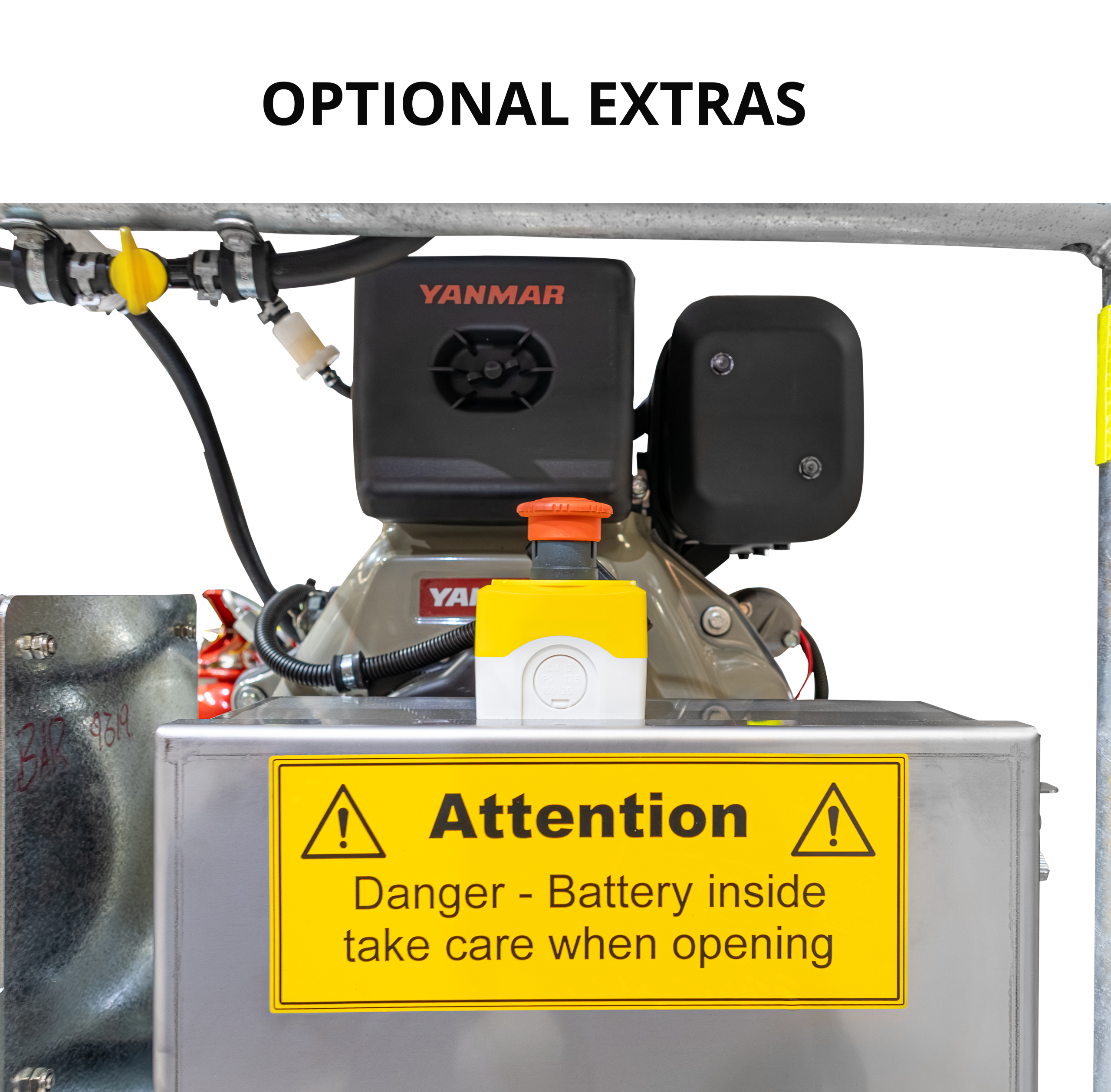

Optional Extra

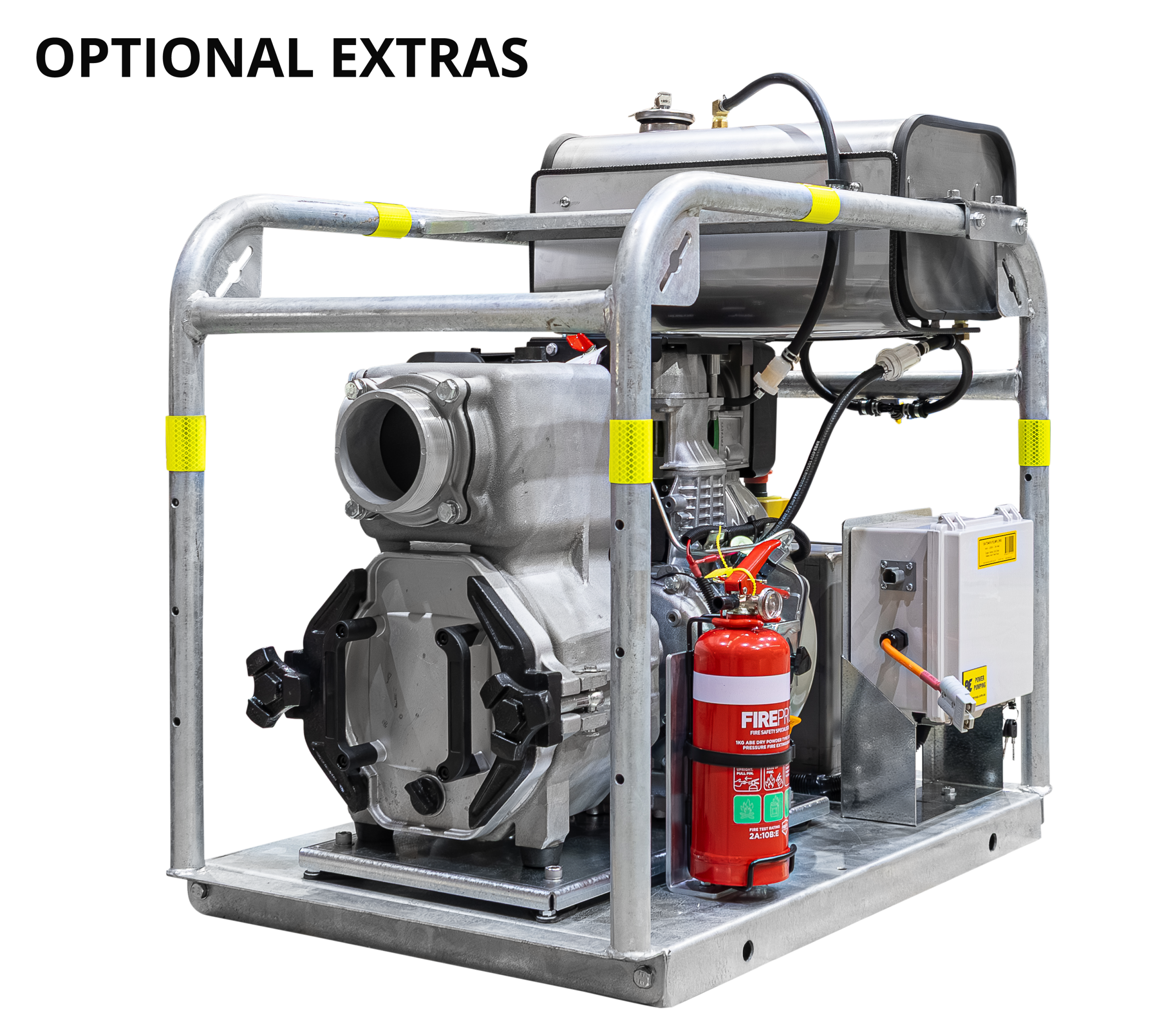

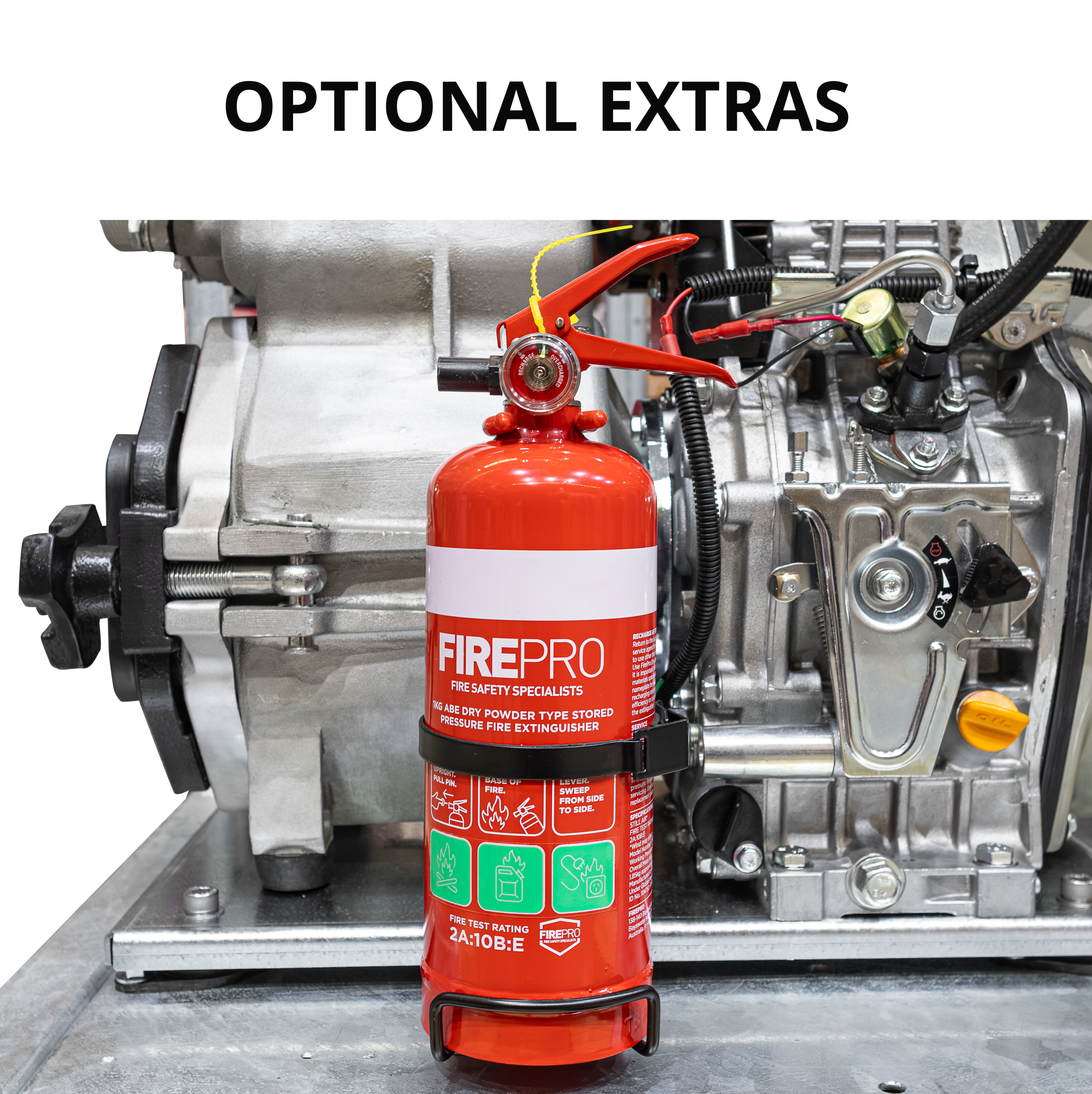

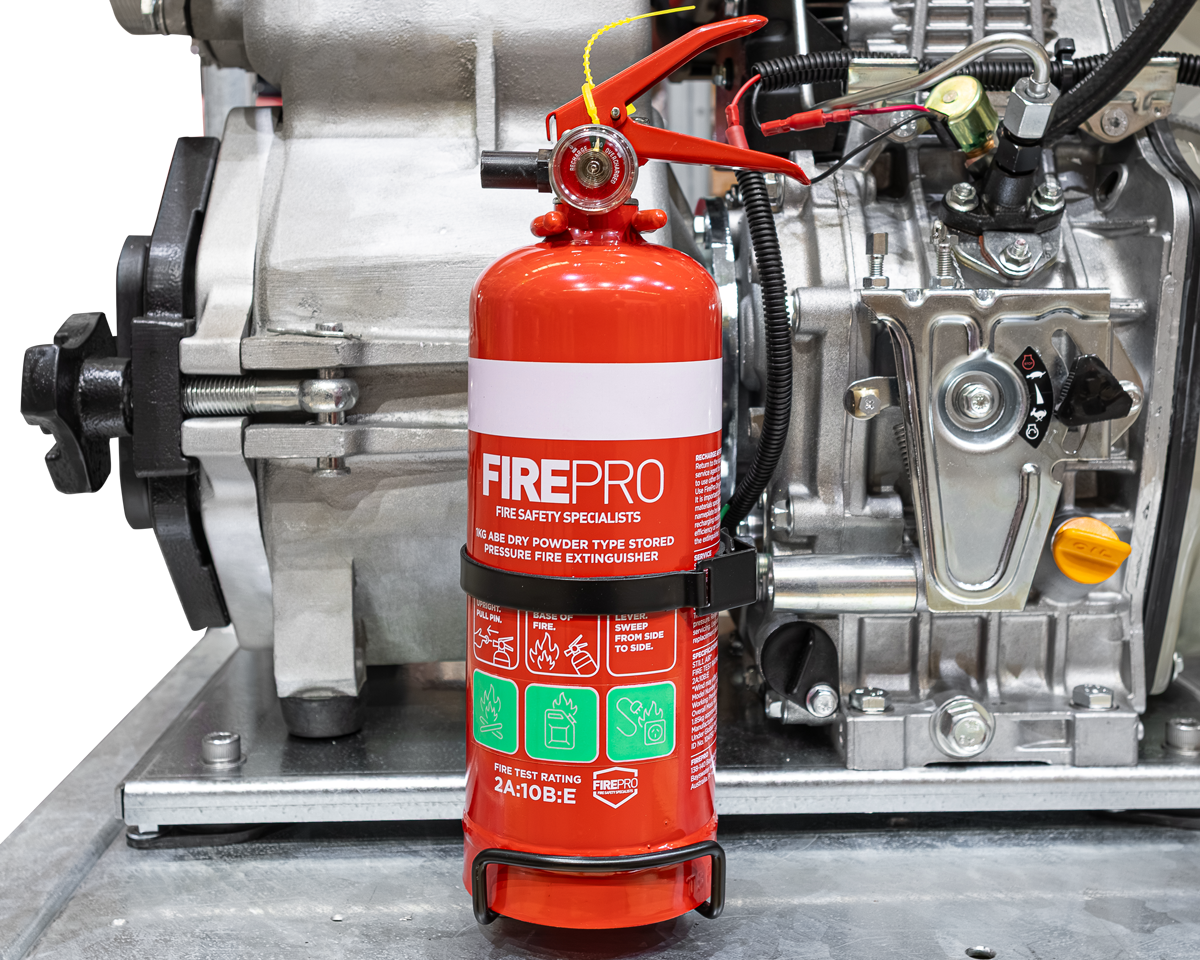

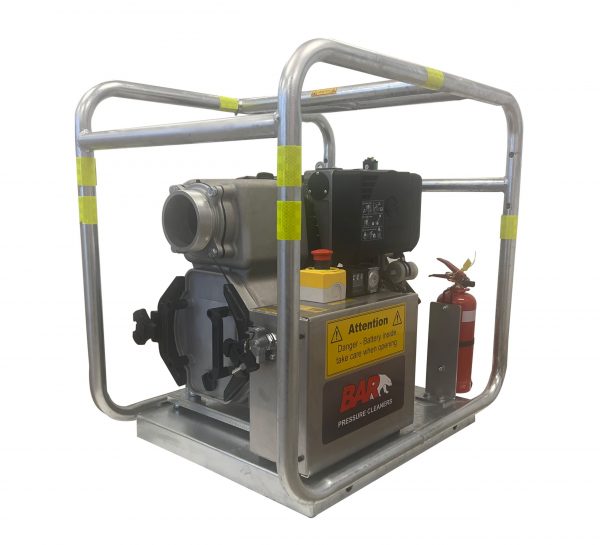

• Optional Mine Spec version available including, battery isolation, emergency stop button, fire extinguisher and high vis tape on frame.
