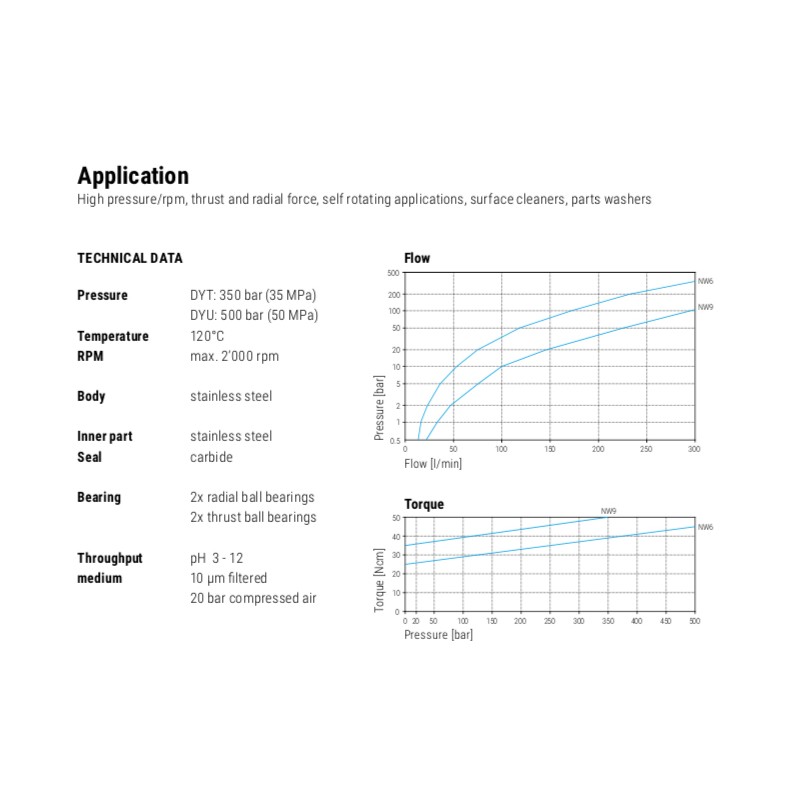

Swivel DYT 3/8F x 3/8M
Application
High pressure/rpm, thrust and radial force, self rotating applications, surface cleaners, parts washers
Features
- Pressure: DYT: 350 bar (35 MPa), DYT: 500 bar (50 MPa)
- Temperature: 120°C
- Max Rpm: 2,000 Rpm
- Body materials: Stainless steel
- Inner part material: Stainless steel
- Seals material: Carbide
- Bearing: 2X Radial ball bearings, 2X thrust ball bearings
- Throughput medium: pH 3 – 12, 10 µm filtered, 20 bar compressed air
