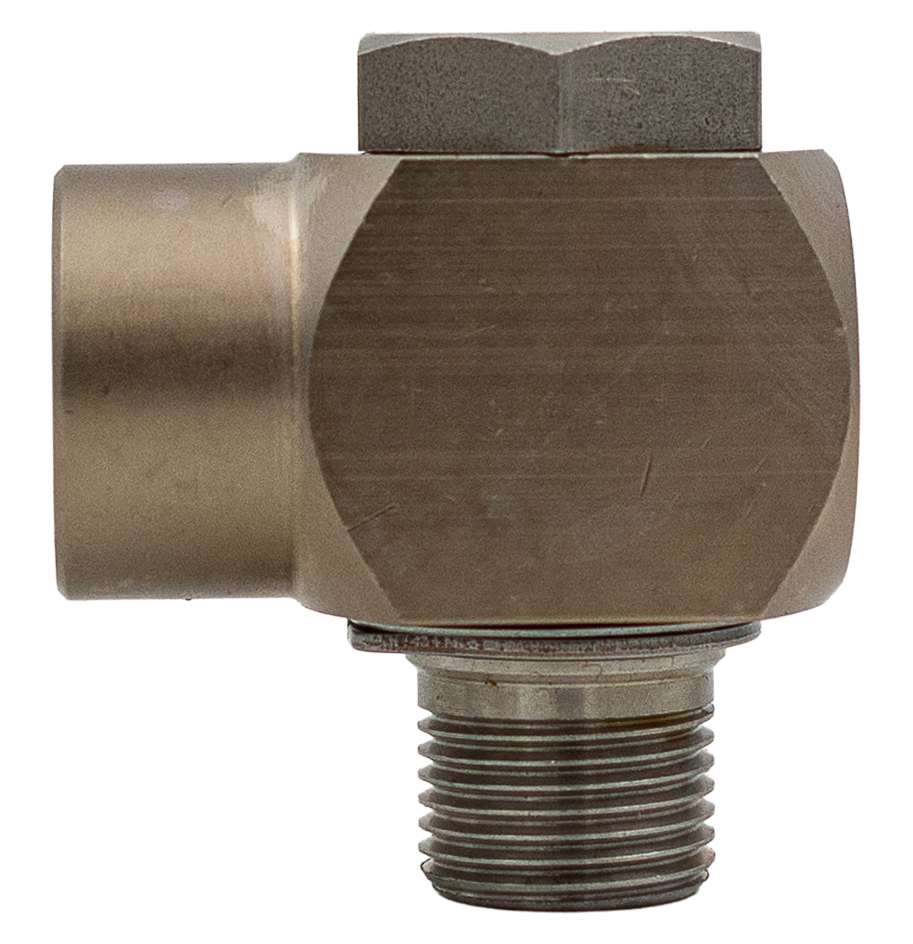

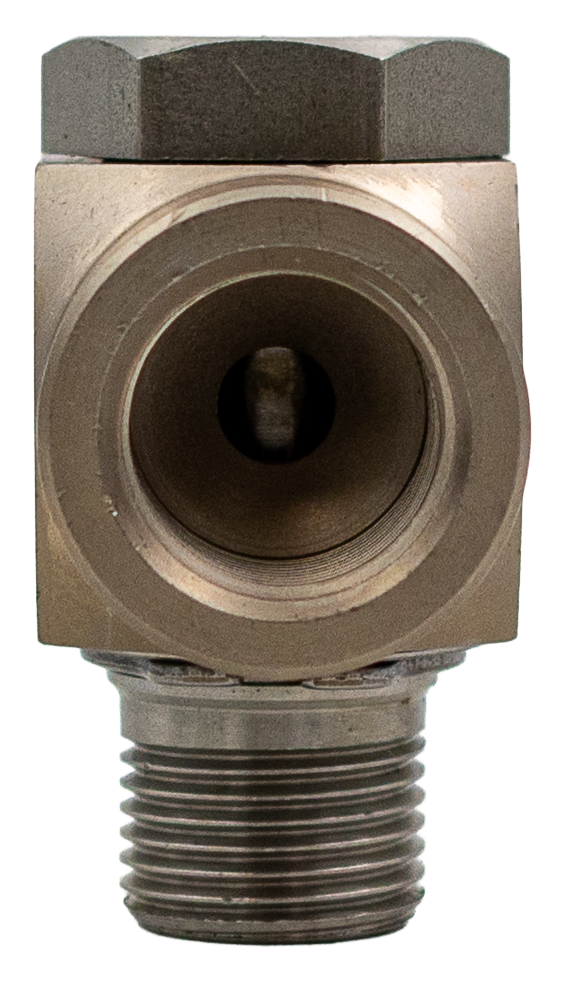

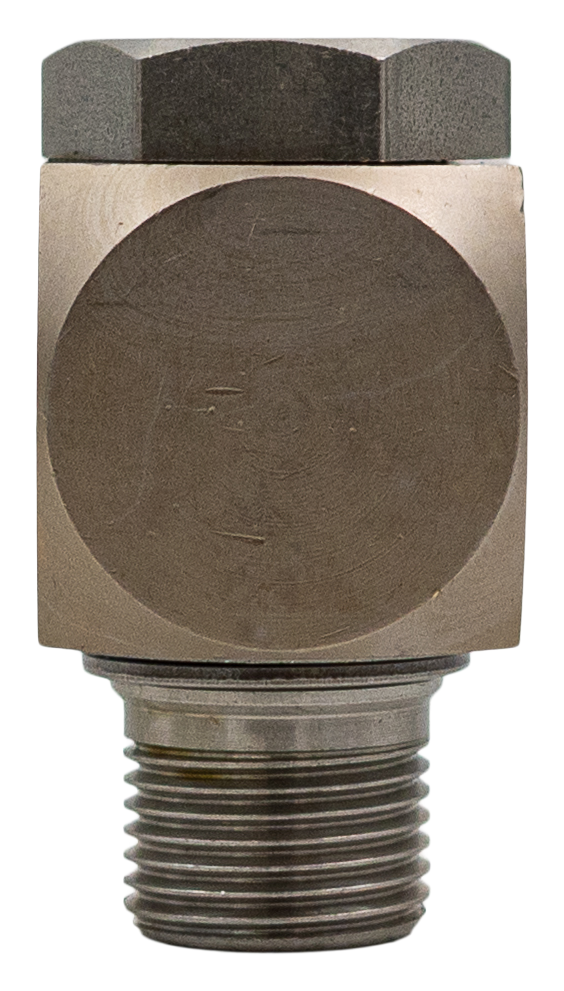

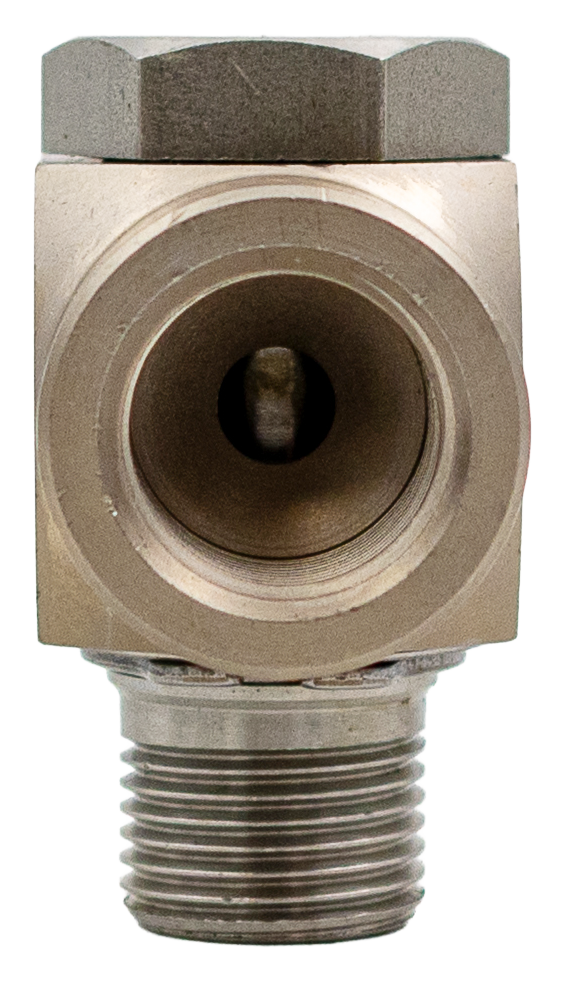

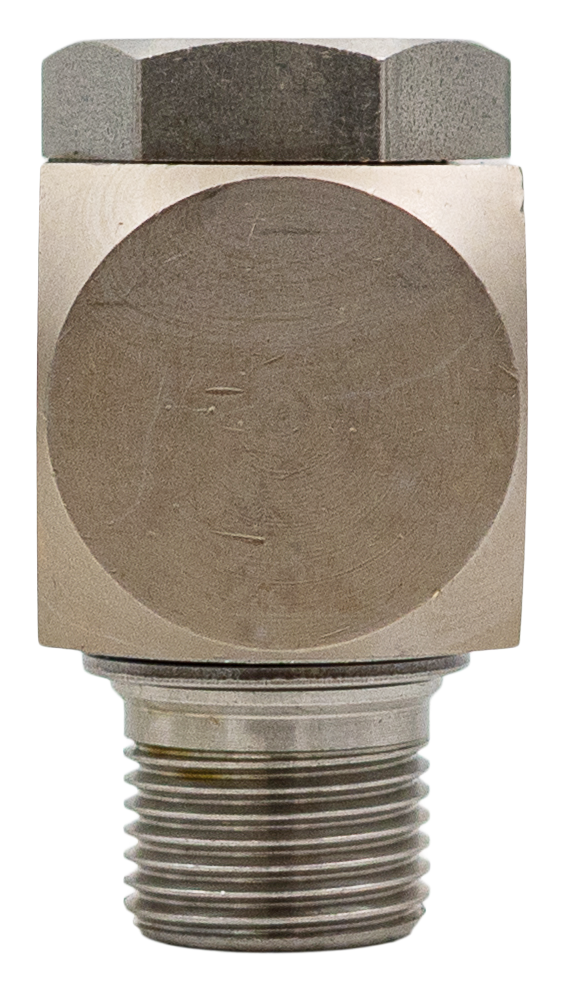

SW90 – 90° Stainless Steel Swivel

Specifications

• Inlet: Variable
• Outlet: Variable
• Seals: Viton/EPDM
• Rated Pressure: 250 bar – 25 MPa – 3,650 PSI
• Permissible Pressure: 280 bar – 28 MPa – 4,050 PSI
• Rated Flow Rate: 40 L/min
• Rated Temperature: 160°C – 320°F
• Max. working. Temp: 90°C – 194°F
• Max. Rpm: 30 giri/min – 0 RPM
• Material: Stainless steel
