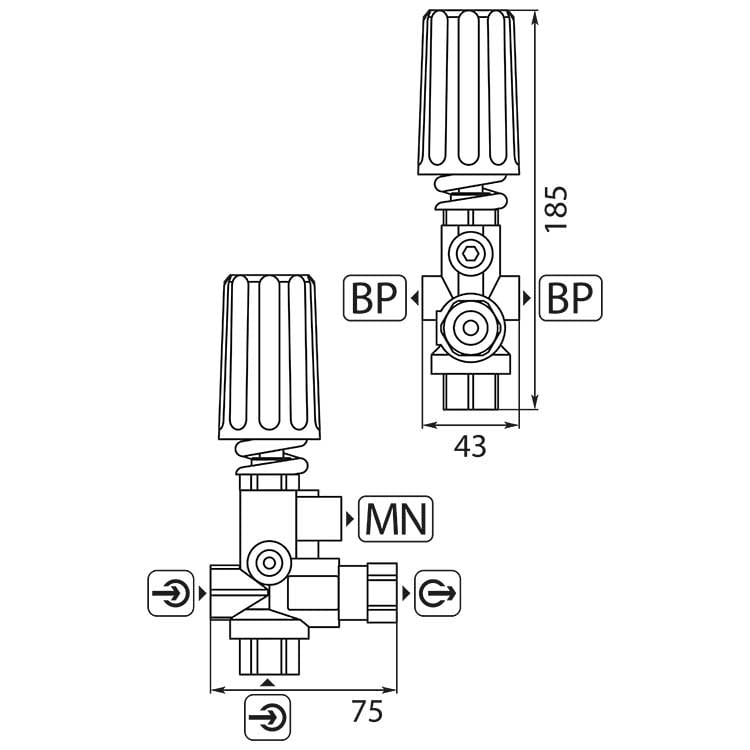

Suttner regulation valves ST-280
Features
- All media-contacting components of the valve are made of stainless steel.
- In bypass operation, the pressure downstream the unloader valve inside the hose and spray gun is reduced to 40% of the set working pressure.
- The new sealing system does not require any moving high-pressure seal.
- Extra-long work-life
- Connection thread suitable for bonded seals.
- Switch can be retrofitted.
- Handwheel for adjusting the pressure can be retrofitted.
- Valve-ball made of high-performance ceramic
- Soft switching behaviour
- Made in Germany
Specifications
- Series: ST-280
- By-pass: 3/8″ F
- Inlet: 3/8″ F
- Outlet: 3/8″” F
- Pressure gauge: 1/4″ F
- Pressure: 3,625 PSI
- Flow: 30 L/min
- Temperature: 80 °C
- Material: Brass
- Manufacturer: Suttner
