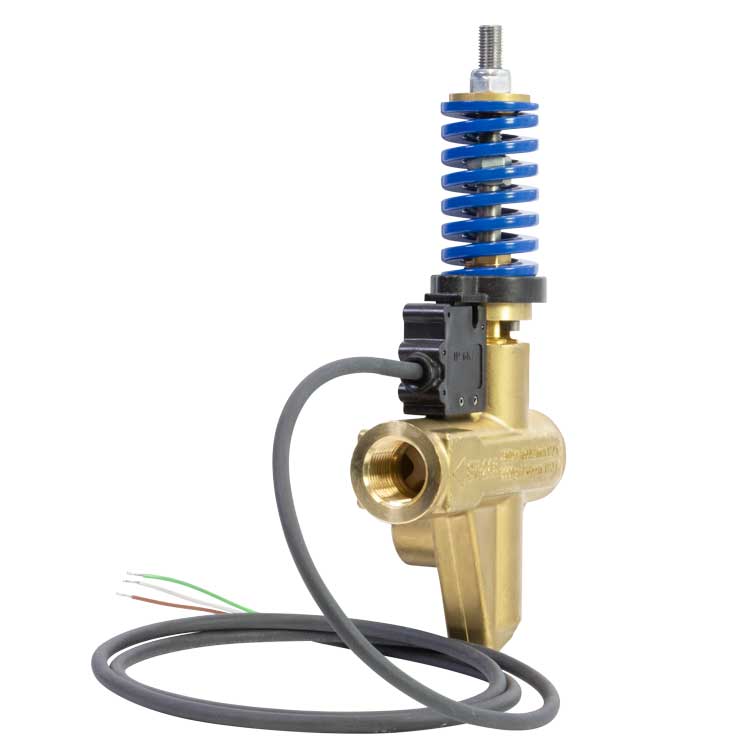

Stainless steel unloader valve ST-285 with switch

Features

• All media-contacting components of the valve are made of stainless steel.
• In bypass operation, the pressure downstream the unloader valve inside the hose and spray gun is reduced to 40% of the set working pressure.
• The new sealing system does not require any moving high-pressure seal.
• Extra-long work-life
• Connection thread suitable for bonded seals.
• Switch can be retrofitted.
• Handwheel for adjusting the pressure can be retrofitted.
• Valve-ball made of high-performance ceramic
• Soft switching behaviour
• Made in Germany

Specifications

• Series: ST-285
• By-pass: 1/2″ F
• Inlet: 1/2″ F
• Output: 1/2″ F
• Pressure: 3,625 PSI
• Flow: 100 L/min
• Cable Length: 1.2 m
• Temperature: 90 °C
• Power: 10mA – 5A(2A)
• Tension: 12-24VDC 12-250VAC
• Dust Class: IP6K7
• Manufacturer: Suttner
