Features

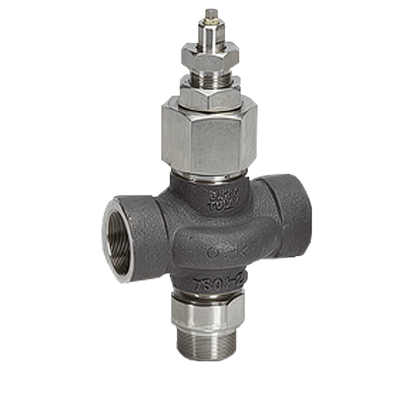

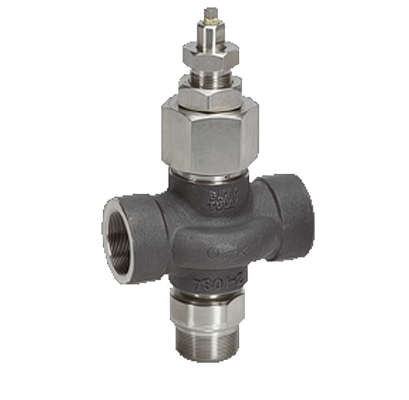

- This relief valve can be used as a primary pressure control device or secondary (safety) pressure relief device. Many systems also use two relief valves, one set as the primary pressure control and the other set as a secondary relief. When used as a secondary pressure relief device, it is typically set approximately 200 PSI above the system pressure and provides additional protection for the pump and high-pressure system.
Specifications
- Max Flow: 189 L/min
- Min Flow: 38 L/min
- Max Pressure: 8,000 PSI
- Inlet Port Size: 2″ NPT M
- Discharge Port Size: 2″ NPT F
- By-Pass Port: 2″ NPT F
- Accessory Type: Relief Valves
- Material: 316 Stainless Steel
