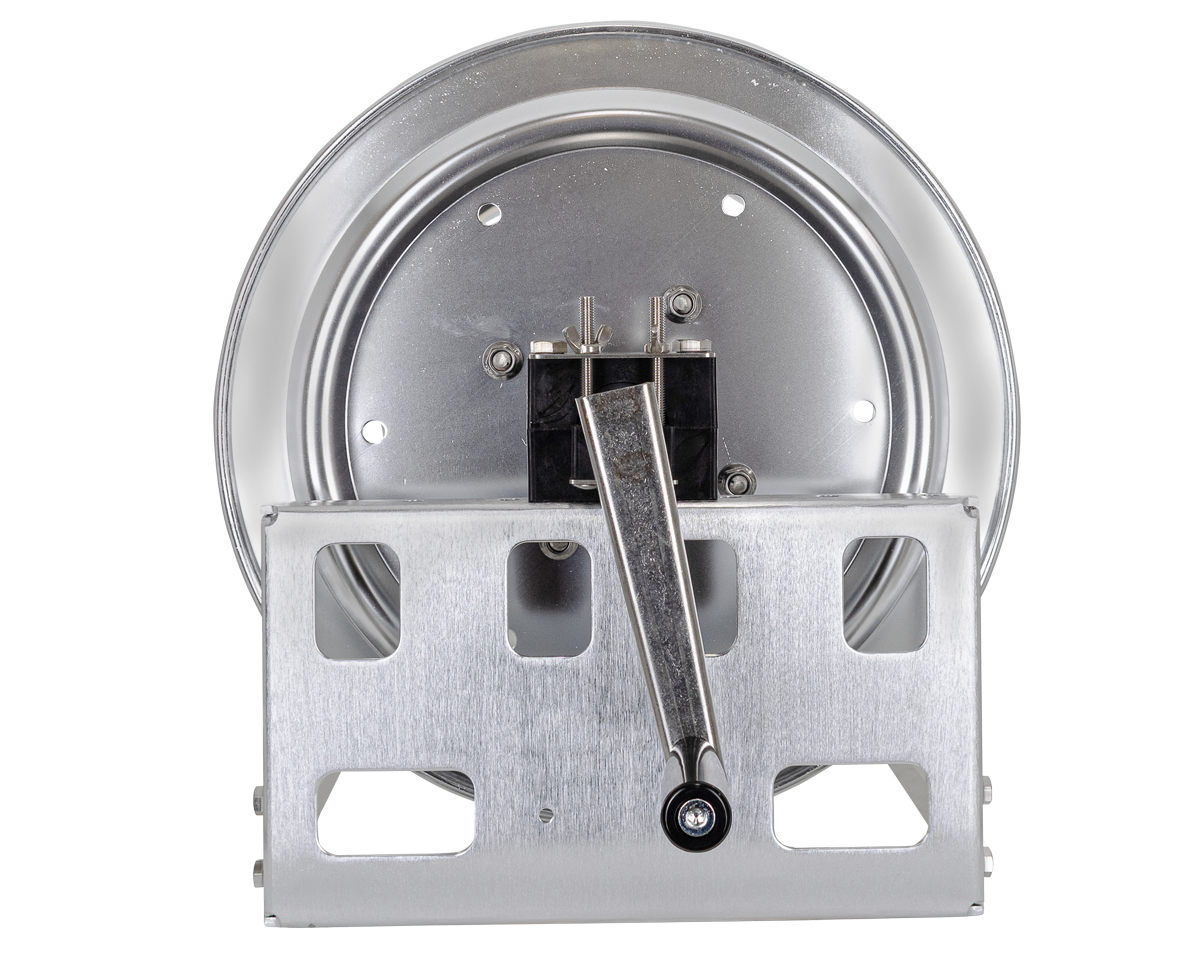

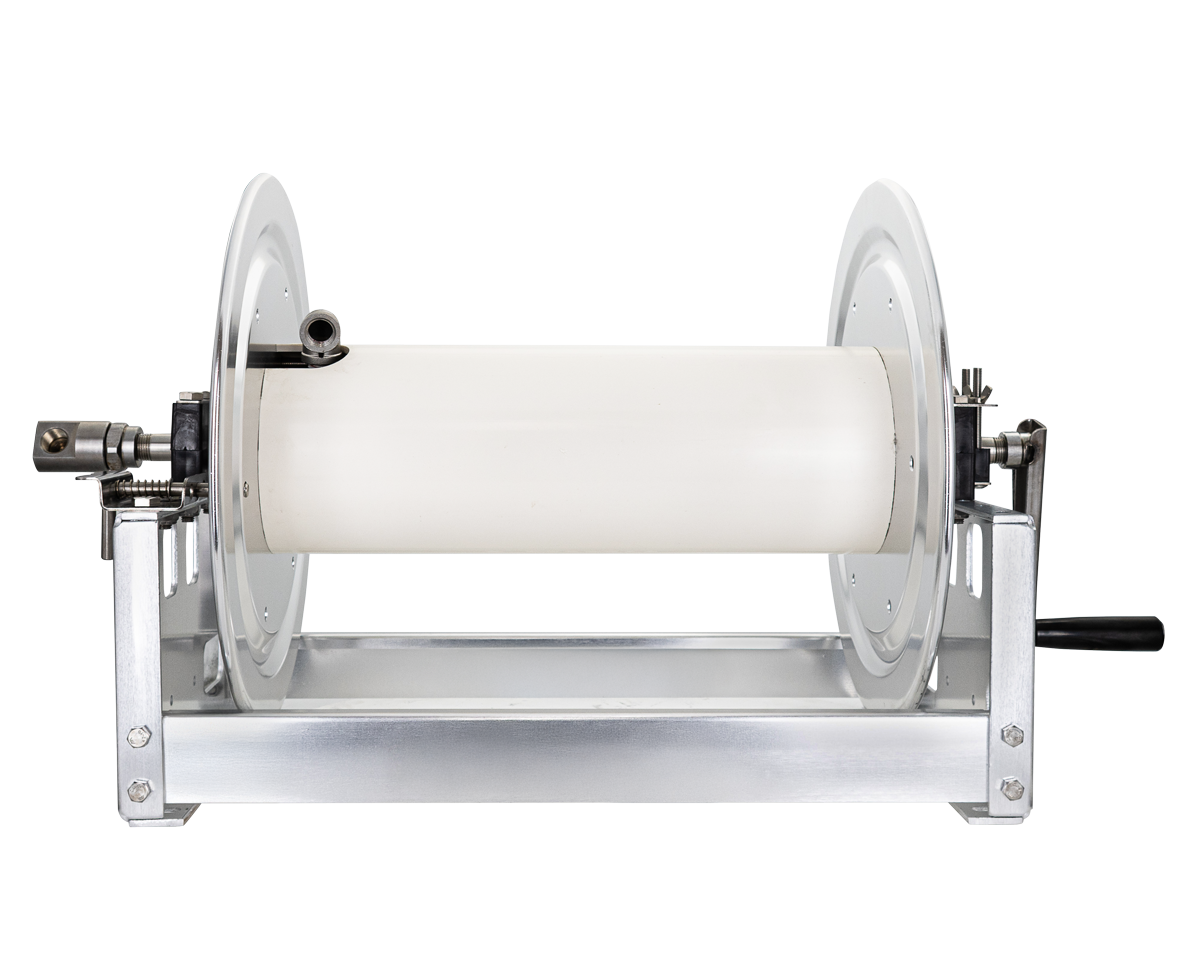

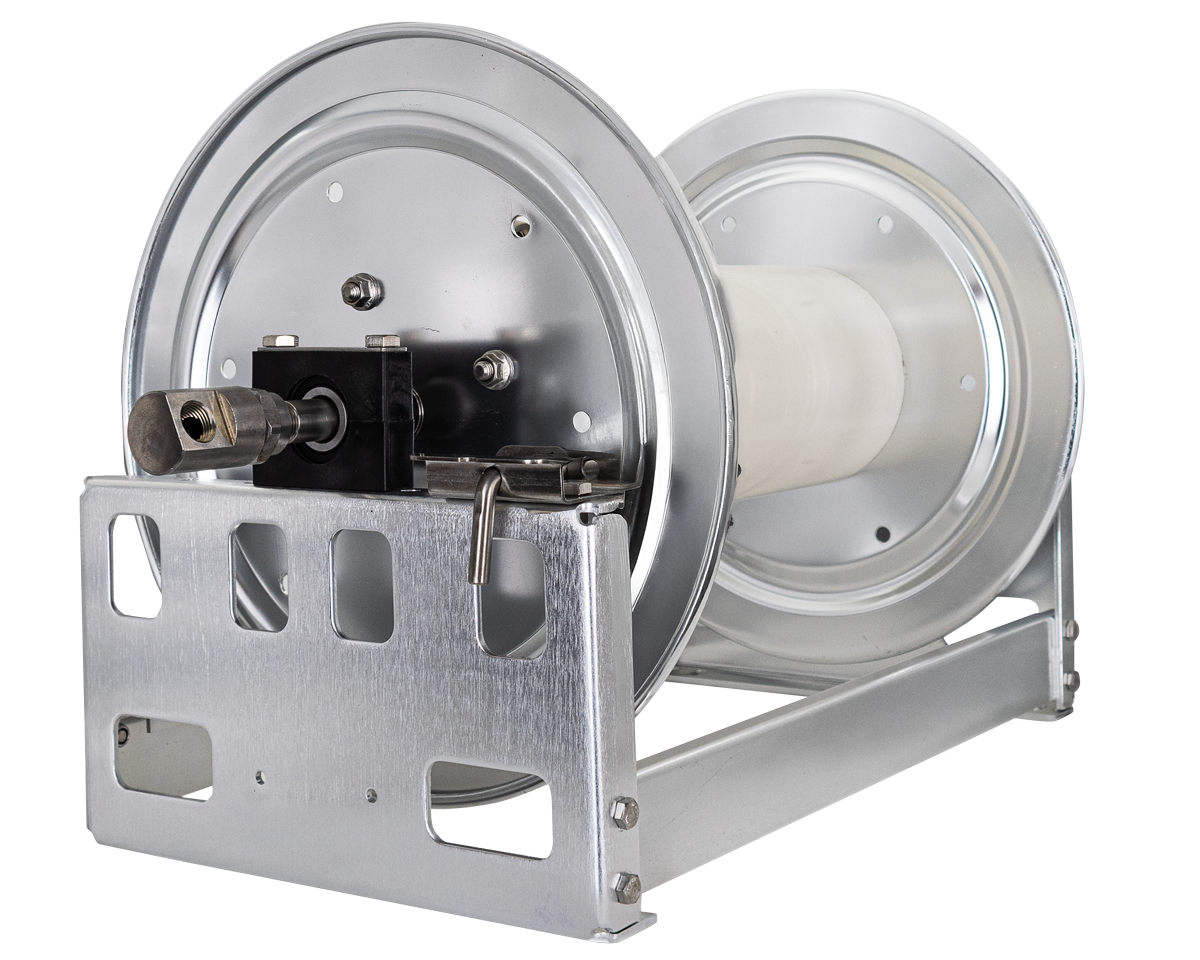

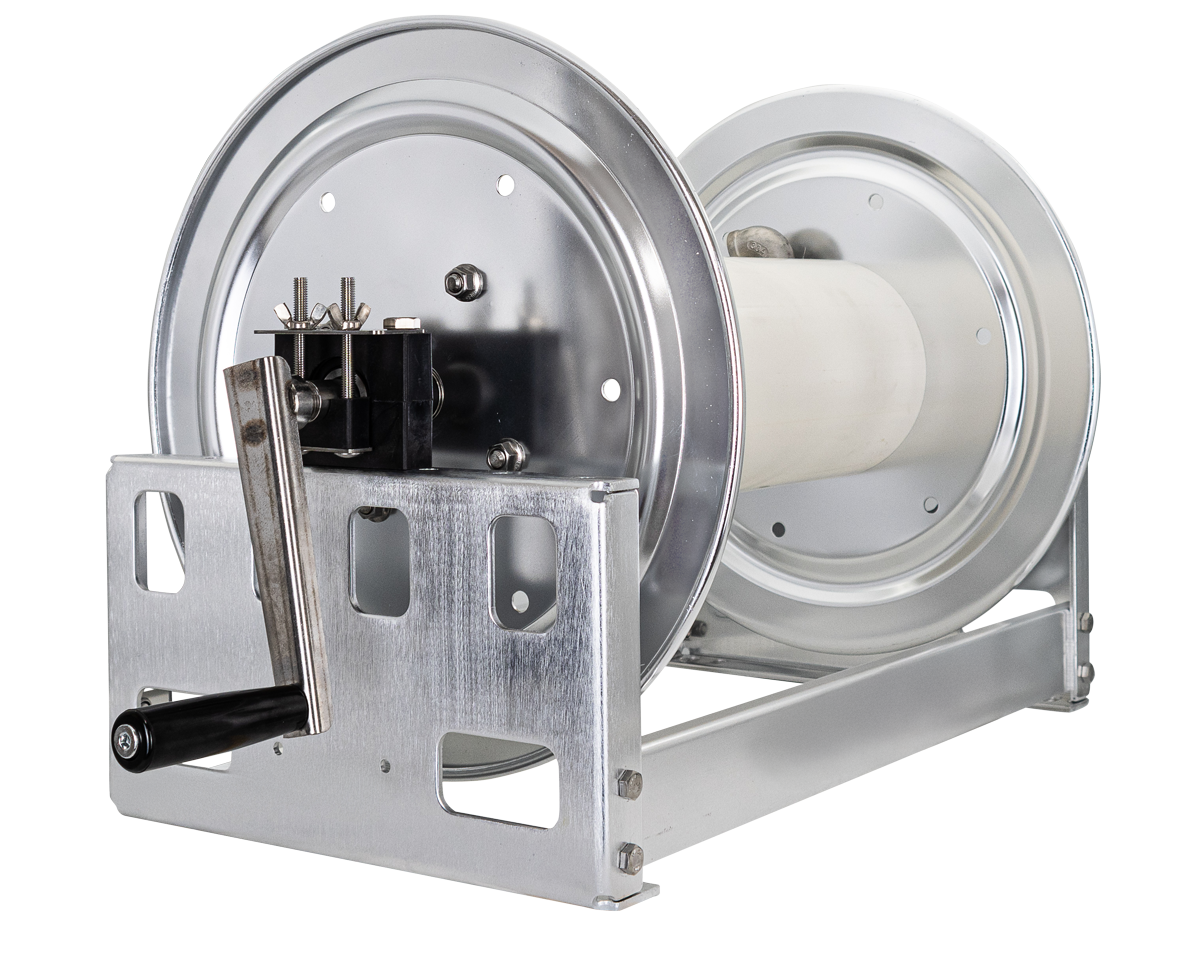

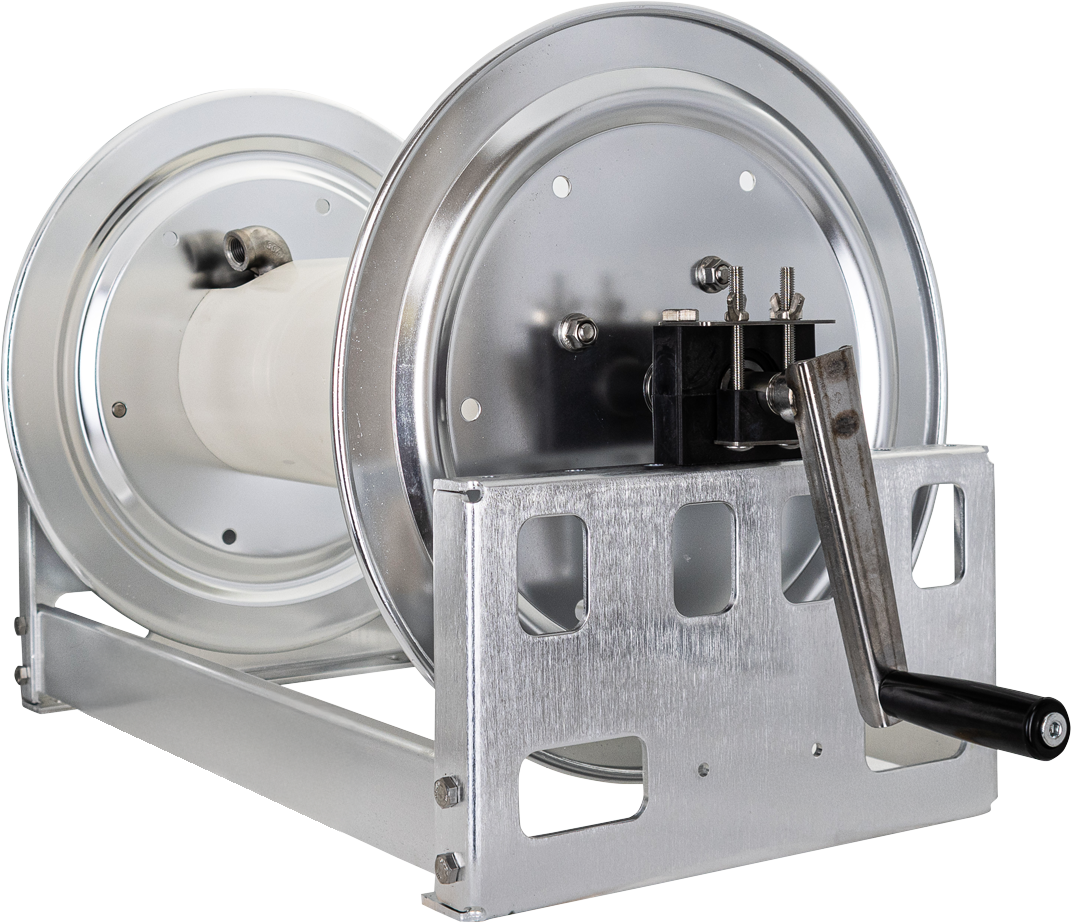

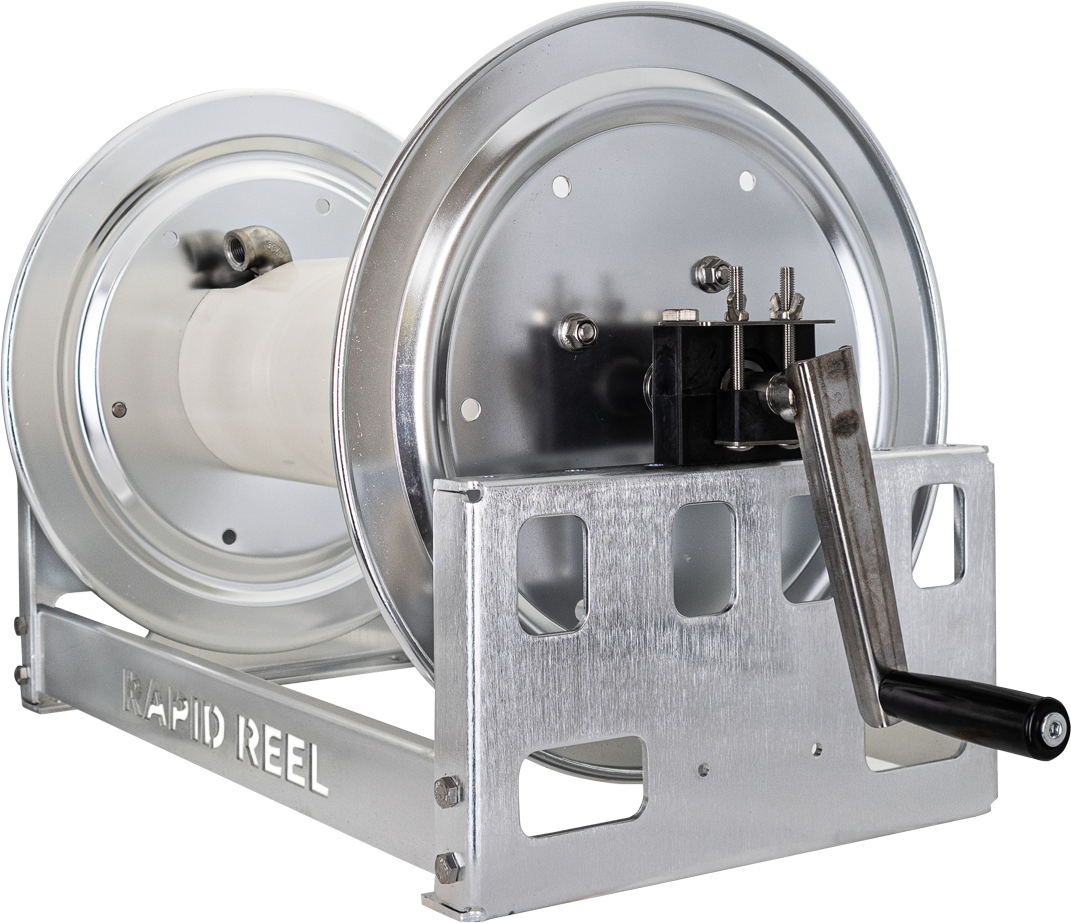

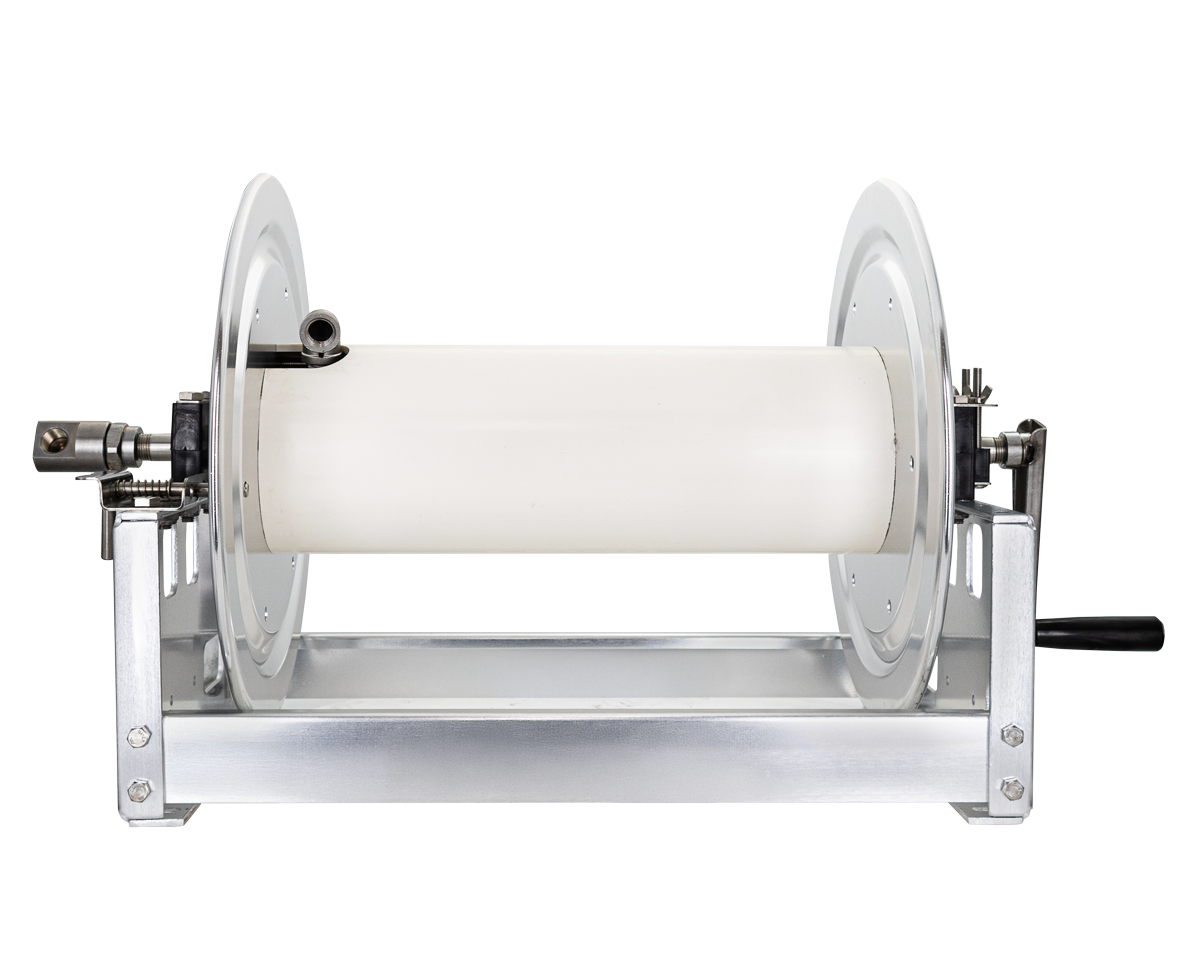

Features

• High-Performance Swivel: Equipped with ball bearing support and Viton seals for smooth operation and improved longevity.

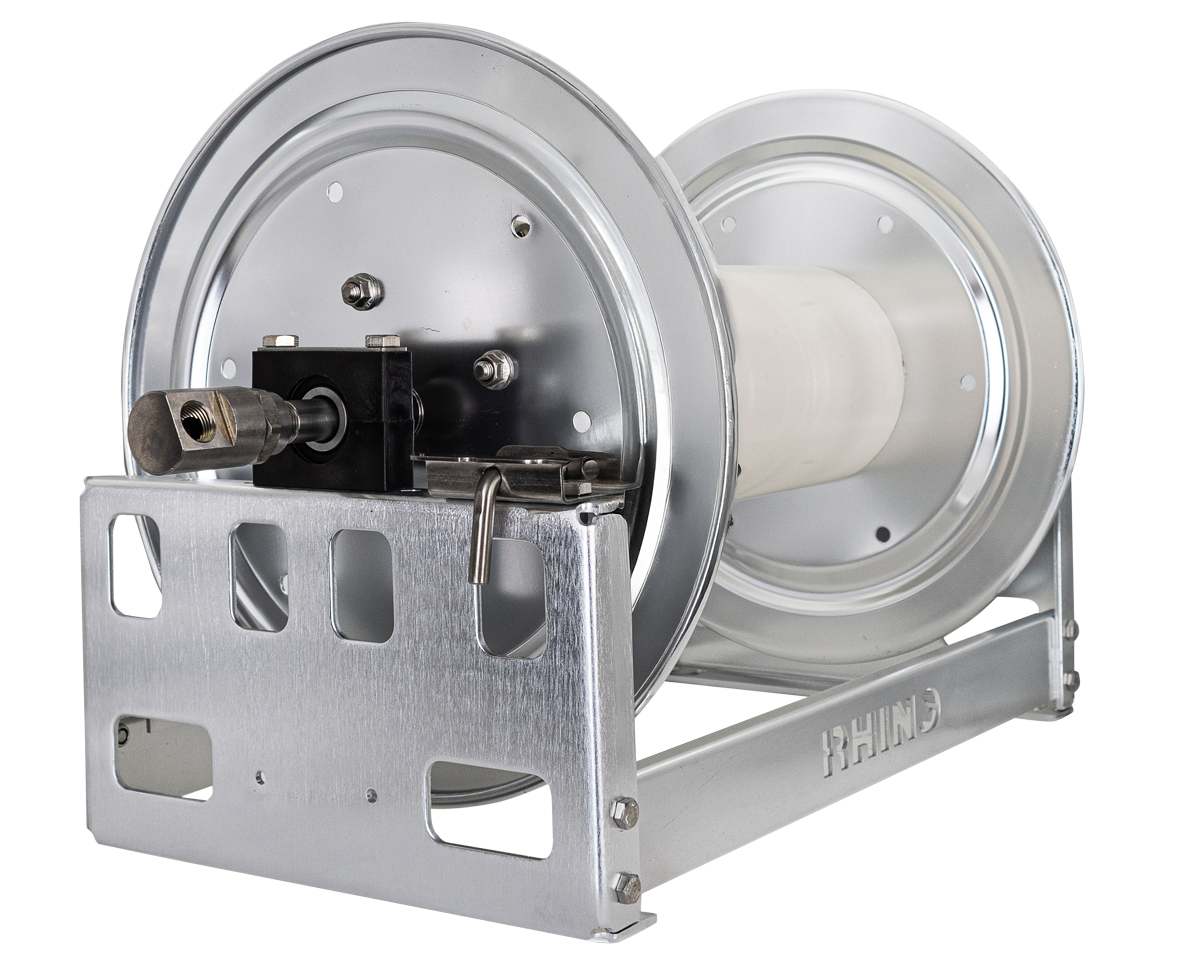

• Spring-Loaded Pin Lock Mechanism: Securely locks the reel in place to prevent movement during use.
• Adjustable Drag & Brake Control: Allows controlled hose retraction and unwinding.
• Stackable Hose Reel Kits: Available for 12” and 18” models, providing space-saving solutions.
• Pre-Drilled Mounting Holes: Designed for easy installation on various surfaces.
• Double Stacker Hose Reels Available for increased capacity.

Specifications

• Max Pressure: Up to 5,000 PSI
• Max Temperature: Up to 120°C
• Size: 18″
• Material: Entire fluid path, including the swivel, is made of stainless steel for resistance to corrosion and harsh chemicals such as bleach.
• Construction: Lightweight, durable aluminium and designed for long-term use in demanding environments.
• Pipe Thread: 1/2” BSP M x 1/2” BSP M
• Swivel Thread: 1/2” BSPP F x 1/2” BSPP F

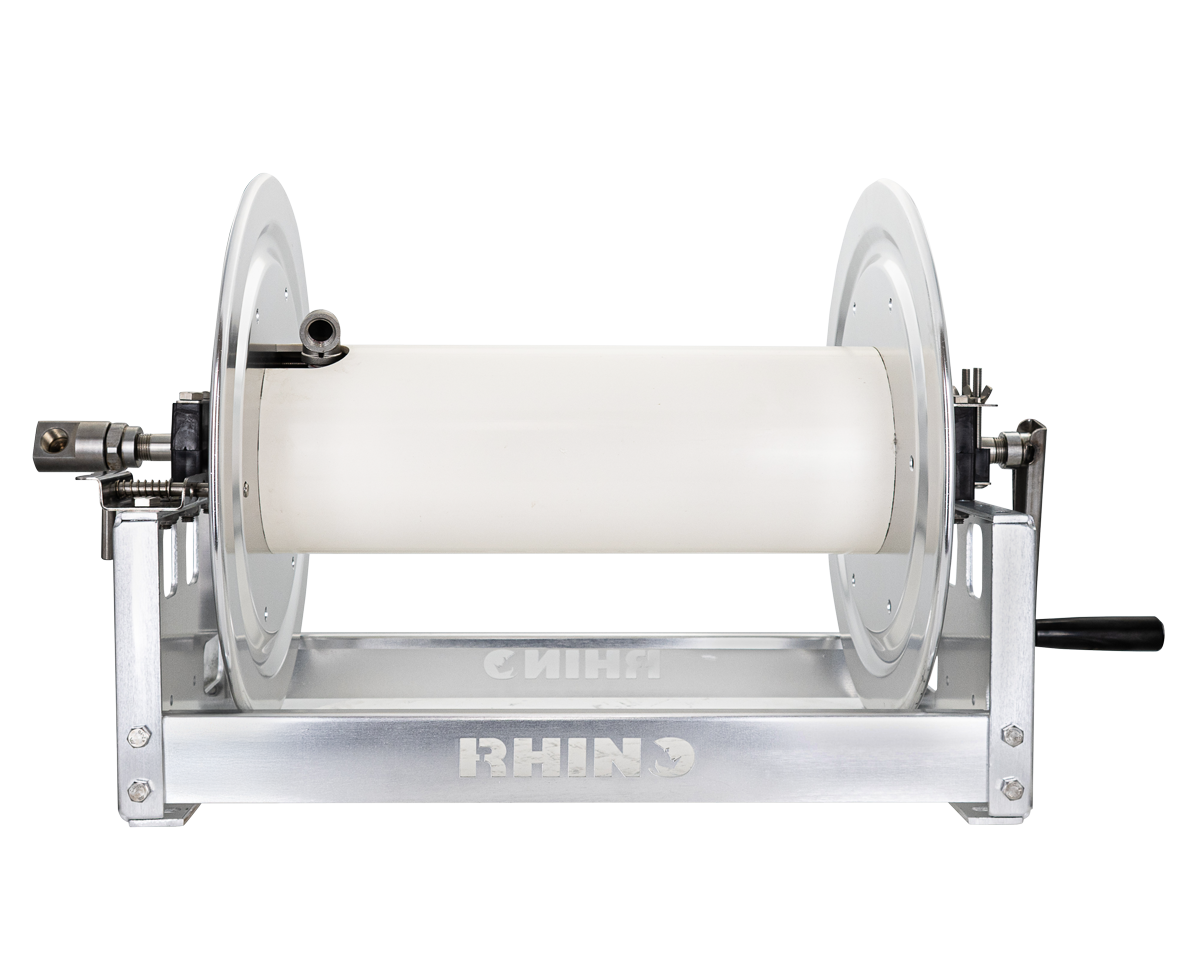

Note: Older Reels marked “Rhino” have NPT thread
