Features

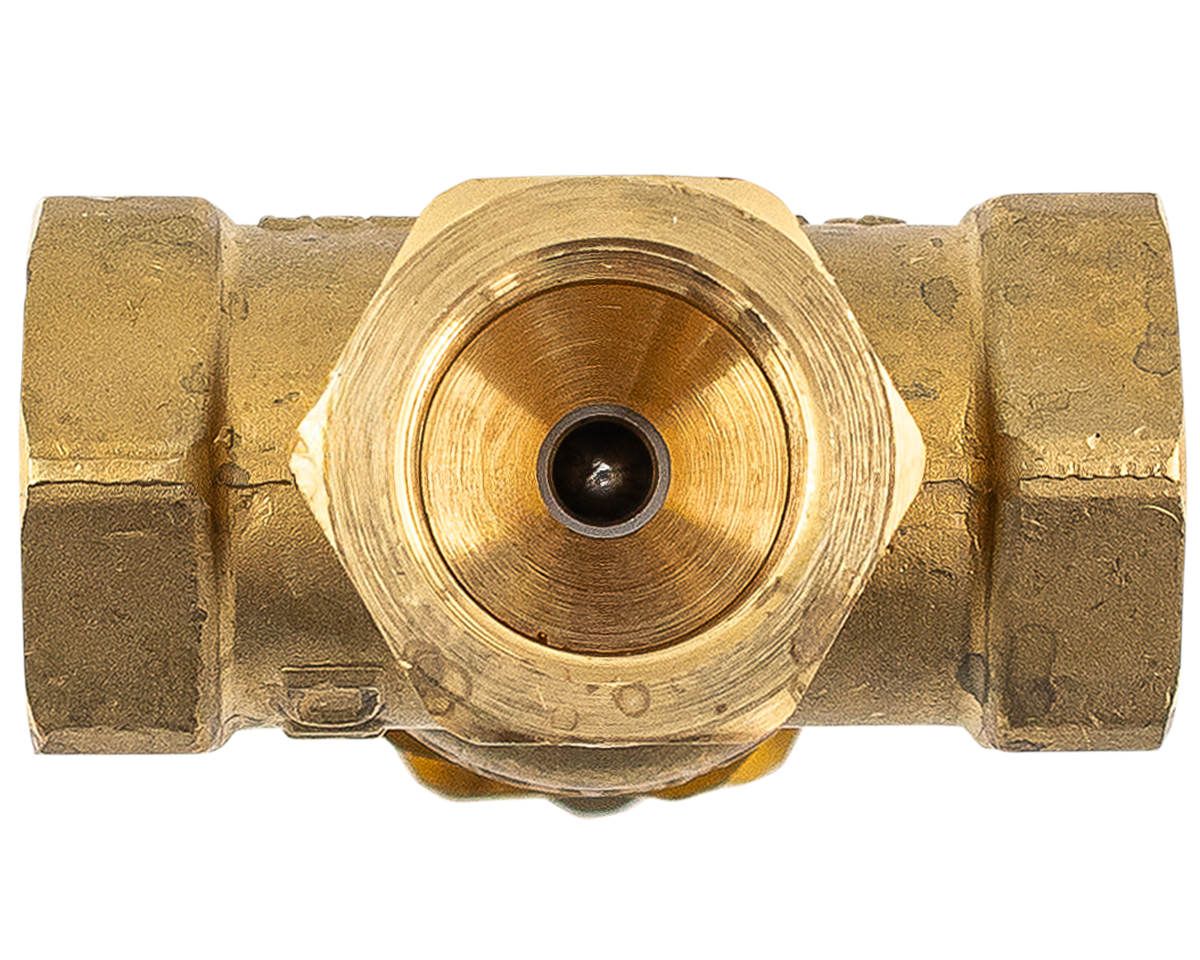

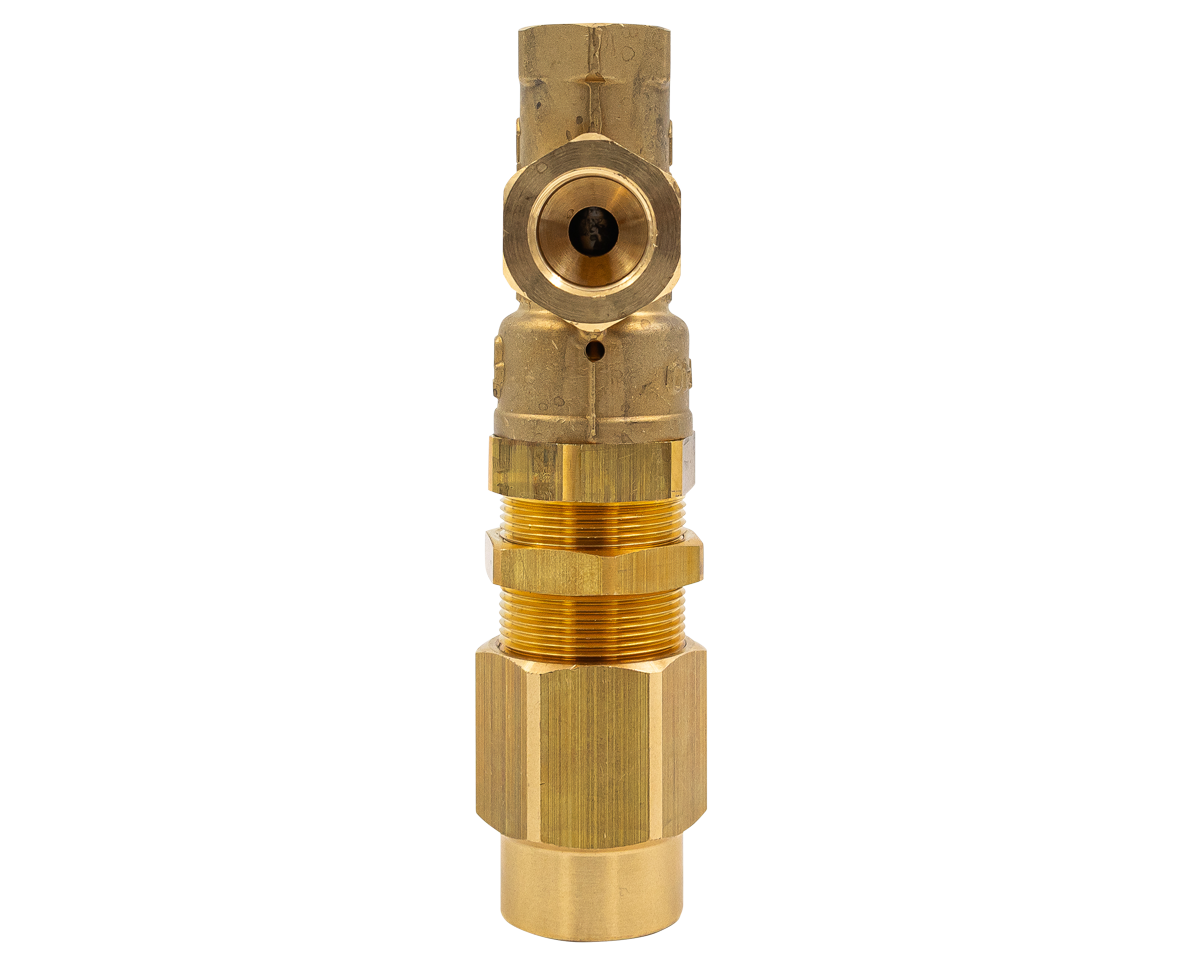

- Mecline SVT40 Safety Valve
- This valve is designed to provide maximum system protection through effective damping of pressure spikes and total flow discharge. The spring working in a waterproof room, the long life of the dynamic seal and the safety end stroke ensure reliability, continuous operation and consistent long-term performance.
Specifications
- Inlet: 3/8″ BSP F
- Outlet: 3/8″ BSP F
- Pressure: 5,220 PSI (5,800 PSI max.)
- Minimum Adjustable Pressure: 522 PSI
- Flow: 25 L/min
- Temperature: 90 °C
- Weight: 495 g
- Repair Kit: 155 4079900133
