Features

• Safety valve for use on water-operated high-pressure systems such as pressure washers or hot water generators.
• Approved for use with Group II fluids according to 2014/68/EU.

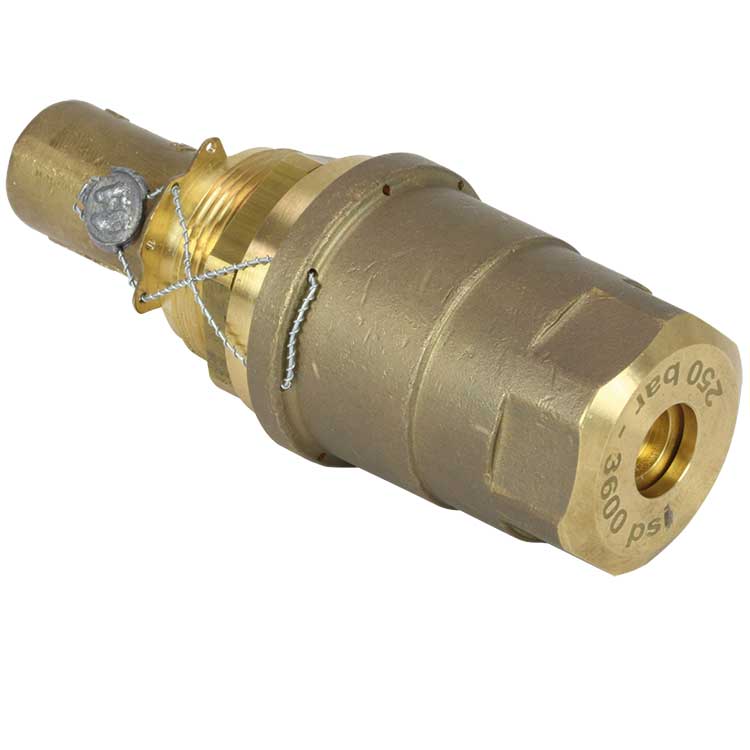

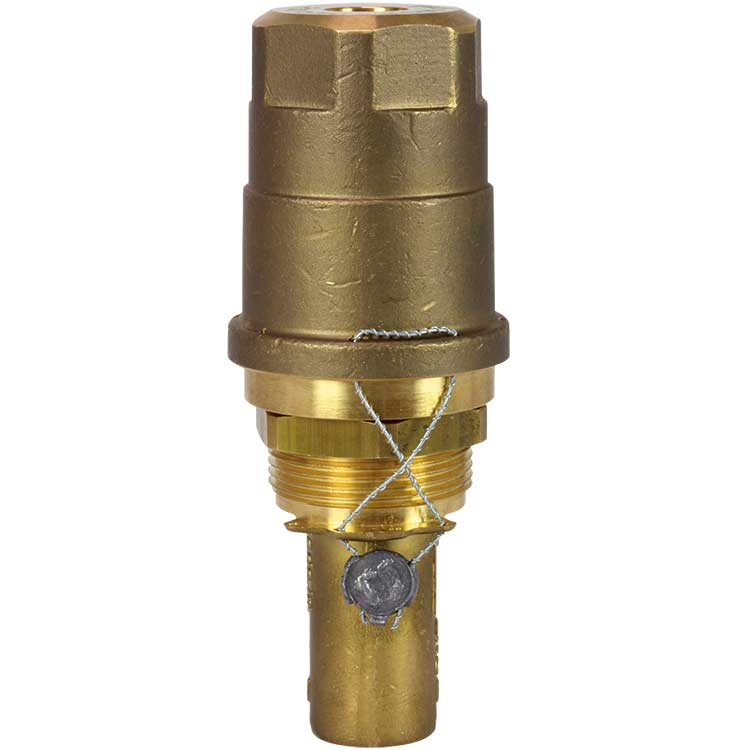

• The ST-230 pressure relief valve is used to protect high-pressure equipment against overpressure, i.e., to reduce pressure above the specified operating pressure, thus protecting the high-pressure equipment.

Specifications

• Series: ST-230
• Manufacturer: Suttner
• Pressure: 3,625 PSI
• Flow: 30 L/min
• Height: 110 mm
• Inlet: 1/4″ BSP F
• Outlet: 1/4″ BSP F
• Material: Brass
• Temperature: 95°C
