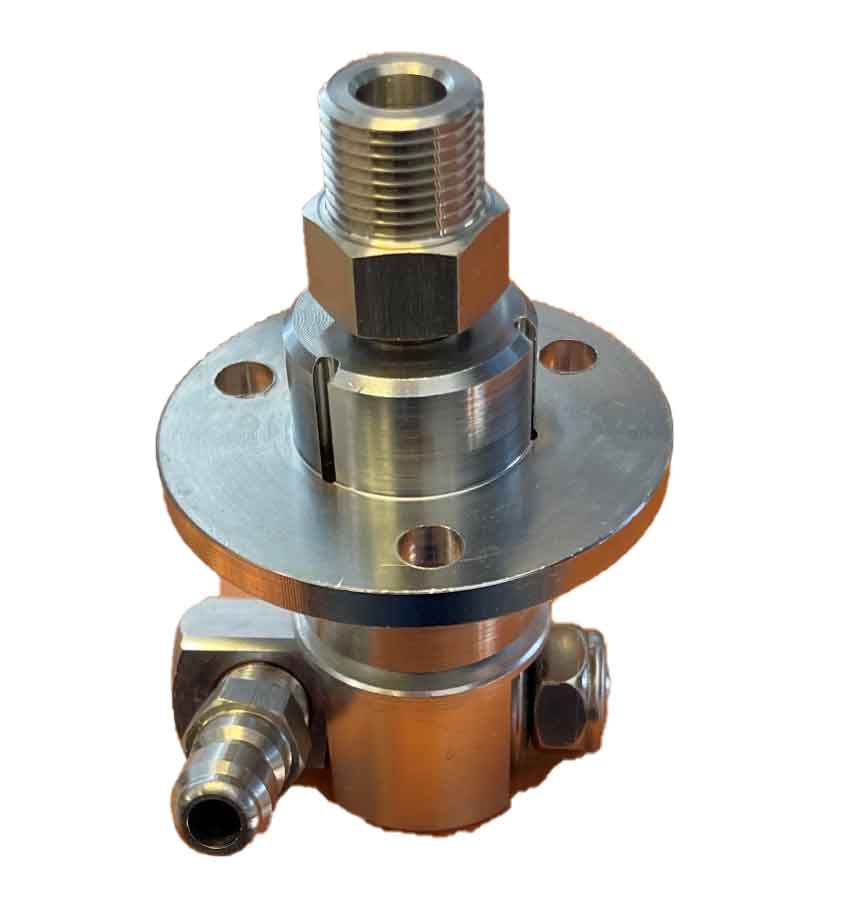

Rotary Head – Suits OMW 12-14 & 16″

BAR 4000 PSI Rotary Head Swivel Spindle

Our budget WAW  spindles are a great choice when repairing or custom-building your own surface cleaner.  A good price alternative to our more expensive Swiss options

Features

• Stainless Steel & Brass Construction
• Ideal For Use With Wands
• Adjustable Tilt on Input Connection
• Sealed by an O-ring

Specifications

• Max Pressure Rating: 4000 Psi
• Max Flow Rating: 30 L/min
• Max Temperature: 100°C
• Inlet: 1/4″ Q/C Male Plug
• Outlet: 1/8″ NPT Male

Note:
Inlet: 1/4″ QC Plug

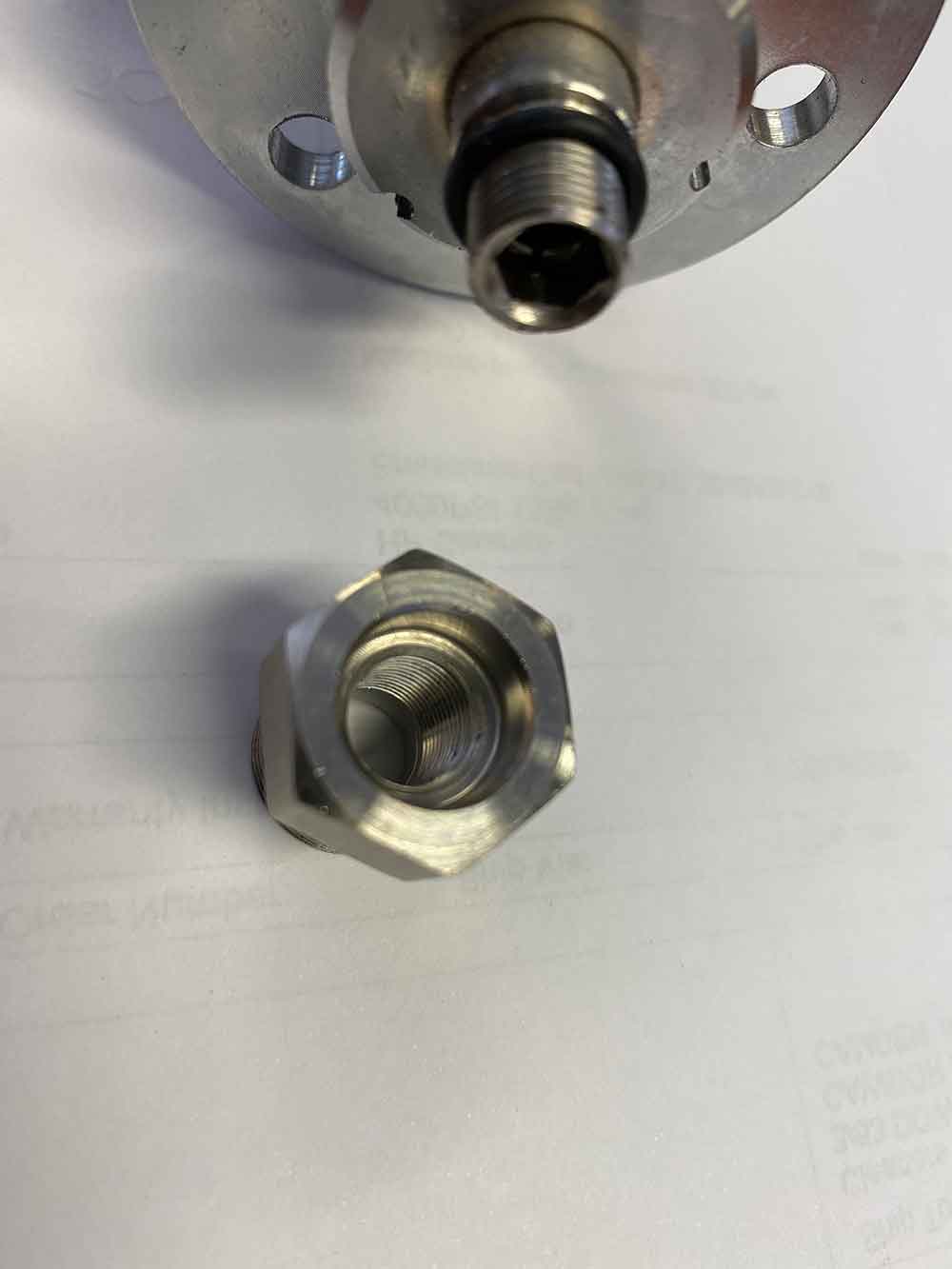

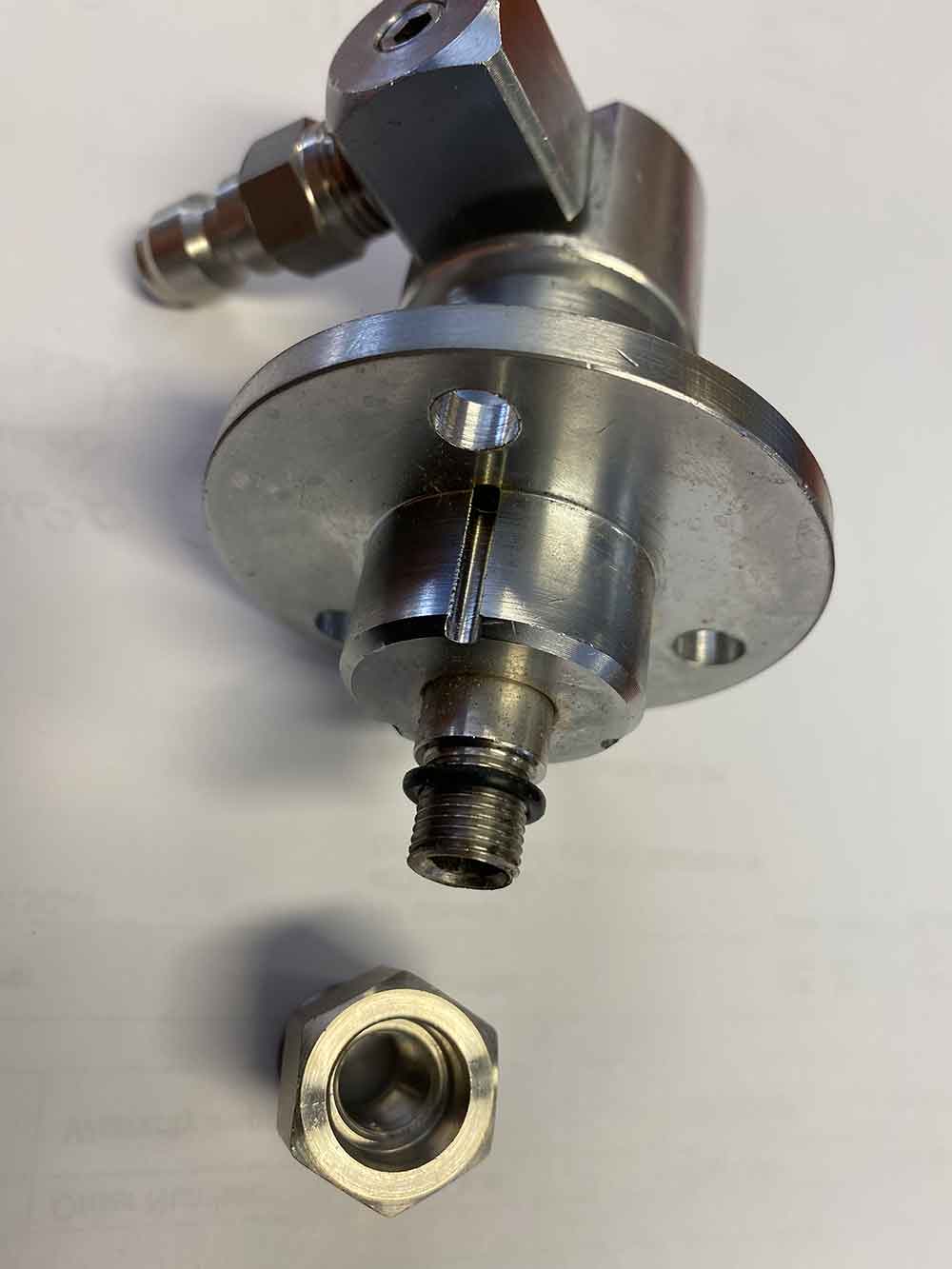

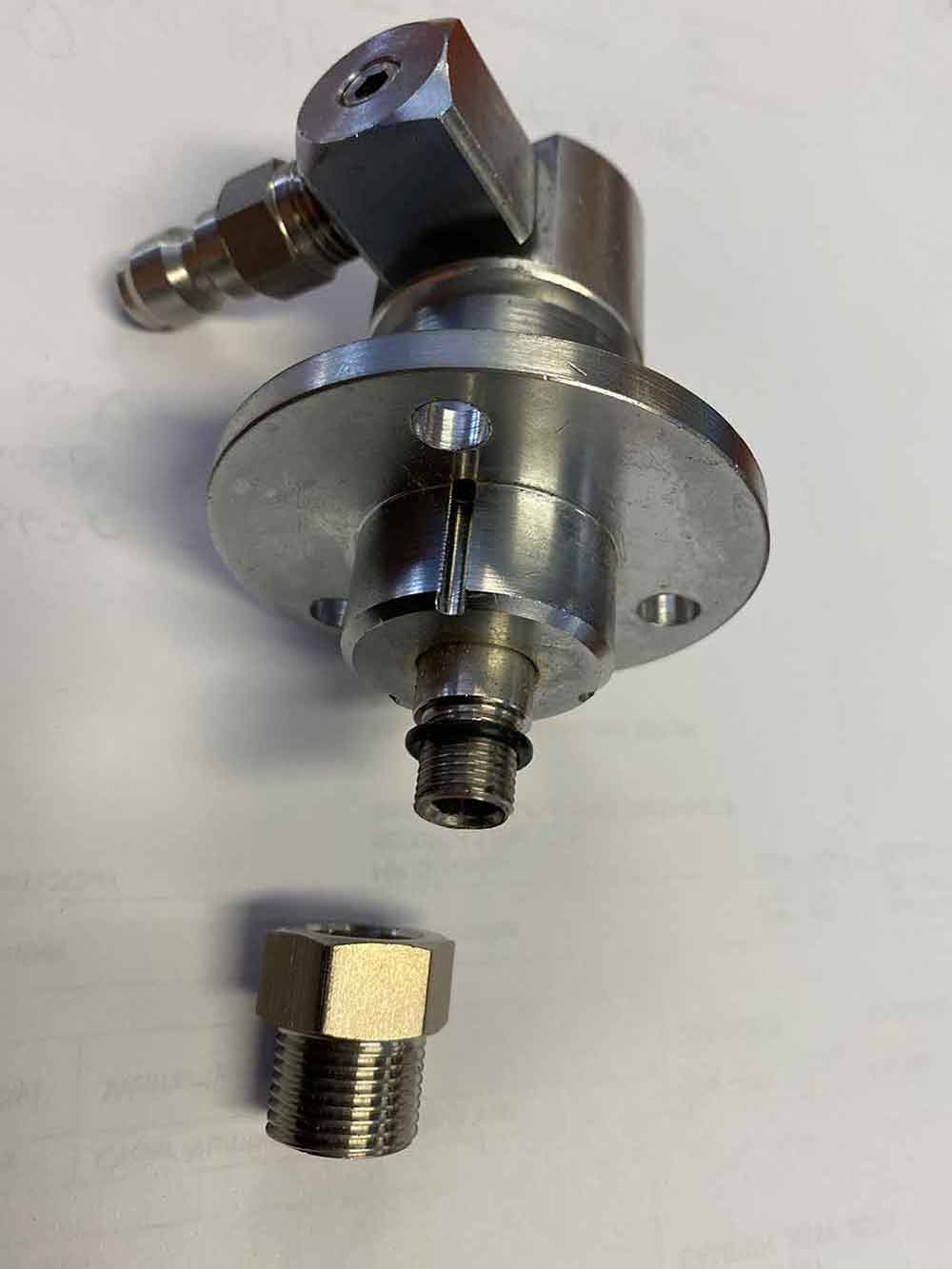

Outlet: 1/8 male coming out of the swivel then that goes into a 1/8 F x 3 /8 m S/S adaptor

Suits:
125 BAR1400-OMW
125 BAR1600-OMW
