Features

• The Remco 3200 AG Series bridges the gap between the compact 3300 Series and the higher-output 5500 Series — delivering 3.5 GPM at 60 PSI in a lightweight, efficient package. The 90-3214-1E1-82B-SB is the standard on-demand configuration with ¾” Quick Attach female ports, purpose-built for agricultural spraying, liquid fertilizer application, and industrial fluid delivery where moderate-to-high flow rates are needed without the added weight and cost of a larger pump.
• Engineered with Professional Grade components for long and continuous duty cycles, the 3200 AG Series features an ultra-efficient motor design that keeps operating amperage and heat low — making it ideal for battery-powered ATV, UTV, and truck-mounted sprayer systems where power conservation matters. The ¾” Quick Attach ports snap hoses on and off in seconds for fast chemical changeovers in the field.
• Powered by Remco’s signature completely sealed 12V DC motor with IP65 ingress protection, this pump handles the harshest outdoor environments. Standard Viton valves and Santoprene diaphragm provide excellent compatibility with the most common herbicides, fertilizers, and insecticides.

Specifications

• OEM Part Number: 3214-1E1-82B
• Brand: Remco Industries
• Series: 3200 AG Series
• Motor Type: 12 VDC Permanent Magnet, Sealed, Intermittent Duty
• Voltage Range: 11.5 – 14.5 VDC
• Maximum Amperage: 10 Amps at 60 PSI
• Recommended Fuse: 15 Amp
• Wire Leads: 14 AWG, 6″ long
• Ingress Protection: IP65
• Pump Type: 3-Chamber Diaphragm
• Material Designation: Standard (E1) — Viton / Santoprene
• Control Type: On-Demand (Pressure Switch)
• Maximum Flow Rate: 3.5 GPM (13.25 LPM)
• Pressure Setting: 60 PSI (4.1 Bar)
• Inlet / Outlet Ports: 3/4″ Quick Attach Female
• Valve Material: Viton
• Diaphragm Material: Santoprene
• Housing Material: Nylon
• Vertical Prime: Up to 10 ft (3.0 m)
• Run Dry: Yes
• Max Liquid Temperature: 140°F (60°C)
• Max Motor Temperature: 180°F (82°C)
• Chemical Compatibility: Herbicides, fertilizers, insecticides, water-based ag chemicals
• Potable Water Use: Not Approved — Not for Drinking Water
• Petroleum/Fuel Use: Not Compatible — Never use with gasoline or petroleum

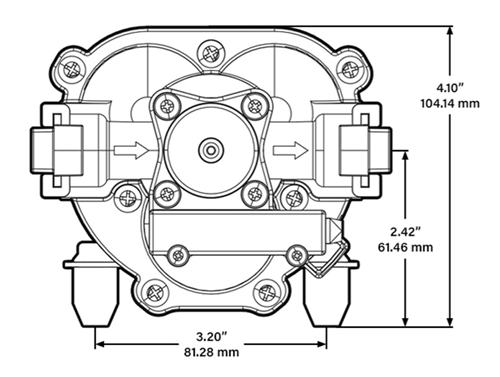

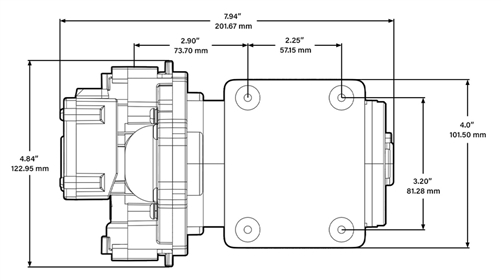

• Dimensions: L 8.2″ x W 4.8″ x H 4.0″
• Weight: 4.6 lbs
• Country of Origin: Made in the USA
• Warranty: 1-Year Limited Manufacturer
