Features

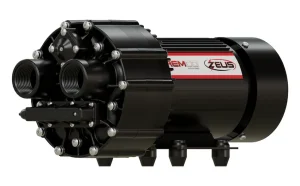

Remco’s Zeus SmoothFlo will take your SoftWash system to new heights. The Zeus pump pushes flow rates up to 14 GPM through its 1” FNPT ports making it the highest performing electric diaphragm pump on the market. With its ultra efficient 24 VDC fan cooled motor, Zeus can handle long and demanding duty cycles. The SmoothFlo technology allows Zeus to operate at higher pressures and spray farther. With a maximum pressure of 150 PSI, you can reach the highest peaks and remove debris with ease. Zeus is the evolution the SoftWash industry has been asking for, higher flow, higher pressure, higher reach.
- Spray system recommendations: 3/4″ hose/minimum hose size 5/8″, 250ft max hose length, size 60 spry tips for operating pressure of 100psi, size 40 spray tips for operating pressure of 125psi, do not use smaller than size 40 tip, 50 amp fuse, pressure gauge to aid with system
- Made in the U.S.A.
- Self priming up to 14′ vertically
- Heavy duty fan cooled motor
- Aluminum Heatsink for better heat depression
- Softwash Applications, Dust Suppression, wash down applications, Ag and Industrial Spraying.
- 10 AWG wire leads
- Capable of being dry run
Guidelines
- 3/4″ ID outlet hose recommended, minimum hose size ¾” ID
- Use size 50 spray tips and above
- 200 ft maximum hose length
- Do not exceed 130 PSI operating pressure
- If rapid switch cycling occurs contact factory immediately
- Pressure gauge near pump to aid with system monitoring
- 50 AMP fuse recommended
Specifications
- Max Flow: 63 L/min
- Max Pressure: 150 PSI
- Control: Duel control Smoothflo
- Voltage: 24 V DC
- Port Size: 1″ FNPT
- Maximum Liquid Temperature: 140° F
- Maximum Shell Temperature: 180° F
