Features

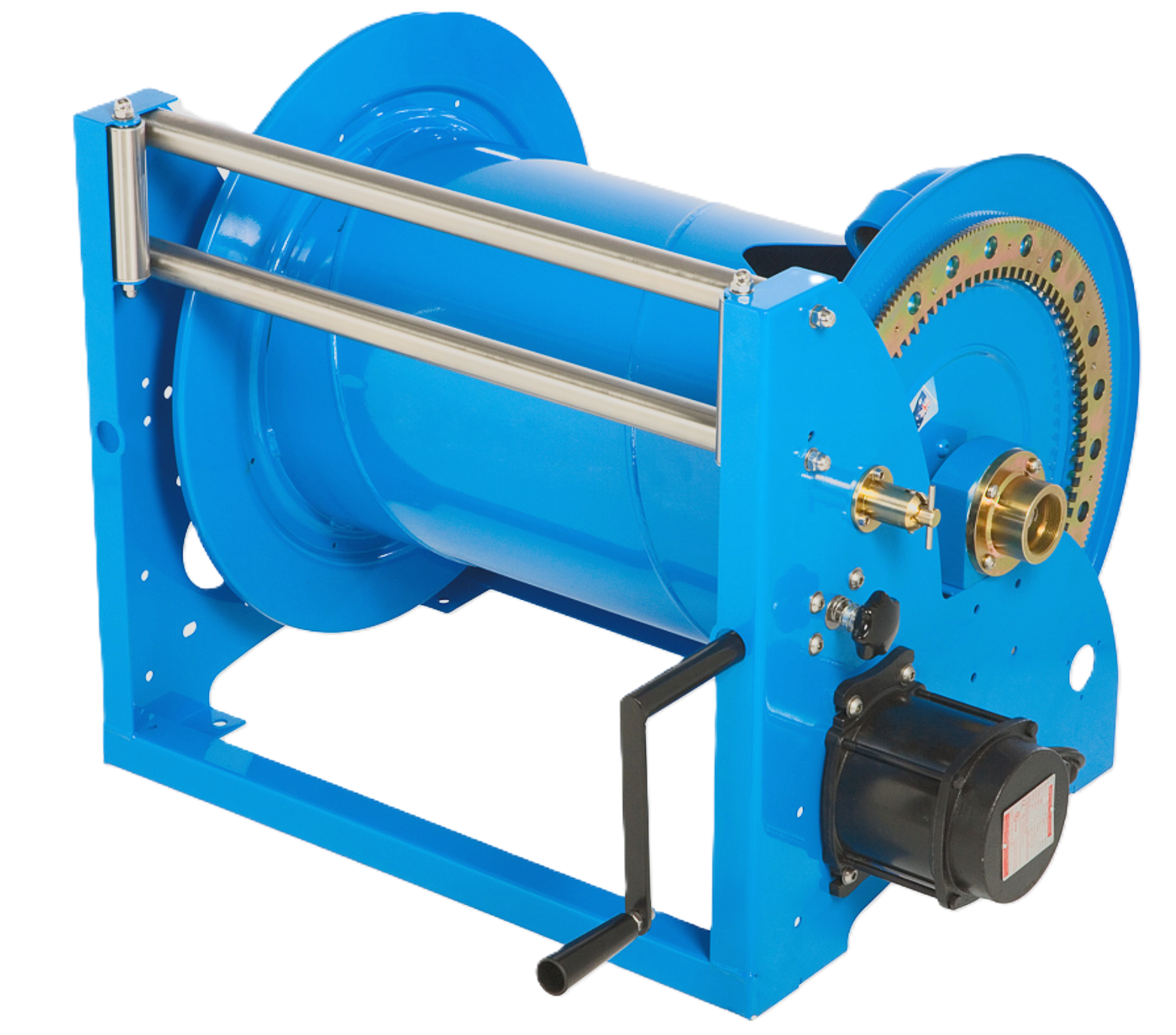

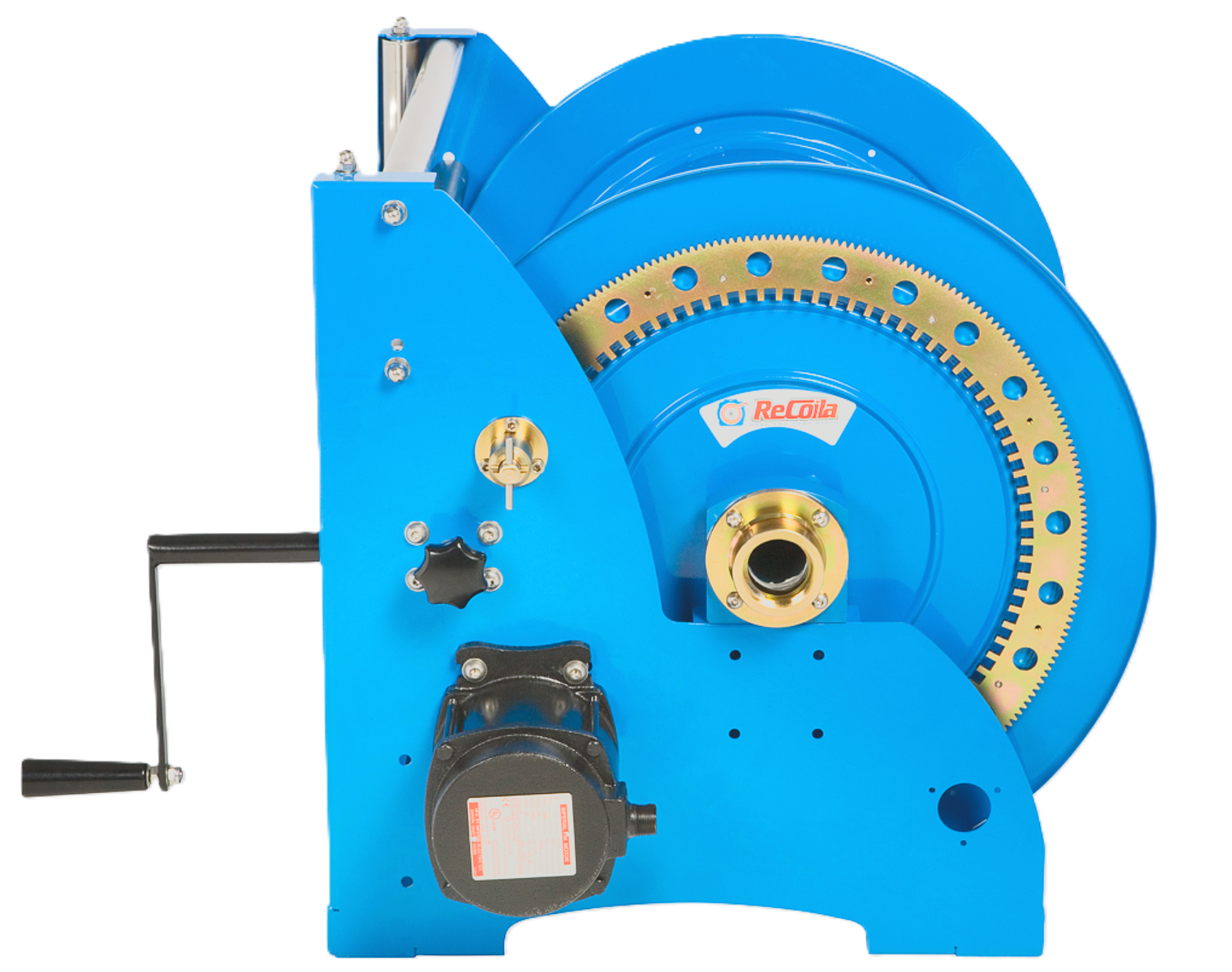

- ReCoila T Series heavy duty reels are designed for applications where reliability, longevity and strength is required. The T Series range is welded and fabricated from heavy gauge steel plate to ensure rigidity and strength. The standard carbon steel model comes complete with a 12 VDC EXP motor, a tough welded frame and heavy duty roll spun flanges, 800psi swivel, heavy duty spring loaded pin lock, stainless steel top roller guides, powdercoating in our standard colour blaze blue, high flow swivels and fluid paths, ball bearing main axel bearings and stainless steel fasteners.
- The T Series is customisable to your individual requirements with a series of add-on features including right or left hand configuration, bottom roller guides, 5000psi or 10000psi swivels, hot dip galvanizing, gear guards, an auxiliary bevel crank, reduction drive, electric clutch and friction brakes. Aluminium, 304 stainless and 316 stainless steel construction is also available, as well as a ‘no aluminium’ model for mining applications. Please contact us on (02) 9621 8988 if you would like a hand choosing the correct reel for your application.
Specifications
- Part Number: ET38640600
- ID (mm): 32-38
- Length (m): 35
- Pressure: 800 PSI (Optional 1500psi or 4000psi swivel)
- Rewind Type: Motor
- Series: T Series
- Inlet Fitting: As per your requirements
- Outlet Fitting: As per your requirements
- Max Temp: 95°C
- Finish: Steel, 304 Stainless Steel, 316 Stainless Steel
- Swivel Material: Steel, 304 Stainless Steel, 316 Stainless Steel
- Seal Material: Aflas
- Includes Hose: No
