Features

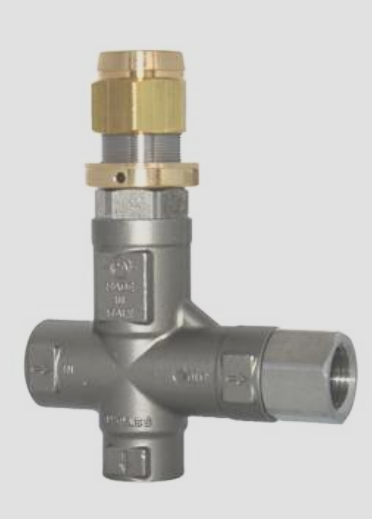

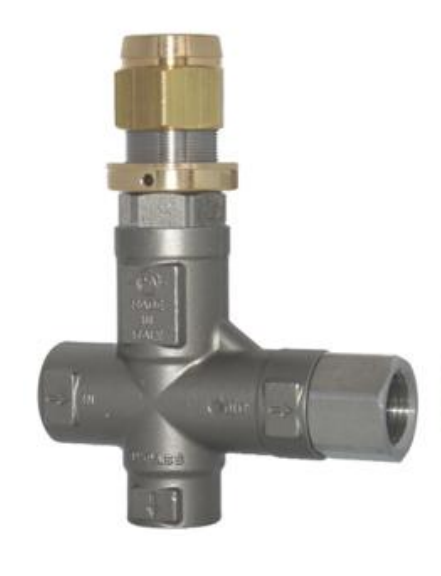

• Compensated pressure regulating valve. Regulates fluid bypass minimising pressure variations Indicated as pressure regulating valve on pressure washers and stable systems
• Sturdy construction in Aisi 303 stainless steel. – Return action of the piston by means of a powerful spring, for a safe and reliable pressure adjustment. – High balancing to guarantee slight variations of calibration pressure when flow rate in bypass varies. – Possibility to use the valve with several lances at the same time.
• The valve is especially designed for a constant use at a water temperature of 60°C. It can withstand up to a max. temperature of 90°C for short intervals only.
• The max. pressure increase inside the valve occurs when the max. flow rate is discharged at max. calibration pressure.

Specifications

• Rated Pressure: 400 BAR (Max 6380 PSI)
• Min Adjustable pressure: 40 BAR
• Inlet / Outlet: 1/2″ BSP F
• By Pass: 1/2″ BSP F
