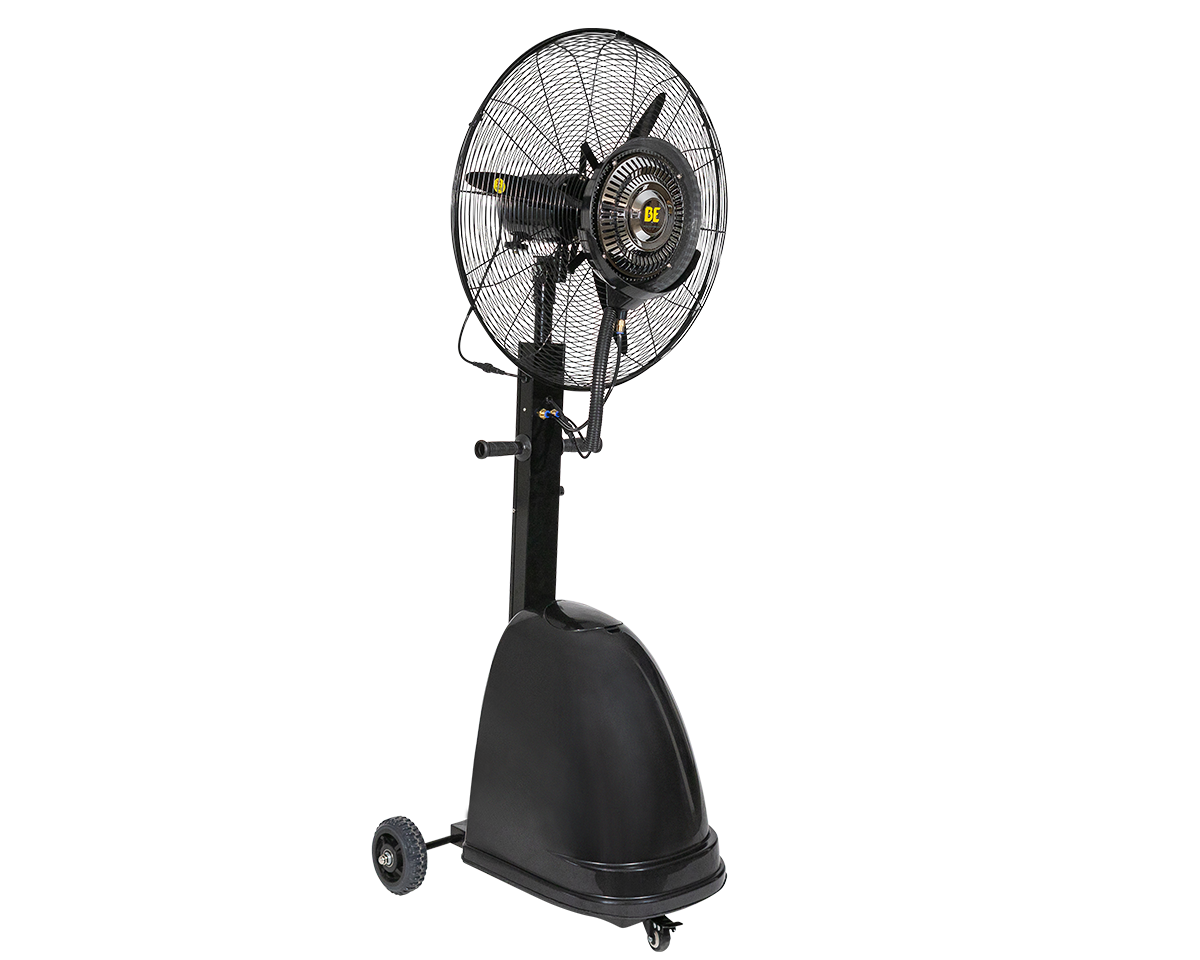

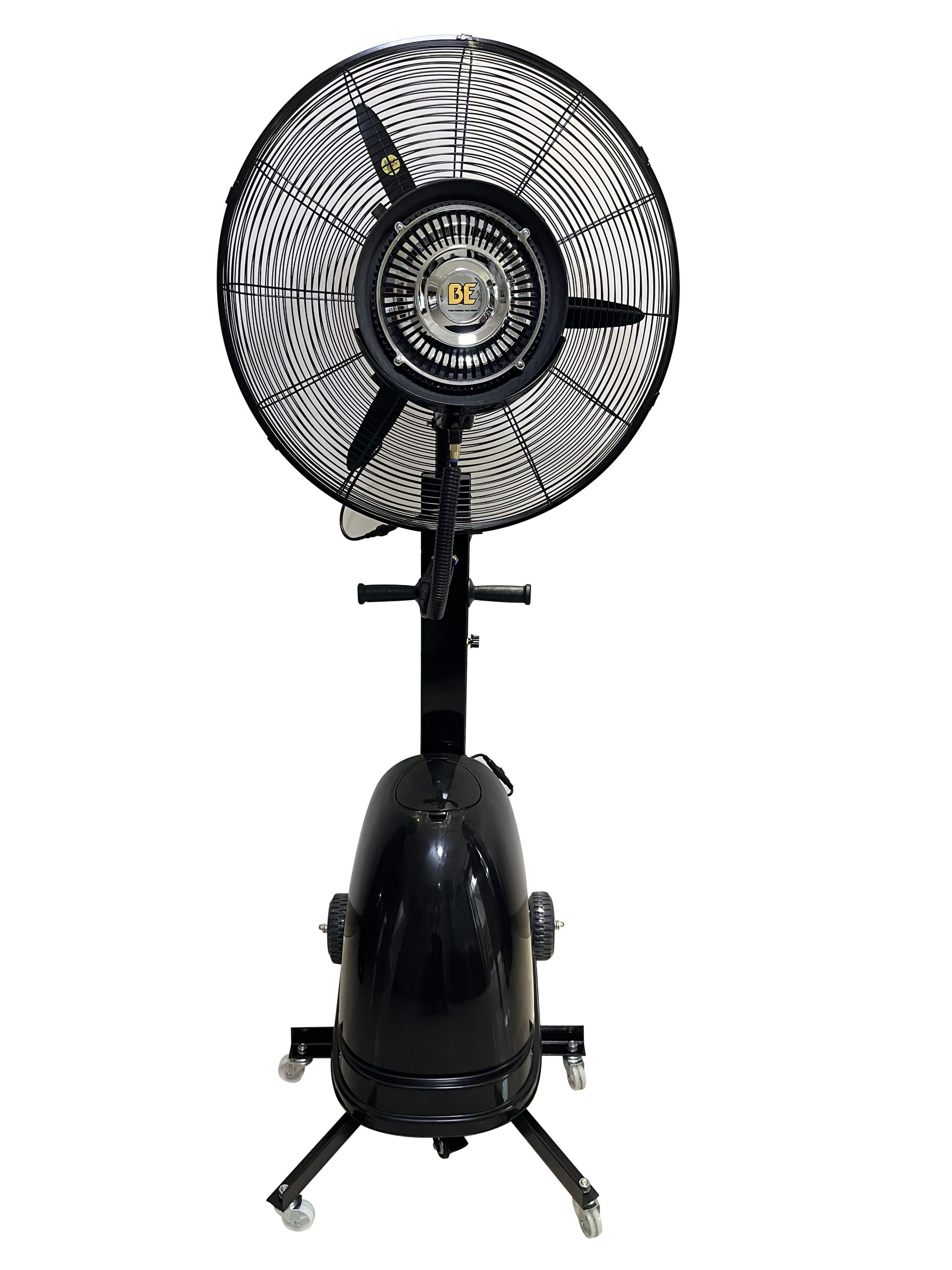

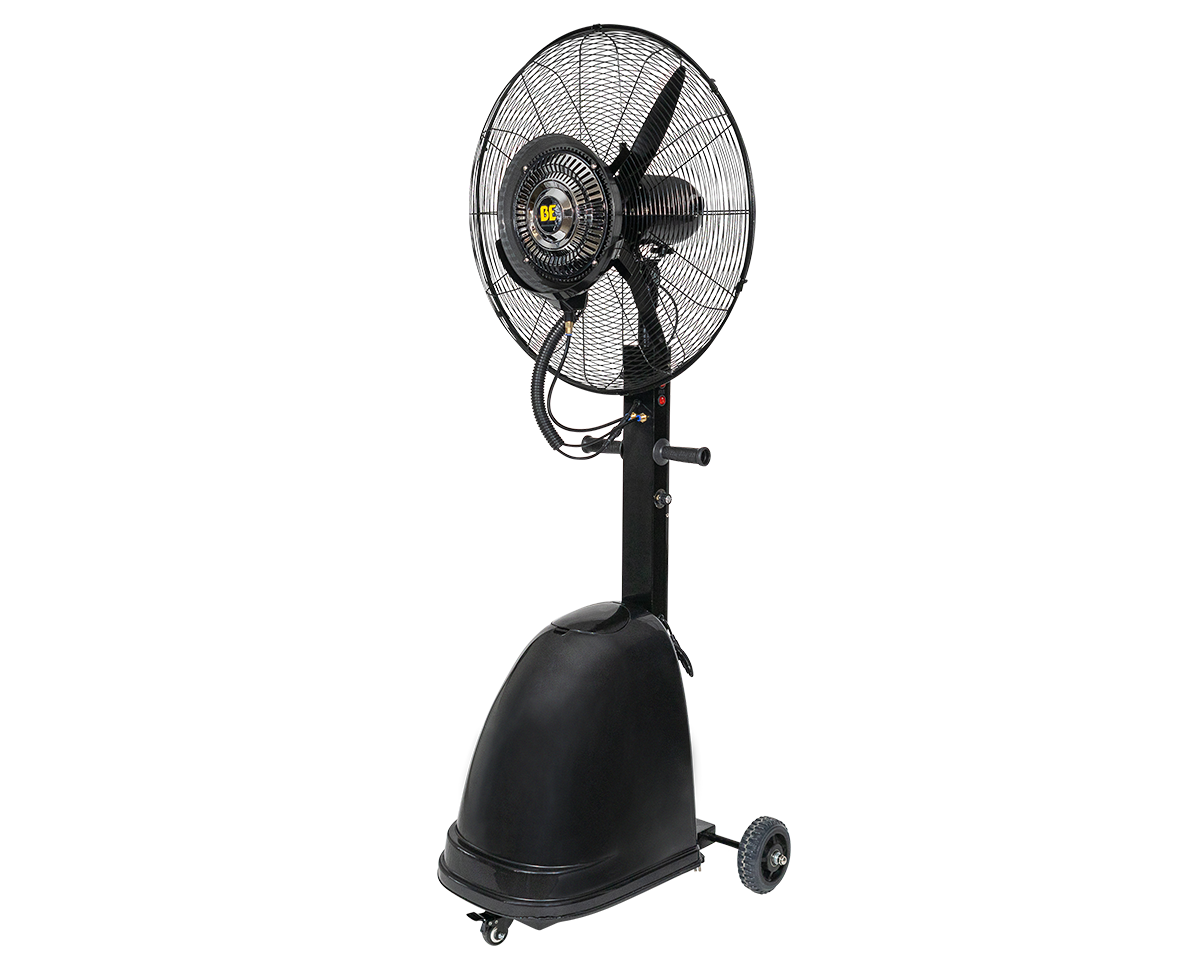

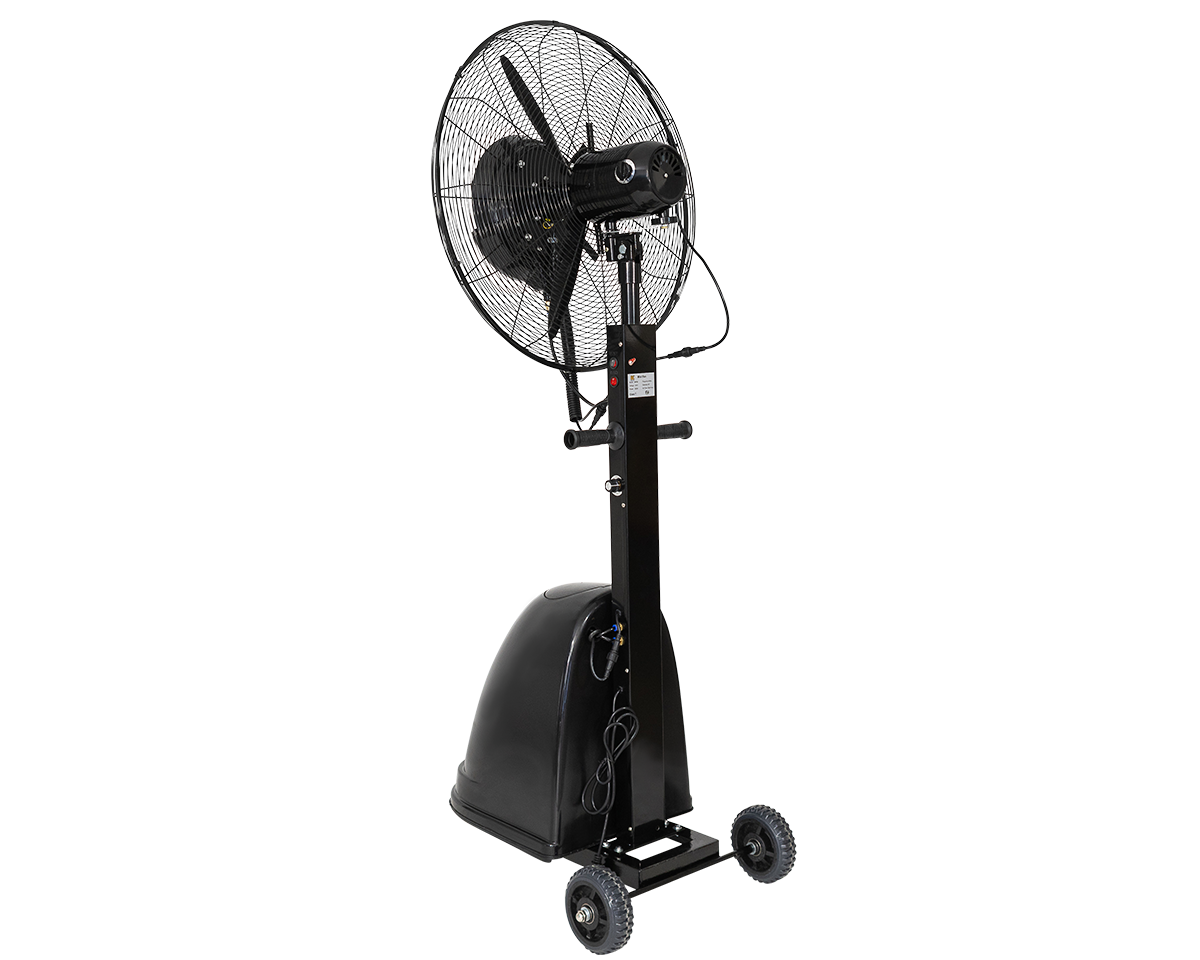

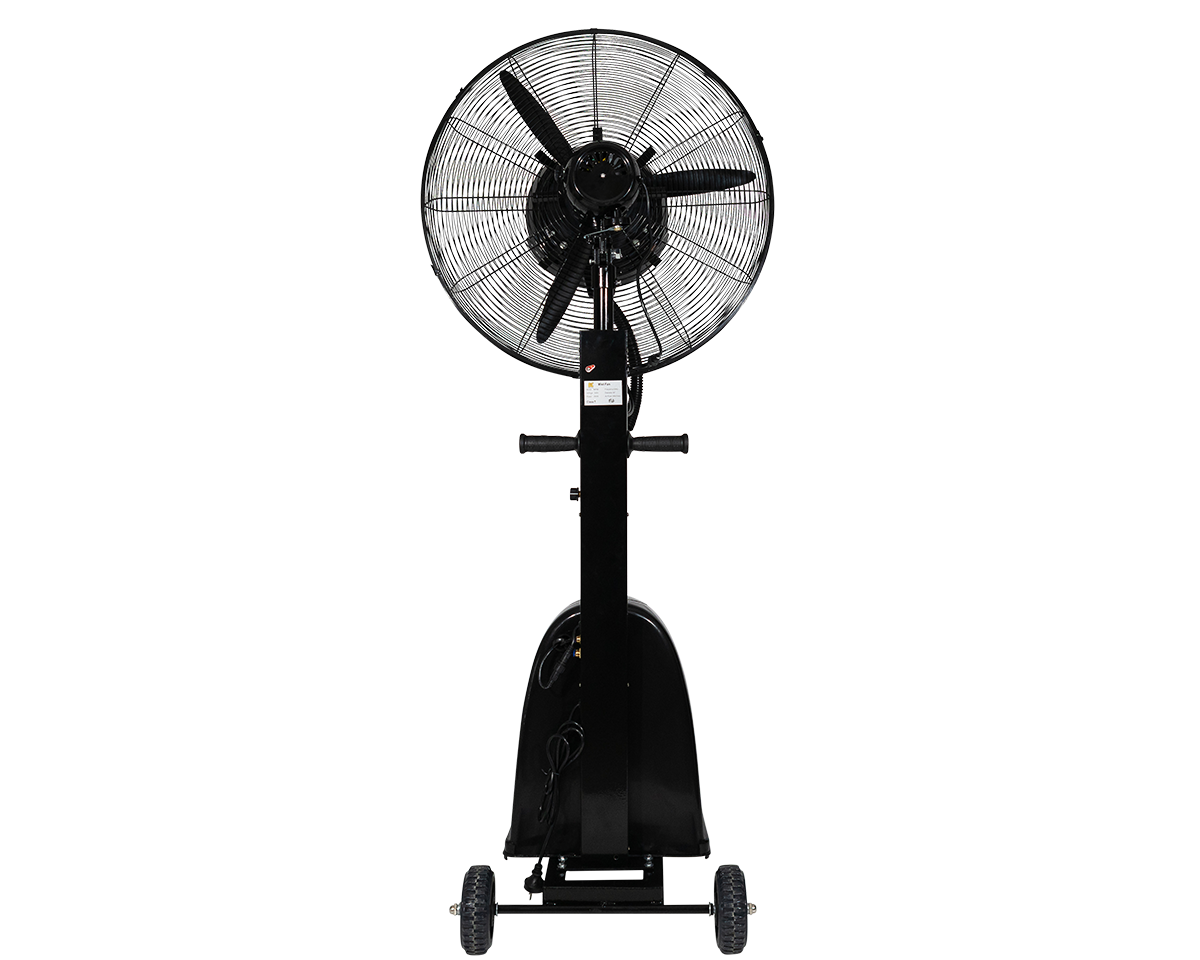

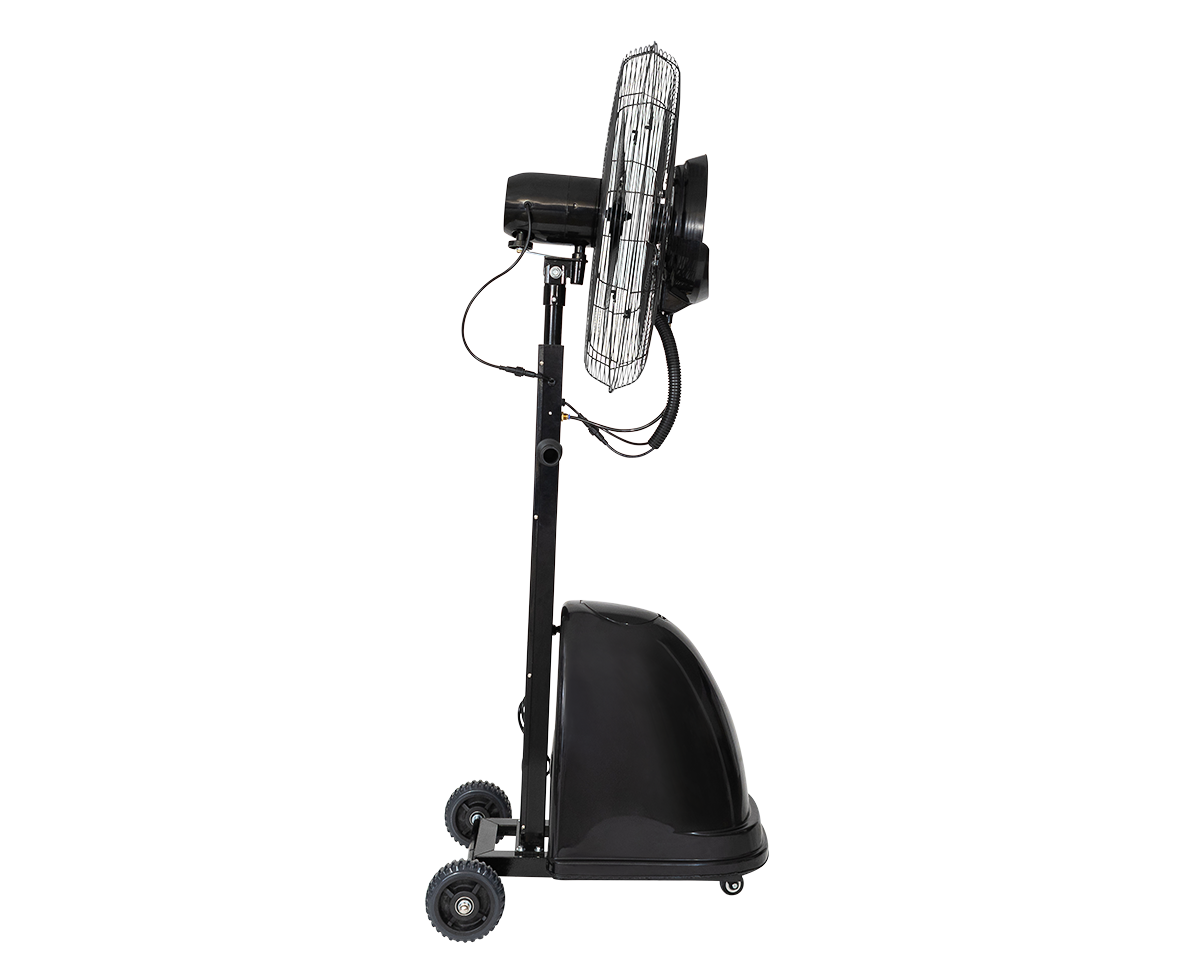

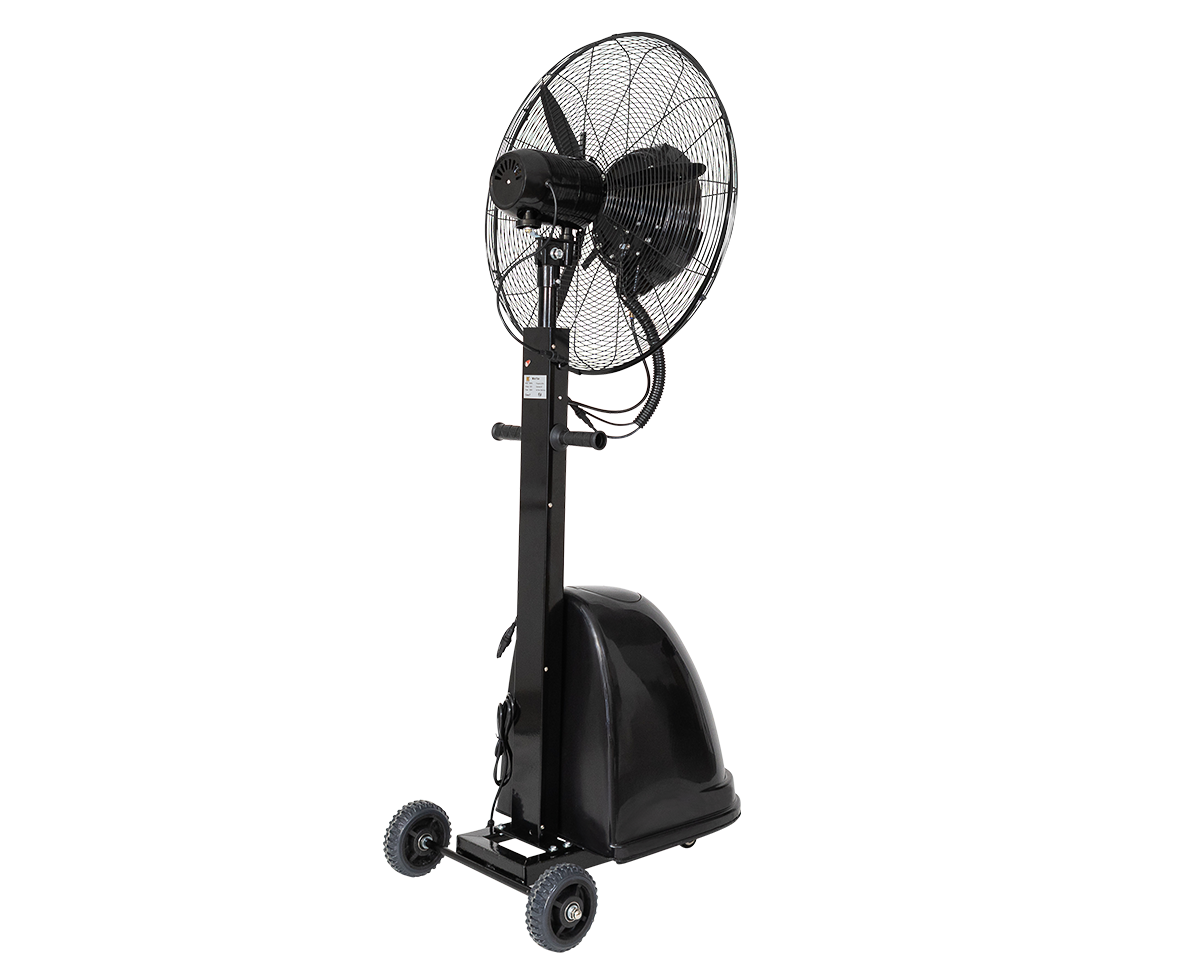

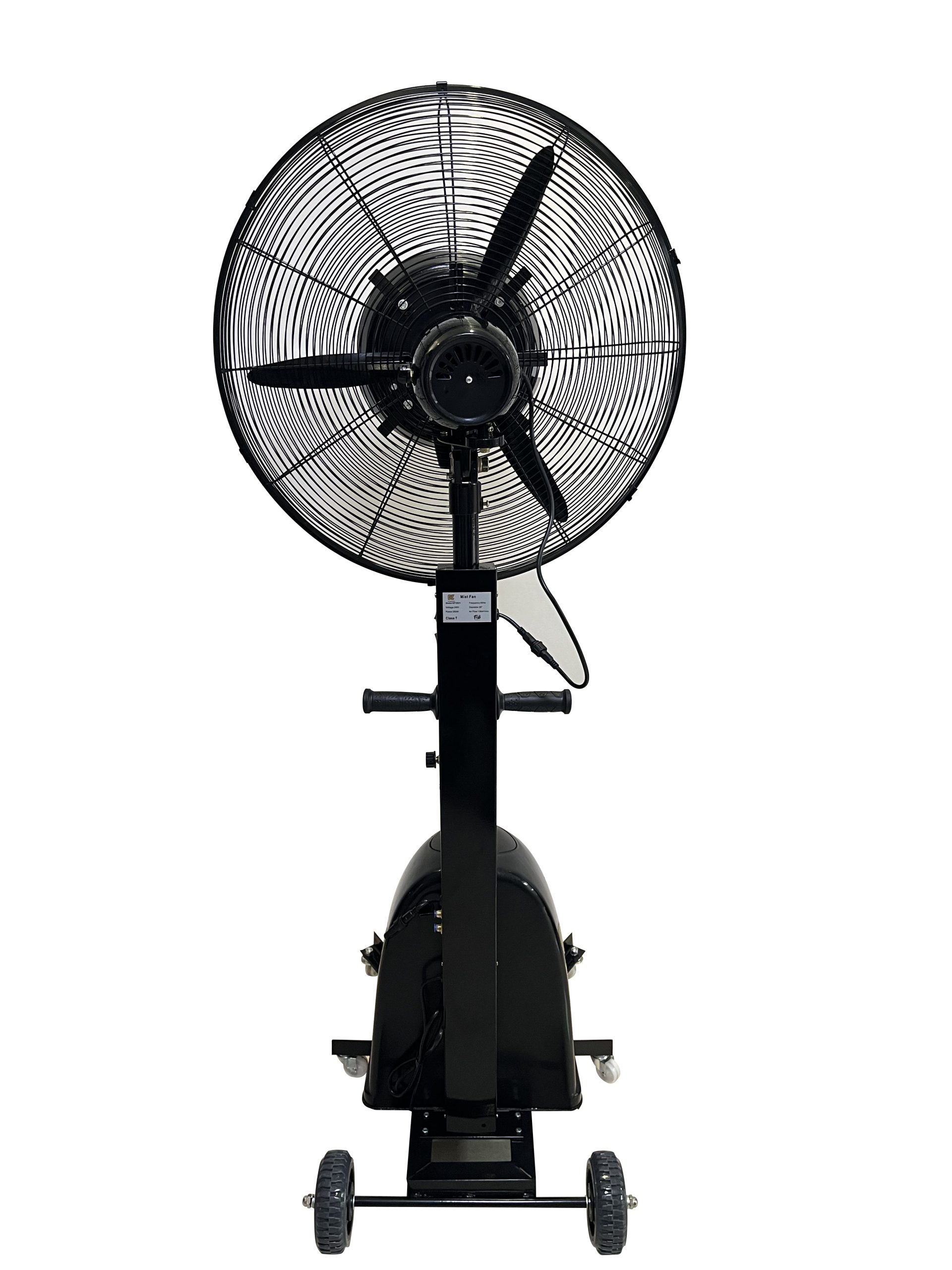

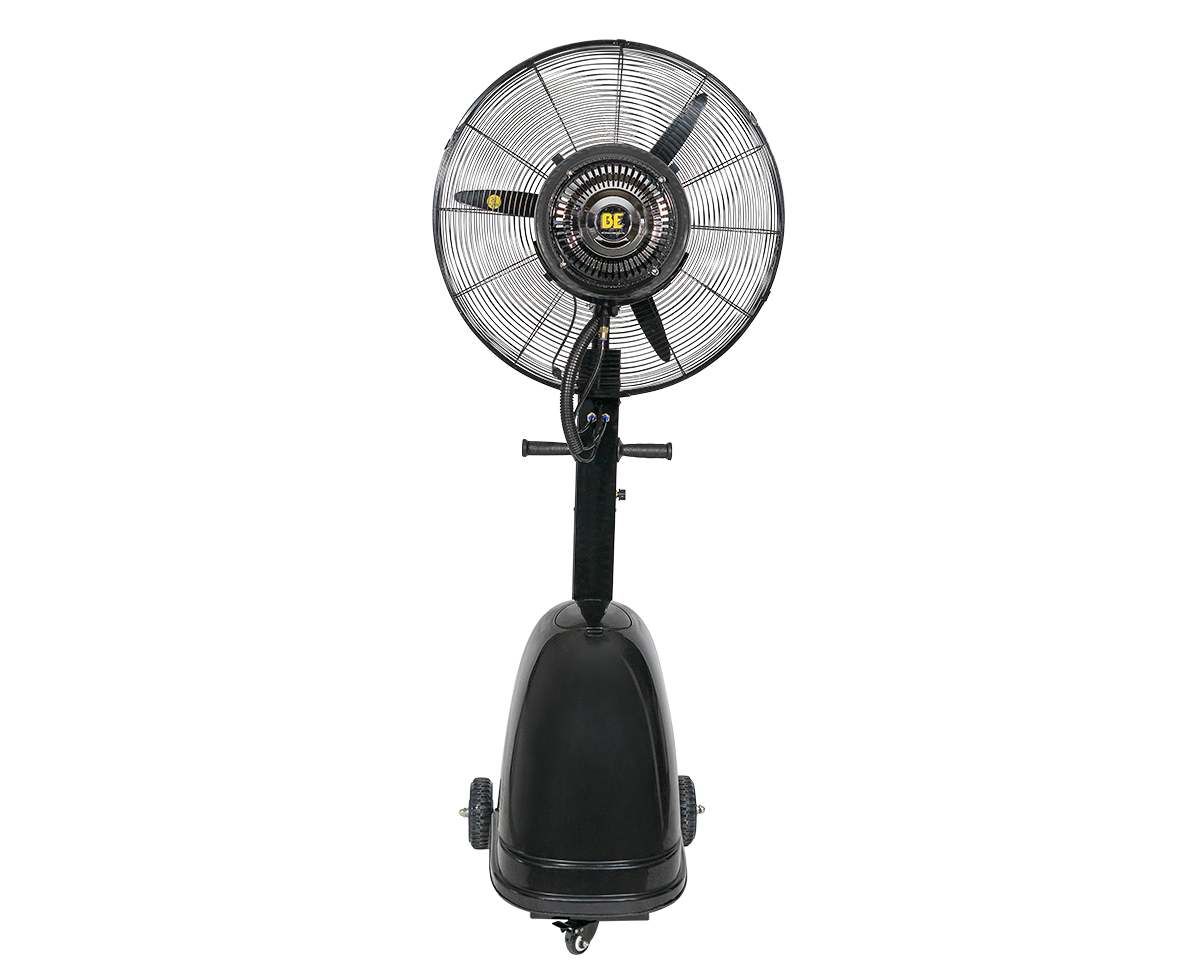

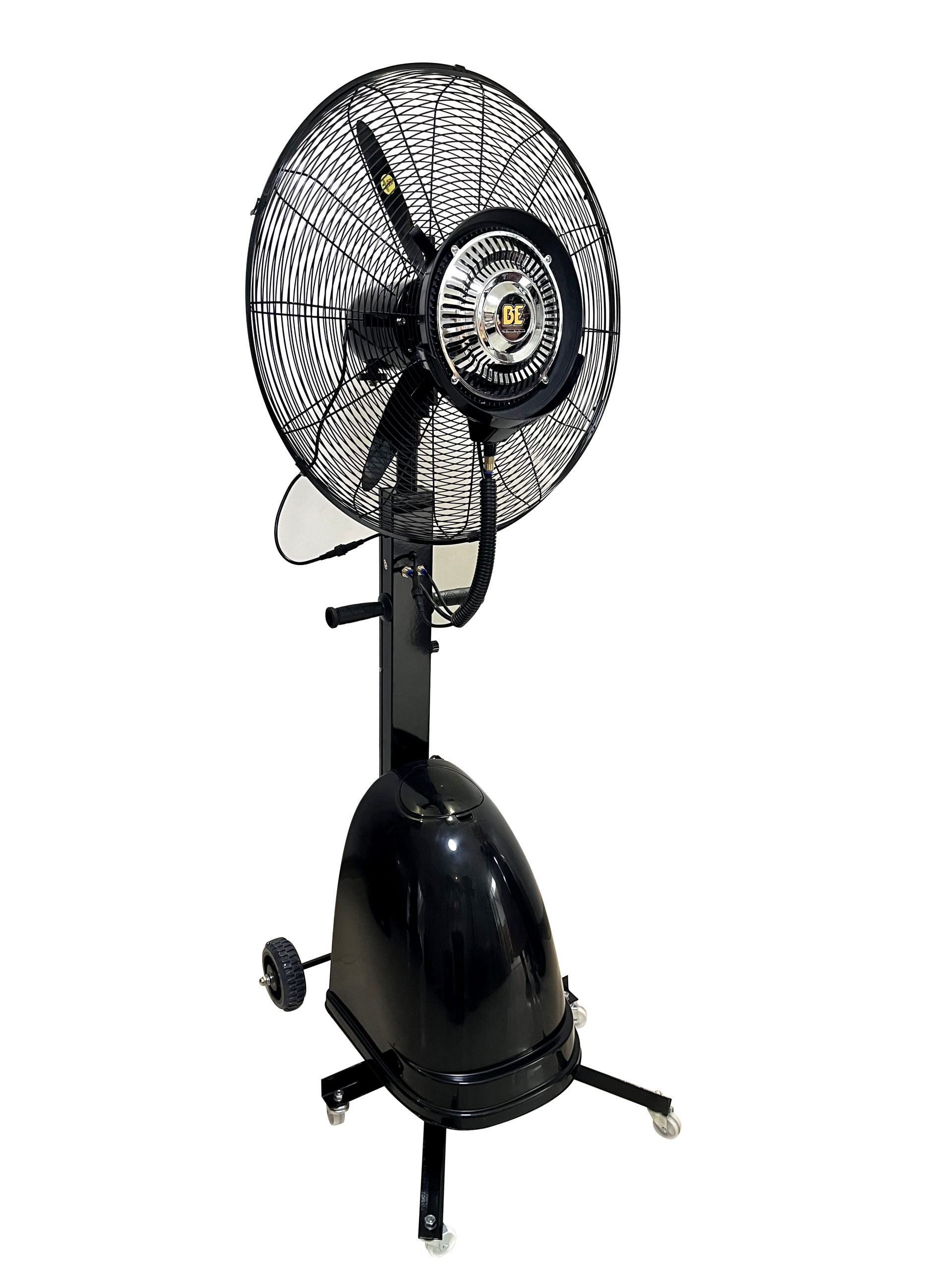

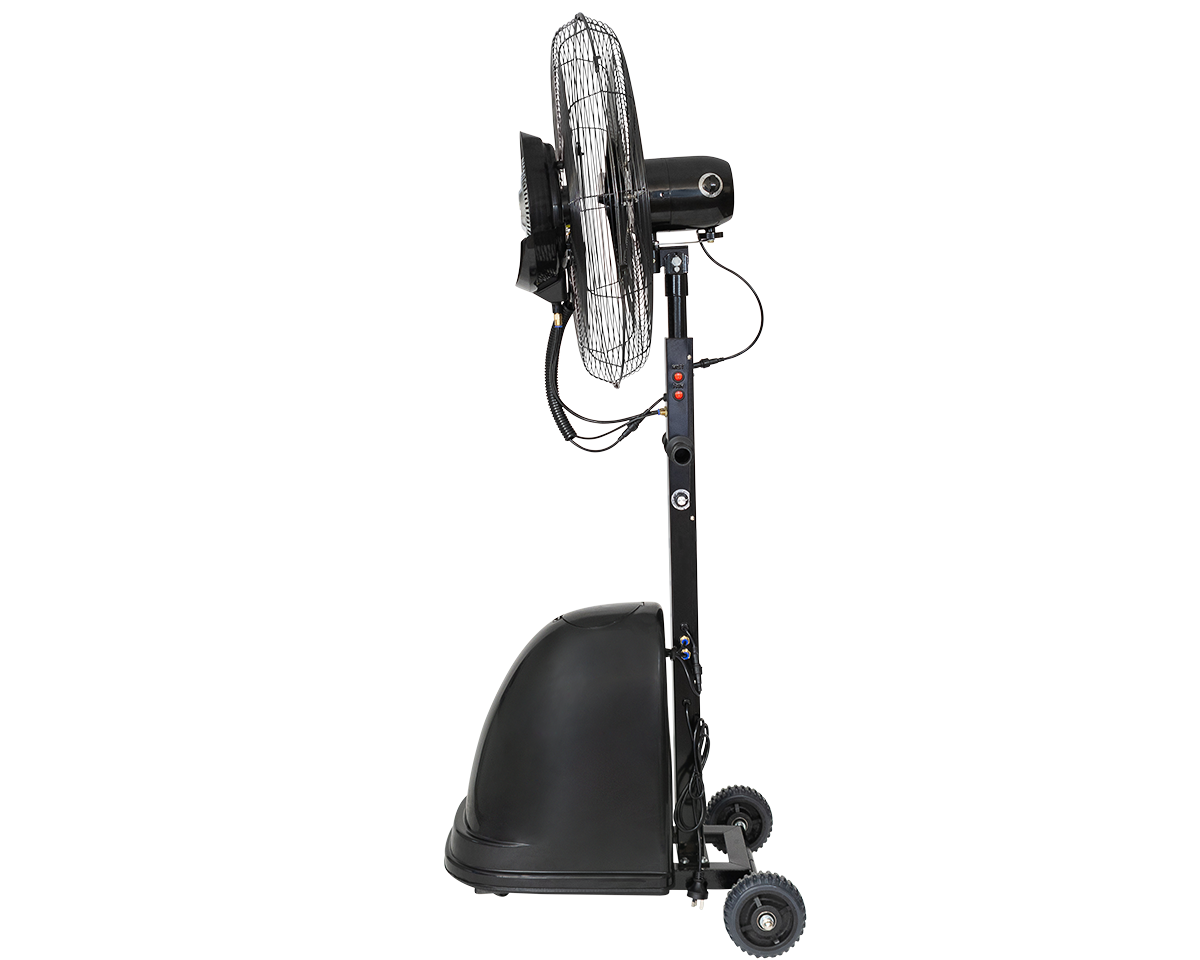

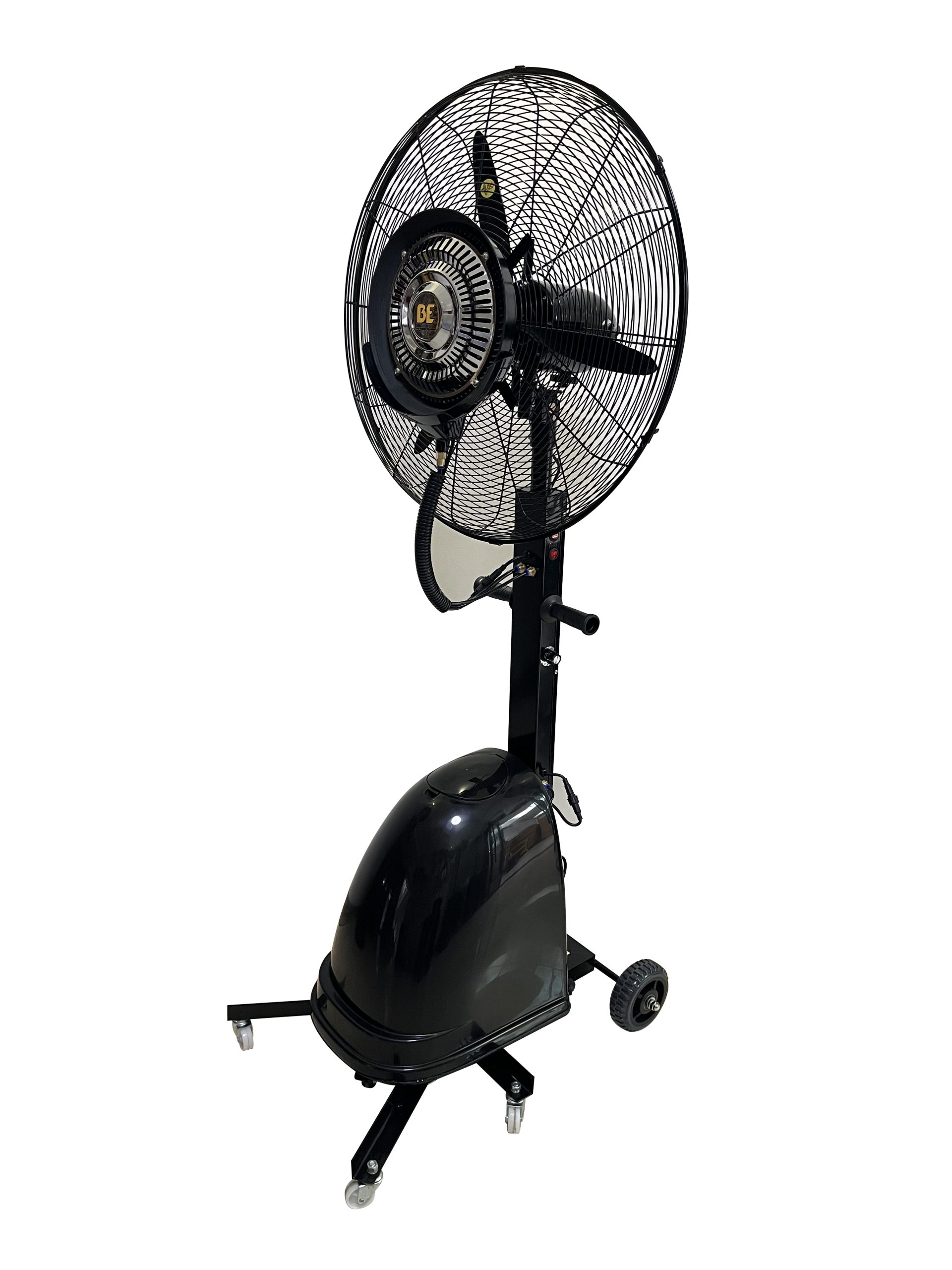

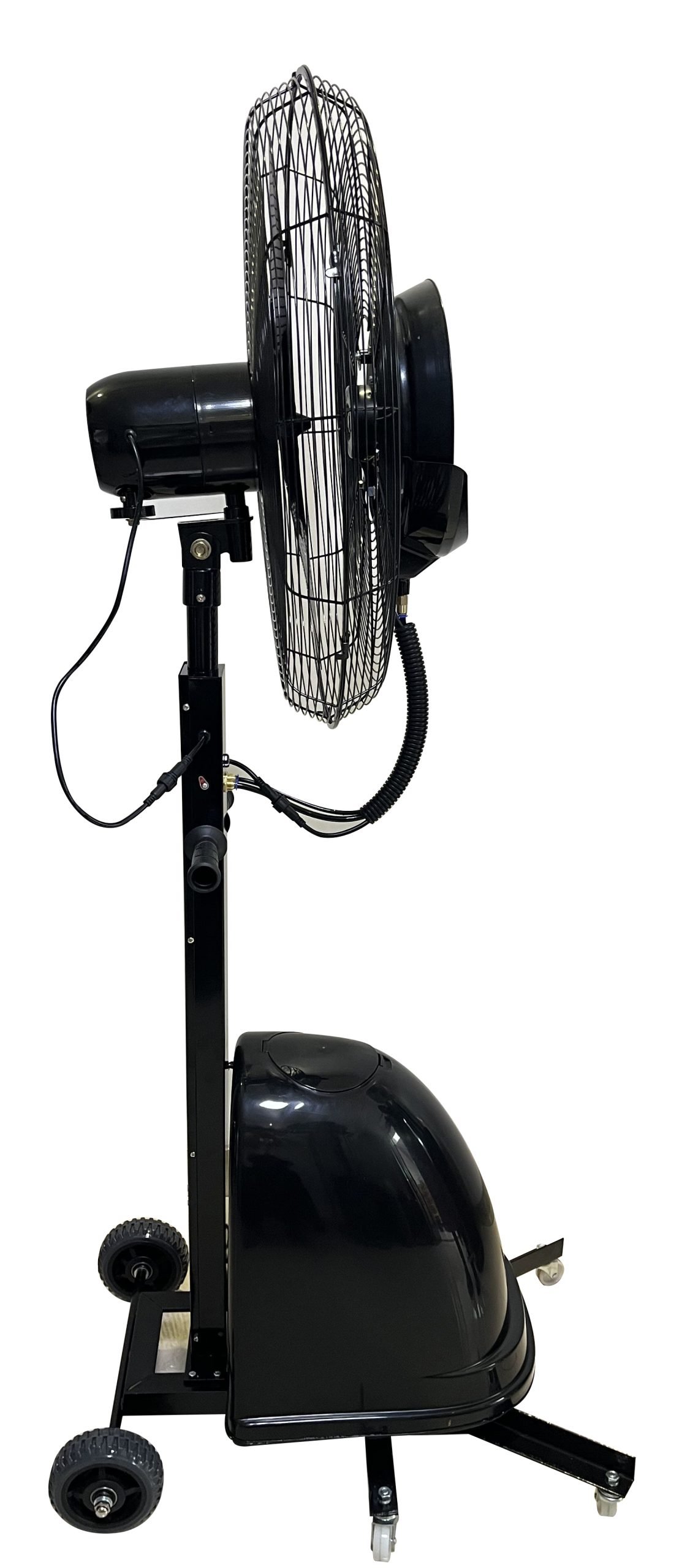

The IMF66 BE Industrial misting fan combines a high-pressure, centrifugal misting system with a blower fan. That means there are no misting nozzles and thus no possibility of clogging from hard water build-up. There are 3 fan speeds to choose from — low, medium, and high. This outdoor fan has a very wide head, at 650 mm across, and when combined with the oscillation option, is highly effective at cooling. The BE industrial misting fan is fed by a huge 41-litre water storage tank and includes a no-mess drip collector. You can also control the mist volume output to help get you through the heat this summer.

Ideal for:

• Large outdoor events
• Industrial

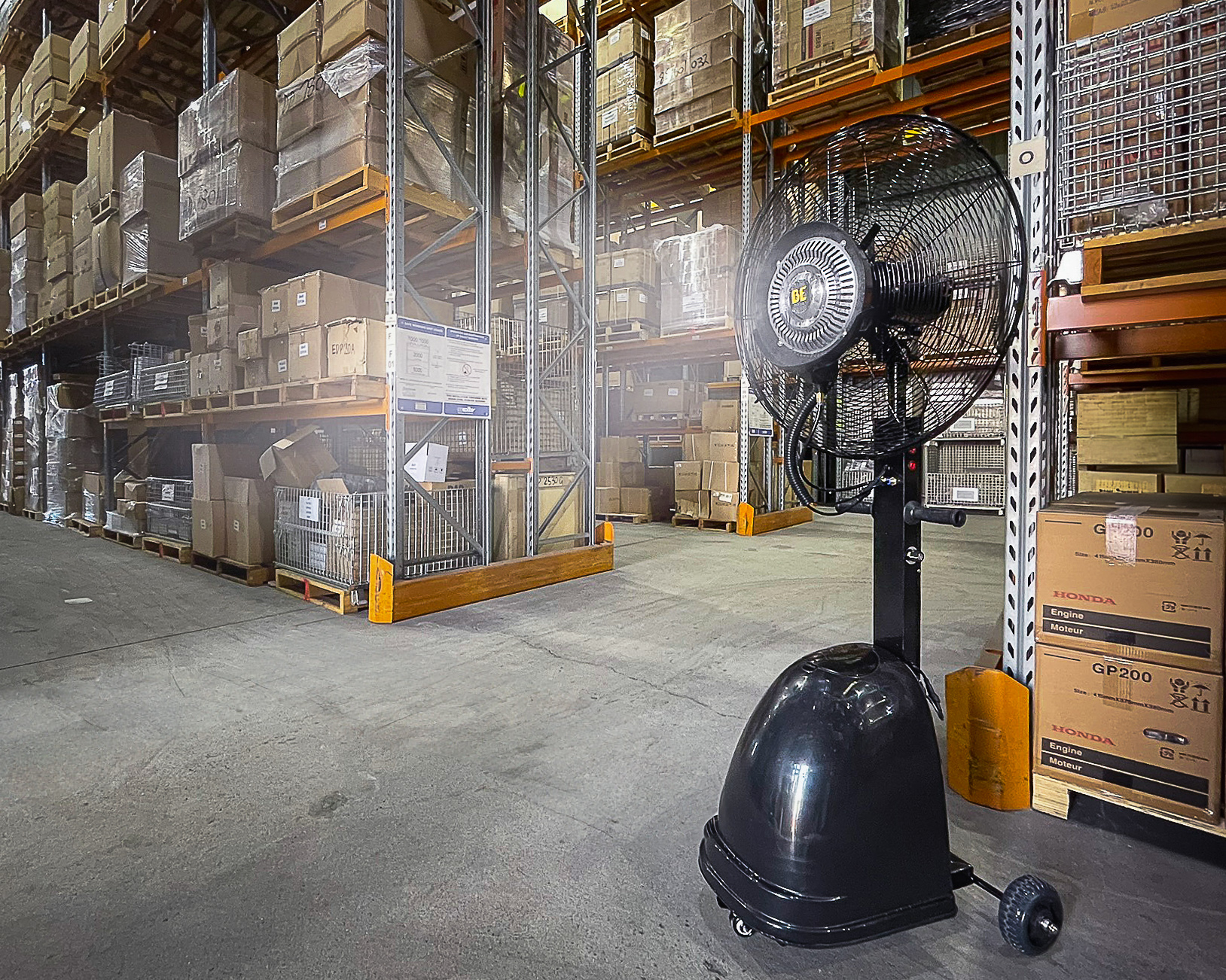

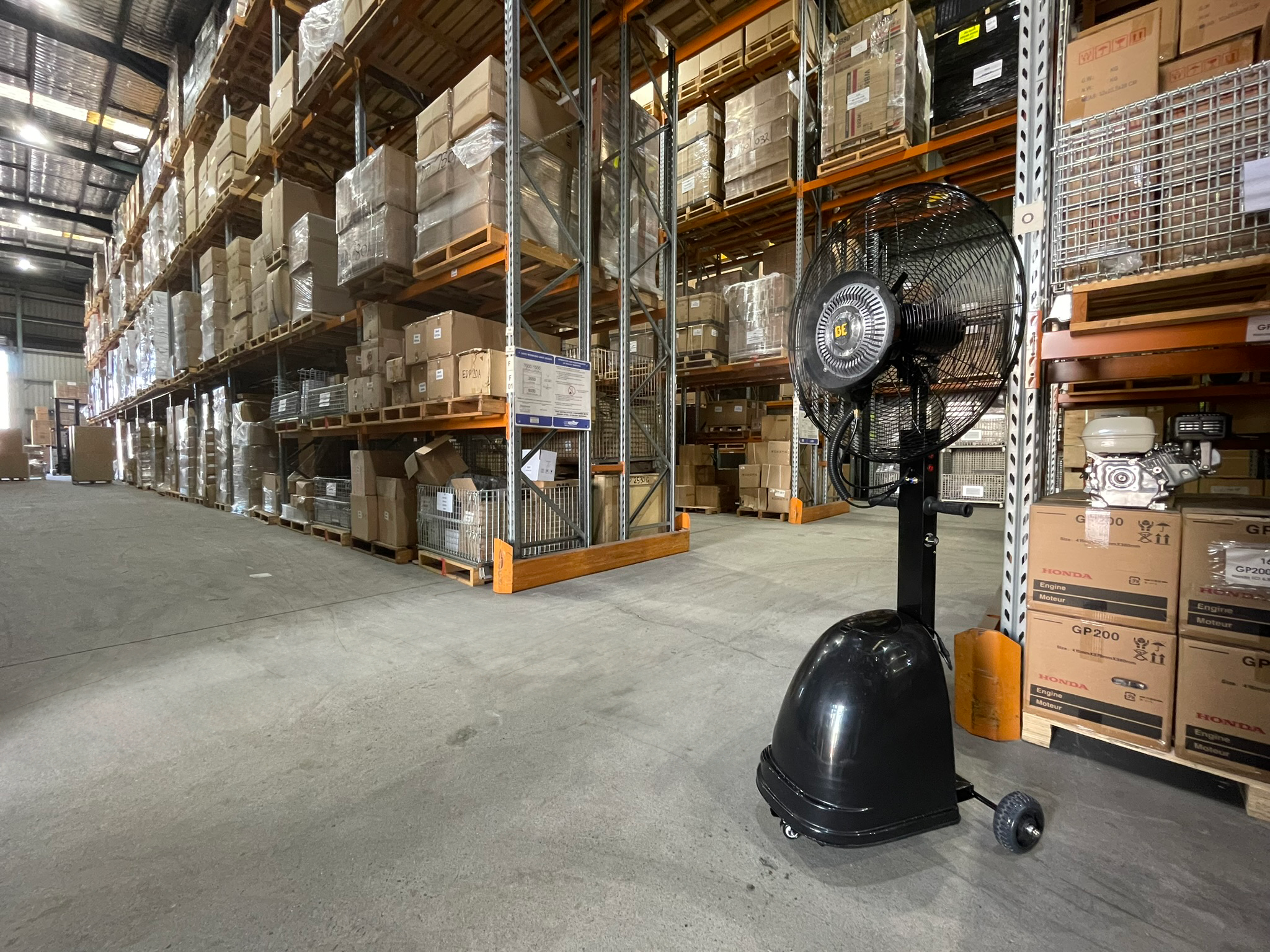

• Warehouse
• Workshop
• Horticulture
• Agriculture

Features

• Great for workshops and factory floor areas
• Adjustable height to 1.8m and 3-speed operation
• Large water storage tank
• No mess drip water collector
• Heavy duty base for safety and stability
• Portable installation: self-contained unit moves easily between locations;
• Fixed wheels and lockable castors for safety and convenience
• Nozzle-less misting hub technology (high-speed centrifugal atomizer) is guaranteed not to clog.
• Adjustable dial to control misting volume.
• Low-pressure water pump for reliability and longevity.
• Automatic shut-off when the water tank is empty.
• Suitable for cooling people, stockbreeding and greenhouse applications.

Specifications:

• Size mm (“): 660 mm (26″)
• Air Flow (m3/Min): 138 m3/Min
• Misting Area (m2): 200 m2
• Tank Size: 41 L
• Power: 240 V 10 A
• Power (Watt): 260 W
• Speeds: 3-Speed
• Cord Length (m): 1.8 m
• Motor (RPM): 1,350 RPM
• Water Consumption L/hr: 4.55 L/hr
• Oscillating & Tilt: Oscillating & Tilting Head
• Oscillation angle: 90º
• Fan tilt adjustable: 30º
• Adjustable Mist – Exit Vol: 0-16 kg/hr
• Maximum water supply: up to 9 hours
• Operating Temperature: 10 – 50°C
• Effective temp drop: 4 – 8°C
• Operation Humidity: 10% – 85%
• Diameter of atomized drip: < 10 um
• Mist Jet distance: 8-10 m
• Height: 1.75 m
• Noise Level (dB): 66 dBA
• Motor Style: Tropic-Proofed Motor
• Ship Dimensions: Ctn 1: 650 x 415 x 515 mm 14.5 kg, Ctn 2: 1,140 x 200 x 70 mm 4.5 kg, Ctn 3: 715 x 715 x 120 mm 7 kg
• Weight: Ctn 1: 14.5 kg, Ctn 2: 4.5 kg, Ctn 3: 7 kg (Total 26 kg)
• SAA Certified
