Features

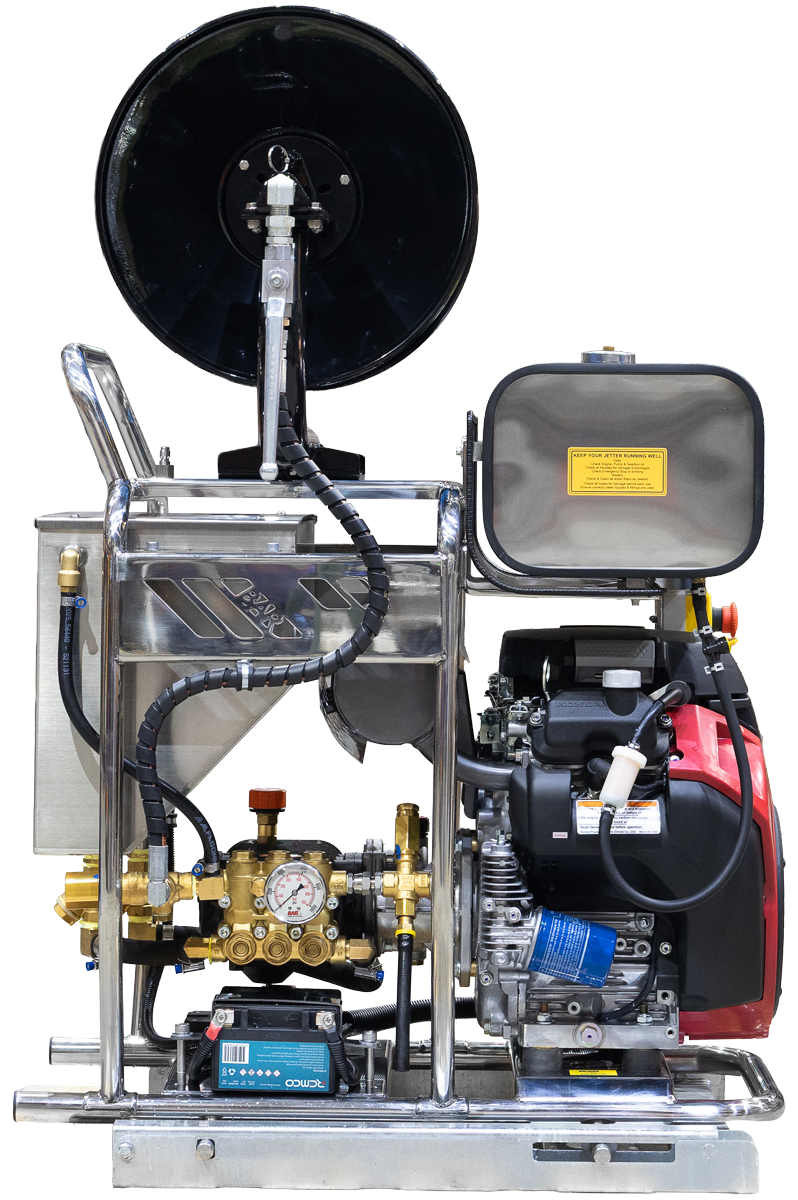

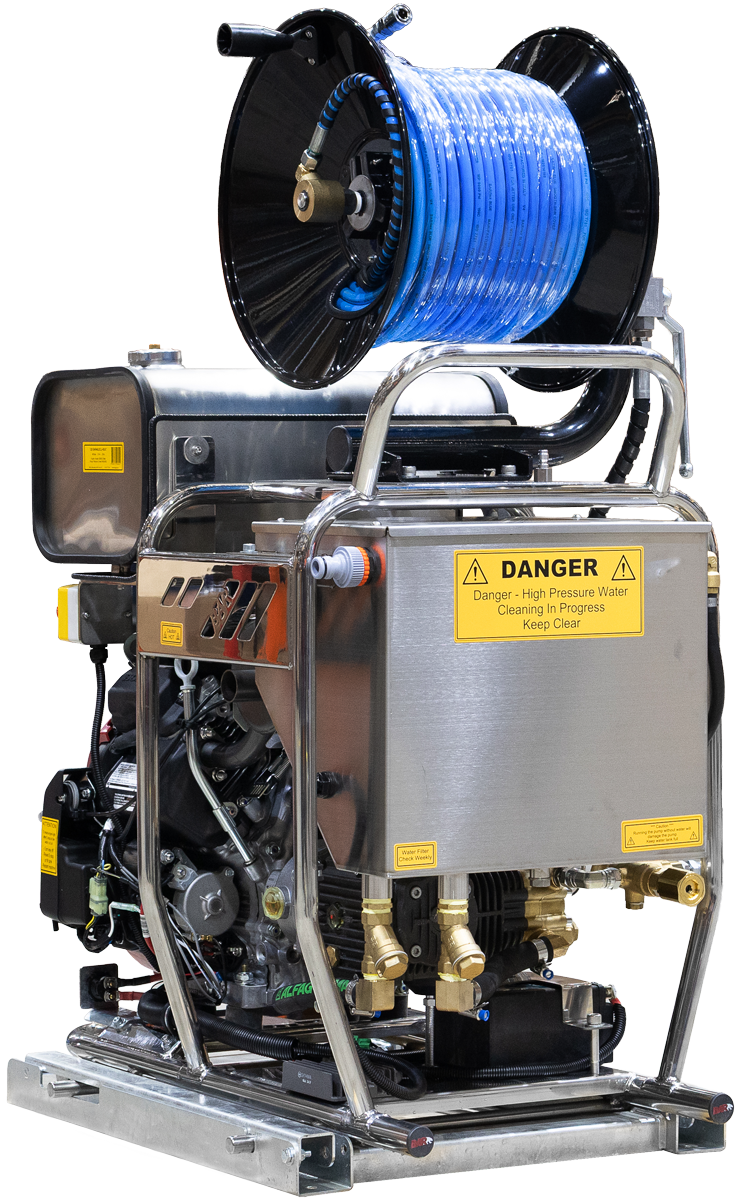

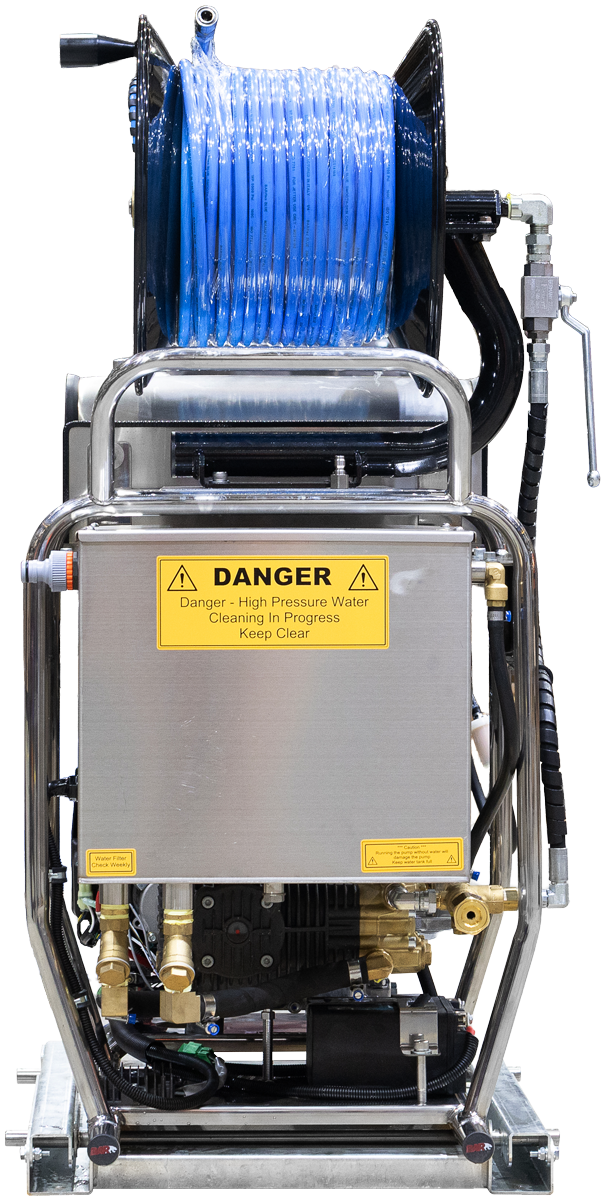

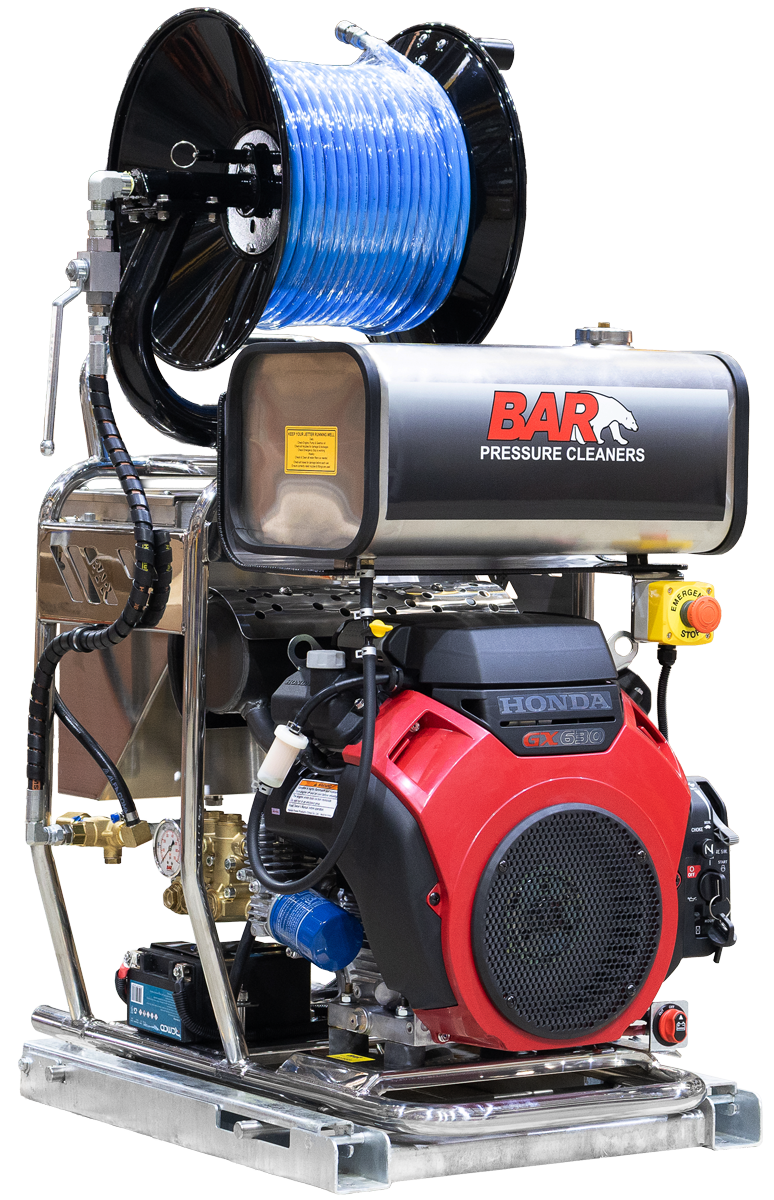

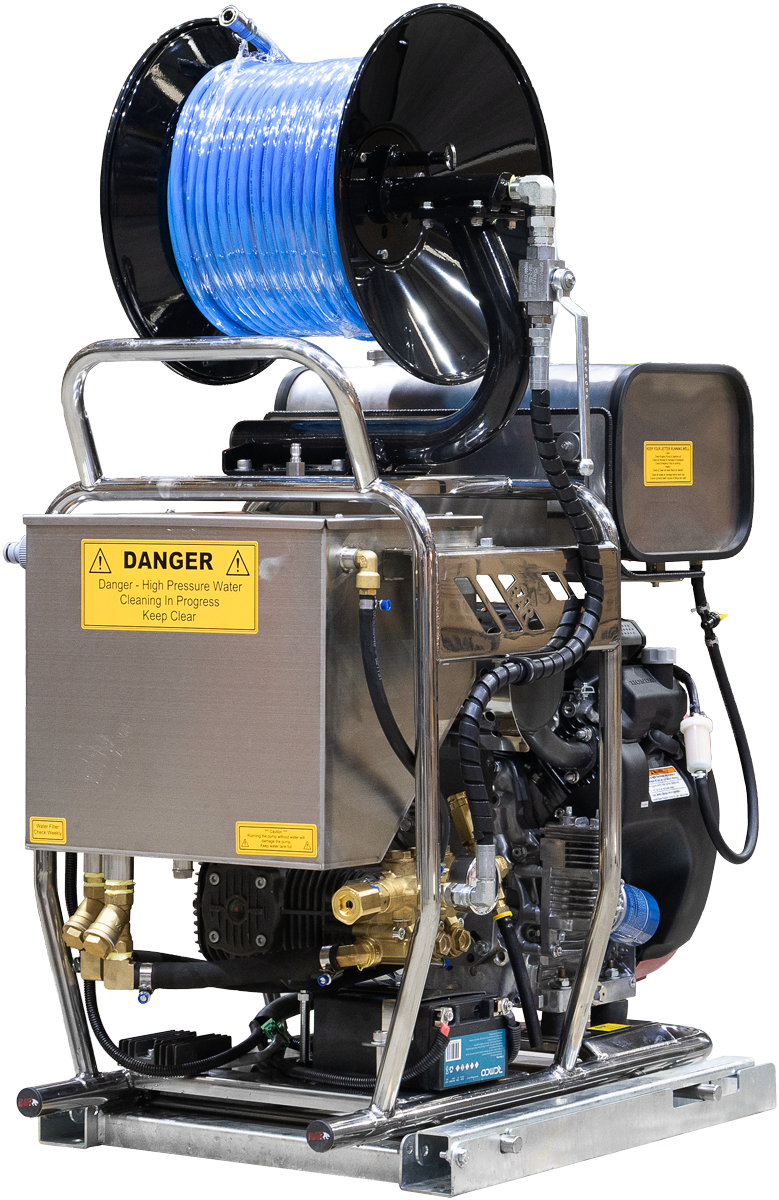

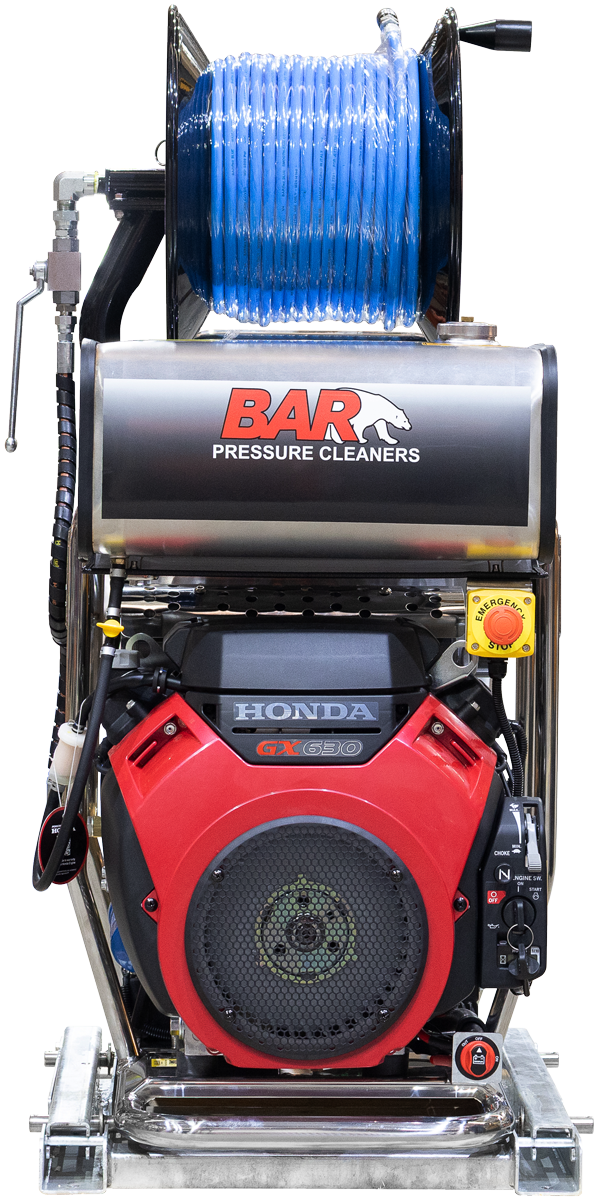

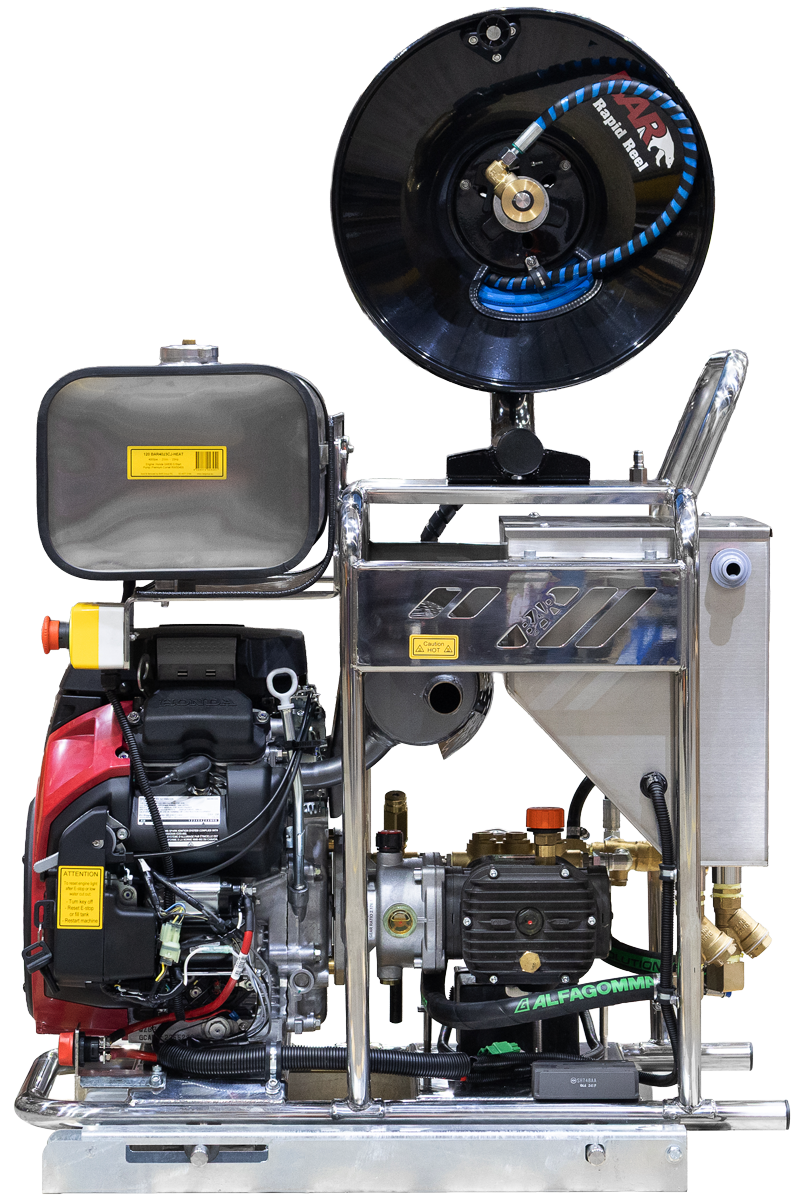

BARjet “A frame”: The new generation Jetter

• No operator certification required
• Use in:
  • Drain cleaning mode: Ideal for clearing tree roots in drains from 40mm to 225mm.
  • High Pressure cleaning mode: perfect for graffiti removal, brick cleaning, roof restoration, driveway clearing and any OH&S cleaning task.
• Honda 23 Class Australia Engine with 3 Yr Warranty and “Key” electric start
• Comet Italian Premium Pump. (Don’t use anything less than a Comet Premium Pump).
• PA Italian Gearbox
• Large stainless 35 litre water tank with low water cut-out
• Stainless (not plastic) 25 litre fuel tank
• PA Unloader and Safety Relief Valve
• Gal. roll frame with vibration absorbing pneumatic tyres
• Easily removed wheels and axles for truck/van mounting
• Battery Isolator valve to prevent flat battery
• Optional e-Stop for operator safety
• Pressure gauge
• BAR Rapid Reel complete with 60m of 1/4” Barflex Italian Drain Cleaning Hose.
• Quick Release Hose-to-Nozzle Connections

Specifications

• Pressure: 4,000 PSI
• Flow: 20.1 L/min
• Engine: Honda GX630
• Dimensions:
  • L 860 mm x W 640 mm x H 1260 mm (incl. top mount reel)
  • L 860 mm x W 640 mm x H 960 mm (without top mount reel)

Recommended Accessories

• Mustang style 16 Piece Nozzle Box
• Mini Reel with 60m of 3/16” (or 1/4”) Barflex USA Red or Blue
• Drain Cleaning Hose
• Warthog WV 1/4” Nozzle (suits 1/4” hose only)
• Warthog WT 3/8” Nozzle
• New BARjet 358 forward turbine
• Cleans Drains up to 225mm (9”)

Class A calculation

Bar x Flow must be less than 5600 (Bar Litres)
i.e. BAR4023CJ-HEAT 275.8 BAR (4000 psi) x 20.1 = 5516
Therefore can be rated Class A
