Features

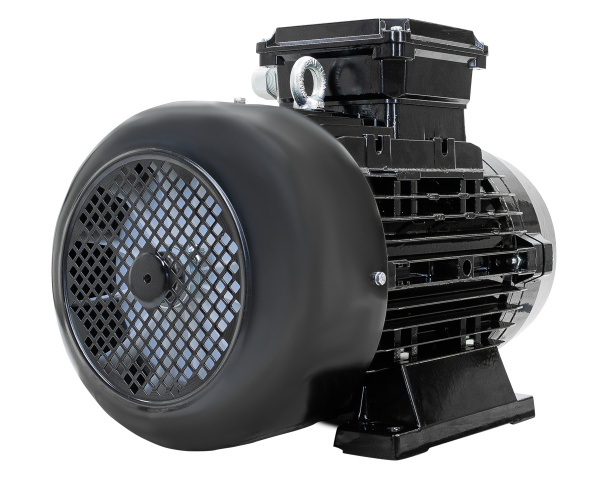

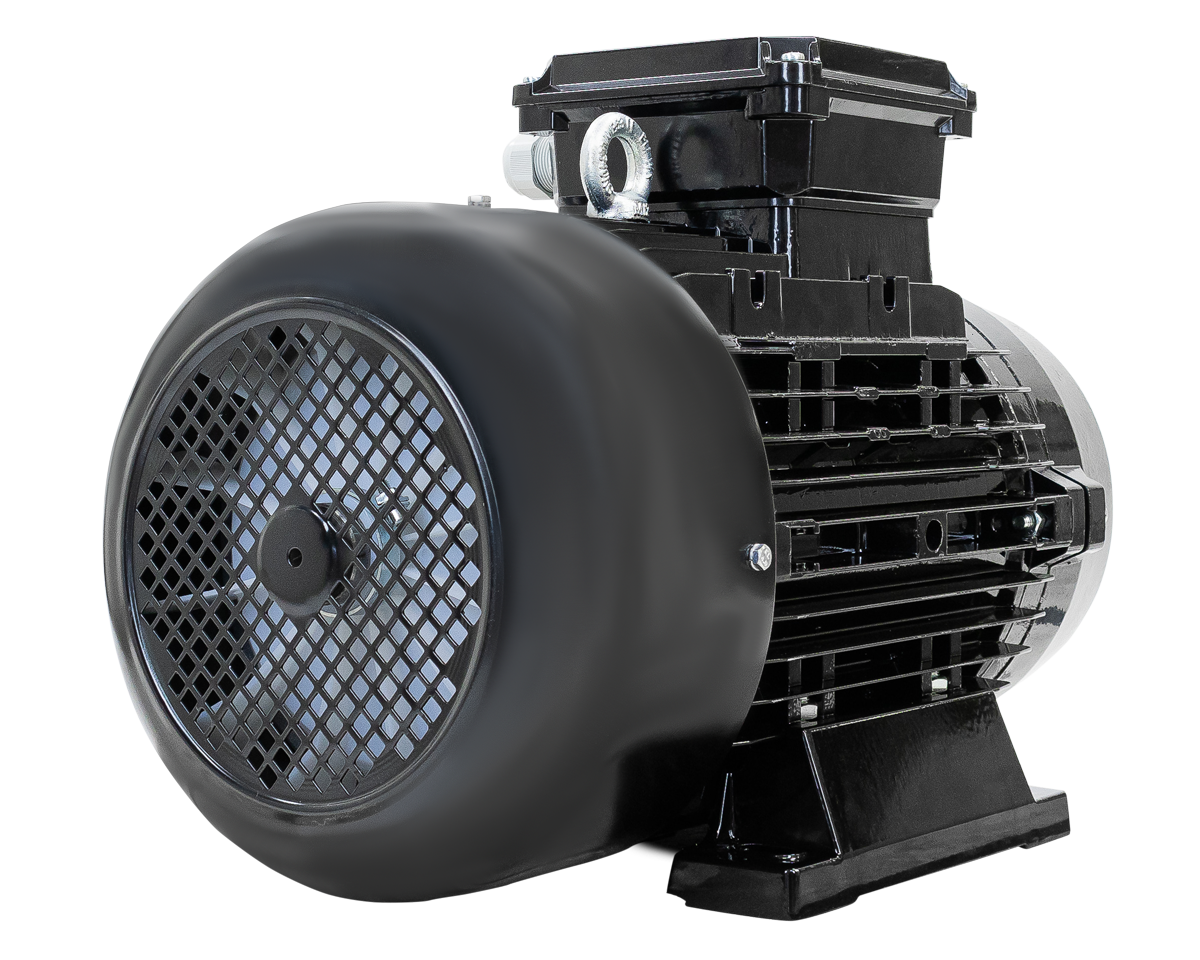

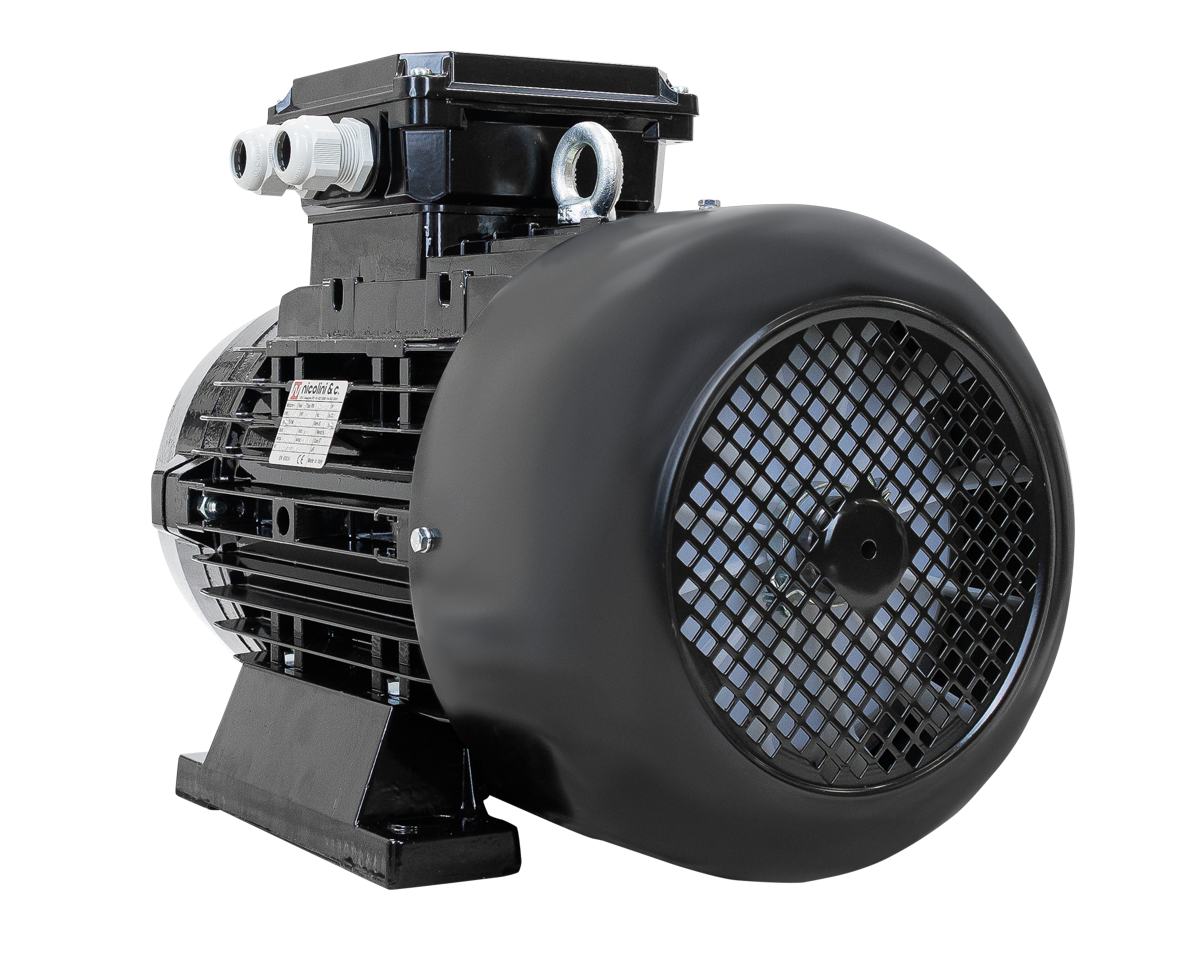

- The motor DOUBLE FLANGE is an highly innovative solution developed by Nicolini & C, it consists in a new coupling system of electric motors for high pressure pumps. The technical solution conceives to synthetize the advantages of the hollow shaft motor (reduced dimensions and low costs) with the technical advantages of the standard motors with pump’s flange and elastic coupling (simple assembly and easy assistance).

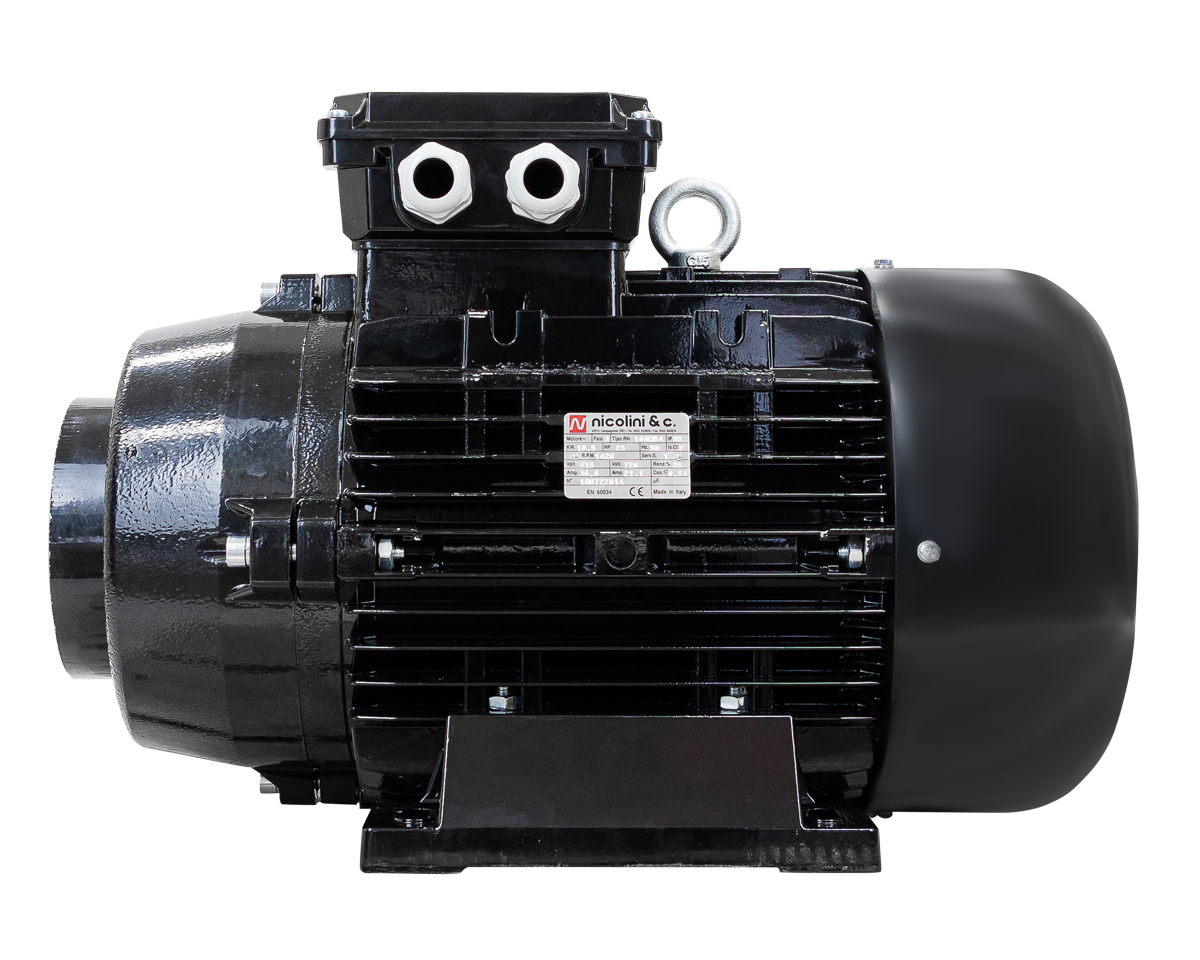

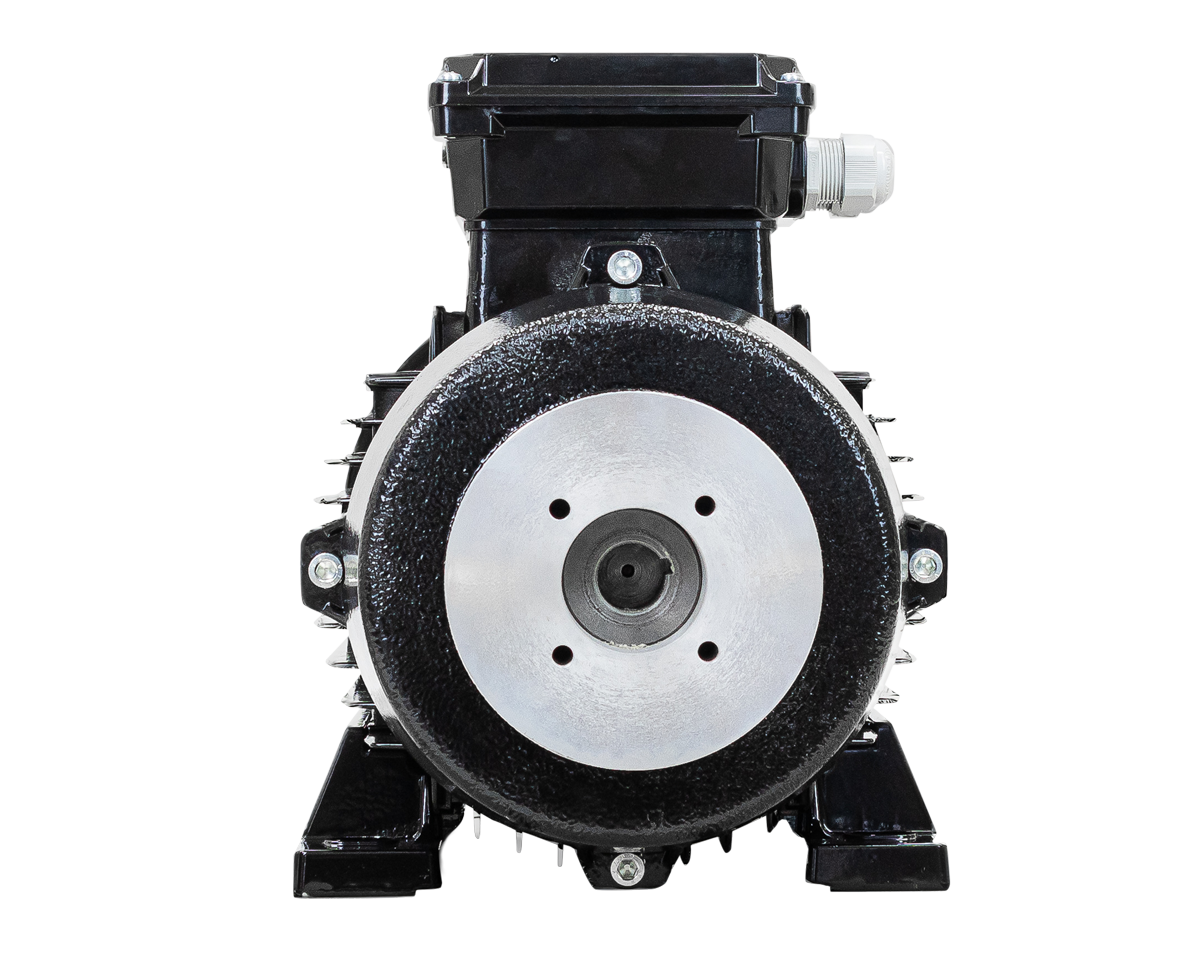

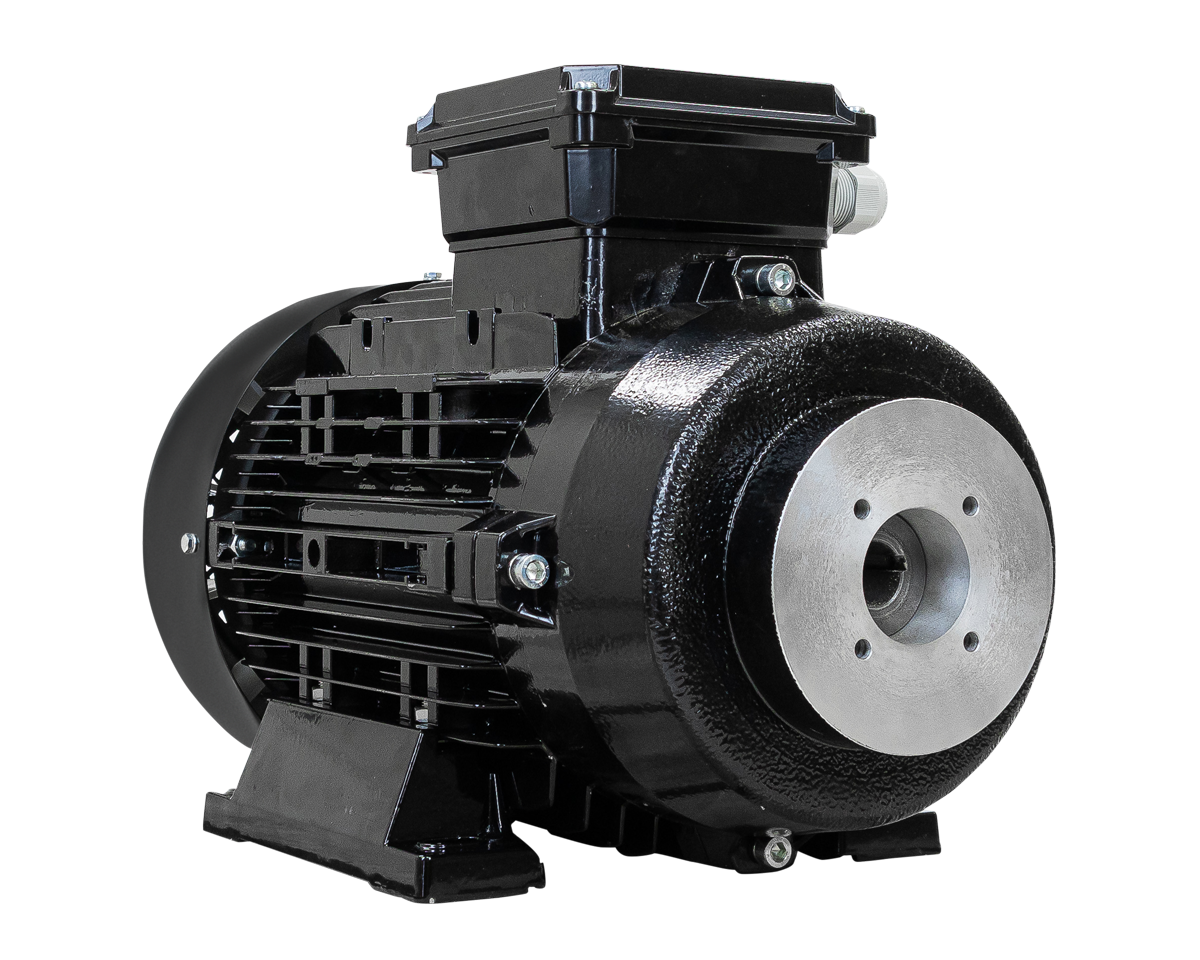

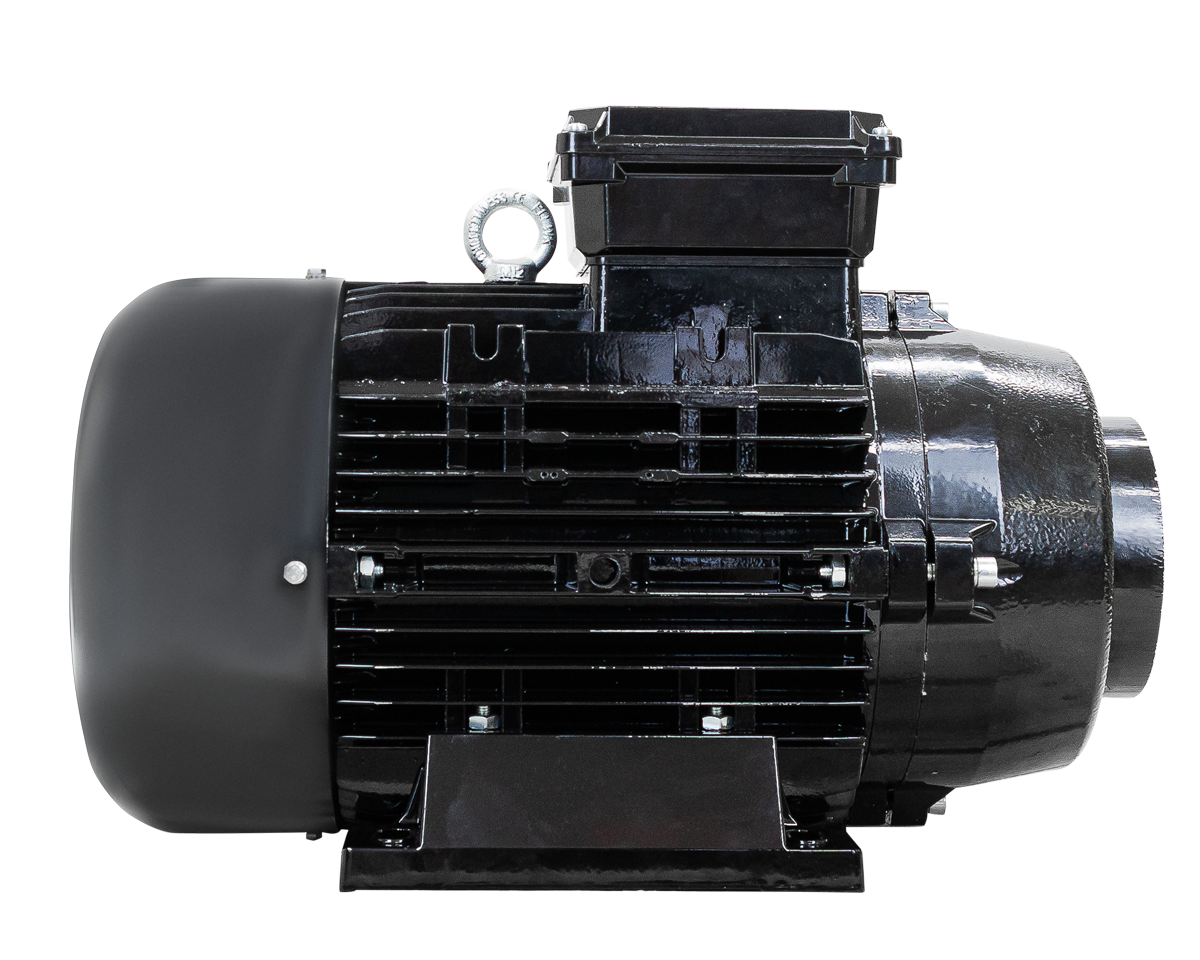

- The motor has two flanges: the first flange encloses the D-bearing (pump side) and it protects the heart of the motor; the second flange is planned to support the high pressure pump and to contain the elastic joint of reduced dimensions (for a direct drive of traditional type).
- These motors are used extensively in our BAR Typhoon range of Electric pressure cleaners.

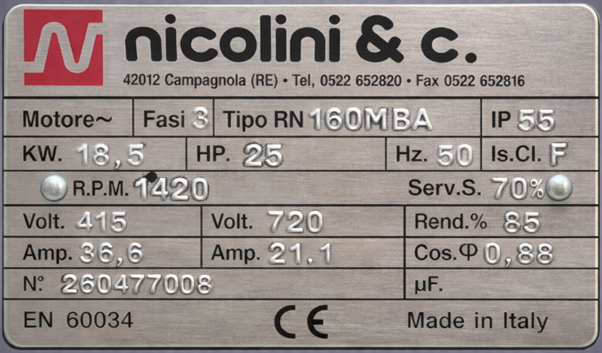

Specifications
- 18.5kW (25 HP)
- 4 Pole 1,420 RPM at 50 Hz
- Double Flange with elastic joint coupling
- Thermal protection – Thermistor fitted
- Windings 415/720V 50Hz
- Frame Size 160MBA
- IP55
