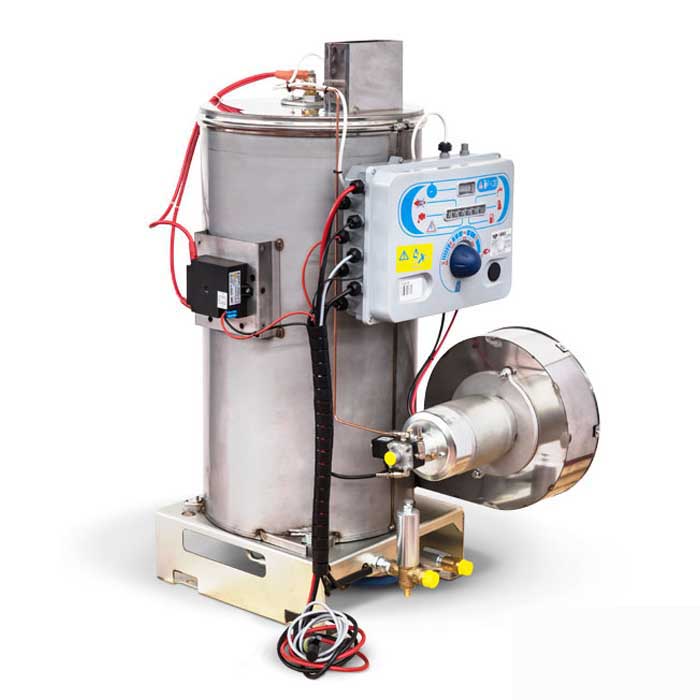

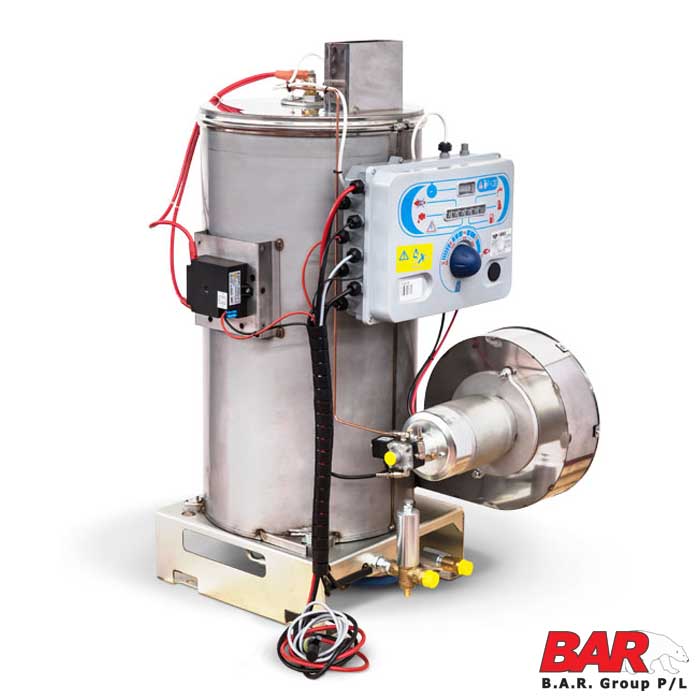

Boiler Assembly C/W Panel

Features

• Small Boiler Assembly with Electrical Panel
• Also known as: BOILER C3 12 V + Panel

Specifications

• 12 V DC Electrovalve
• 12 V Motor
• 5,076 PSI Max Pressure
• 25 L/min Max Flow Rate
• 35 m Coil Length
• 3/8″ Coil Diameter
• 2.25 Nozzle
• 90°C Max

Consumption

• 90,000 kcal/h
• 8.31 kg/h

Additional Information

• DIESEL BOILER 15-20-25-30
  • Structure made of stainless steel
  • The bottom of boiler is made from compressed fired ceramic fiber
• FLAME GROUP
  • Diesel nozzle
  • Ignition electrodes
  • Copper diesel pipe
  • Support for flame control
• DIESEL PUMP
  • Solenoid valve
• TRANSFORMER
  • 2 X 5000 V complete with cables connection (400 V)
  • 2 X 14000 V complete with cables connection (220 V)
• MOTOR FAN
  • Aluminum
  • IP 44, 230 – 400 V, 50 – 60 Hz, 2800 – 3200 RPM

Electrical box complete with

• Frame control
• Flow switch
• Level switch
• Thermostat
• Pressure switch
• Contactor
• Hour counter display and LED lights alert
• Safety valve (500 bar optional)
