Features
A compact controller used in DC Generator, DC lighting tower or engine drive (pumps, compressors, etc) applications. It monitors the DC output and also provides engine protection and instrumentation. It has dedicated DC lighting tower functions built-in. There is also an integrated speed/load control via CANBus, for DC PMG alternator voltage control. Configuring the inputs, outputs and protections, GC250 can be easily adapted to suit a wide range of applications. DC250 offers a wide, graphic display, providing icons for alarms/ warning and for signalling the status of the engine, controller and data logs.
- DC AUTO-START genset control
- DC lighting tower controller functions
- Engine drive controller for pump, compressor applications with clutch control
- Large LCD display with LED backlight and icons
- Compact dimensions
- DC voltage sensing and protections
- DC current sensing and protections
- Voltage control over CANBUS for PMG speed/load control
- 4 Configurable digital inputs
- 3 Configurable analogue inputs + Configurable Charge alternator D+input
- 10 Configurable digital outputs
- Interface for traditional MPU and J1939 engines
- USB serial port for configuration and Cyber Secure FW update
- Data recording: 64 events log, 64 (slow) + 42 (fast) periodical recordings
- RS485 communications port
- Embedded alarm sounder
- Real Time Clock with internal rechargeable Lithium battery
- Periodical test
- Free configuration software
Specifications
- Recommended operating temperature: 30°C to +70°C
- Storage temperature: 30°C to 80°C

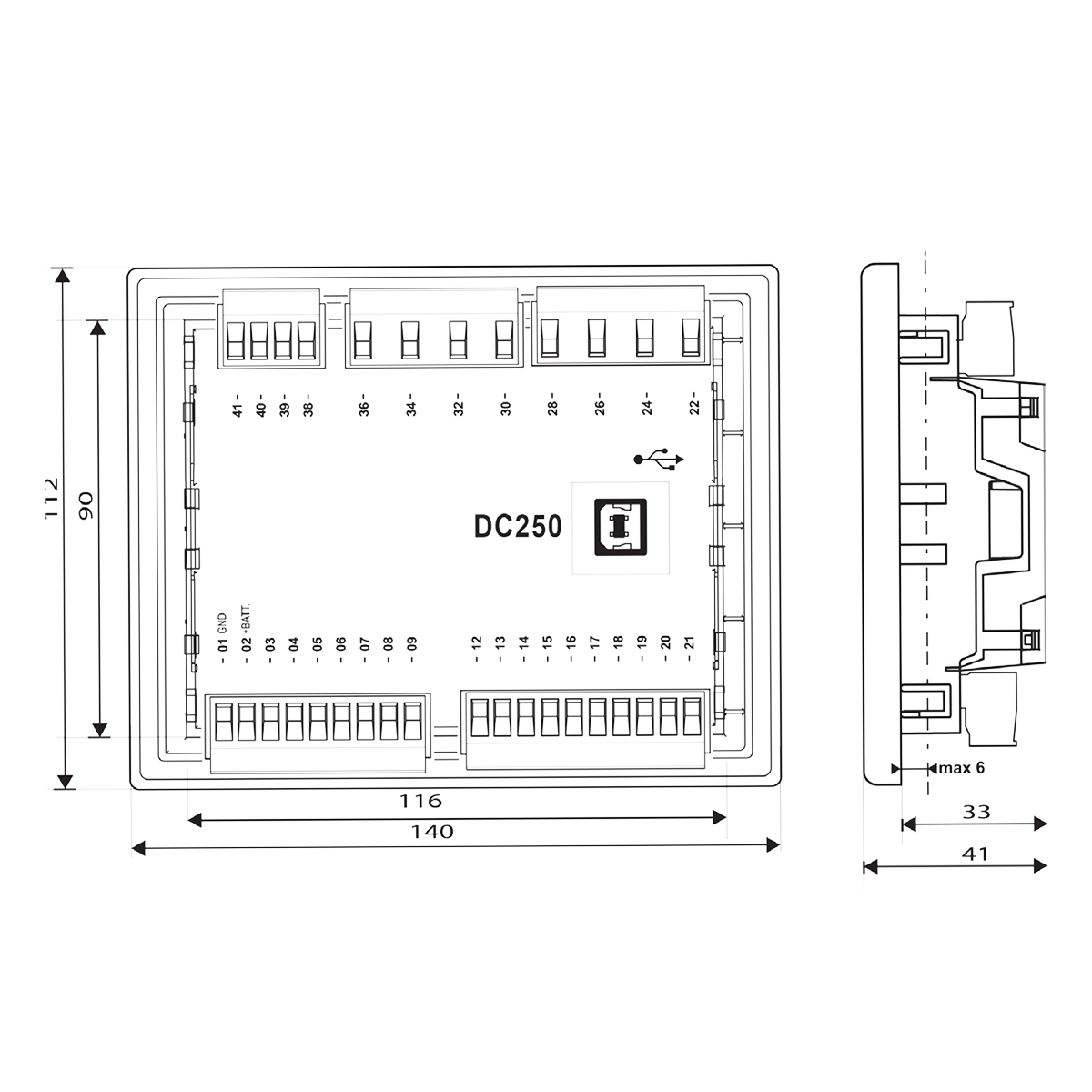

- Dimensions: D 41 mm x W 142 mm x H 112 mm
- Cut-out dimensions: W 118 mm x H 92 mm
- Weight: 250 g.
- Protection degree: IP65 (with complimentary gasket)
