Features

Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are best for open or well ventilated areas like factories, warehouses or construction sites. Master direct heaters are known as very efficient and robust as well as safe and easy in use.

• High pressure heaters
• Overheat thermostat
• Post ventilation
• Thermally protected motor
• Transparent external suction filter
• Three oil filters – oil pump filter, suction filter and inlet filter

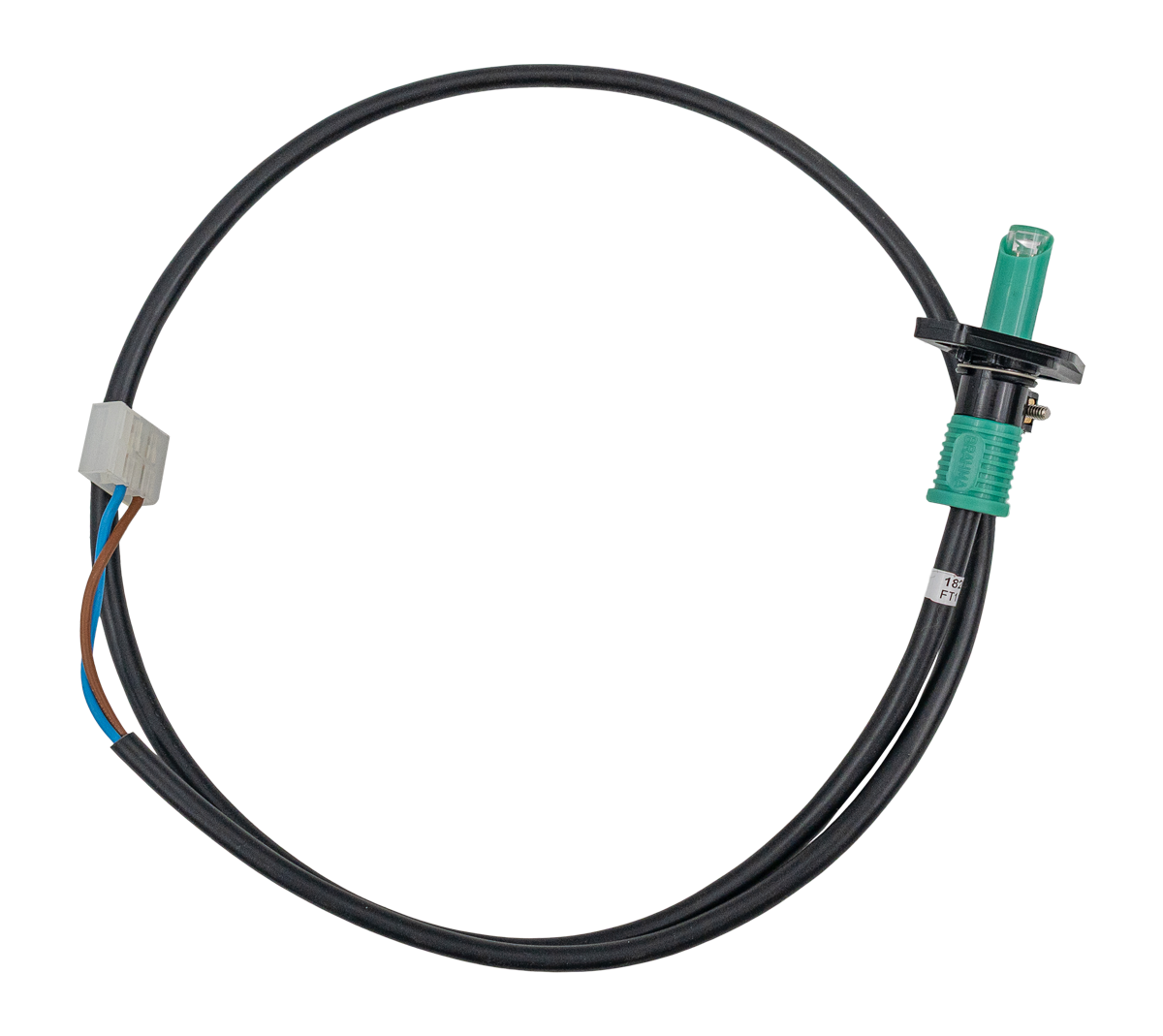

• Electronic flame control with photocell
• Stainless steel combustion chamber
• Oil tank with level indicator
• Trolley included
• Snorkel
• Easy maintenance with external pump
• Diagnostic LED
• These heaters can burn: biofuel HVO 100, diesel or kerosene

Suitable for

• Agriculture
• Automotive
• Commercial buildings
• Construction
• Industrial, factories and production
• Military and aerospace
• Rental companies
• Warehouses and storage

Specifications

• Units: B 360
• Heating power: 111 kW
• Heating power: 379,000 Btu/h
• Heating power: 95,460 kcal/h
• Air flow: 3,300 m³/h
• Fuel autonomy: 10 hr
• Thermostat control: Analogue or digital
• Fuel consumption: 10.6 L/hr
• Power supply: 220 – 240/1ph/50 – 60 V/Hz
• Electric power: 1.06 kW
• Rated current: 4.6 A
• Protection: IP41
• Tank capacity: 105 L
• Product size: L 1,600 mm x W 700 mm x H 940 mm
• Box size: L 1,600 mm x W 750 mm x H 1,180 mm
• Net/gross weight: 84/105 kg
