Jetter – A Style with Locking plate

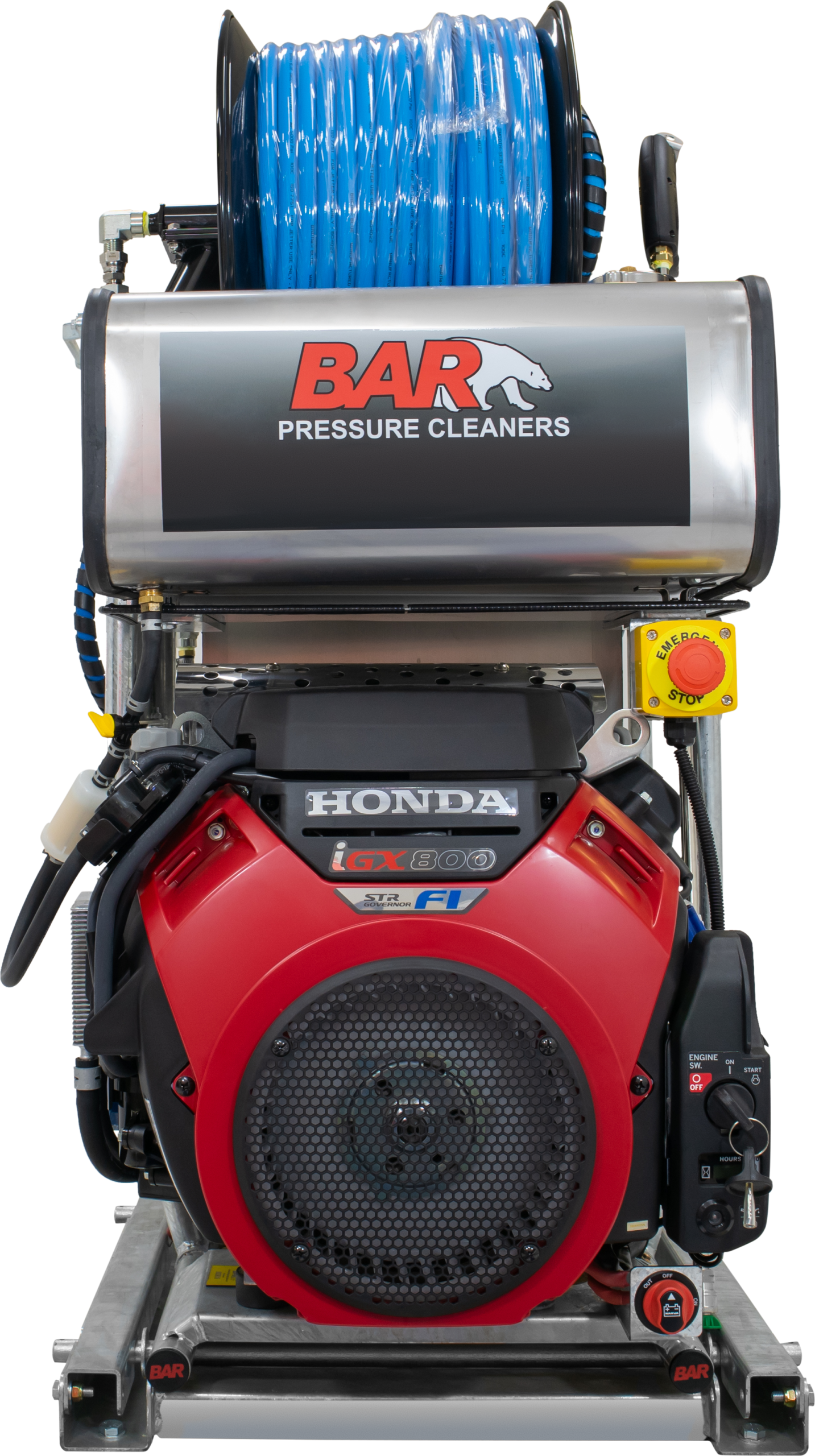

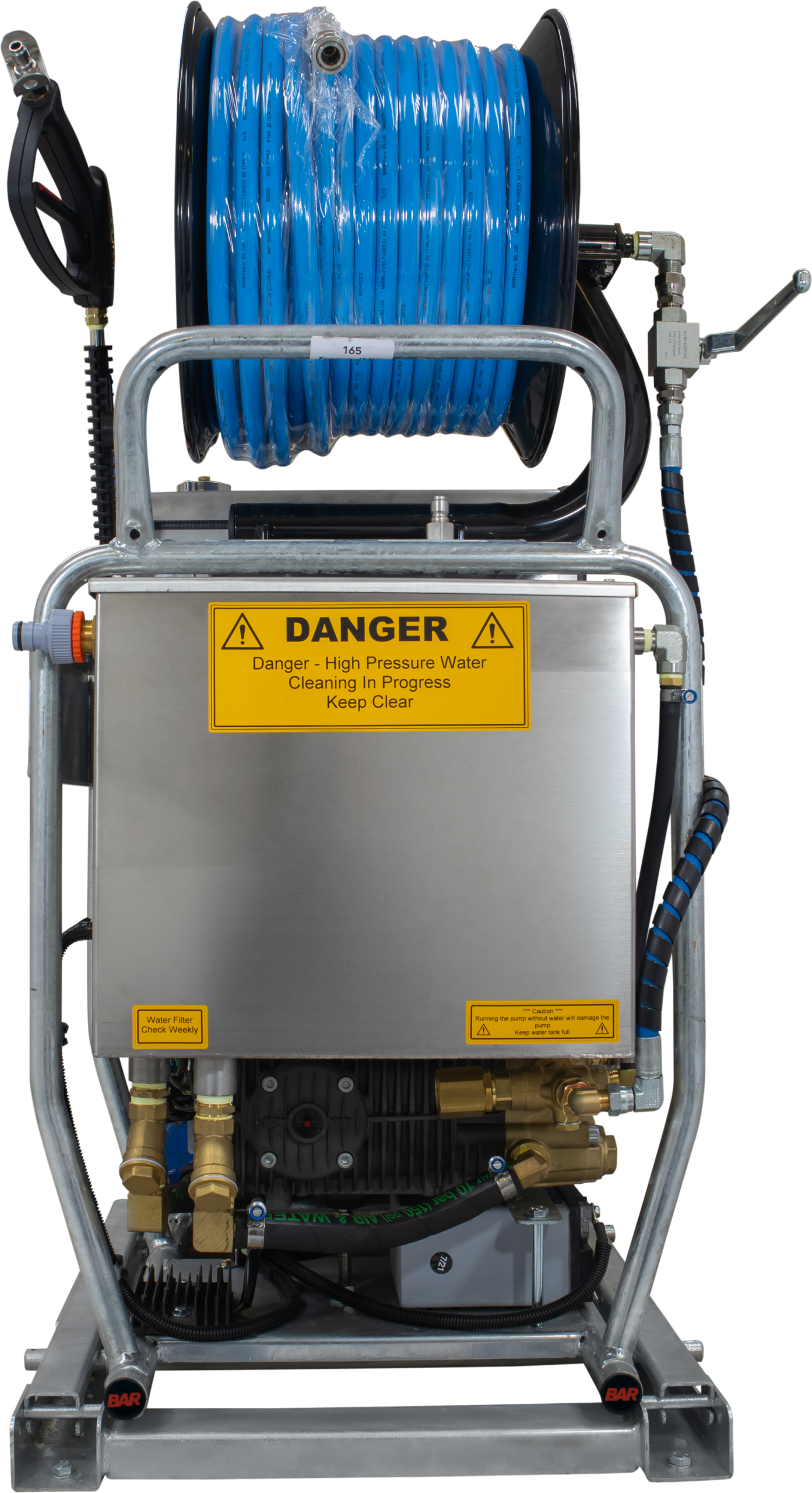

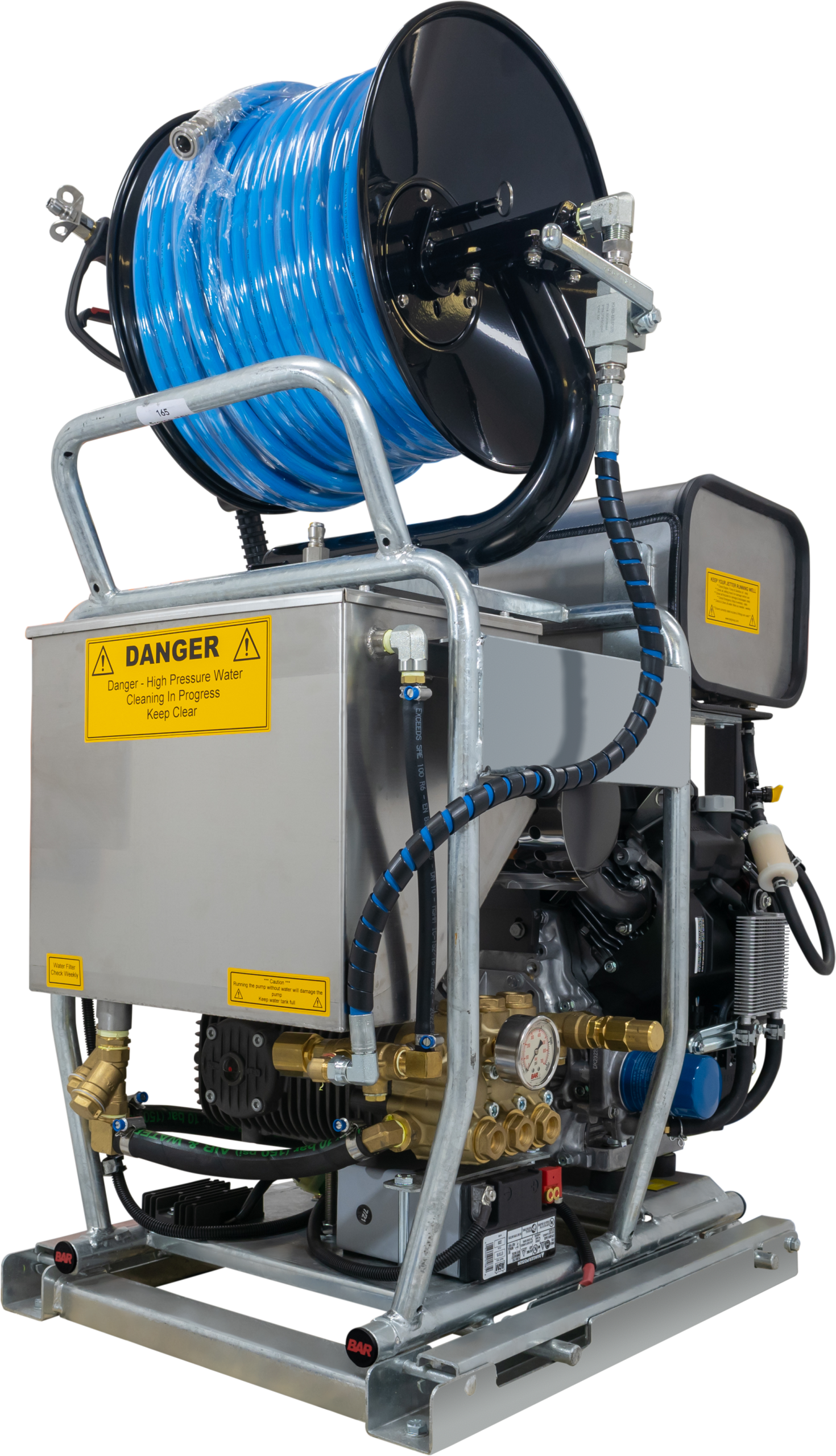

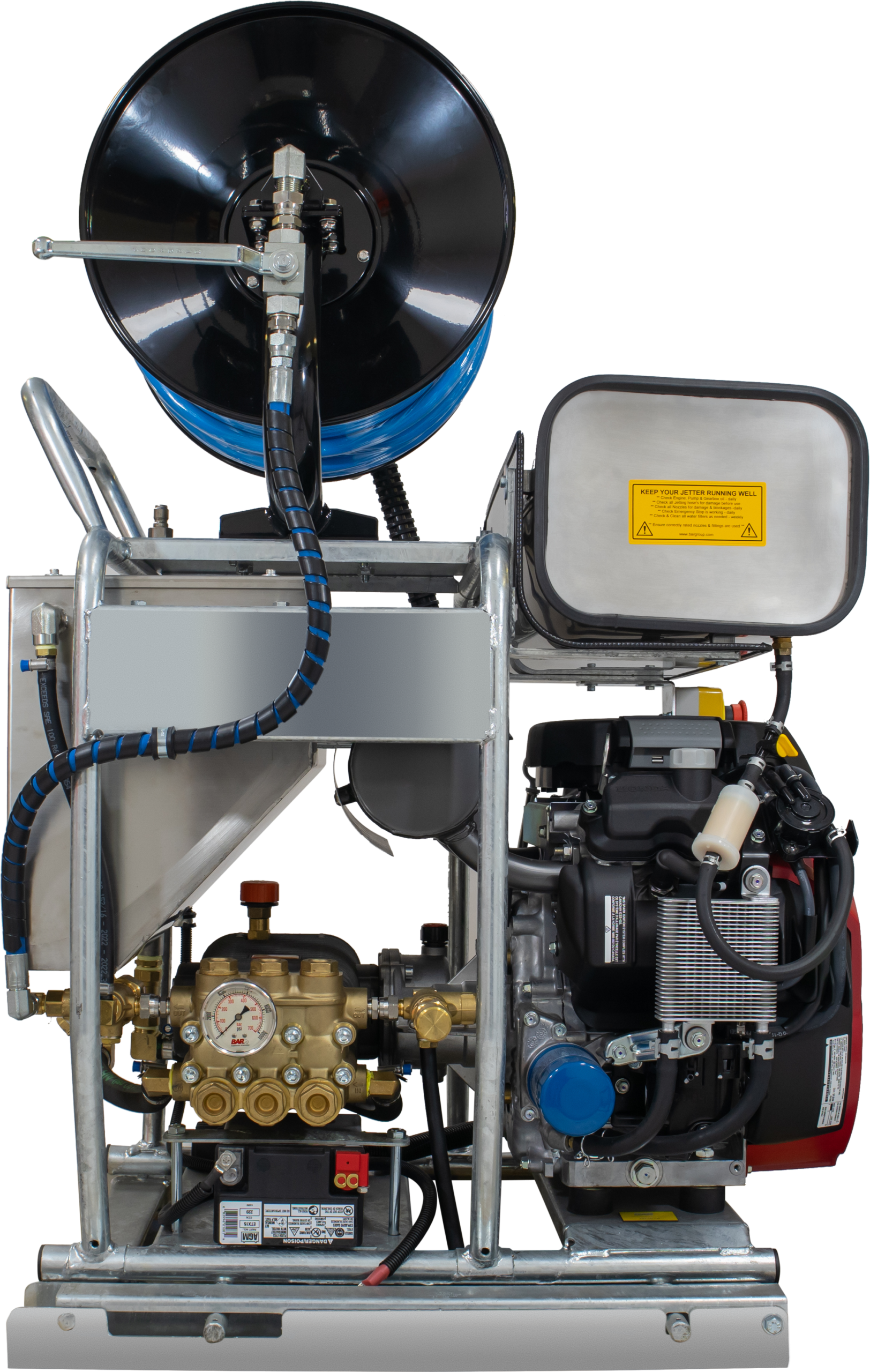

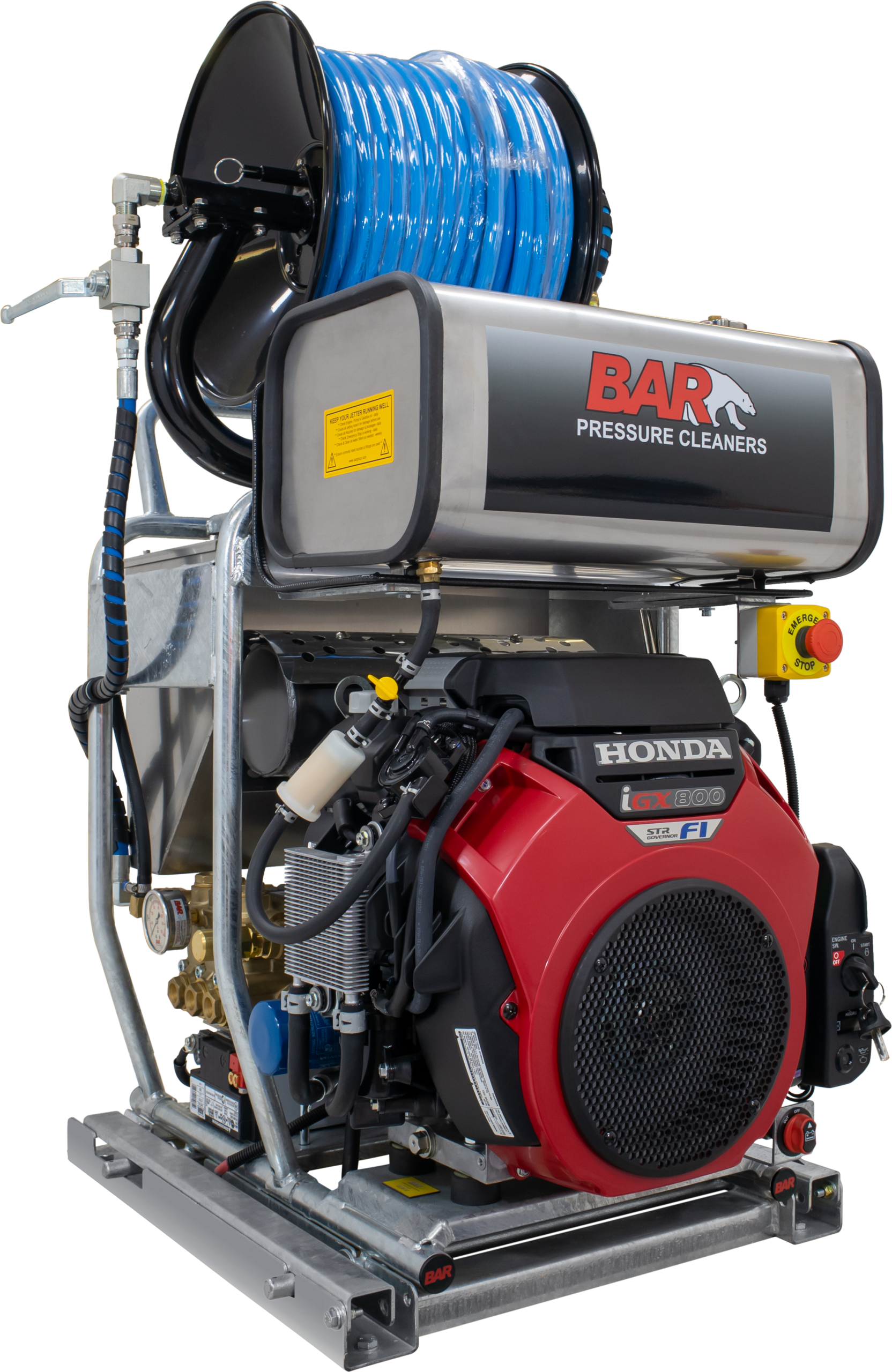

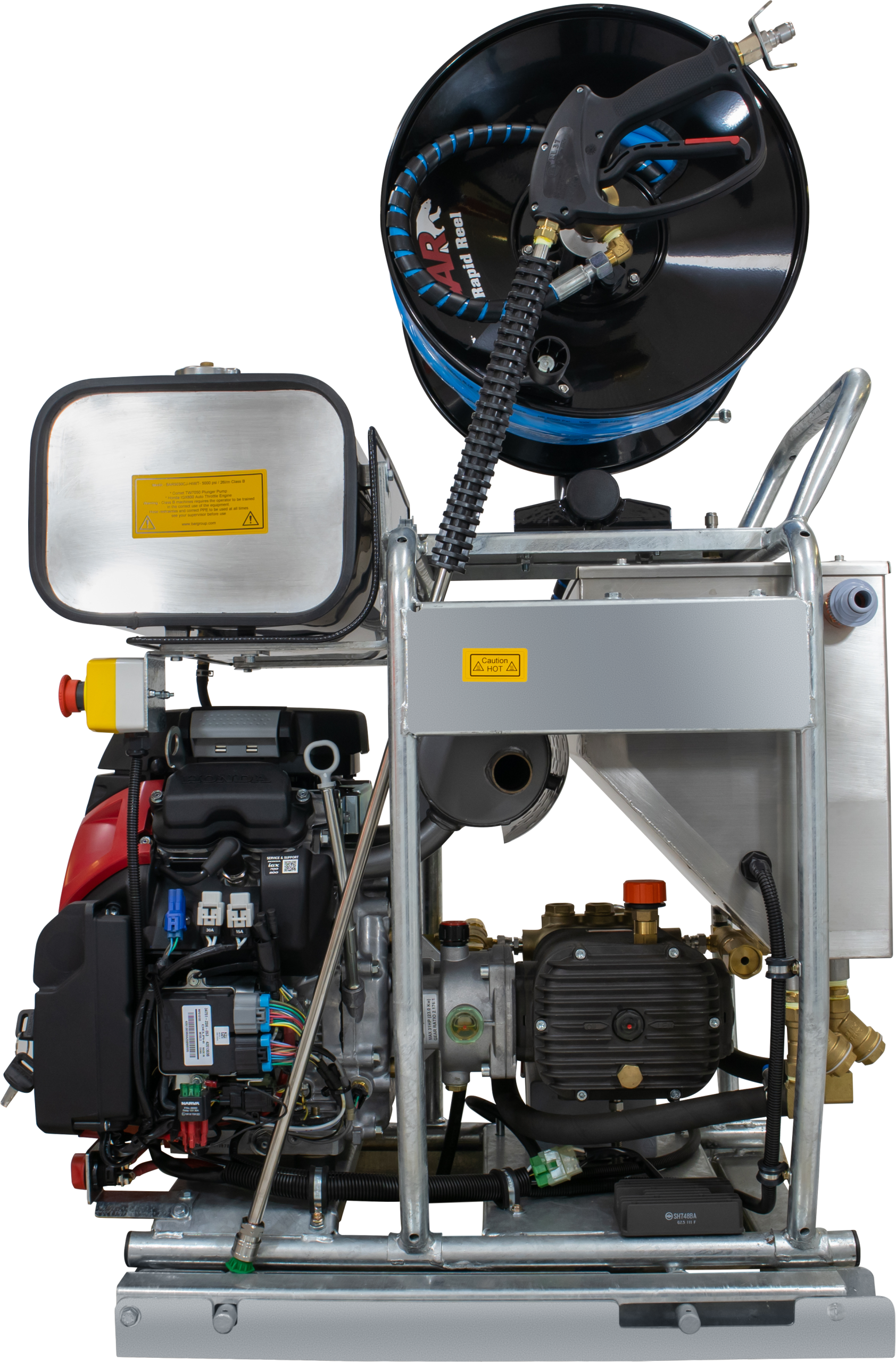

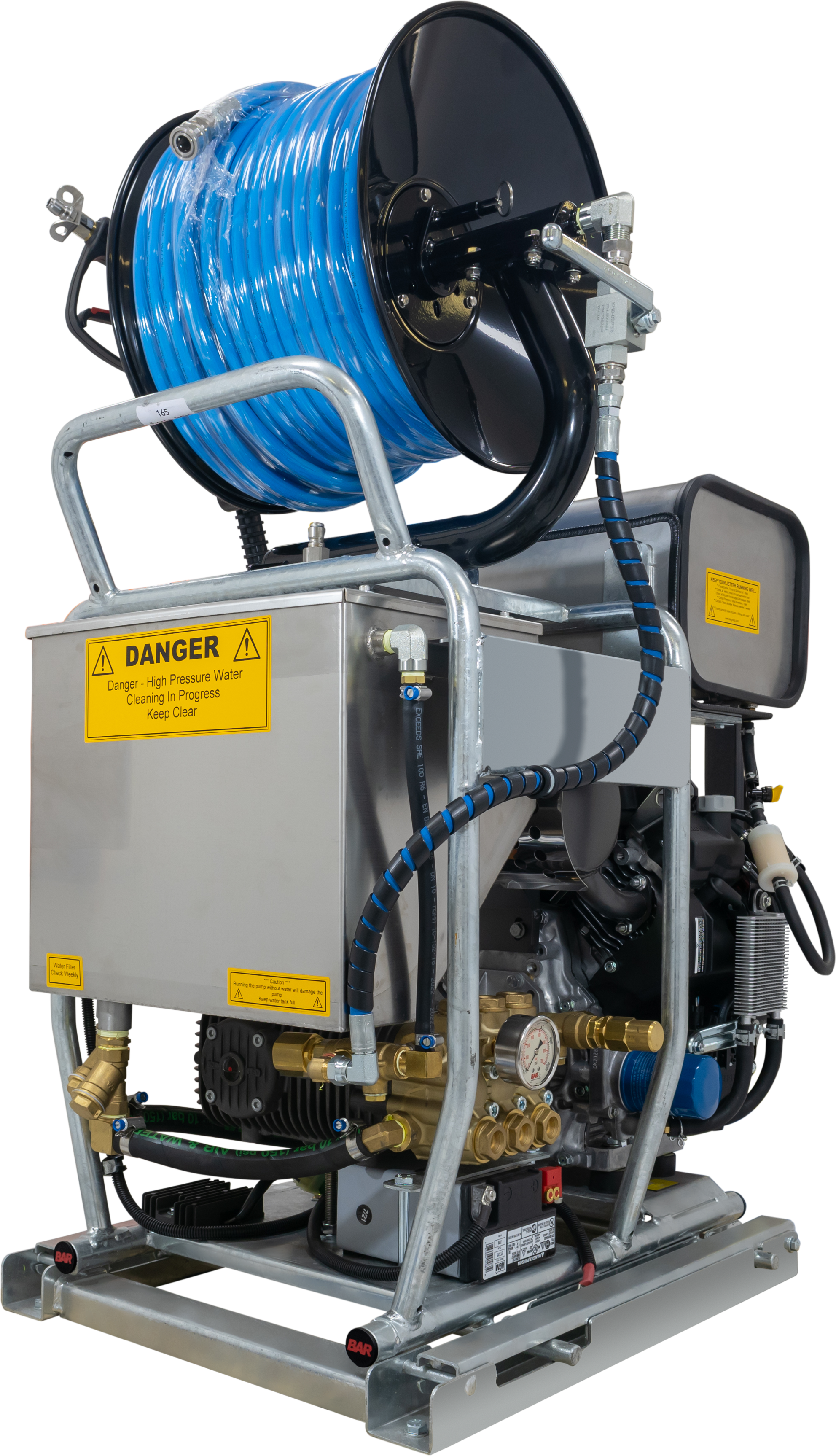

BARjet Jetter c/w Locking Plate for Van Mounting

Drain cleaning mode: Ideal for clearing tree roots in drains from 40 mm to 225 mm
High Pressure mode: Perfect for graffiti removal, brick cleaning, roof restoration, driveway clearing and any OH&S cleaning task.

Specifications:

• Pressure: 5,000 PSI
• Flow: 26 L/min
• Engine: Honda GX800 EFI Auto
• Rating: Class B (Class A option available)

Supplied standard with:

• 30 hp Honda Australia Engine with 3 yr warranty and “Key” electric start
• IGX800 engine with autothrottle automatically adjusts engine speed based on load, improving fuel efficiency, reducing noise, and minimizing wear in variable load conditions.
• Comet Italian Premium Pump (Don’t use anything less than a Comet Premium Pump)
• PA Italian Gearbox
• Large Stainless 35 L water tank with low water cut-out
• Stainless (not plastic) 25 L fuel tank
• PA Unloader and Safety Relief Valve
• Complete with mounting locking cradle
• Battery Isolator valve to prevent flat battery
• Optional e-Stop for operator safety
• Pressure gauge
• BAR Rapid Reel complete with 60 m of 1/4” Barflex Italian Drain Hose (3/8” on GX800 machine)
• Quick Release Hose-to-Nozzle Connections

Complete your Jetter by ordering the following:

• Mustang style 16 Piece Nozzle Box
• Mini Reel with 60 m of 3/16” (or 1/4”) Barflex USA Red or Blue Drain Cleaning Hose
• Warthog WV 1/4” Nozzle (suits 1/4” hose only)
• Warthog WT 3/8” Nozzle
• New BARjet 358 forward turbine
• Cleans Drains up to 225 mm (9”)

Dimensions:

• L 800 mm x W 600 mm x H 1220 mm (With hose reel)
• L 800 mm x W 600 mm x H 870 mm (Without hose reel)

NOTE: This is a Class B machine requiring operator certification. Class A versions are readily available

General Arrangement Drawing
