Features

• All BAR hydrostatic pressure test units are fitted with a dual valve system.
• This isolates the pressure pump from the item under test when the test pressure is reached.
• When isolated the test piece is monitored during the test period on the second pressure gauge for any pressure drop, which would indicate a leak.
• Integrated control valve and pressure gauges and lock off valve included.

Specifications

• Max Pressure: 568 PSI (40 bar)
• Max Flow: 71 L/min

Pump

• Comet APS71 diaphragm pump driven via 2:1 reduction gearbox

Engine

• Yanmar L100, 10 HP electric start with recoil back up

Frame

• Unit mounted on heavy duty galvanised JMP frame with 4 x 10 wheels

Mine Spec Enhancements

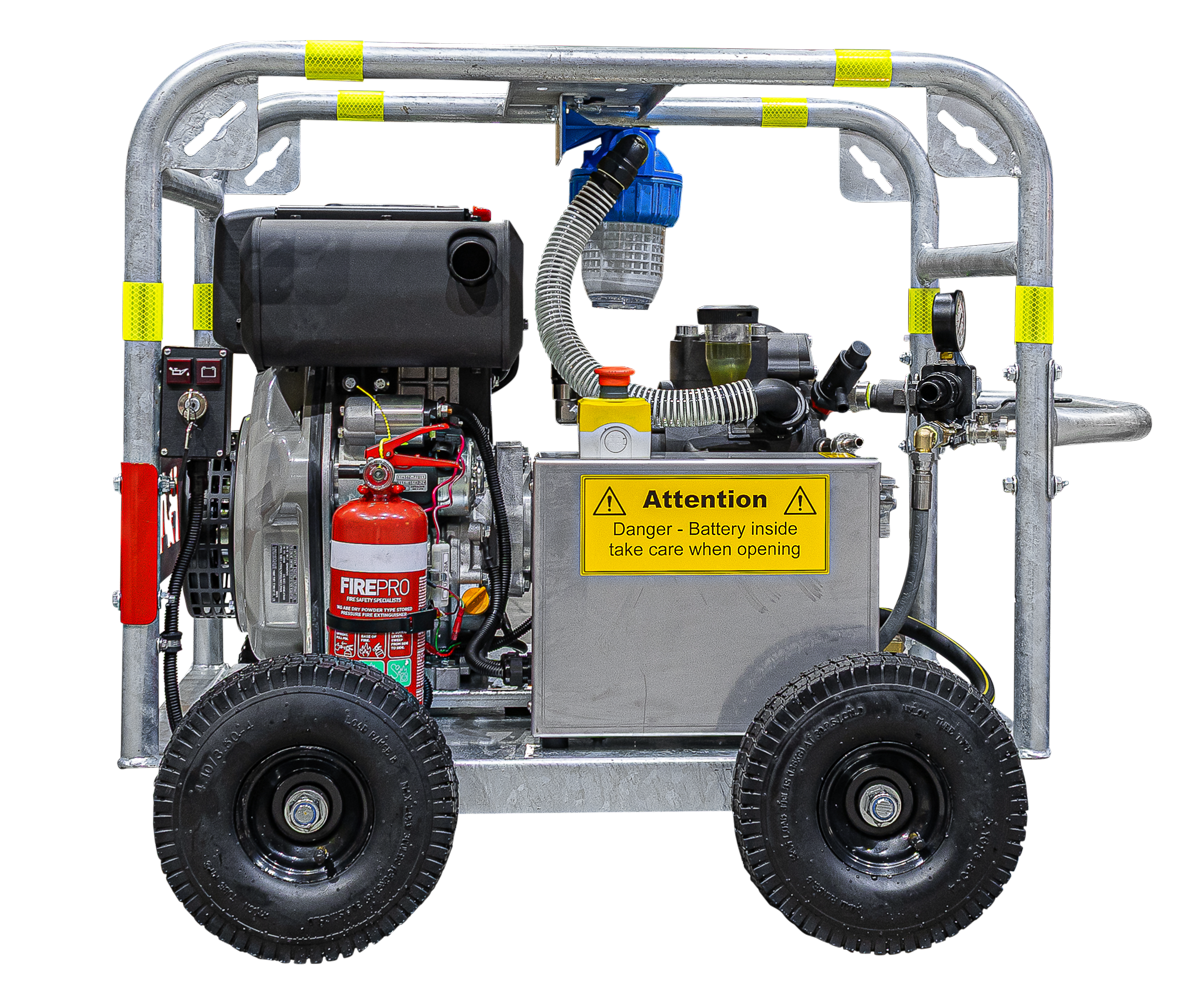

• Battery isolation, fire extinguisher, emergency stop button, metal box for battery.
