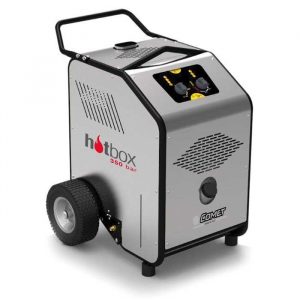

HotBox Boiler Unit

Features

• Coil-only setup designed for use with an existing cold-water pressure washer
• Not a standalone hot water unit
• Full stainless steel frame & casing with 2 pneumatic wheels
• C3 Seamless Coil (2.3 mm Thick)
• Stainless fuel tank with 20 L capacity
• Manufactured in Italy

Performance

• Max Pressure: 5,000 PSI
• Max Flow: 25 L/min
• Min Flow: 5 L/min
• Water Temperature: 140°C
• Weight: 110 kg

Power Supply

• 12 V Power Supply to Fuel Pump
• 12 V Power Supply to Fan Motor

Frame

• Stainless Steel Casing & Frame
• Stainless Steel 20 L Fuel Tank

Accessories included

• 2 m of high pressure hose with quick coupling

AMP Draw

The current draw of the Vulkan Cis 28-30 Amp with 13.3-13.5 V (when battery is full charged). If the voltage is less the amperage go up.
