Features

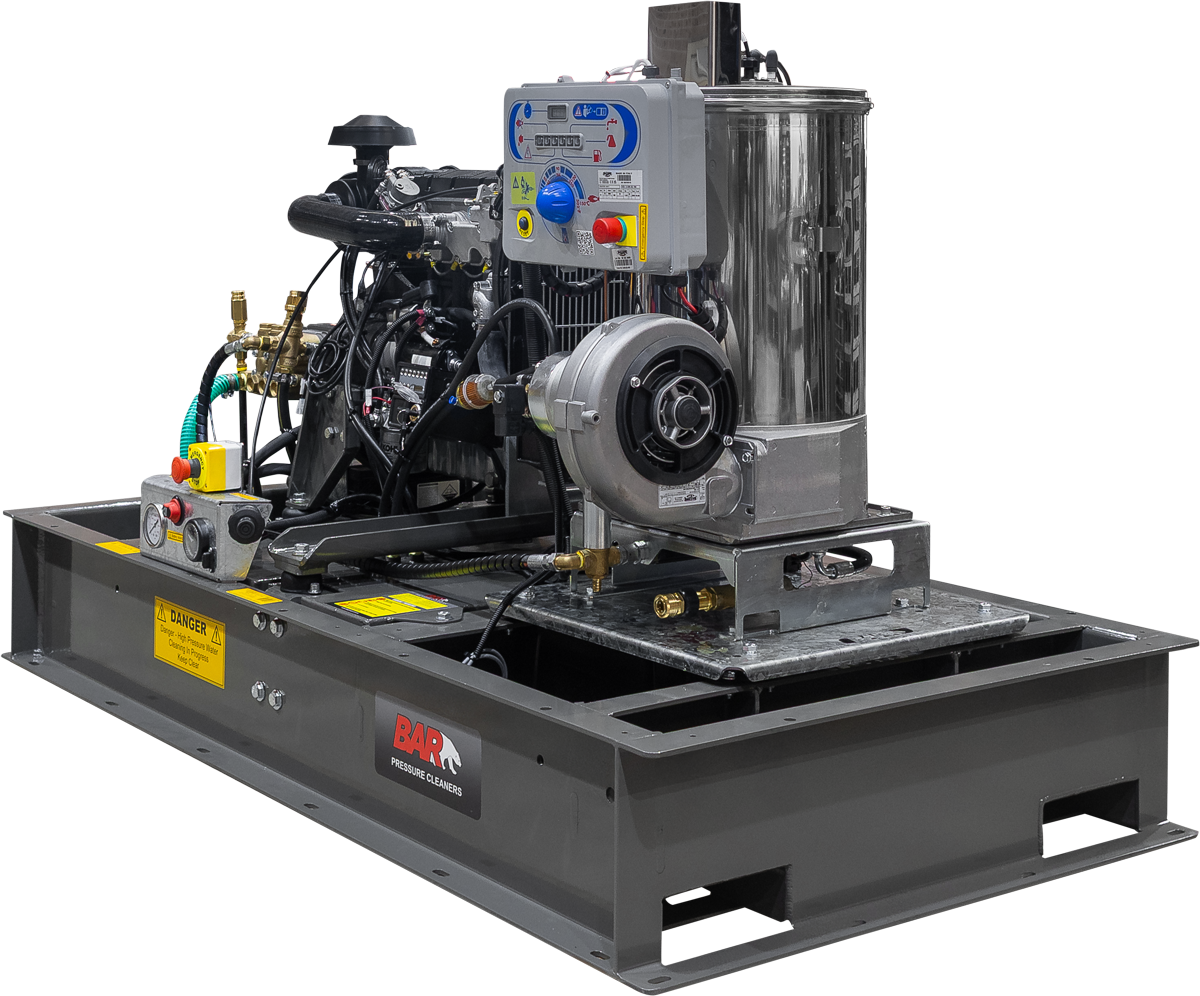

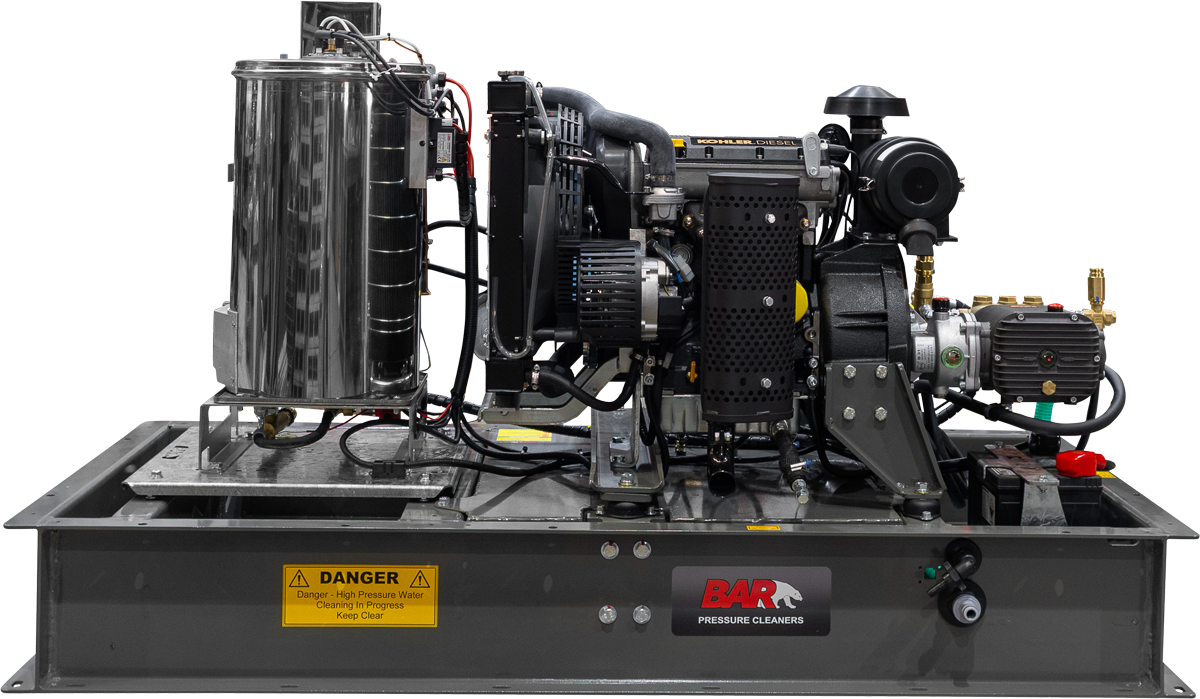

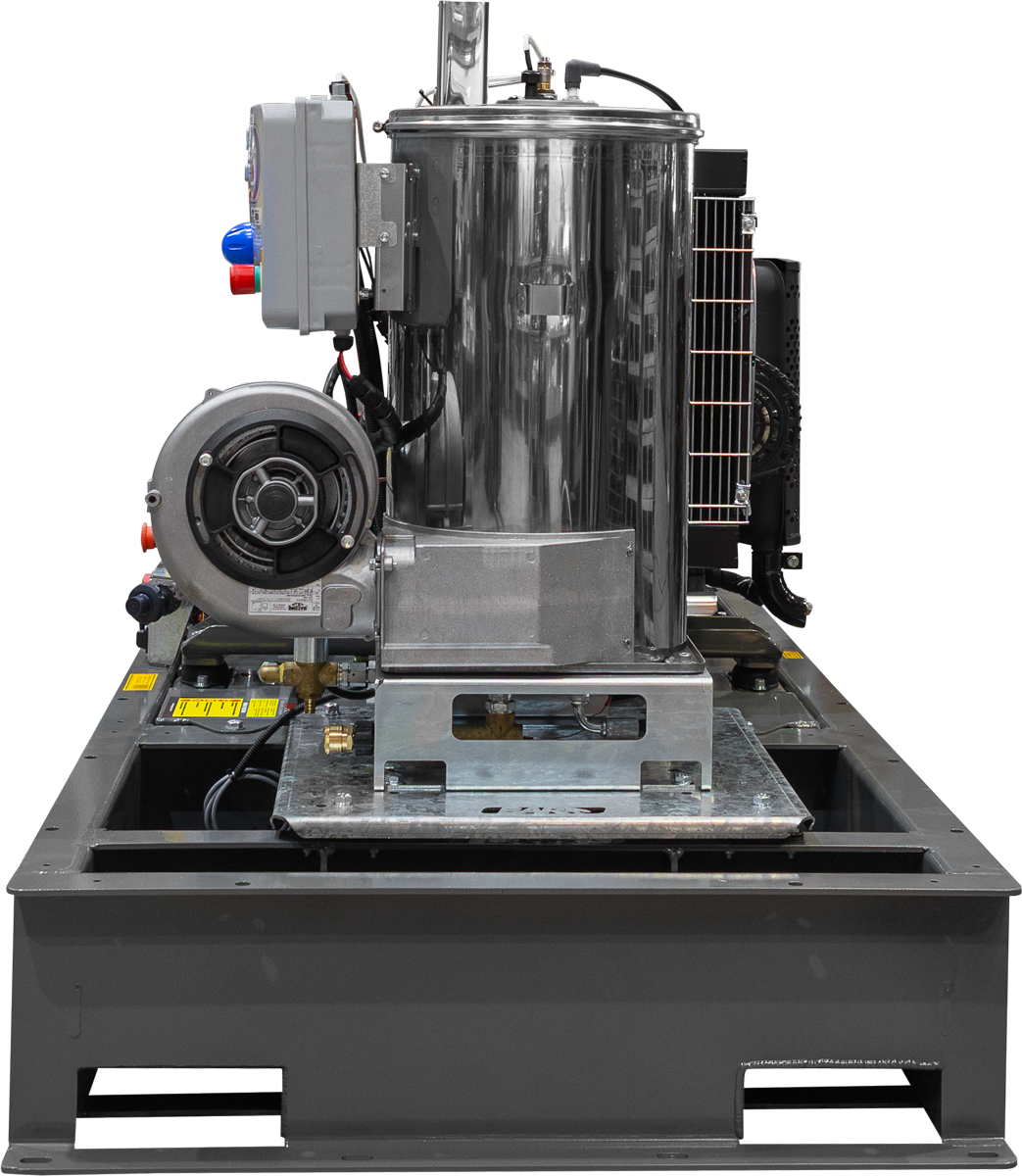

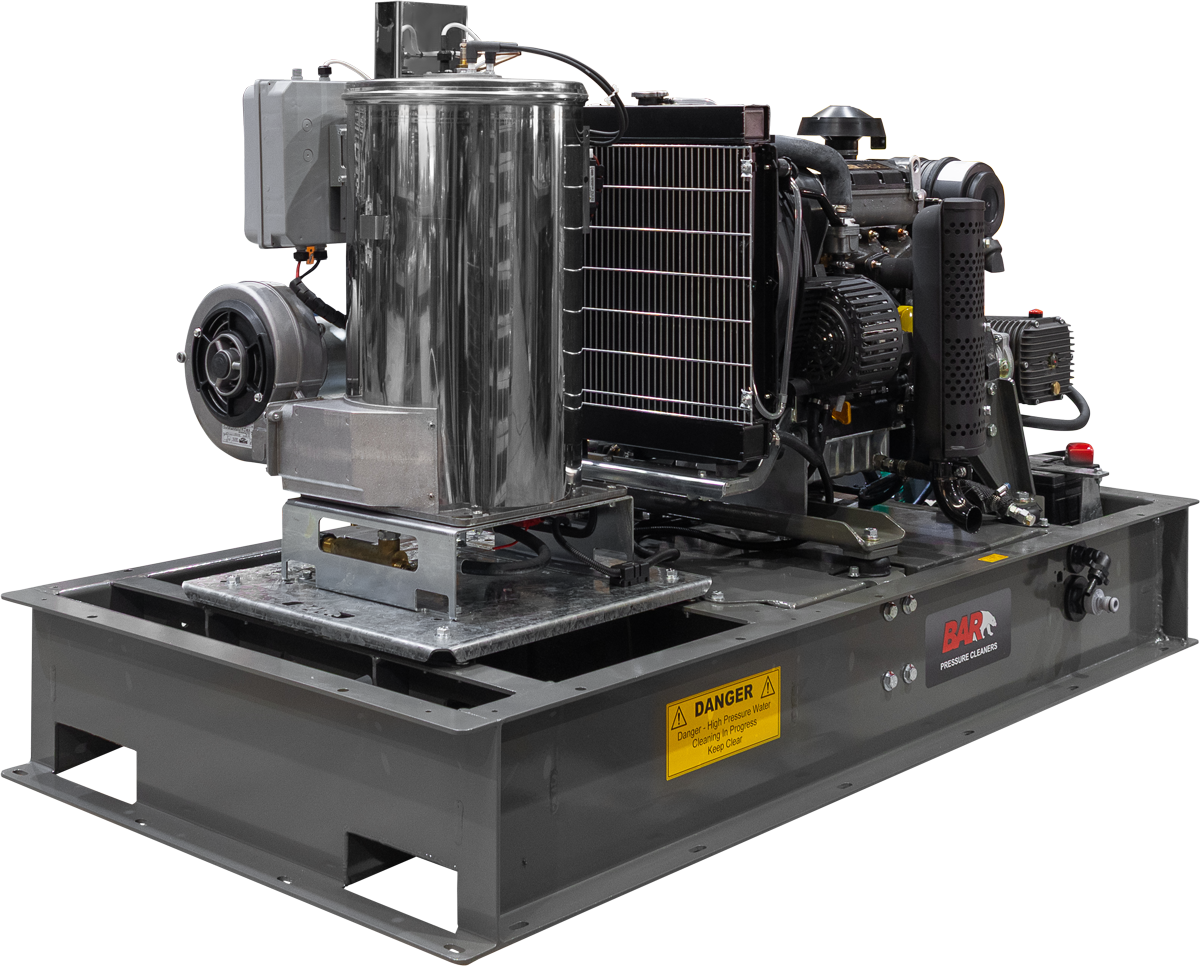

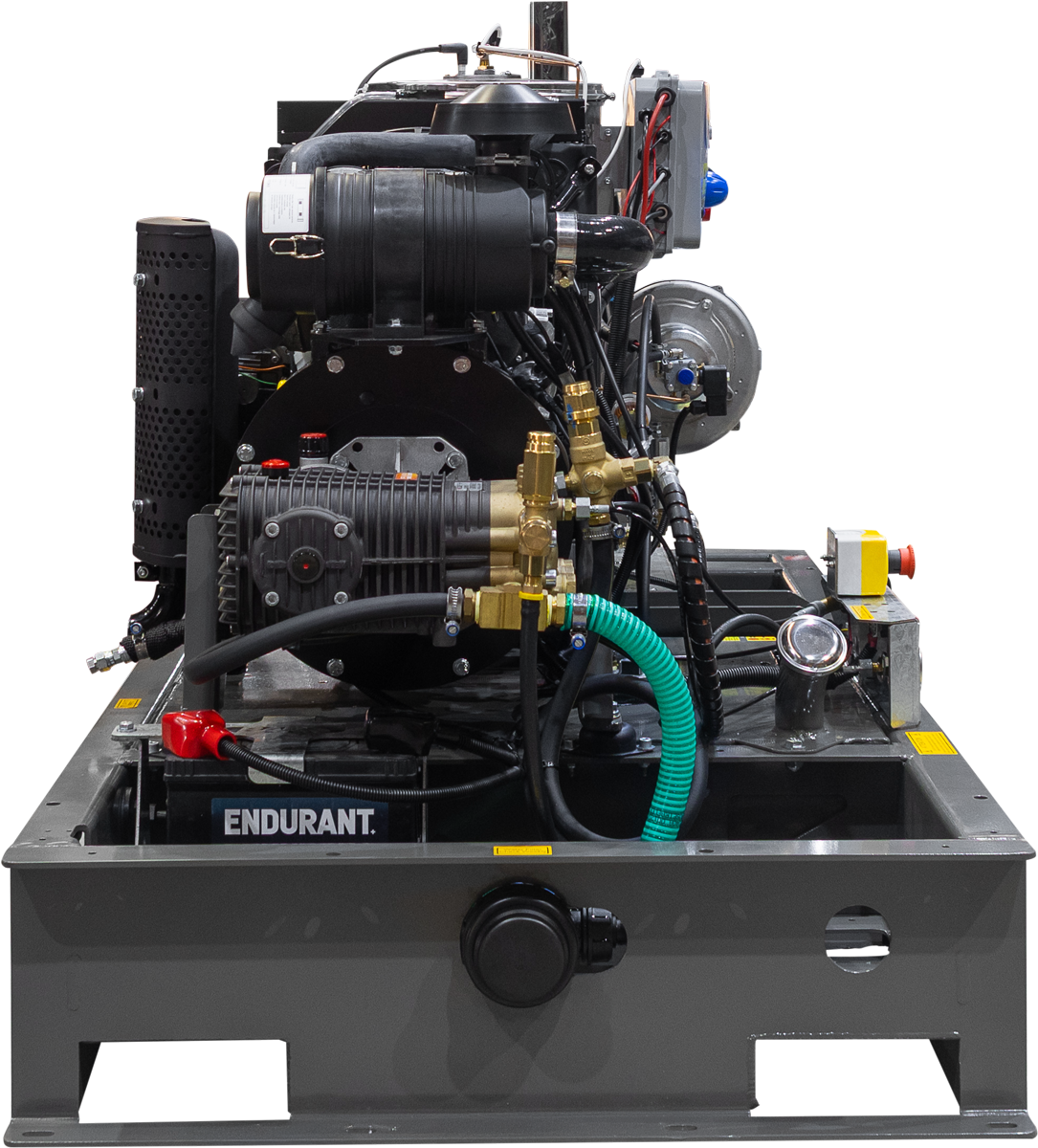

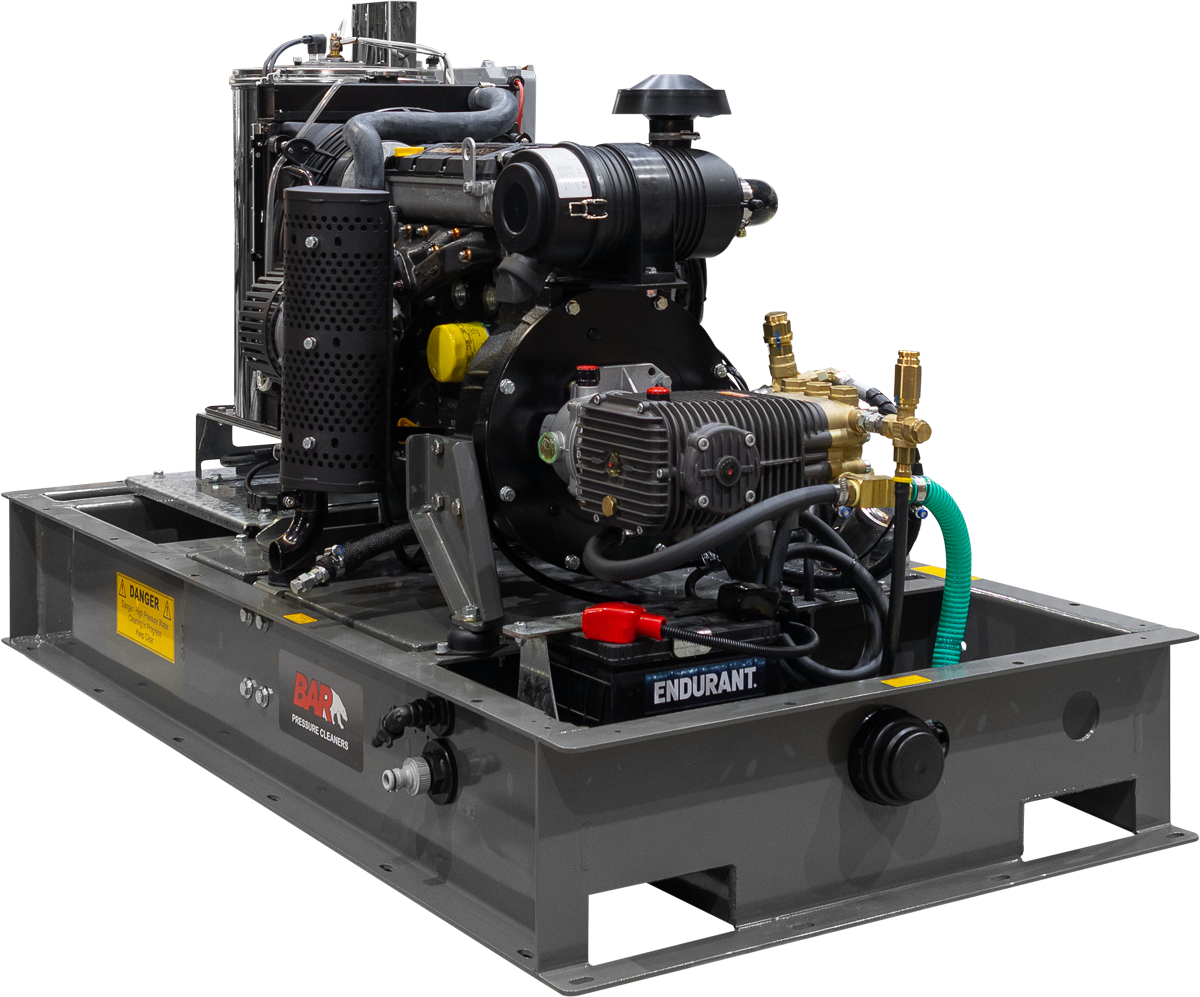

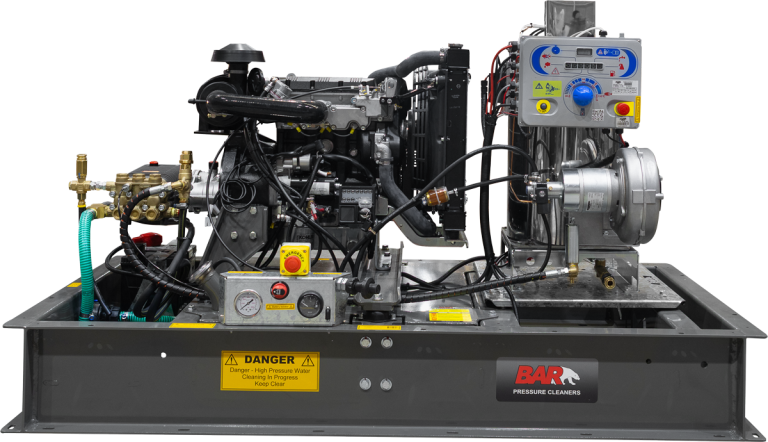

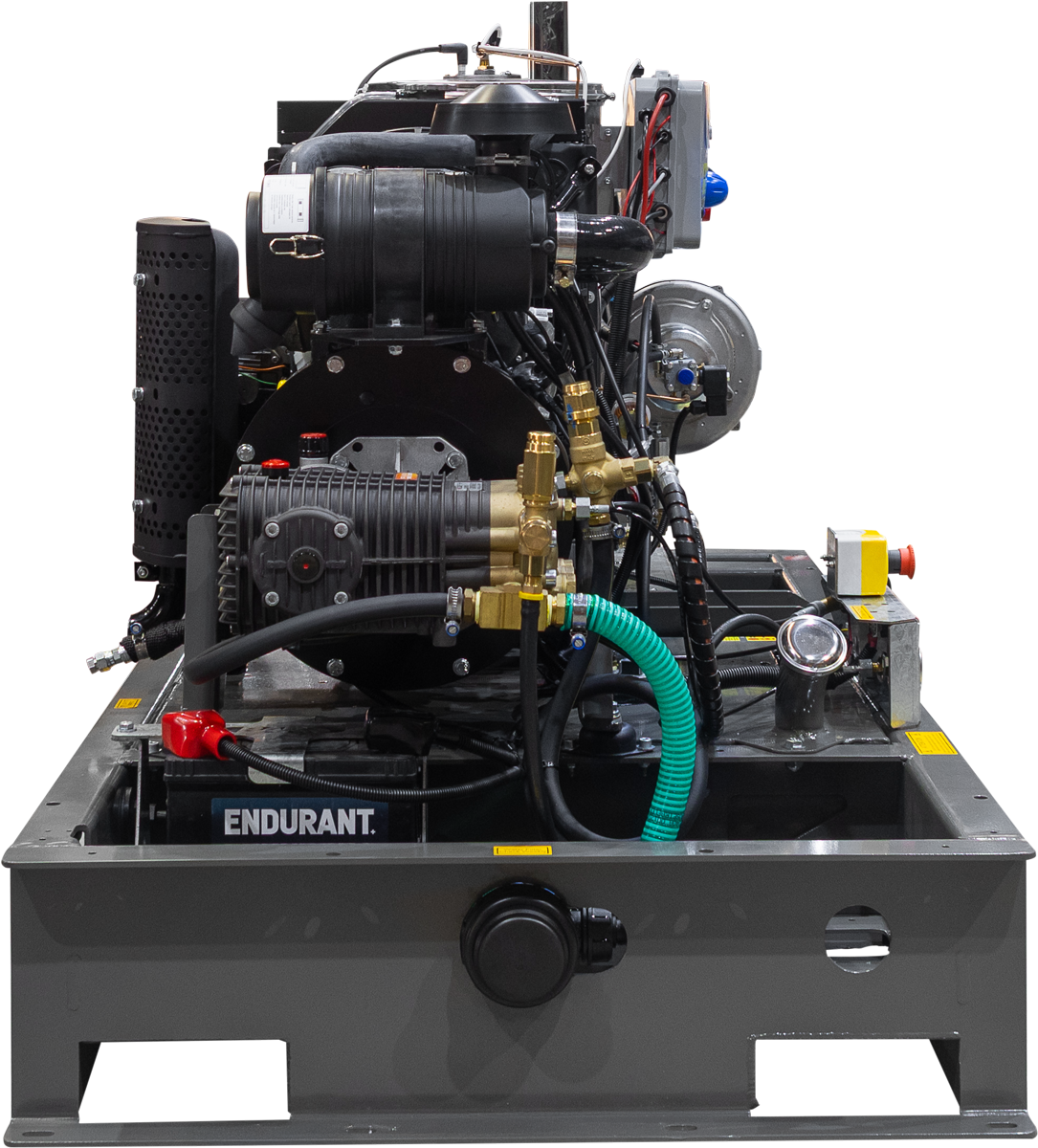

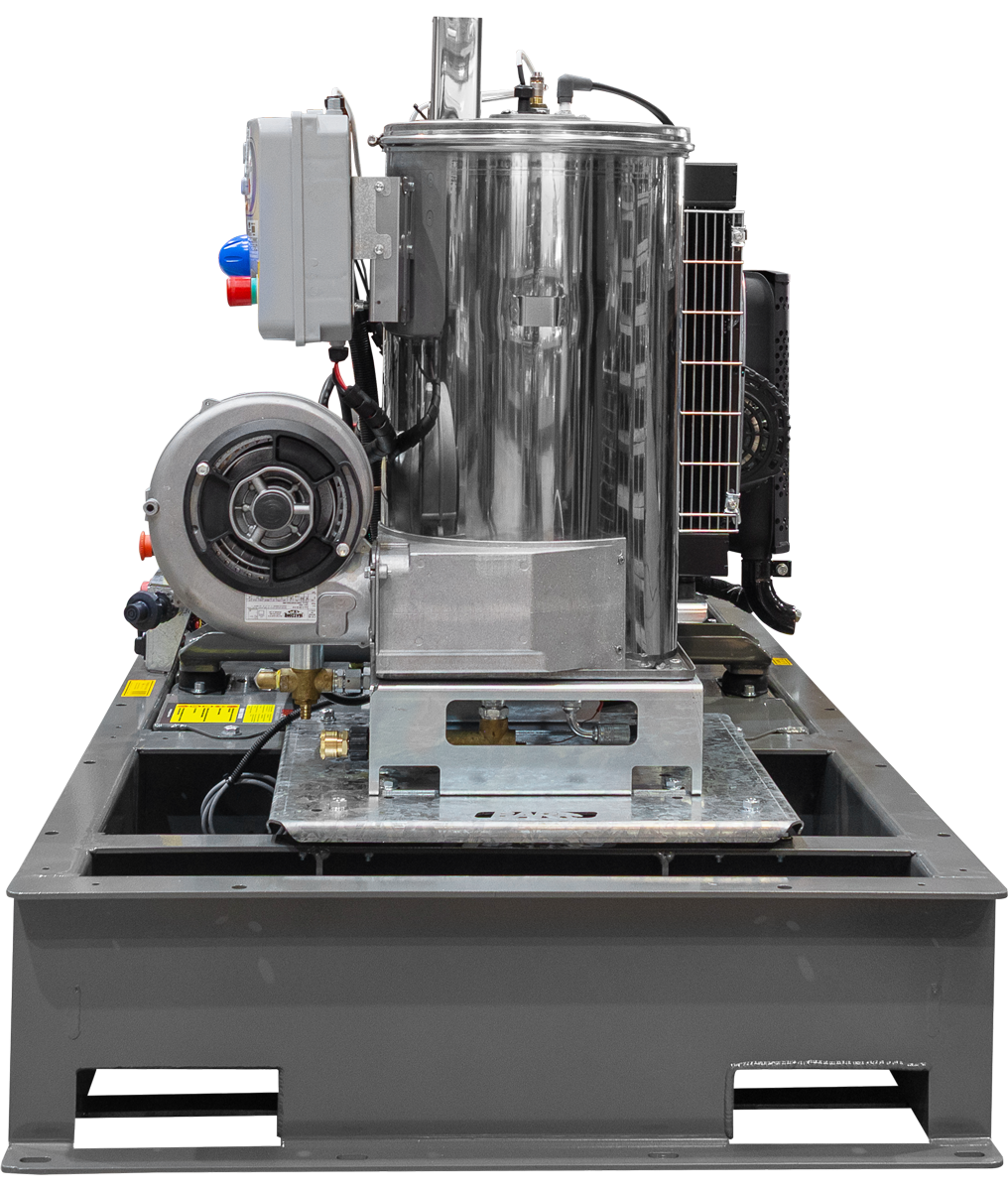

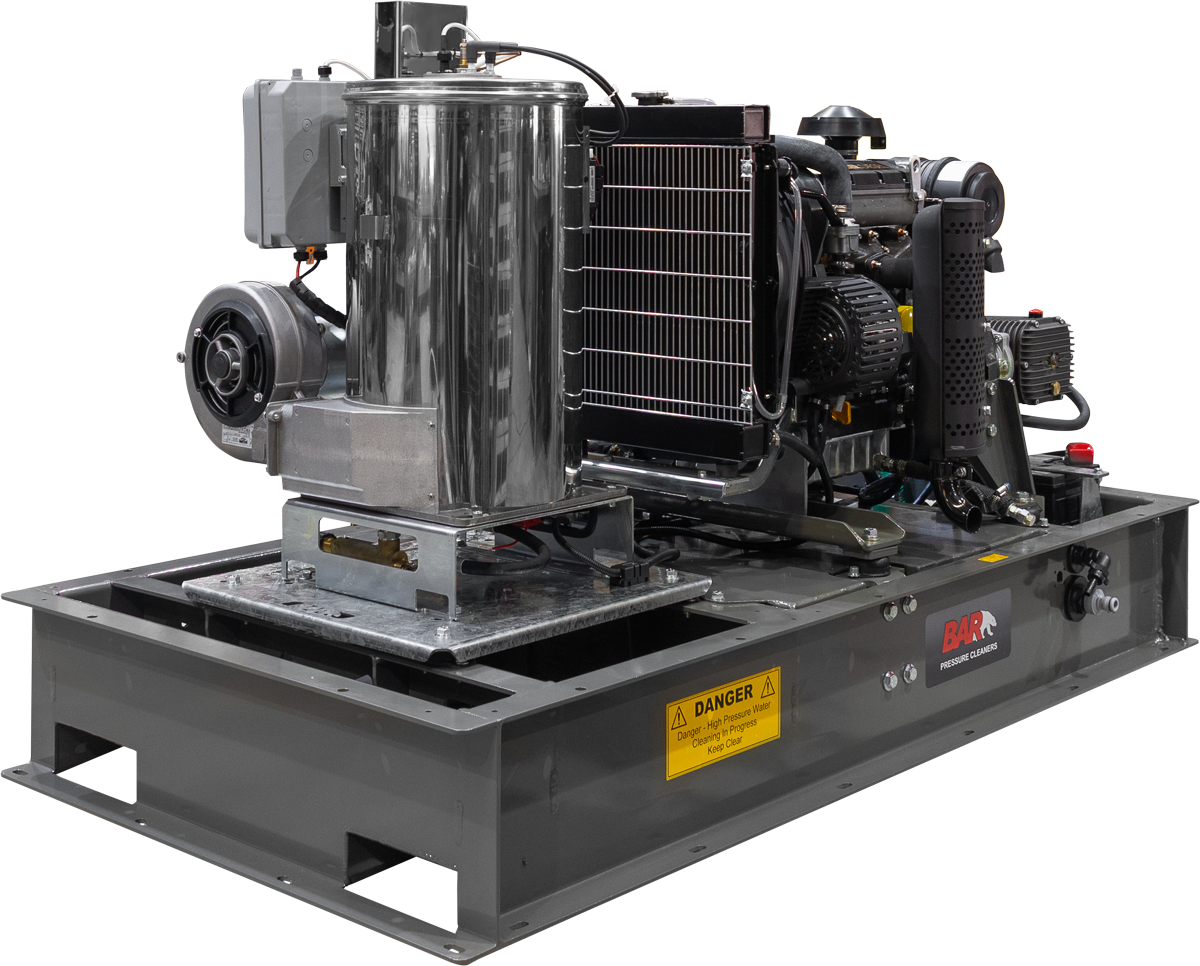

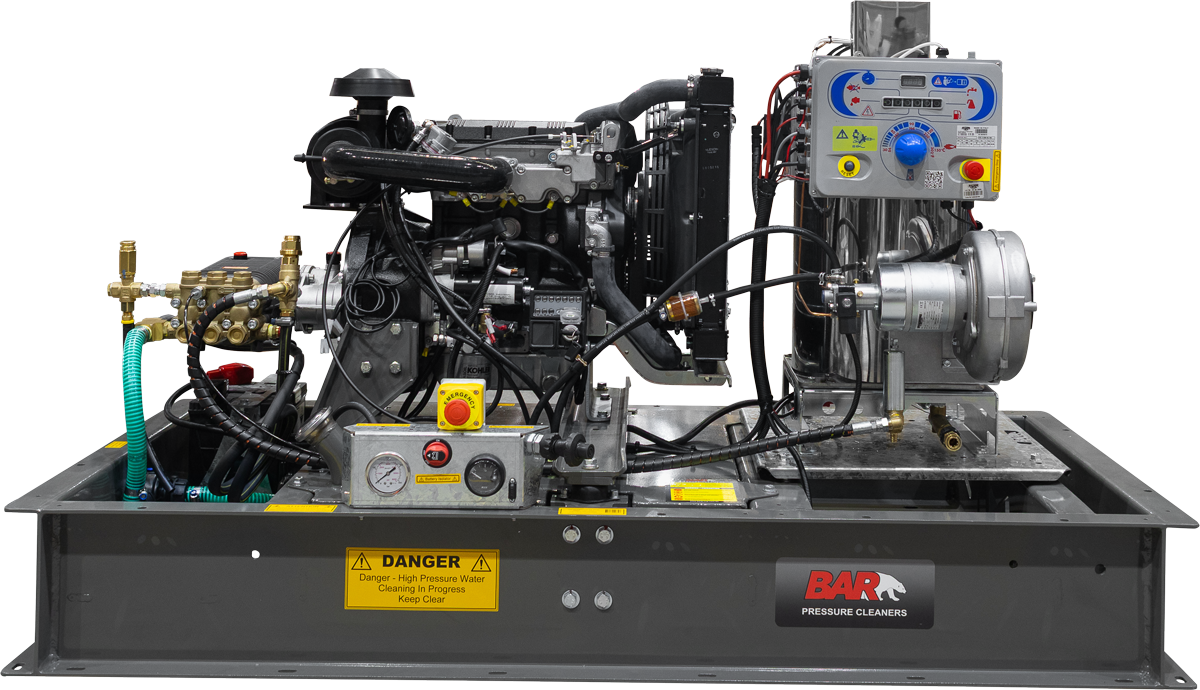

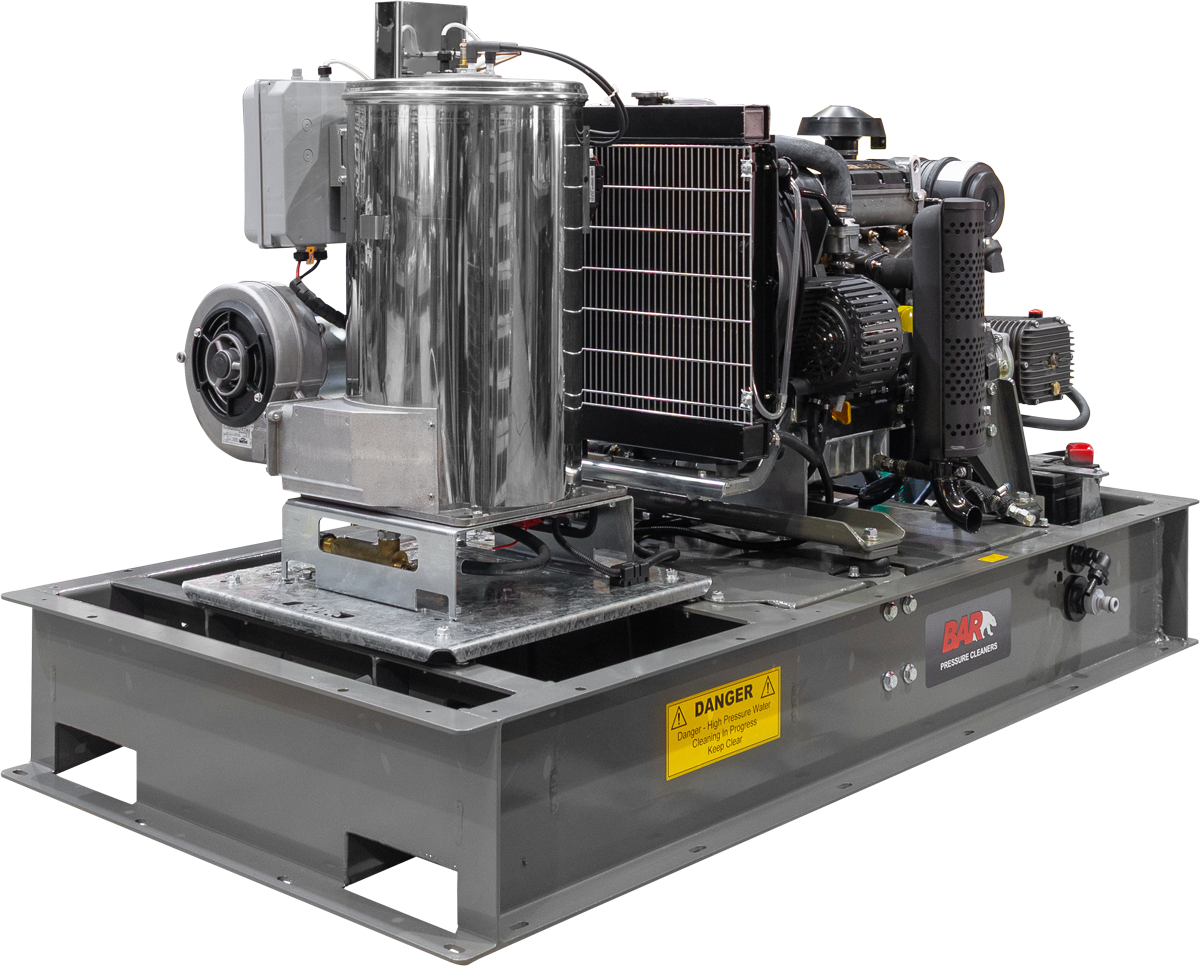

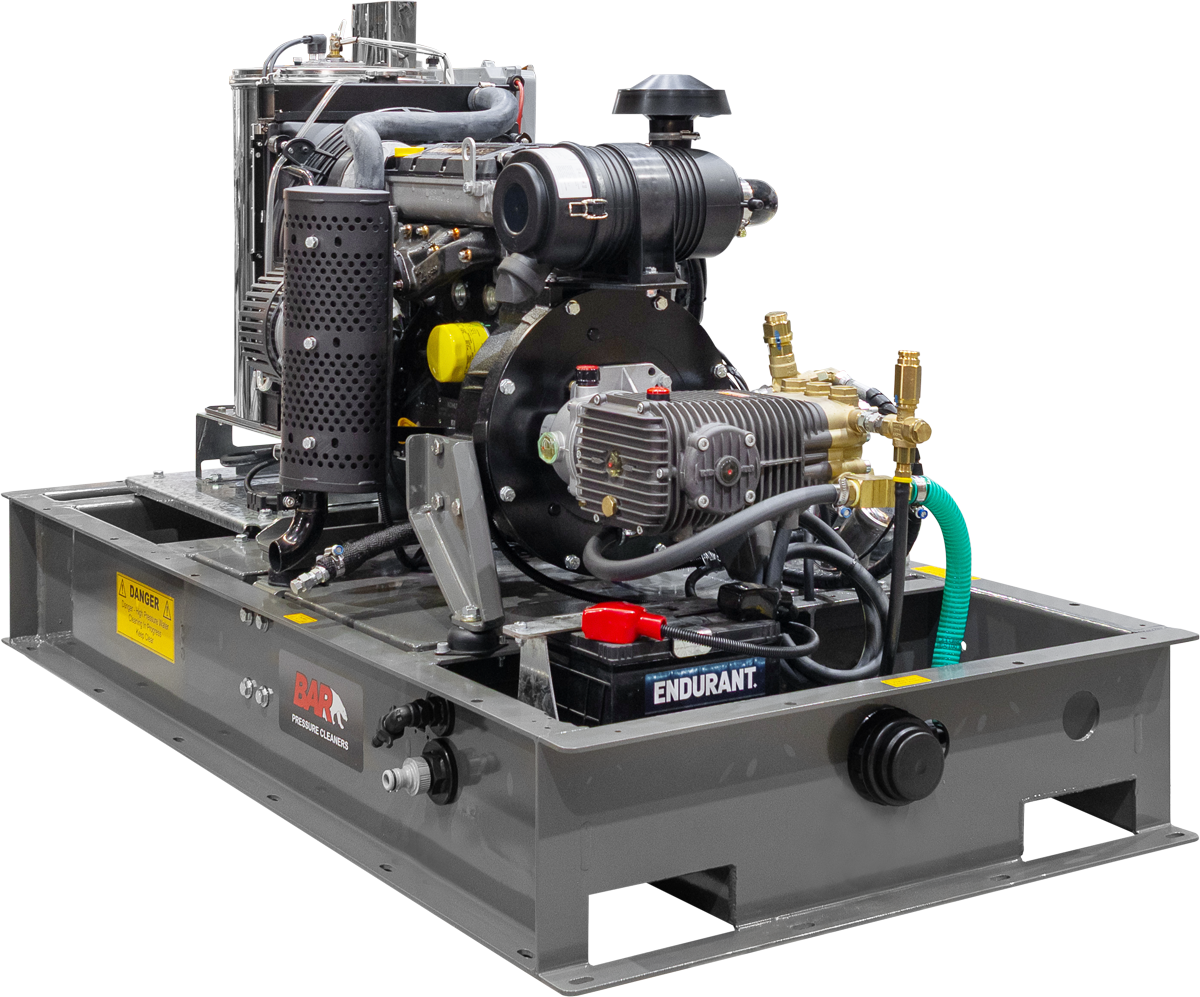

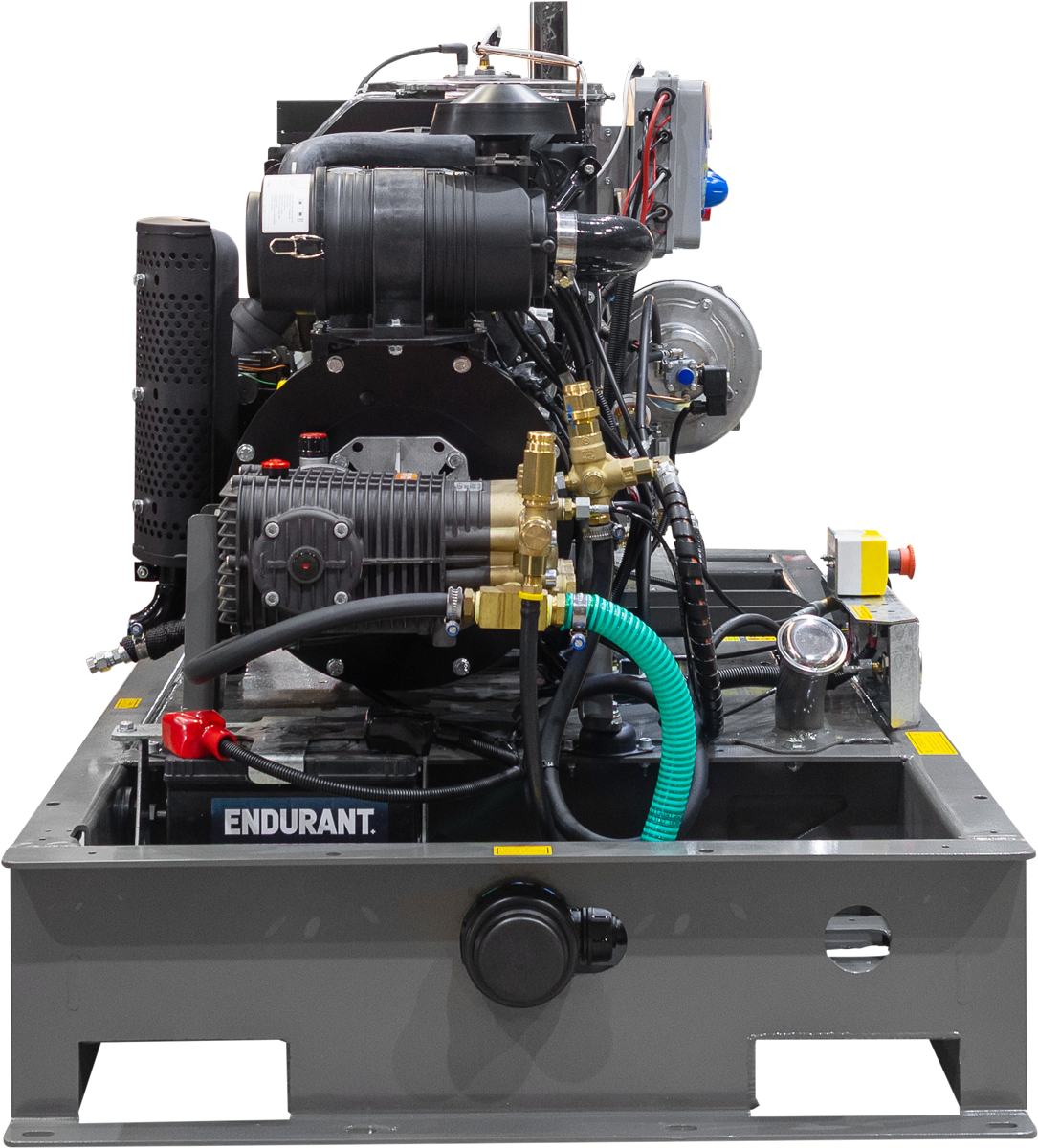

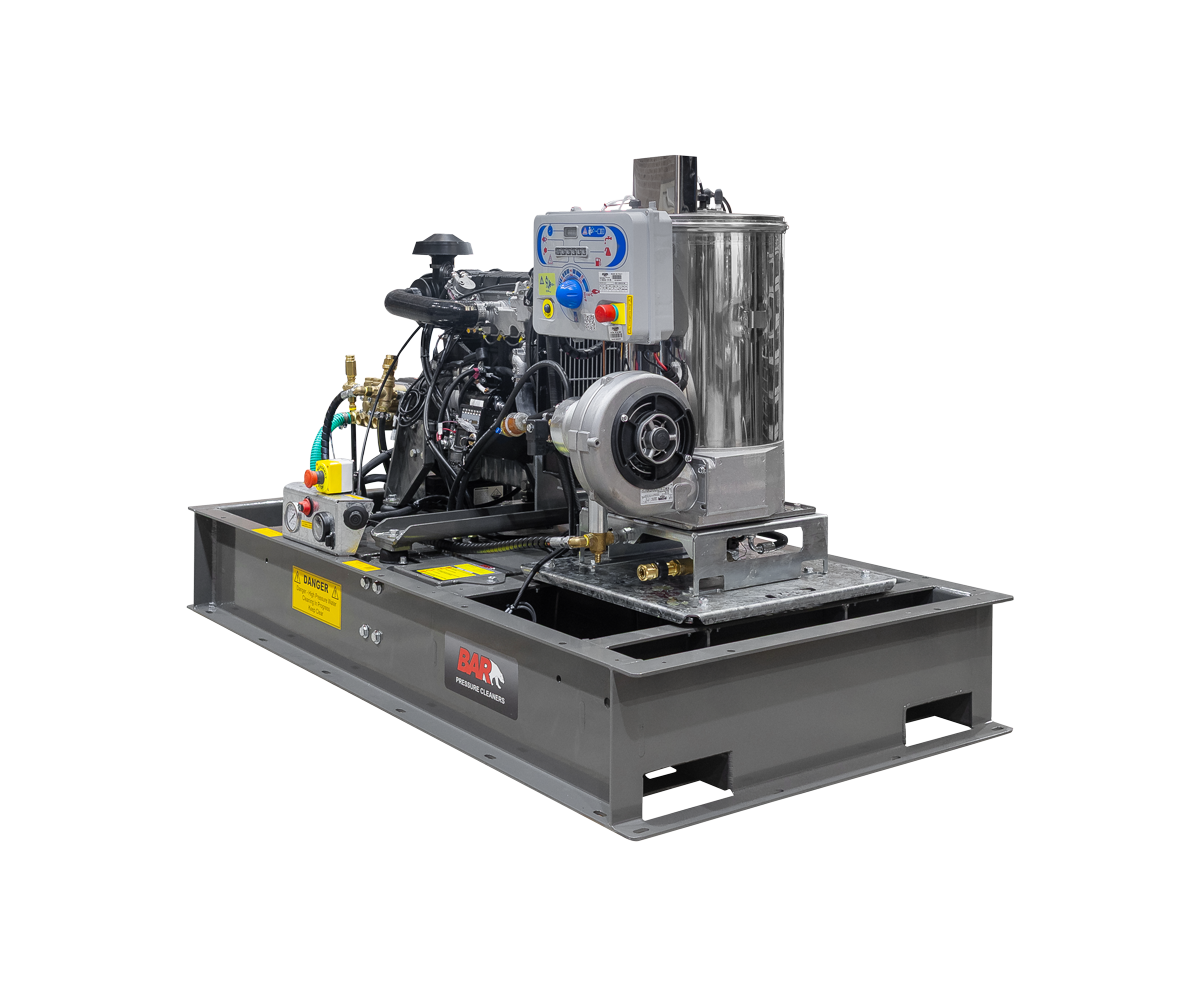

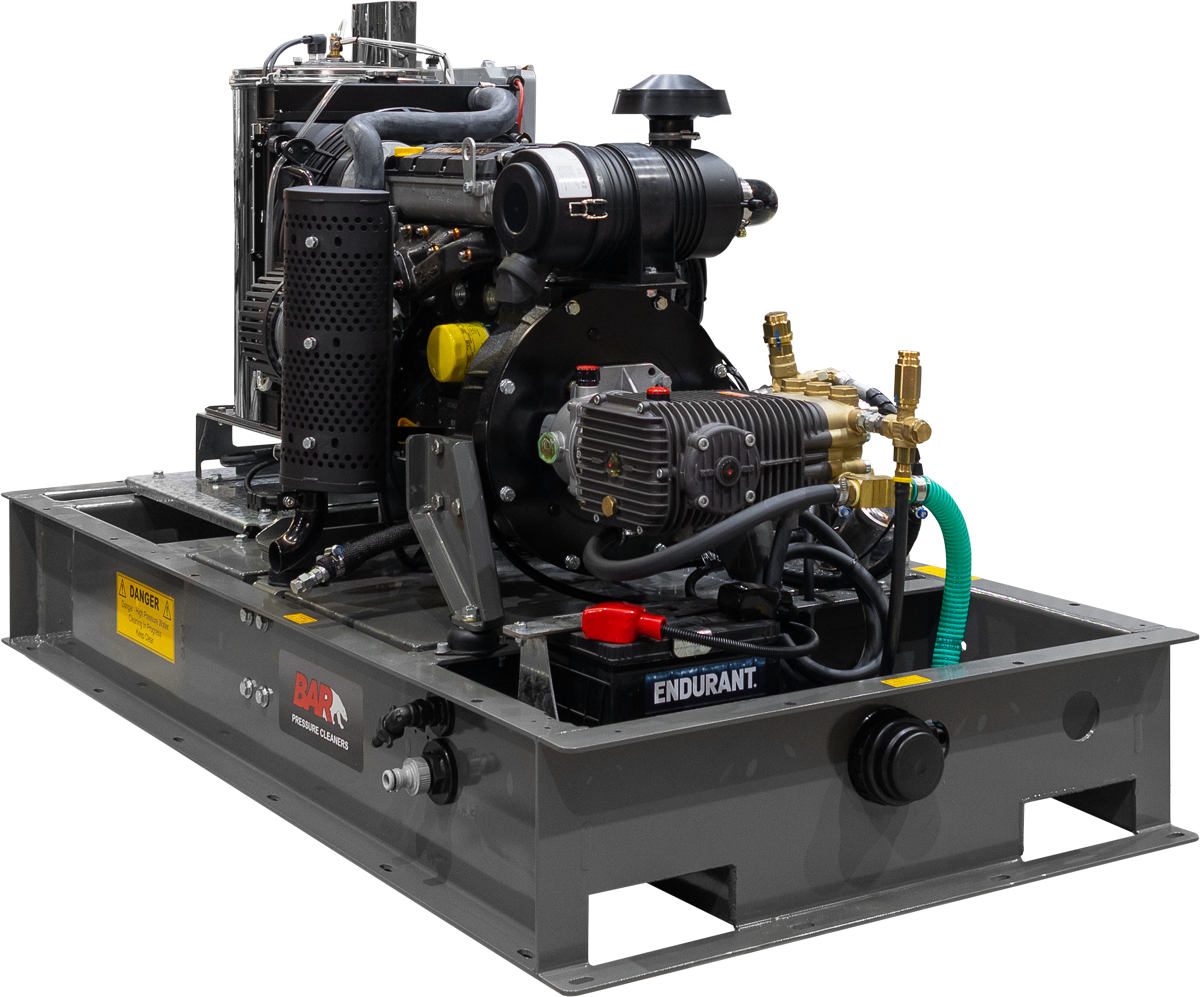

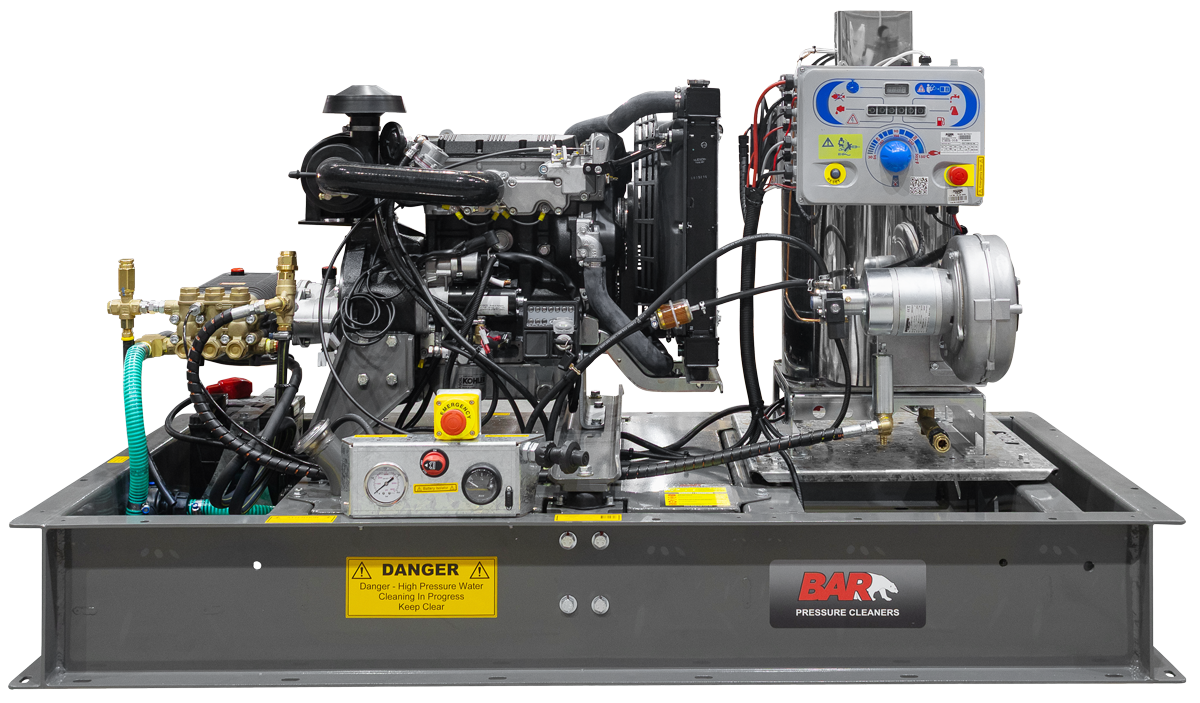

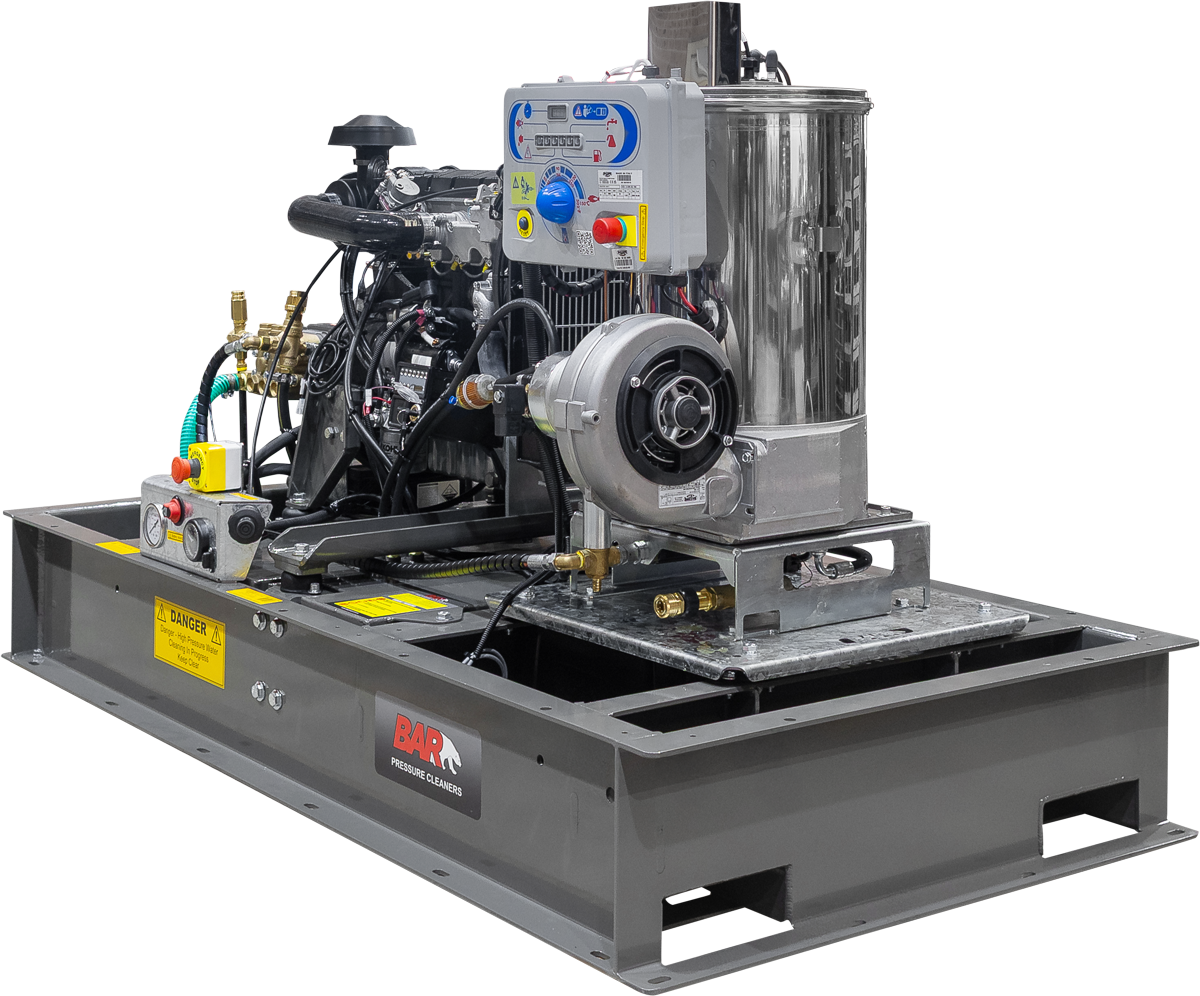

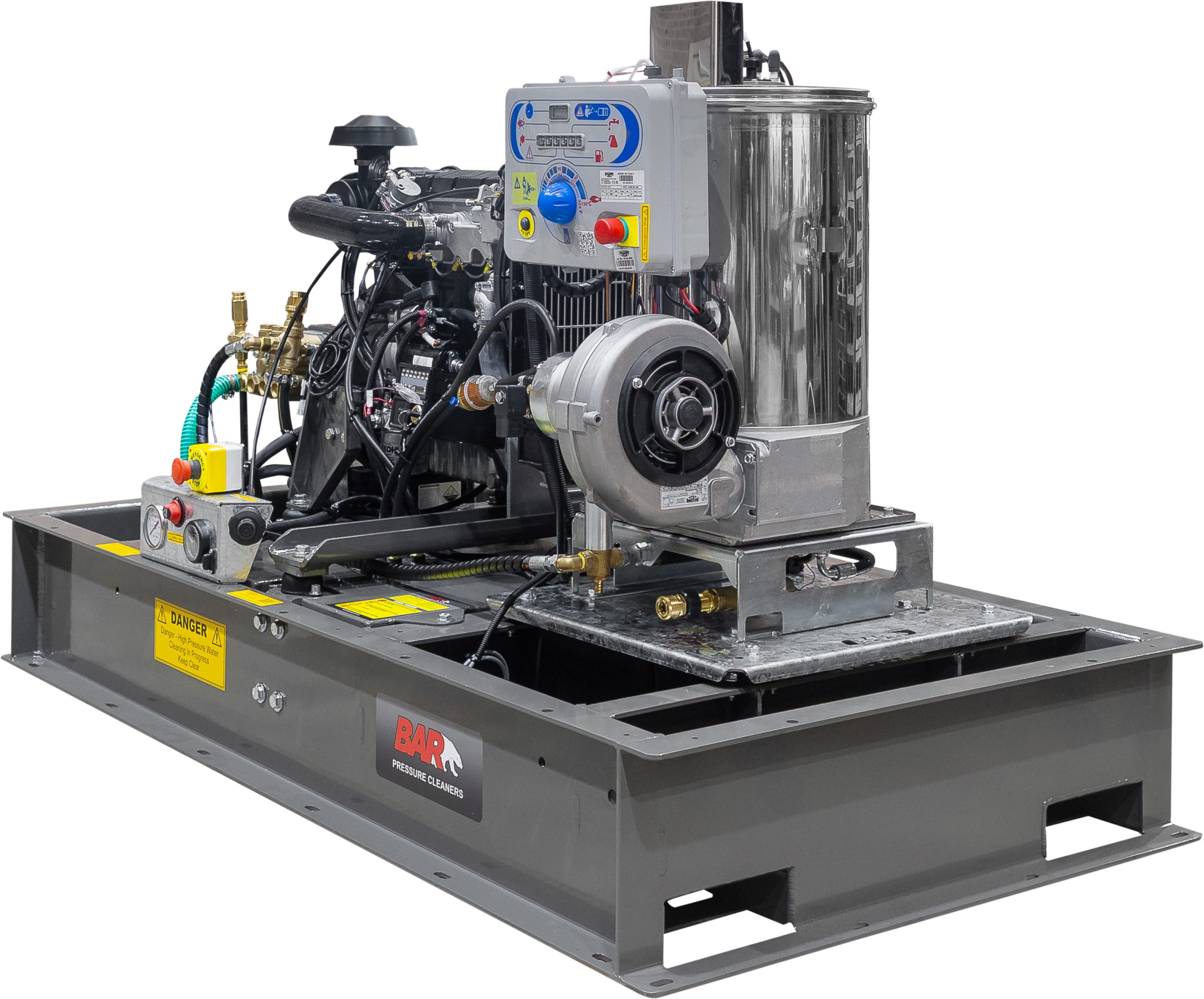

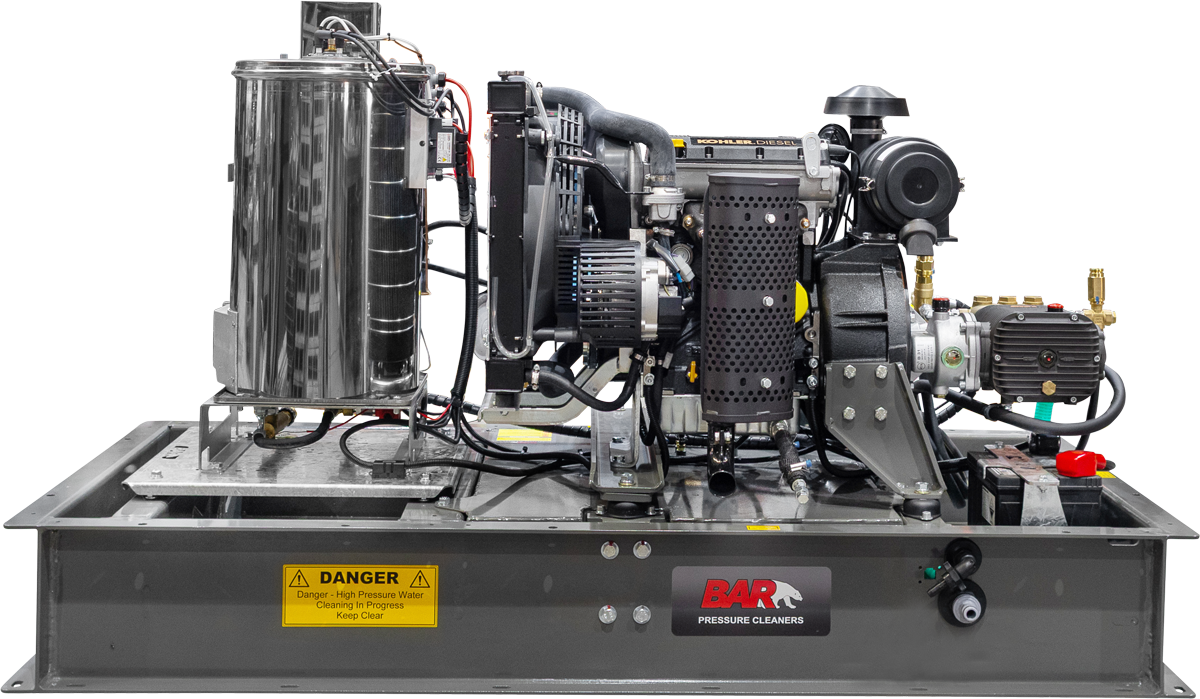

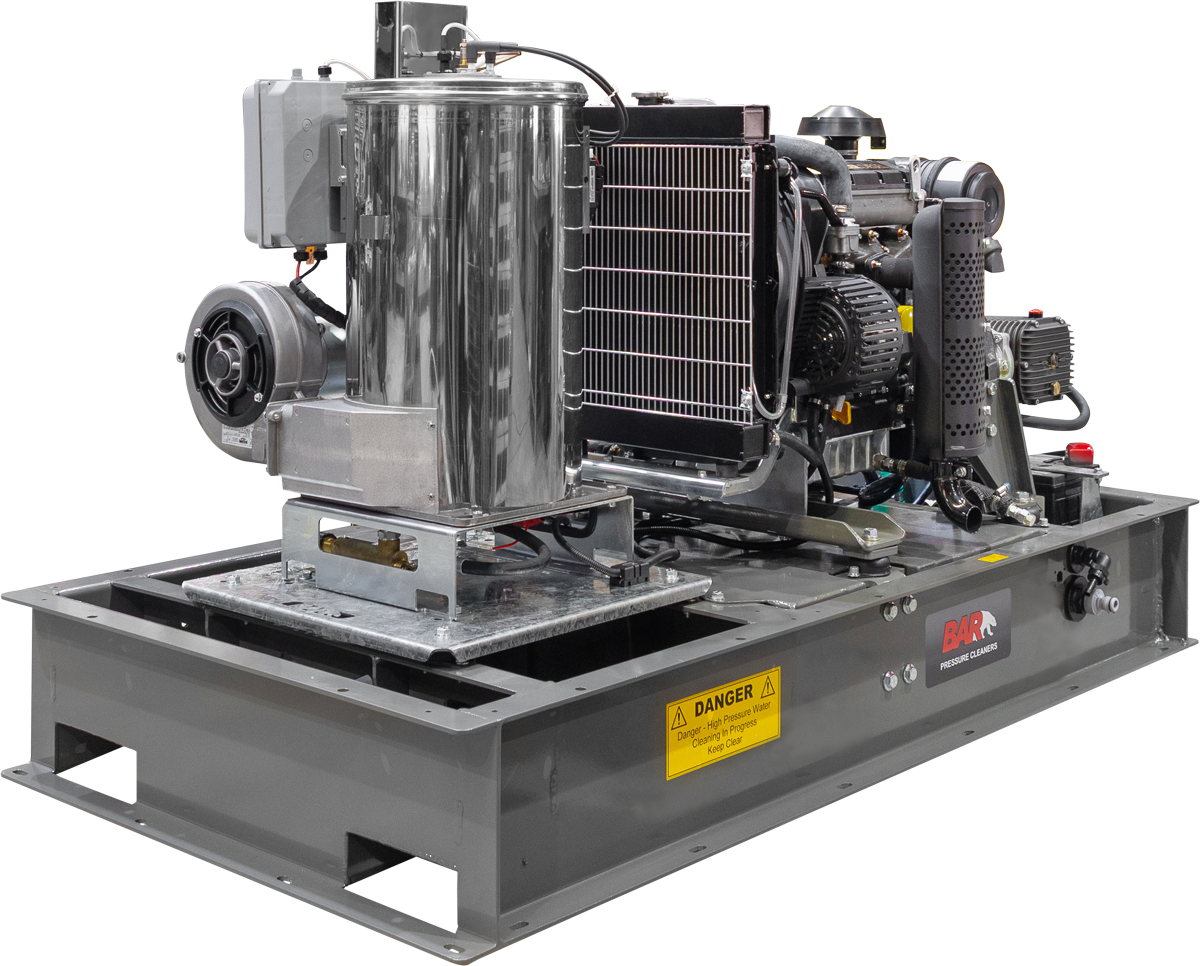

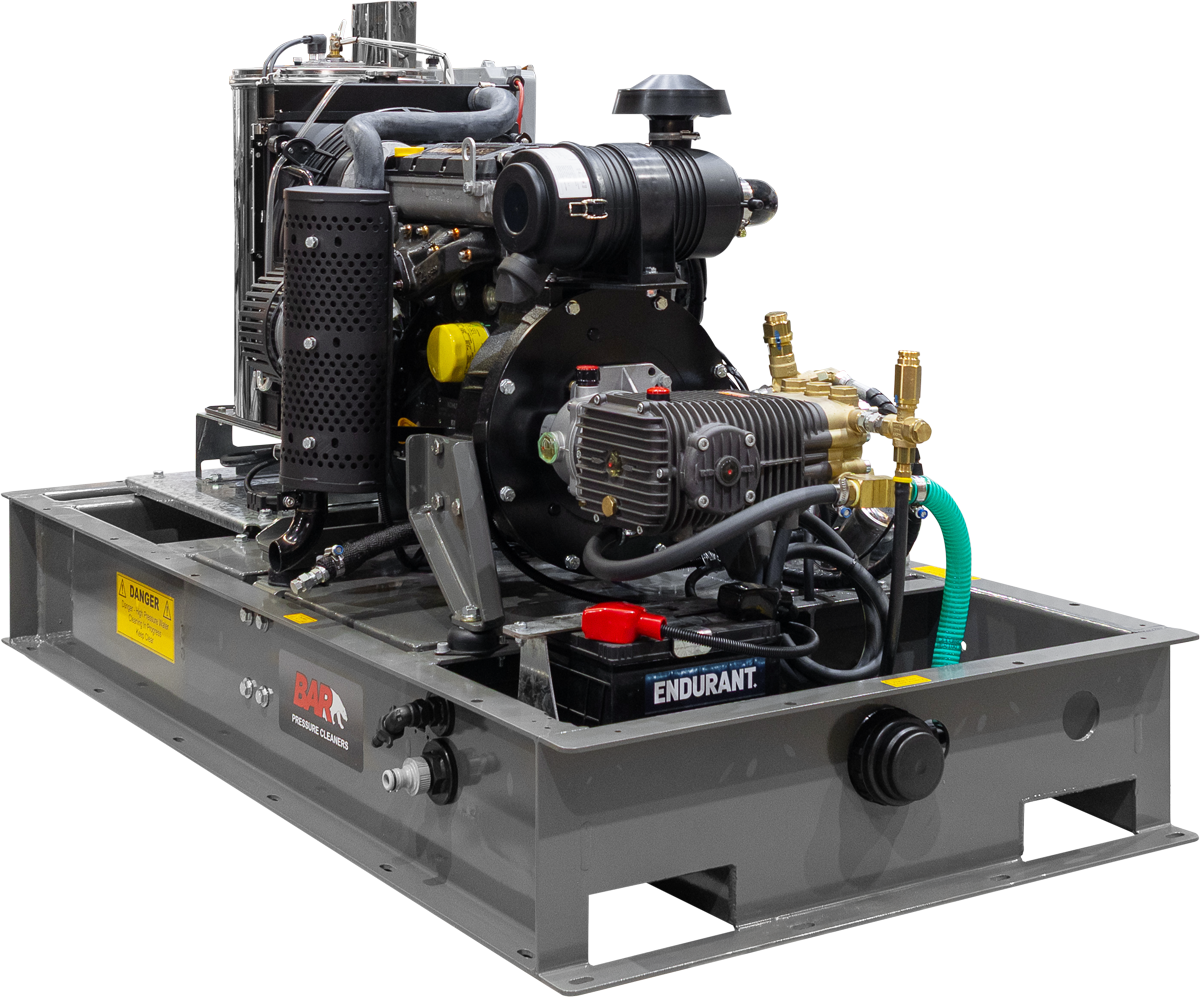

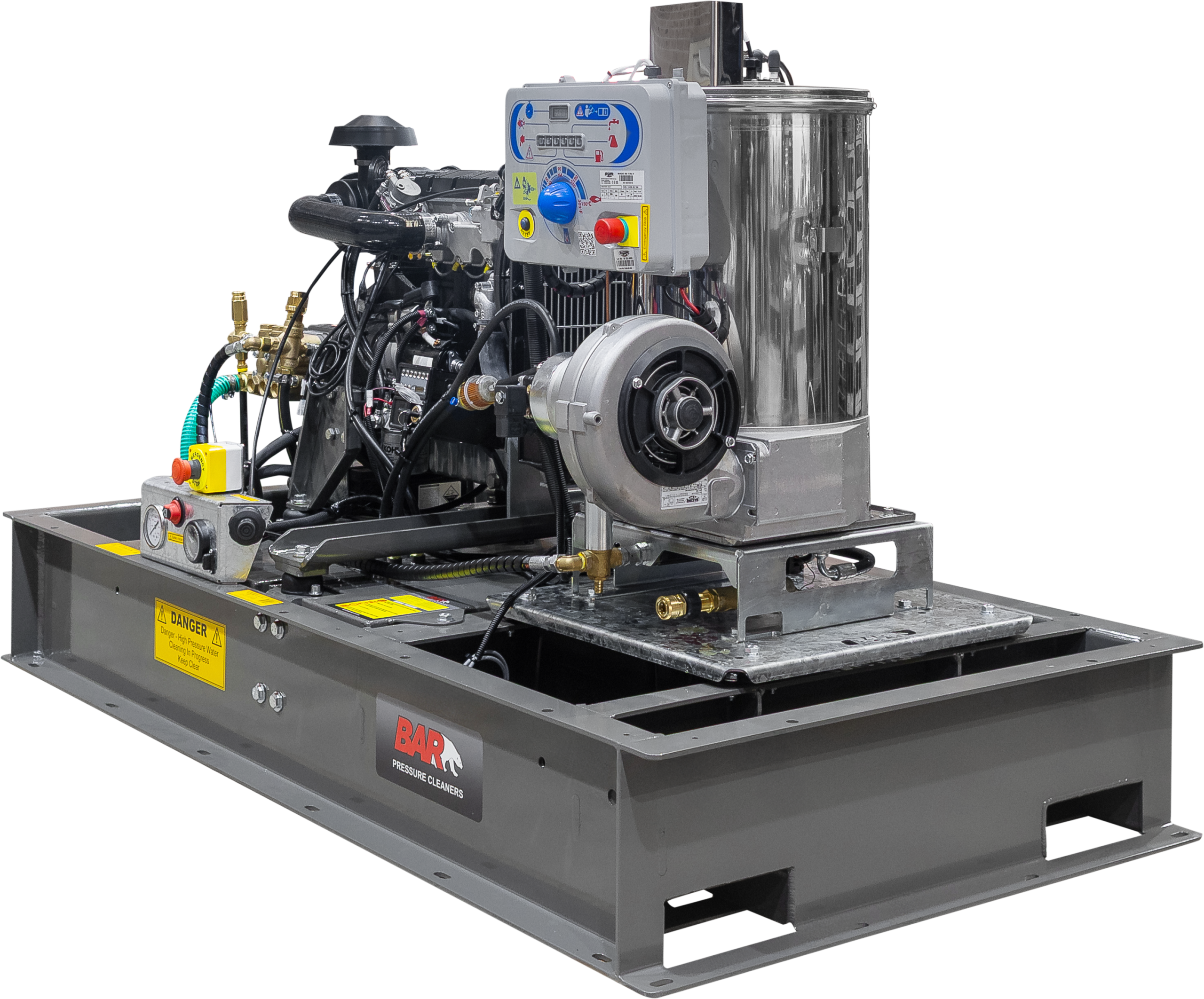

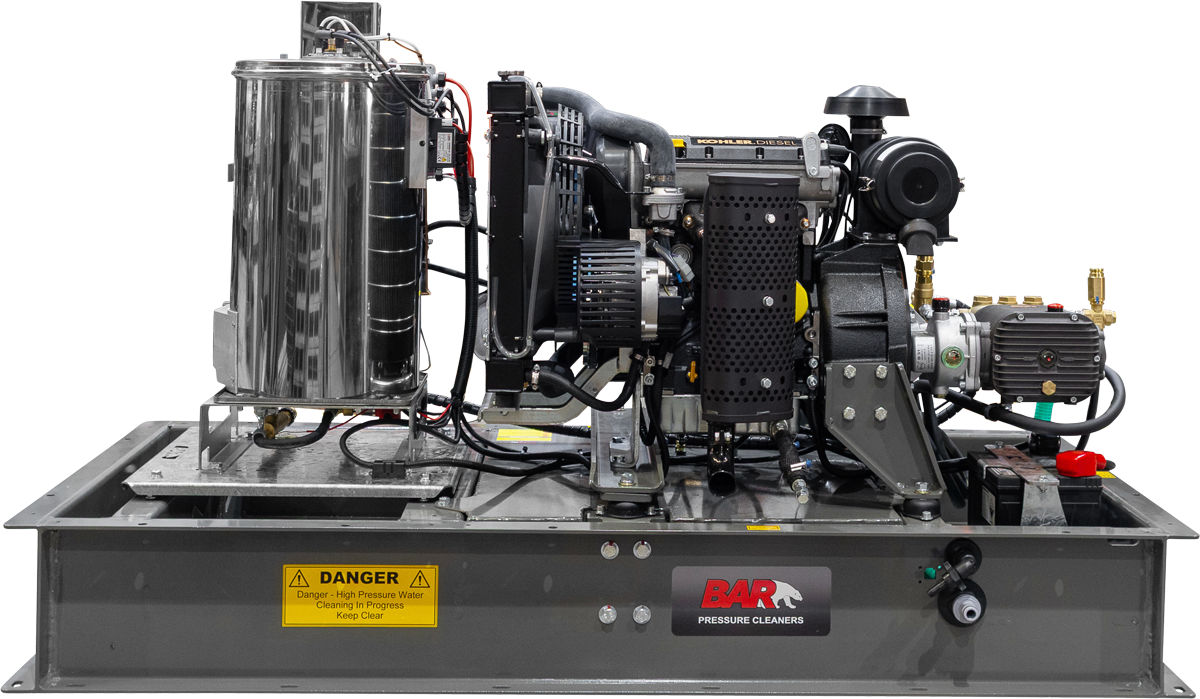

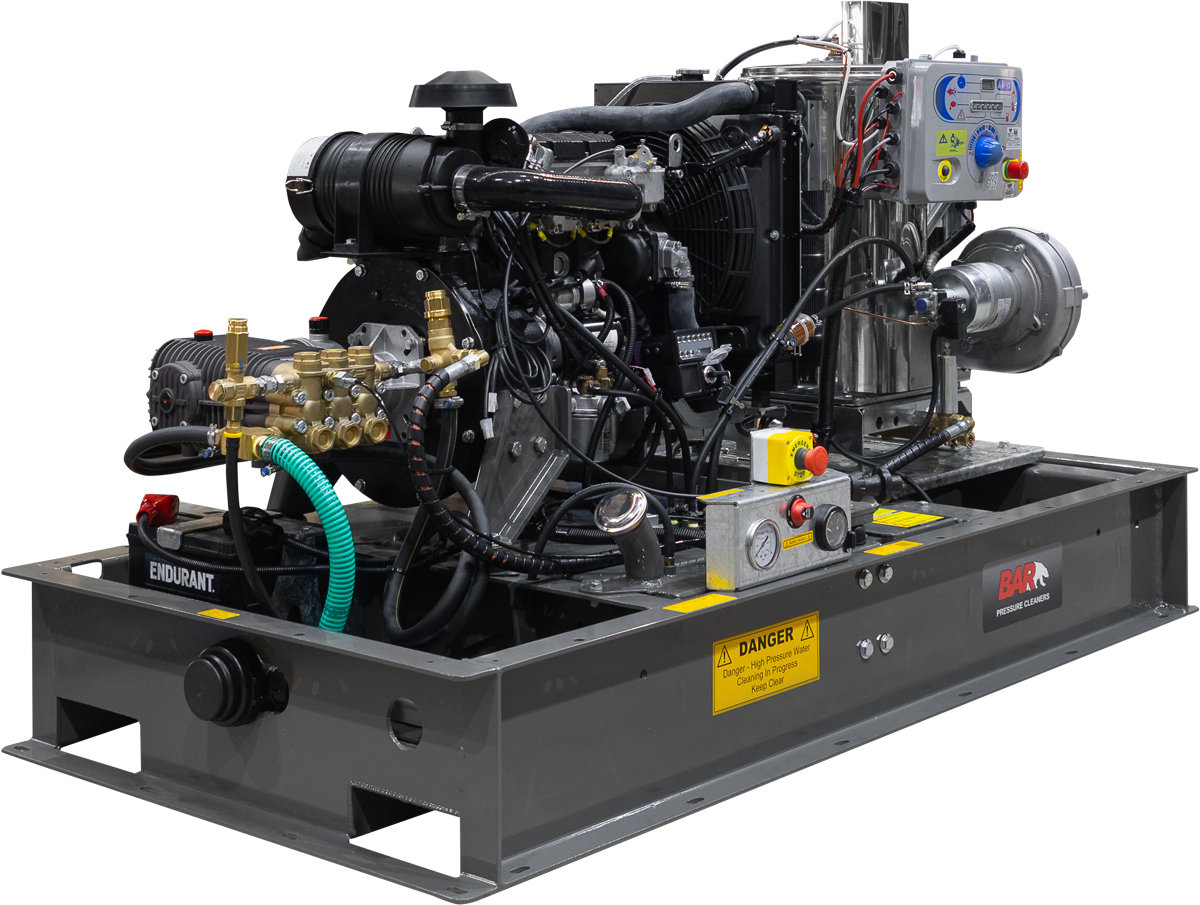

Heavy duty Class A Diesel Hot Water pressure washer. Built on the BAR Elite Skid base, this professional machine is ideal for Councils, Industrial cleaning contractors and Mine sites where hot water at high pressures is essential for cleaning.

Powering this unit is Kohler’s KWD1003, 3 –cylinder liquid cooled industrial diesel  engine, and Comet’s Premium Plunger pump model SW5539S delivering true class A performance. The heating system comes from the Italian made Mazzoni 12 V boiler C/w control panel, suitable for pressures up to 350 BAR & flow rates to 25 l/m. This boiler system will take the temperature up to 90 deg C Max.

Add your required accessories to complete this cleaning unit, Gun, lance, nozzles, accessories sold separately.

• Comet SW5539S Premium Plunger, driven through PA B31 Gearbox @ 1450 rpm
• Kohler KWD1003 3-cylinder Liquid cooled engine
• Mazzoni 12V boiler – SKU: 109 3.026.02.106P
• BAR Elite Skid base – Powder coated Grey
• 90 Lit Inbuilt Diesel fuel tank with fuel level gauge
• Emergency Stop for Engine & Boiler unit
• Mounted pressure gauge, with Throttle control, Tacho, Battery isolator
• Heavy Duty inlet filter with easy access for cleaning
• Pump assembly supplied with Unloader, Safety relief valve
• Fork pockets in base for easy movement & placement
• Engine/Boiler assembly mounted on heavy duty vibration mounts ensuring smooth running
• Supplied with heavy duty battery & battery cables
• Accessories sold separately
• Engine Easy oil drain

Specifications

• Flow: 20.8 L/min
• Pressure: 3,900 PSI
• Engine: 27 HP Kohler Engine
• Pump: Comet Italy 210 SW5539S
• Gearbox: PA Italy B31 145 50.0071.00
• Dimensions: L 1,808 mm x W 917 mm x H 1,193 mm
• Weight: 410 kg
