Features

• Heavy Duty A-Frame Crank Reel
• A Frame style provides more support in mobile applications
• Universal 130 mm hole centre footprint
• High gloss powder-coated finish
• Extra heavy duty 6 point locking pin and adjustable rubber friction brake
• Dual heavy-duty sealed axle ball bearing with stainless steel hardware

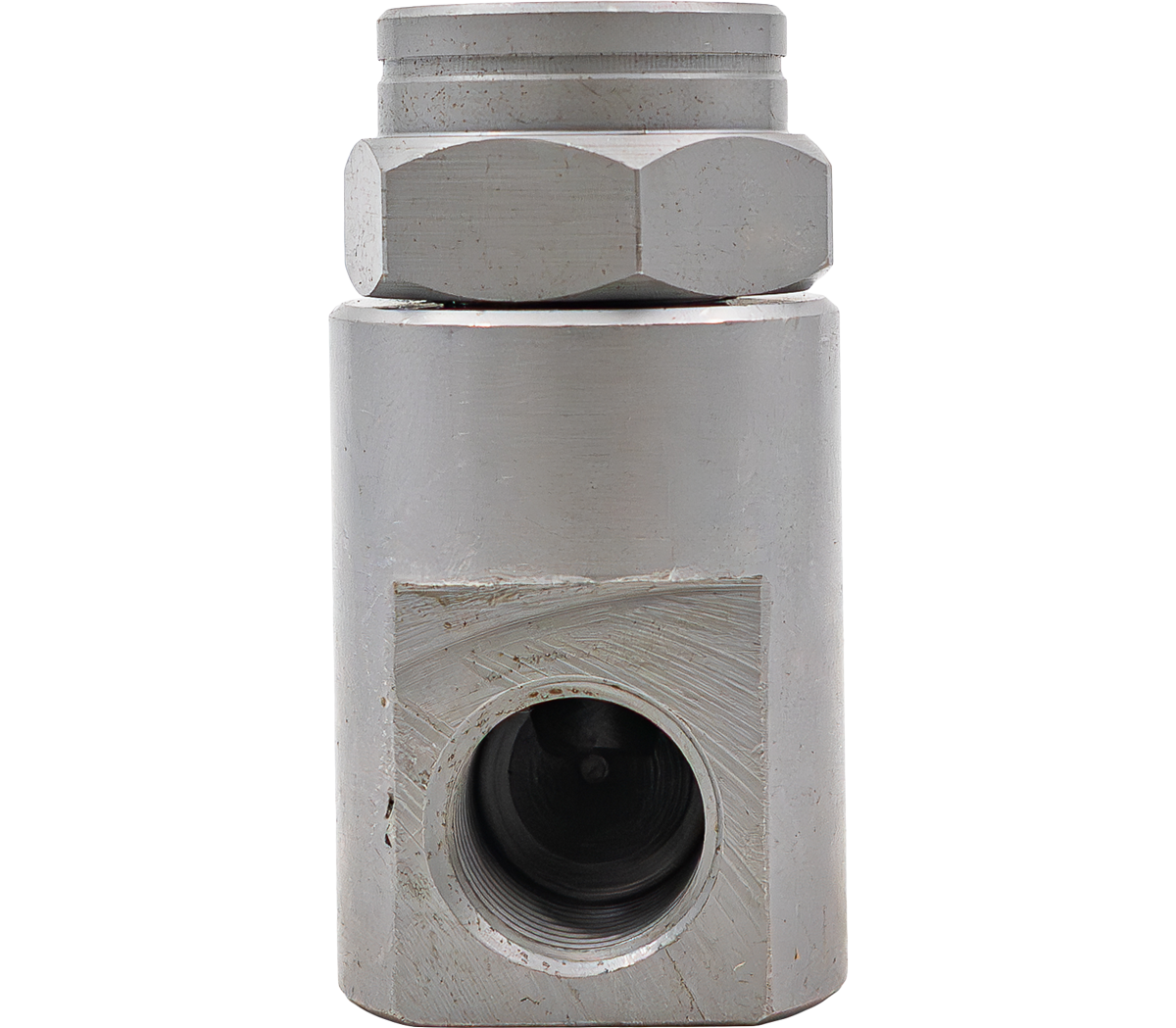

• High-flow stainless steel swivel with Parker Viton O-Rings
• The reversible handle and swivel, let you switch sides for the best mounting option
• Hose guide to guard hose from reload damage (2100462)
• Optional 12-Volt power rewind kit. Includes mounting bracket, ring gear and hardware (103166)
• HOSE NOT INCLUDED

Specifications

• Capacity: 92 m of 3/8” Hose
• Max Pressure: 5,075 PSI
• Max Flow: 80 L/min
• Inlet Hose: 3/8″ F NPT
• Outlet Swivel: 3/8″ F NPT
• Max Temperature: 150°C
• Material: Stainless Steel
• Dimensions:
• Weight:
• Brand: BAR

Also known as JWA090
