Features

• Honda’s V-Twin range of engines are the cream of the crop, powering Pressure Washers, Water Pumps and Commercial Lawn & Garden Equipment throughout Australia.

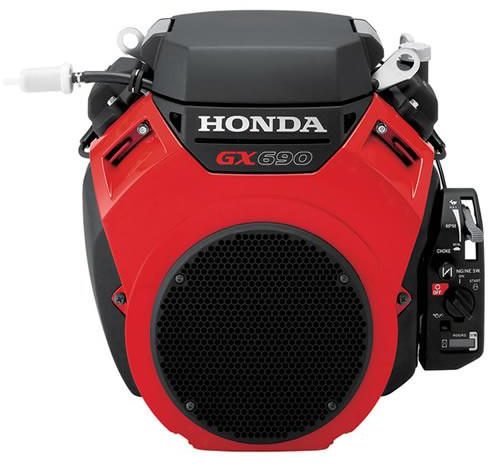

• The Stationary Engine GX690 V-Twin can also be found in Tillers / Cultivators and other Agricultural Equipment, Generators as well as many different applications.
• And if it’s something more hardcore that you need power for, the GX690 is also used in the Forestry and Construction/Industrial industries.
• The fuel economy of the Stationary Engine GX690 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.
• The Stationary Engine GX690’s high capacity pump facilitates consistent oil delivery, and a handy Oil Alert will keep you posted if you look like running dry.
• There’s a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.
• Don’t forget, all Honda V-Twin Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.
• All just extra reasons for you to Love Your Honda GX690 V-Twin.

Specifications

• Engine Type Air cooled 4-stroke OHV petrol engine, 90° V-twin design
• Bore x Stroke (mm) 2 / 78 x 72
• Displacement (cc) 688
• Starter Type Electric Start
• Horsepower Class  16.5KW (22.1 HP) / 3600 rpm
• Shaft Size 1-1/8 inch Keyway
• Fuel Type Unleaded
• Oil Capacity (Ltr) 1.9
• Dimensions LxWxH (mm) 429 x 410 x 438

Note

• Muffler Not Supplied with engine
