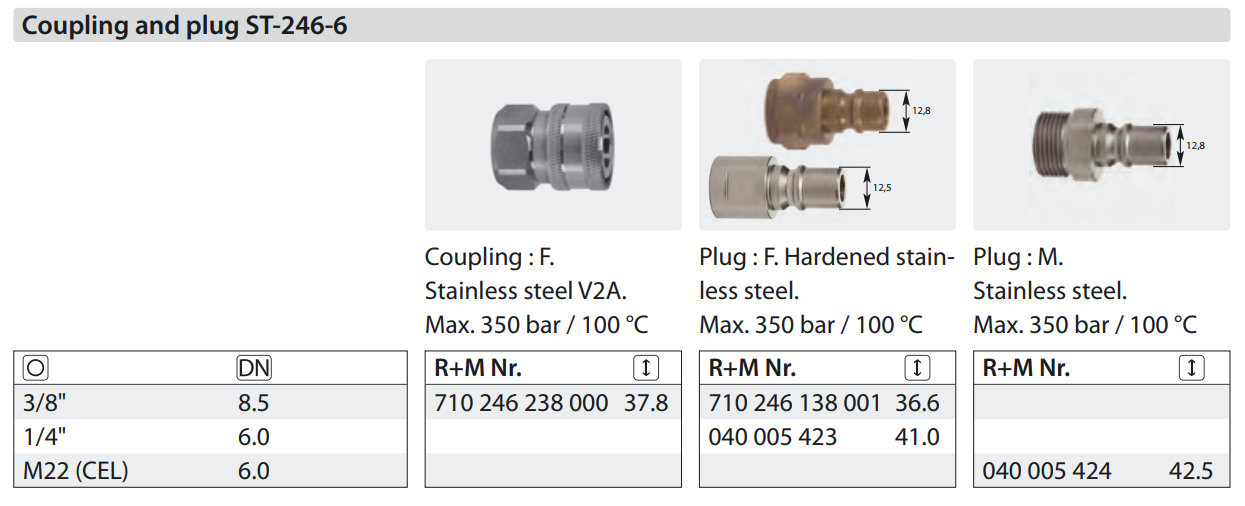

High Pressure Quick Couplings ST-246-6

ST-246 couplings and plugs for the highest requirements and a quick operation

• Suitable for 350 bar, especially safe and durable.
• Fulfilling the highest requirements to durability and easy, quick handling.
• Designed for temperatures of up to 100 °C.
• Integrated lip-seal with significantly larger sealing surface in comparison with normal O-rings. A smooth functioning is also guaranteed in case of for example damage to plugs or dirt.

Specifications

• Max. Pressure: 5,075 PSI
• Max. Temperature: 100°C
• Thread: 3/8″
• DN: 8.5 mm
• Height: 37.8 mm
