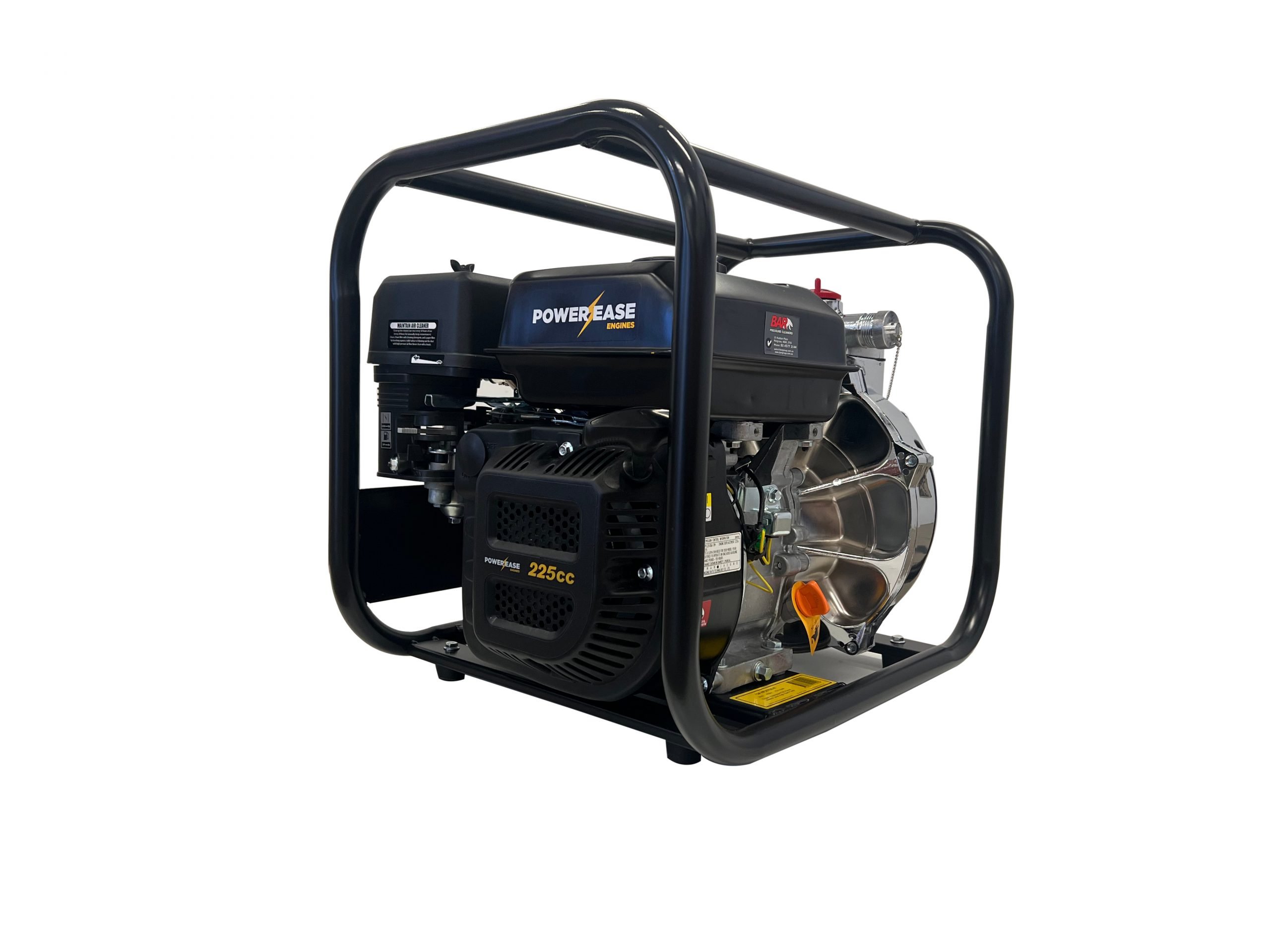

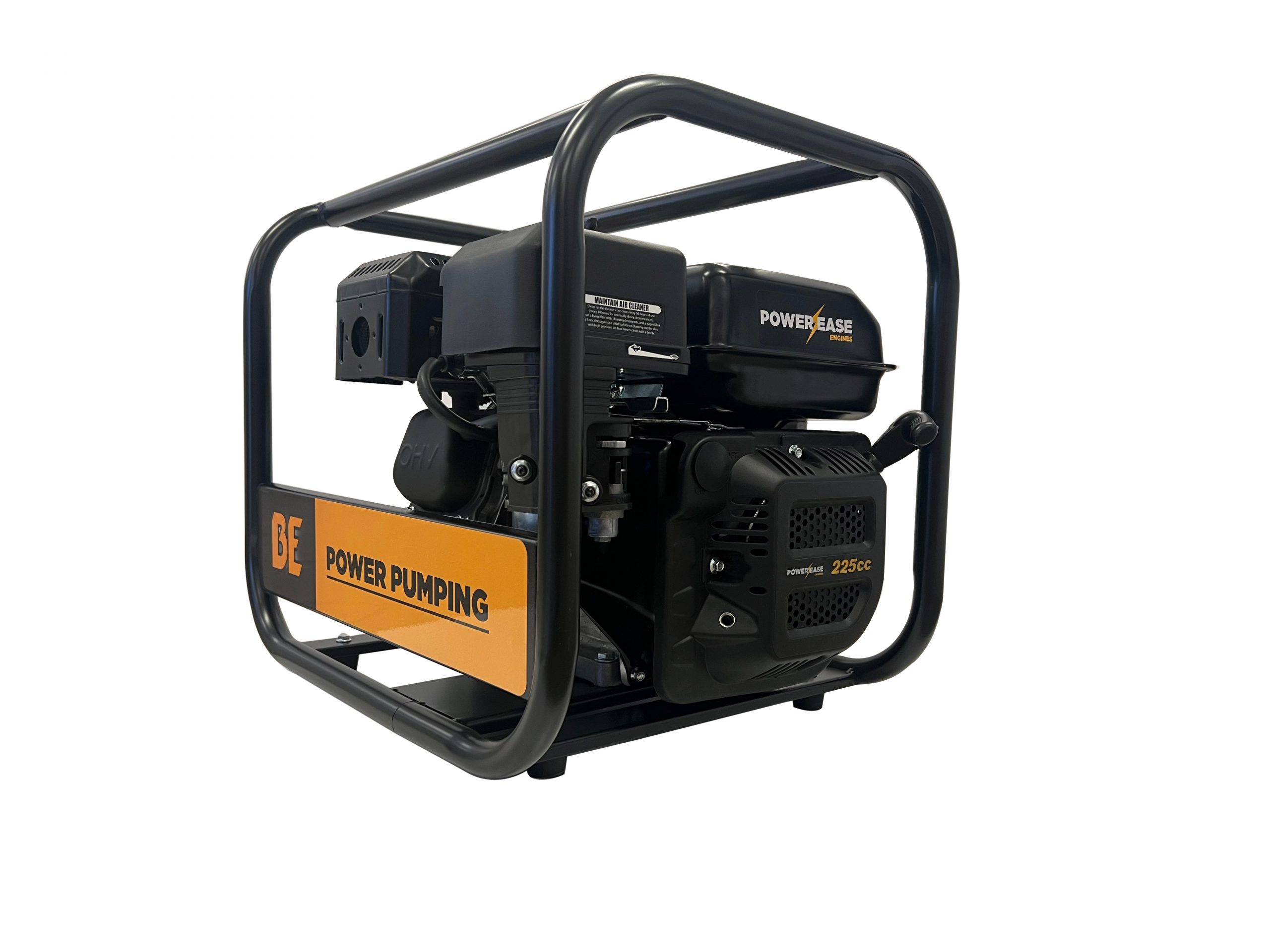

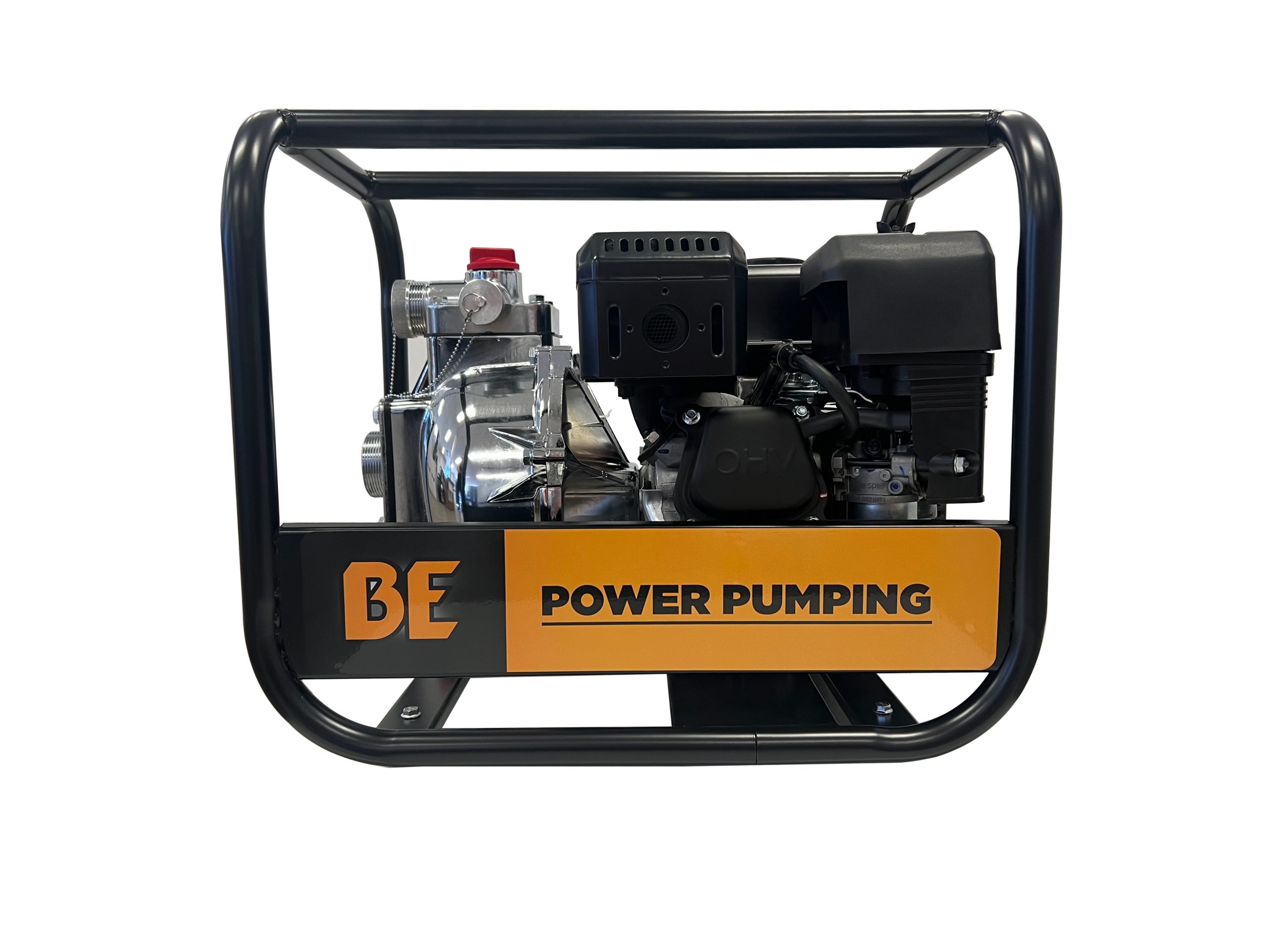

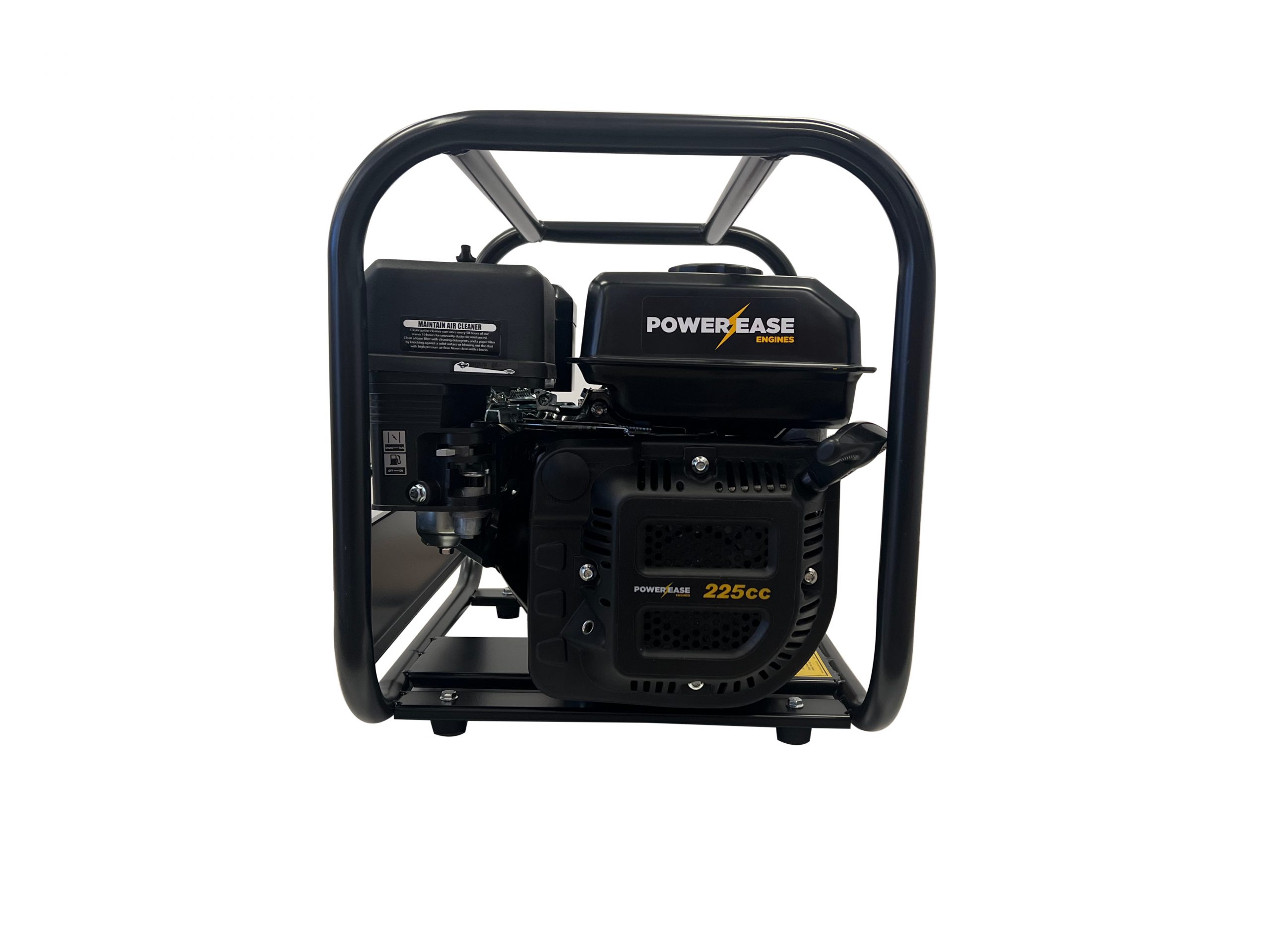

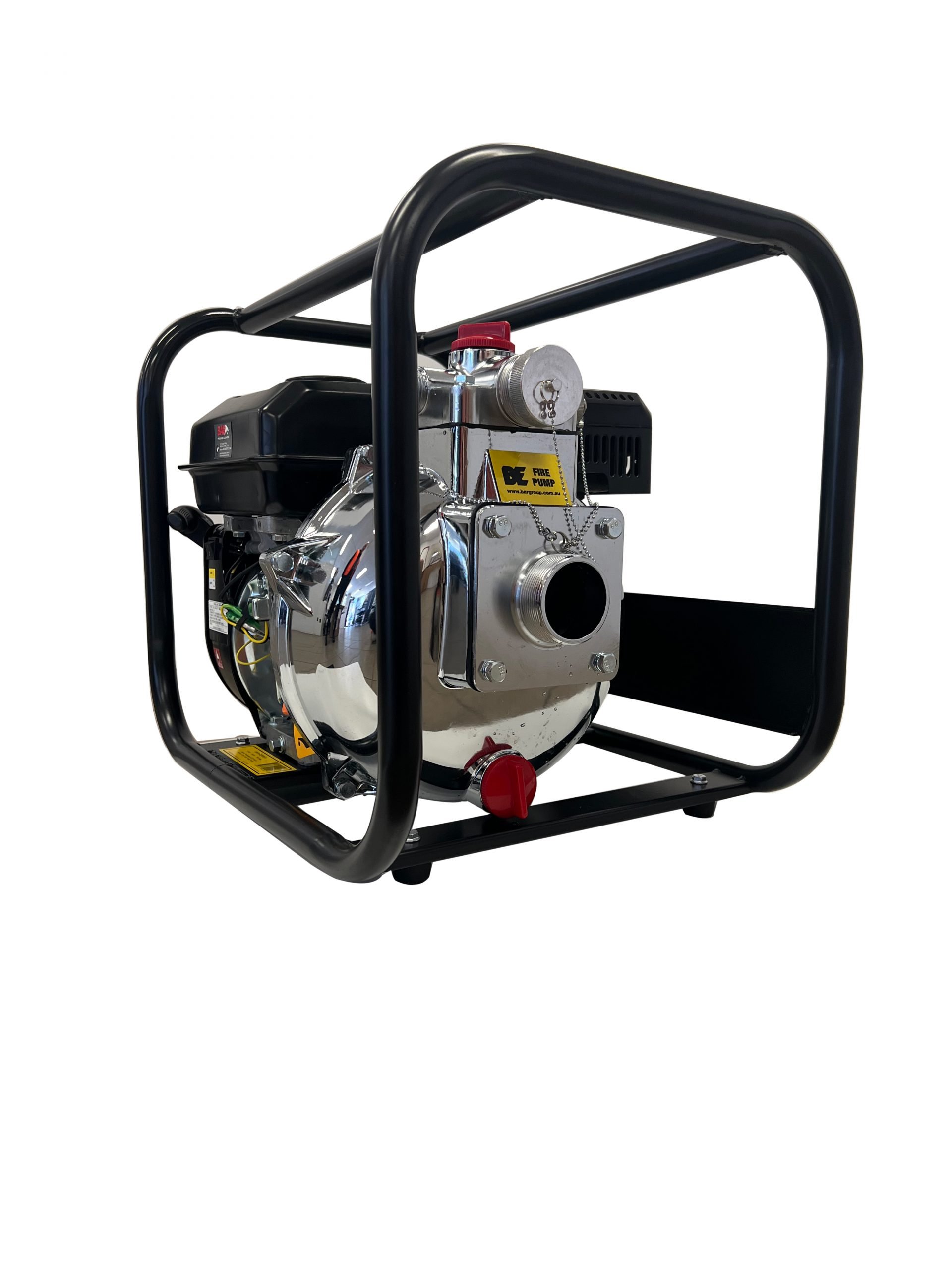

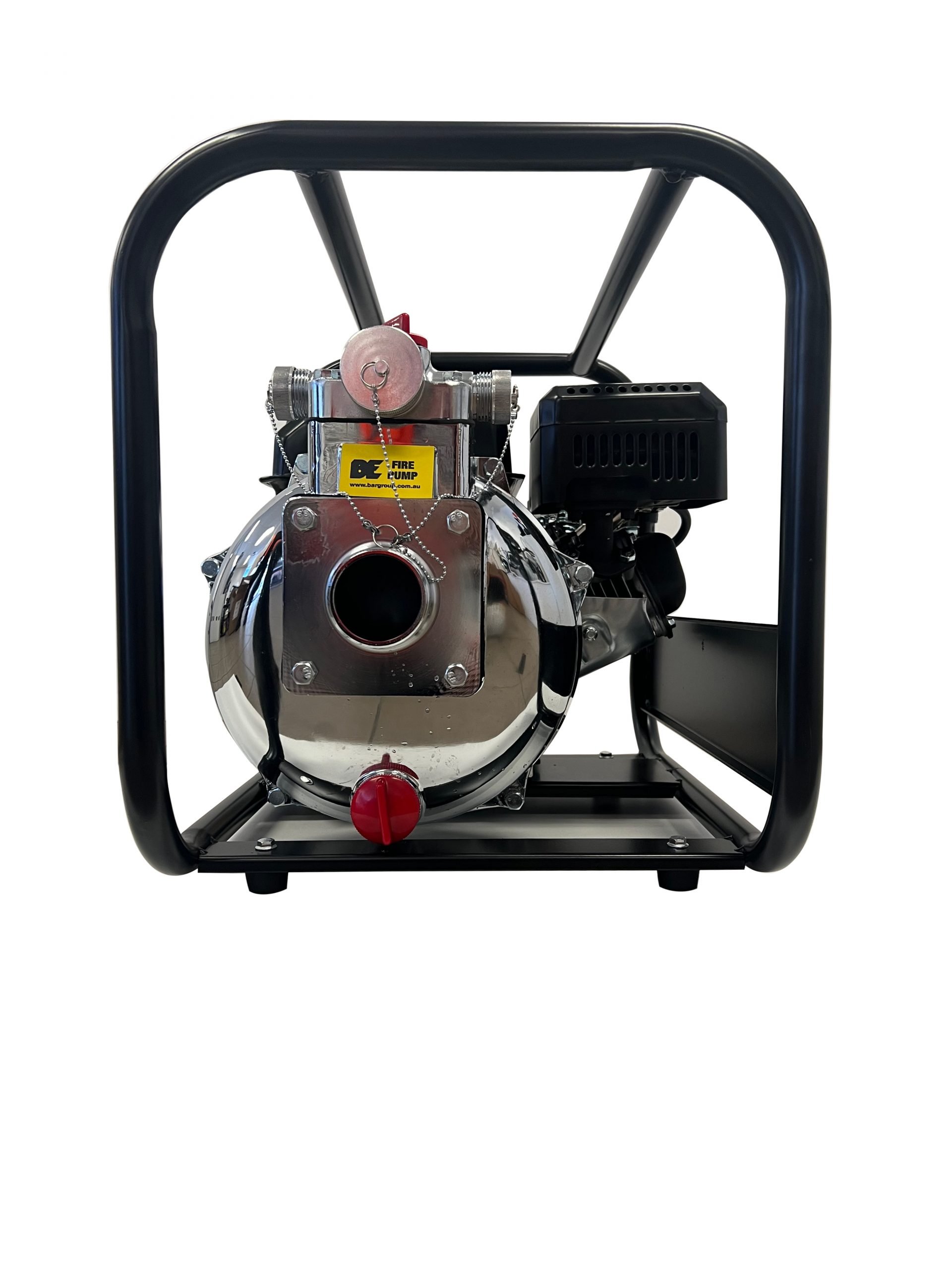

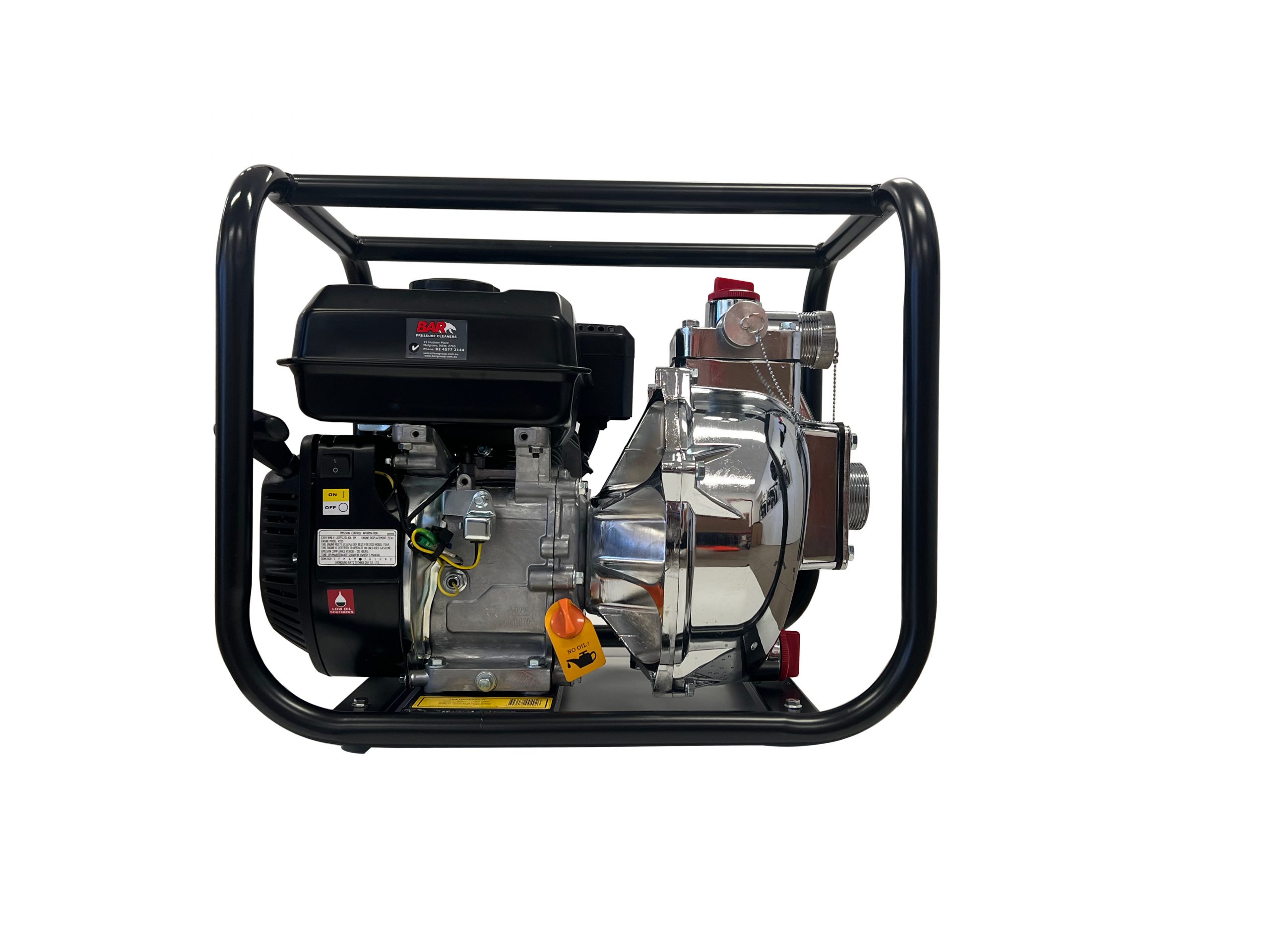

BE Commander Water Pump

The BE Commander Series is a premium single impeller fire pump that features a high-quality pump end that self-primes fast. Powered by a premium Honda GX200 or Powerease R225 petrol engine with oil alert.

Applications

• Fire fighting – mop up and fire protection
• High-pressure water transfer
• Spray irrigation
• Diesel fuel transfer (w Viton Seals fitted)
• High-pressure spraying
• Sheep jetting
• Boom spraying
• Stock crate & wash down
• Machinery wash down

Features

• Three-year pump end warranty
• Lightweight portable at 26 kg
• Fast self-priming from 7 metres
• Chrome-plated aluminium body with stronger wall thickness
• Your choice of robust roll cage or skids with handle
• Anti-vibration mounts as standard equipment
• Replaceable suction and discharge port making servicing the check valve & outlet gasket easy
• Single-piece, heavy-duty closed impeller pump providing more water at a higher pressure saving fuel
• Larger water passages mean more water efficiency reducing fuel costs
• Replaceable check valve
• Big integrated priming port for fast self-priming
• Viton elastomer option enables use in some herbicide or insecticide spraying applications or diesel fuel transfer
• Option for 2” outlet (124 HP206502-H) or 3” x 3” (124 HP30650-H)
• Assembled in Australia

Pump Materials

• Front Casing: Marine Grade Aluminium
• Volute: Marine Grade Aluminium
• Back Plate: Marine Grade Aluminium
• Mechanical Seal: Carbon/Ceramic
• Outlet: Marine Grade Aluminium
• Casing Bolts: Zinc Plated Steel
• Check Valve: Nitrile Rubber
• Prime & Drain Plug: Polycarbonate
• Priming & Drain Plug O rings: Nitrile Rubber (NBR)
• Finish: Chrome Aluminium
• Impeller: Marine Grade Aluminium, closed

Specifications

• Engine: Powerease R225 7.5 hp
• Start: Recoil
• Inlet: 2”
• Outlet: 3 Way, 2 x 1”, 1 x 1.5”
• Impeller: Single

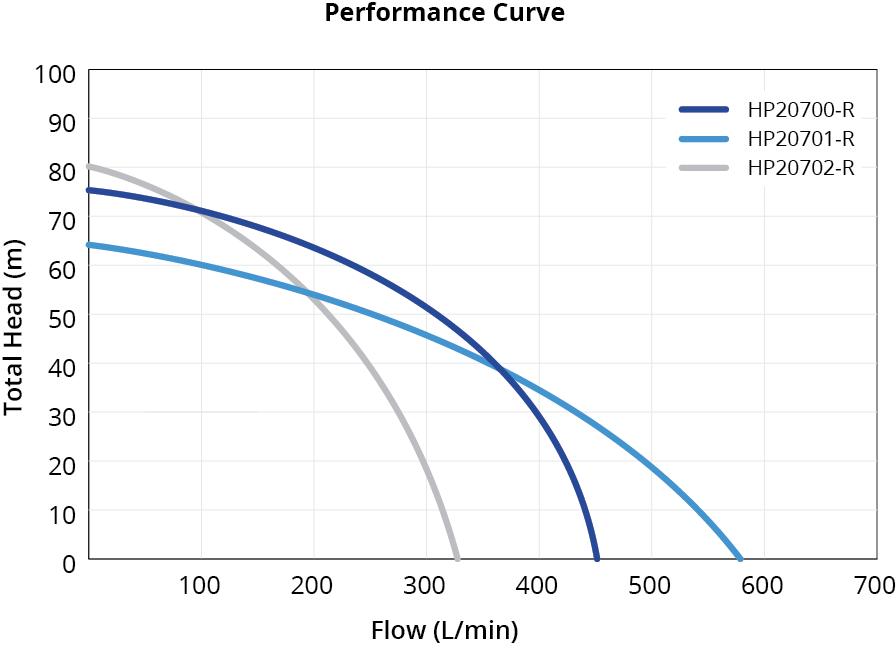

• Max Flow Rate: 450 L/min
• Pump Pressure: 107 psi
• Max Head: 75 m
• Suction Capacity: 7 m
• Seal Type: NBR
• Mounting Type: Steel Roll Cage
• Weight: 26 kg
