Features

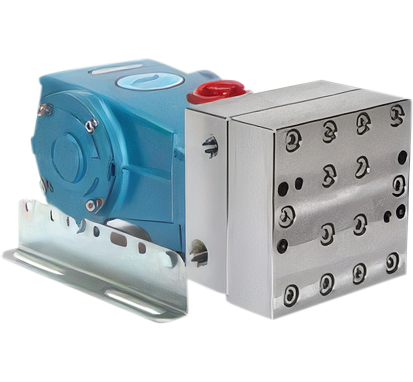

• This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.
• The 1725 RPM permits multiple drive options, including direct drive with a bell housing and flexible coupling, clutch or belt drive.

Specifications

• Shaft: Solid
• Speed: 1,750 RPM
• Flow: 11 L/min
• Pressure: 5,000 PSI max.
• Inlet: 1/2″ NPT Female
• Outlet: 3/8″ NPT Female
• Drive Type: Belt, Clutch, Flexible Coupling and Bellhousing
• Material: 316 Stainless Steel
