Features

• DGE style swivel
• Maintenance free
• Sealed stainless steel bearings
• High flow, low torque
• Use for high flow, low rpm, automatic car wash systems, high pressure hose reels
• Made and engineered in Switzerland

Specifications

• Inlet: Variable
• Outlet: Variable

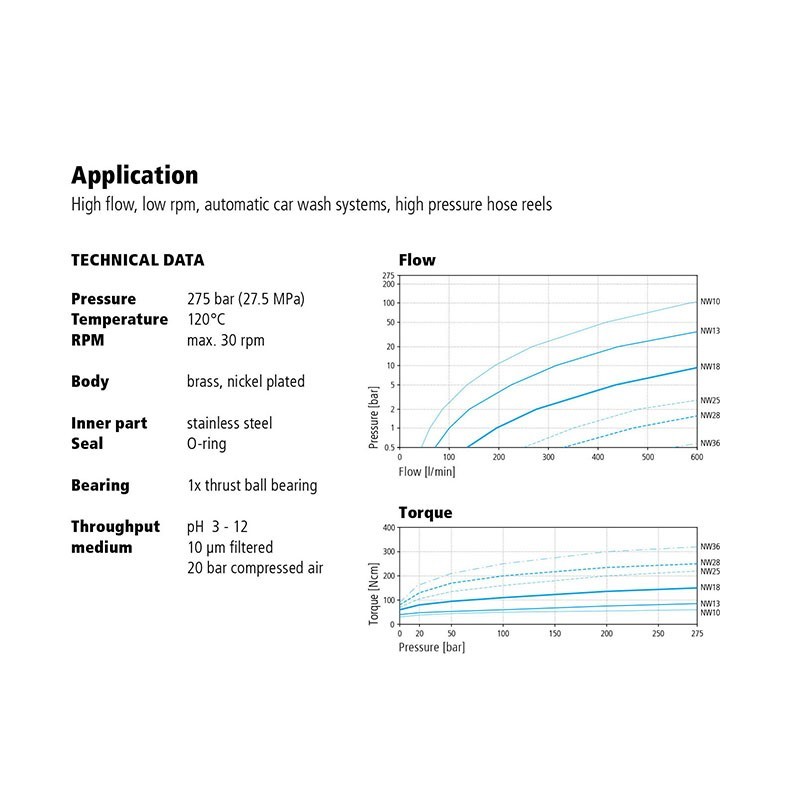

• Working Flow: See table in images
• Maximum Pressure:
  • Inlets Below 1″: 2,900 PSI
  • Inlets 1″ and Above: 4,000 PSI
• Maximum Speed: 30 RPM
• Working Temperature: 120°C
• Material – Body: Brass, nickel plated
• Material – Inner: Stainless Steel
• Material – O-Ring: NBR (optional EPDM or FKM)
• Bearing: 1 x thrust ball bearing
• Throughput Medium: 3 – 12 pH, 10 µm filtered, 290 PSI compressed air
