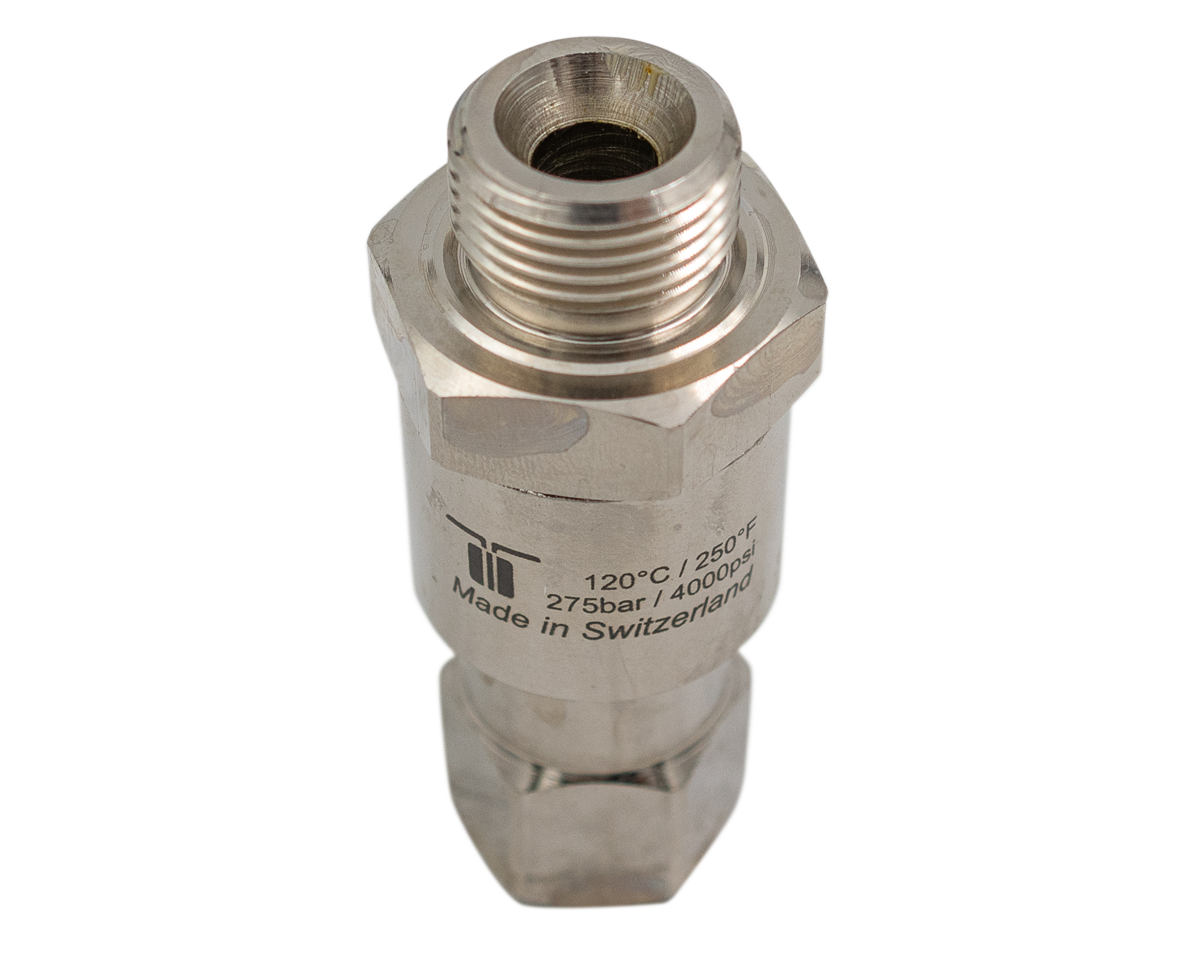

Features
- DGV style
- Live rotation under maximum pressure
- Single bearing system
- Stainless steel internal parts
- Corrosion resistant
- Reinforced inner shaft and bearings
- Use for high pressure guns, hose connections, hydraulics, and tangle free applications
- Made and engineered in Switzerland
Specifications
- Inlet: Variable
- Outlet: Variable

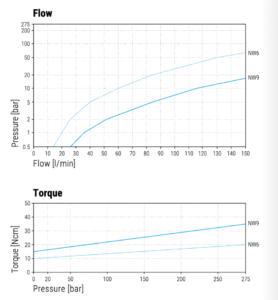

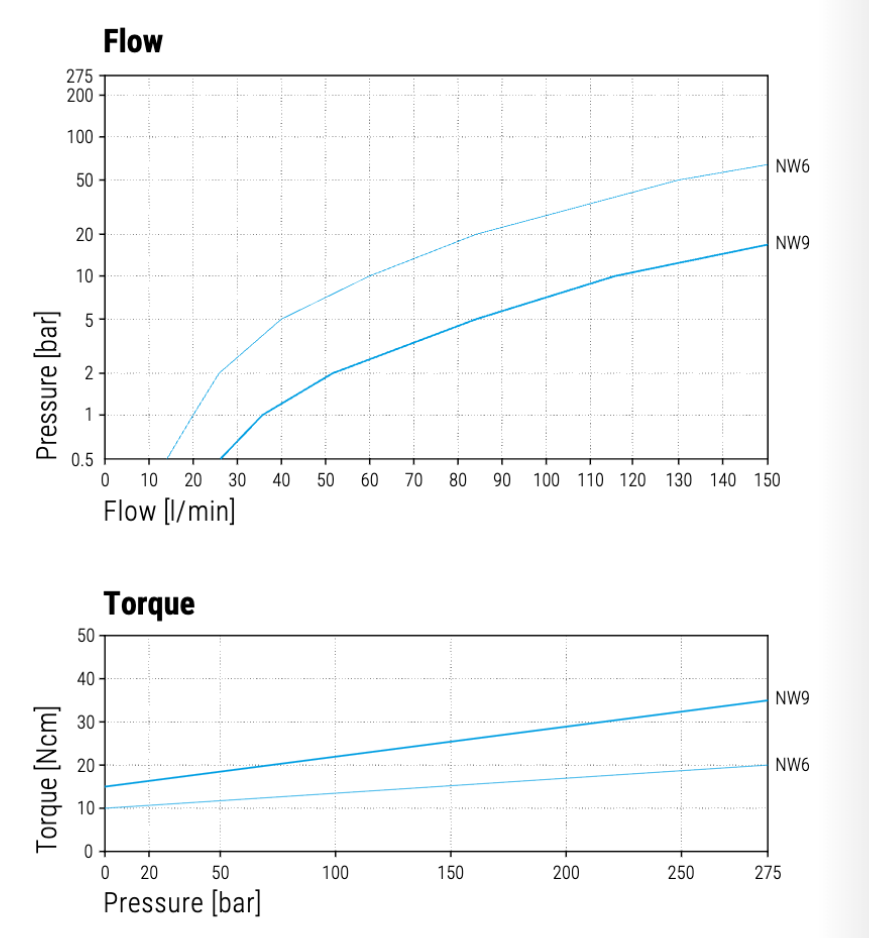

- Working Flow: See table in images
- Maximum Pressure: 4,000 PSI
- Maximum Speed: 30 RPM
- Working Temperature: 120°C
- Material – Body: Stainless steel, brass, nickel plated
- Material – Inner: Stainless Steel
- Material – O-Ring: NBR
- Bearing: 1 x thrust ball bearing
- Throughput Medium: 3 – 12 pH, 10 µm filtered, 290 PSI compressed air
