Features

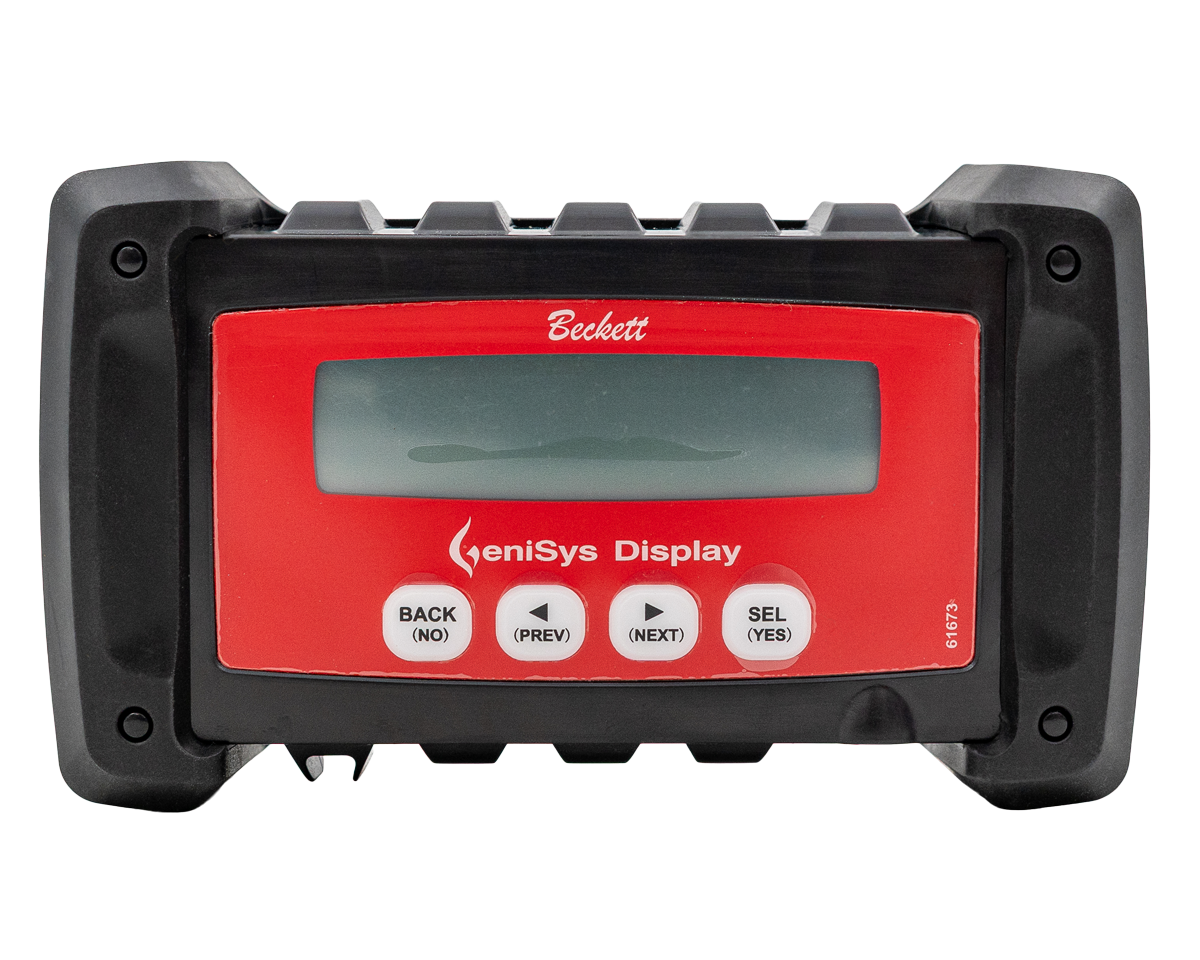

• The Beckett GeniSys® Contractor Tool is designed as a portable diagnostic tool to help technicians program and troubleshoot Beckett oil primary controls like the GeniSys® 7505 120V Oil Burner Control, the GeniSys® 7575 120V Oil Burner Control, and the GeniSys® 7580 240V Oil Burner Control.
• The screen shows current burner status, control timings, and a 15-cycle burner history.
• The programming mode allows a technician to program both the pre-purge and post-purge timings.
• 32 character backlit alphanumeric display
• Sealed pushbutton keypad
• Low voltage operation
• Continuous real-time cycle monitoring
• Continuous cad cell resistance reading
• Continuous AC line voltage readout
• Real-time error notification
• Customizable pre-time (valve-on delay) & post-time (Motor off delay)
• 15 cycle history monitoring
• Customizable lockout service message

Specifications

• Electrical Ratings
  • Inputs
    • Voltage: 5 VDC +4%
    • Current: 25 mA maximum display current
  • Environmental Ratings
    • Storage Ambient Temperature: -22°F to +150°F (-30°C to +65°C)
    • Operating Ambient Temperature: 0°F to +150°F (-18°C to +65°C)
    • Moisture: 5-85% RH, non-condensing and non-crystallising
