Maximize efficiency and cost savings with the cutting-edge, patent pending VIPower™ VX-200 Electric Motor.
Electric Motor Features

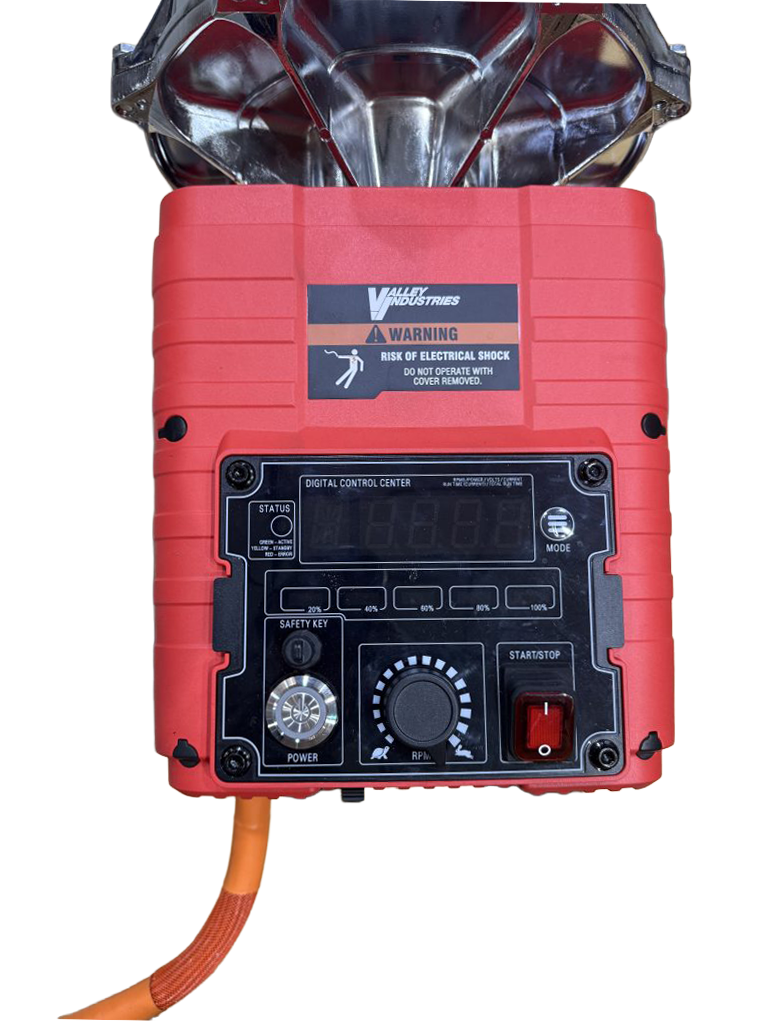

The VX-200 features an intuitive, removable control panel that puts power at your fingertips, allowing you to fine-tune motor speed from 600 RPM to 3600 RPM. As a result, you can optimize implement performance like never before. With Soft Start technology, the motor ensures a smooth increase in RPMs, reducing fatigue and wear on the system. Additionally, the IP65-rated exterior provides superior protection against moisture, dust, and contaminants, ensuring reliable, long-lasting operation even in tough conditions. Furthermore, the totally enclosed fan-cooled (TEFC) motor, built with brushless DC technology, delivers more efficient performance.
Battery Powered
The VX-200 is powered by the exclusive VIPower™ 56V DC battery pack. These Grade A LiFePO4 batteries are not only durable and safe but also produce more power than comparable gas engines.
Maintenance
The VX-200 requires near-zero maintenance. Save significantly on fuel, labor, and routine upkeep compared to gas engines, year after year.
Equipment Compatibility
Equipped with a universal mounting plate, the VX-200 seamlessly replaces any gas engine on equipment in minutes. The pre-installed 3/4” drive shaft (SAE J609A) allows you to quickly bolt it onto existing pumps, pulleys, and other implements. Consequently, integration is both effortless and efficient.
Indoor & Outdoor Use
Without fumes and with reduced noise pollution, the VX-200 offers the flexibility to operate at indoor job sites or extend working hours in noise-sensitive areas.
Tested Performance
- Max Flow
- 3600 RPM – 405 L/min
- 3000 RPM – 363 L/min
- 2500 RPM – 302 L/min
- 2000 RPM – 240 L/min
- 1500 RPM – 170 L/min
- 1000 RPM – 127 L/min
- 600 RPM – 50 L/min
- Max Head
- 3600 RPM – 57 m
- 3000 RPM – 41 m
- 2500 RPM – 40 m
- 2000 RPM -28 m
- 1500 RPM – 12 m
- 1000 RPM – 10 m
- 600 RPM – 2 m
- Noise Levels
- DBA at 3600 RPM at 1 metre distance is 85 DBA
- DBA at 3600 RPM at 7 metre distance is 70 DBA
- Honda GX200 @ 3600 RPM noise level 1 m distance is 100 DBA.
- Water Spray Distance
- 1” yellow PVC hose with 1” red fire nozzle 15 m
- 1.5”Canvas hose with 1.5” metal fire nozzle TBA
- Running Time
- Running time for full battery charge at max motor speed 3600 RPM is 36 mins [Interchangeable backup batteries available for purchase].
Applications
- Fire fighting – mop up and fire protection
- High-pressure water transfer
- Spray irrigation
- Diesel fuel transfer (w Viton Seals fitted)
- High-pressure spraying
- Sheep jetting
- Boom spraying
- Stock crate & wash down
- Machinery wash down
Features and Benefits
- No need to purchase fuel to run
- Quiter running
- No engine emissions
- Less maintenance
- Suitable for indoor and outdoor use
- Variable RPM speed control
- Three-year pump end warranty, One-year electric motor warranty
- Lightweight portable at 26 kg and fast self-priming from 7 m
- Chrome-plated aluminium body with stronger wall thickness
- Replaceable suction and discharge port making servicing the check valve & outlet gasket easy
- Single-piece, heavy-duty closed impeller pump providing more water at a higher pressure saving fuel
- Larger water passages mean more water efficiency reducing fuel costs and replaceable check valve
- Big integrated priming port for fast self-priming
- Viton elastomer option enables use in some herbicide or insecticide spraying applications or diesel fuel transfer
- Optional for 2” or 3″ outlet
- Assembled in Australia
Pump Materials
- Front Casing: Marine Grade Aluminium
- Volute: Marine Grade Aluminium
- Back Plate: Marine Grade Aluminium
- Mechanical Seal: Carbon/Ceramic
- Outlet: Marine Grade Aluminium
- Casing Bolts: Zinc Plated Steel
- Check Valve: Nitrile Rubber
- Prime & Drain Plug: Polycarbonate
- Priming & Drain Plug O rings: Nitrile Rubber (NBR)
- Finish: Chrome Aluminium
- Impeller: Marine Grade Aluminium, closed
Specifications
- Electric Motor: GX200, 6.7 hp Lithium powered
- Unit & Frame: Mounted on heavy duty aluminium skid with anti-vibration mounts [Optional roll frame available upon request].
- Inlet: 2″ Suction Port with 1.5” Reducer Included
- Outlet: 3-Way, 2 x 1” BSP & 1 x 1.5” BSP
- Impeller: Single
- Max Flow Rate: 405 L/min
- Max Head: 57 m [81 PSI]
- Suction Capacity: 7 m
- Seal Type: NBR
- Motor Style: Brushless DC
- Continuous Duty Cycle: 100%
- Operating Temp: 4° to 122° F (-20° to 50° C)
- Dimensions: L 530 mm x W 370 mm x H 440 mm
- Weight: 25 kg
- Optional Viton Seals Available: 125 85.572.586 V
