Application

• Pharmaceutical industry
• Food industry
• High flow
• Low RPM

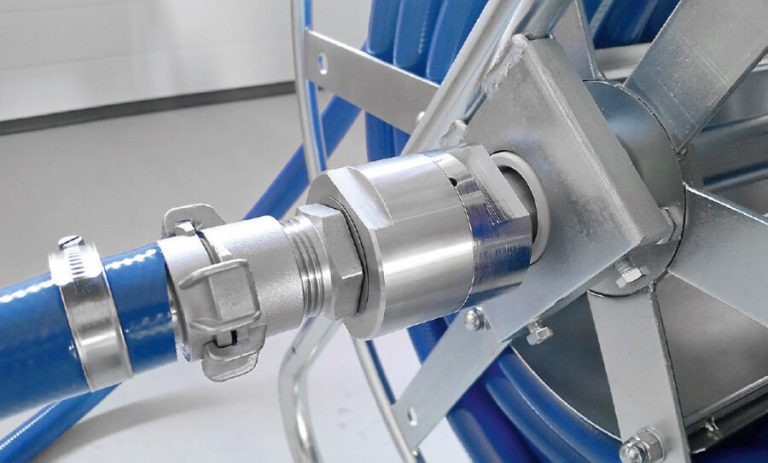

• Automatic car wash systems

Specifications

• Pressure: 5,000 PSI / 2,900 PSI
• Temperature: 120°C
• Max Speed: 30 RPM
• Body: Stainless Steel
• Inner part: Stainless Steel
• Seal: O-ring (NBR) (optional: EPDM or FKM)
• Bearing: 1x thrust ball bearing, 2x sliding bearings
• Throughput medium: pH 3-12, 10 μm filtered, 20 bar / 290 PSI compressed air
