Features

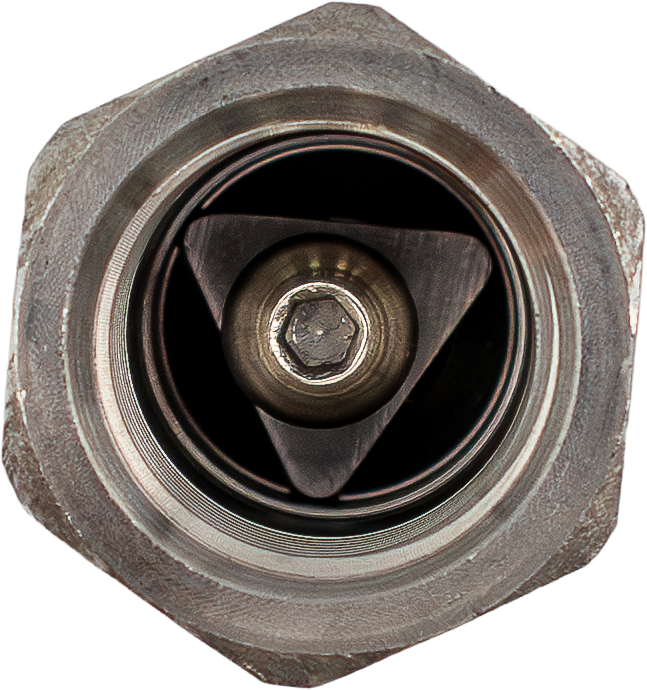

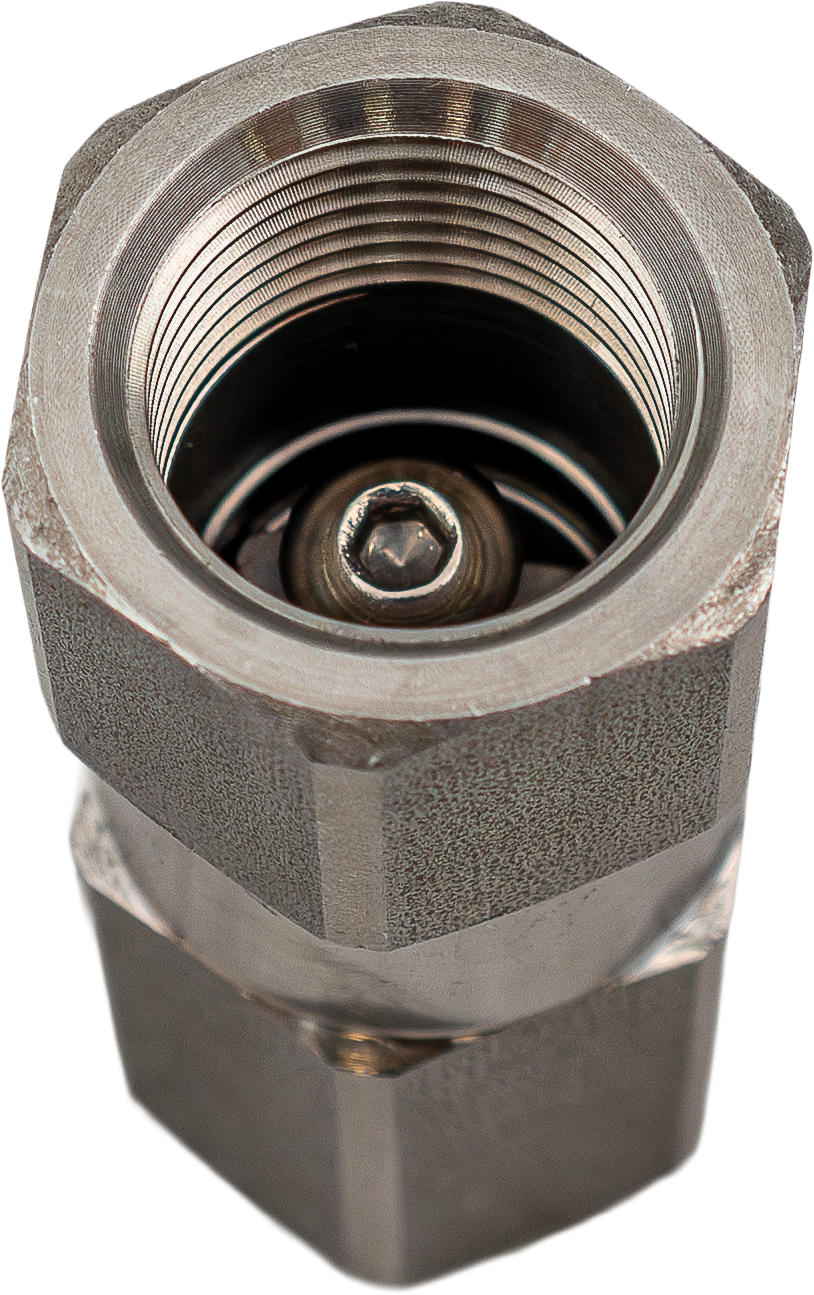

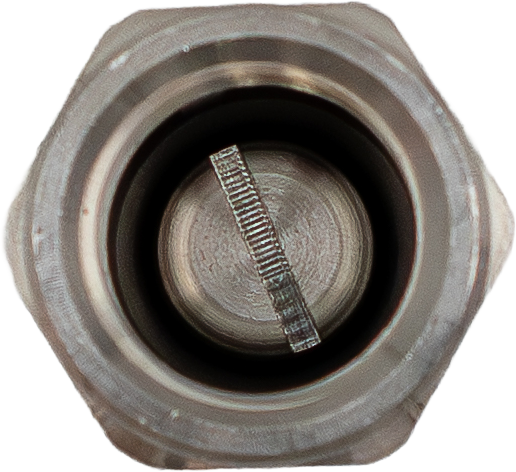

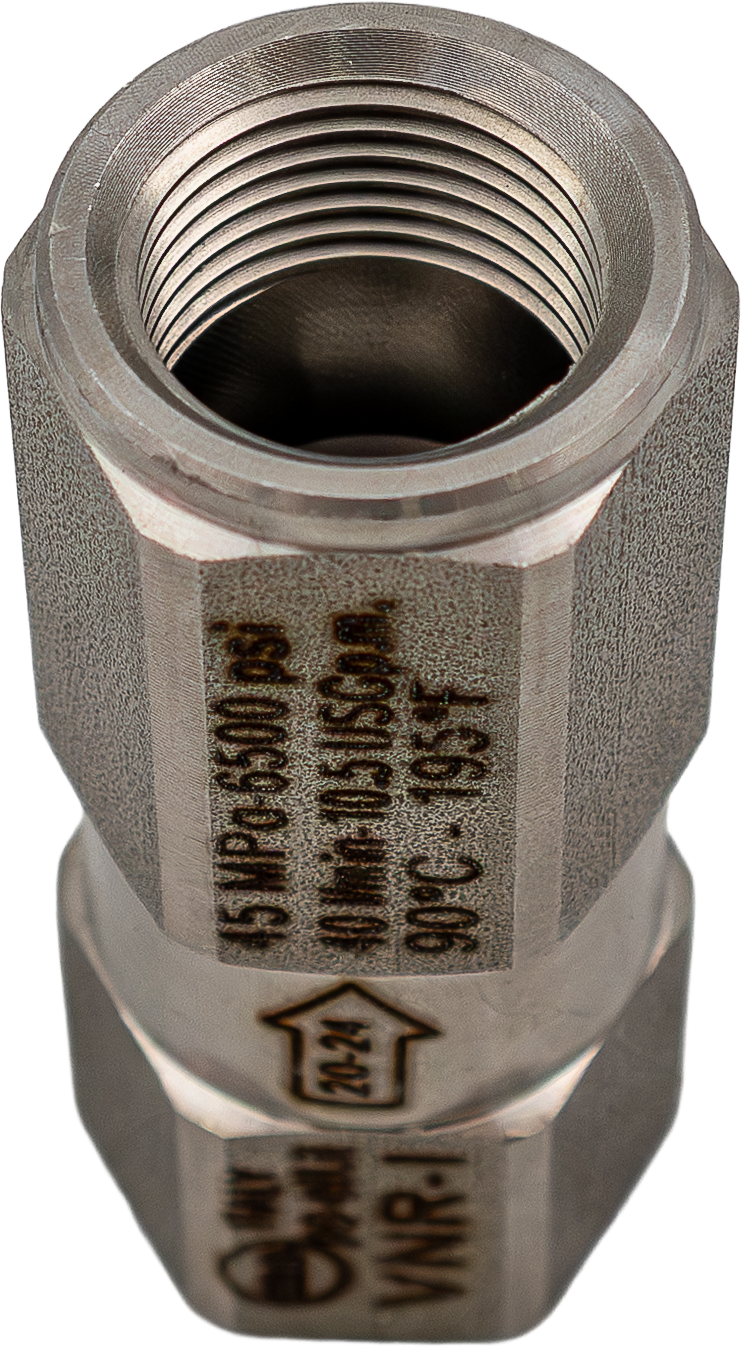

- VNR Check Valve
Specifications
- Pressure: 5,800 PSI (6,500 PSI max.)
- Flow: 25, 40, 80, 180 L/min options
- Couplings: 1/4″, 3/8″, 1/2″, 3/4″ BSP or NPT F options
- Seals: FKM Viton or EPDM
- Temperature: 90 °C
- Material: Stainless Steel
| Flow - L/Min | 25, 40, 80, 180 |
|---|---|
| Couplings | 1/2" BSP F, 1/2" NPT F, 1/4" BSP F, 1/4" NPT F, 3/4" BSP F, 3/8" BSP F, 3/8" NPT F |
| Seals | EPDM, Viton |
