Features

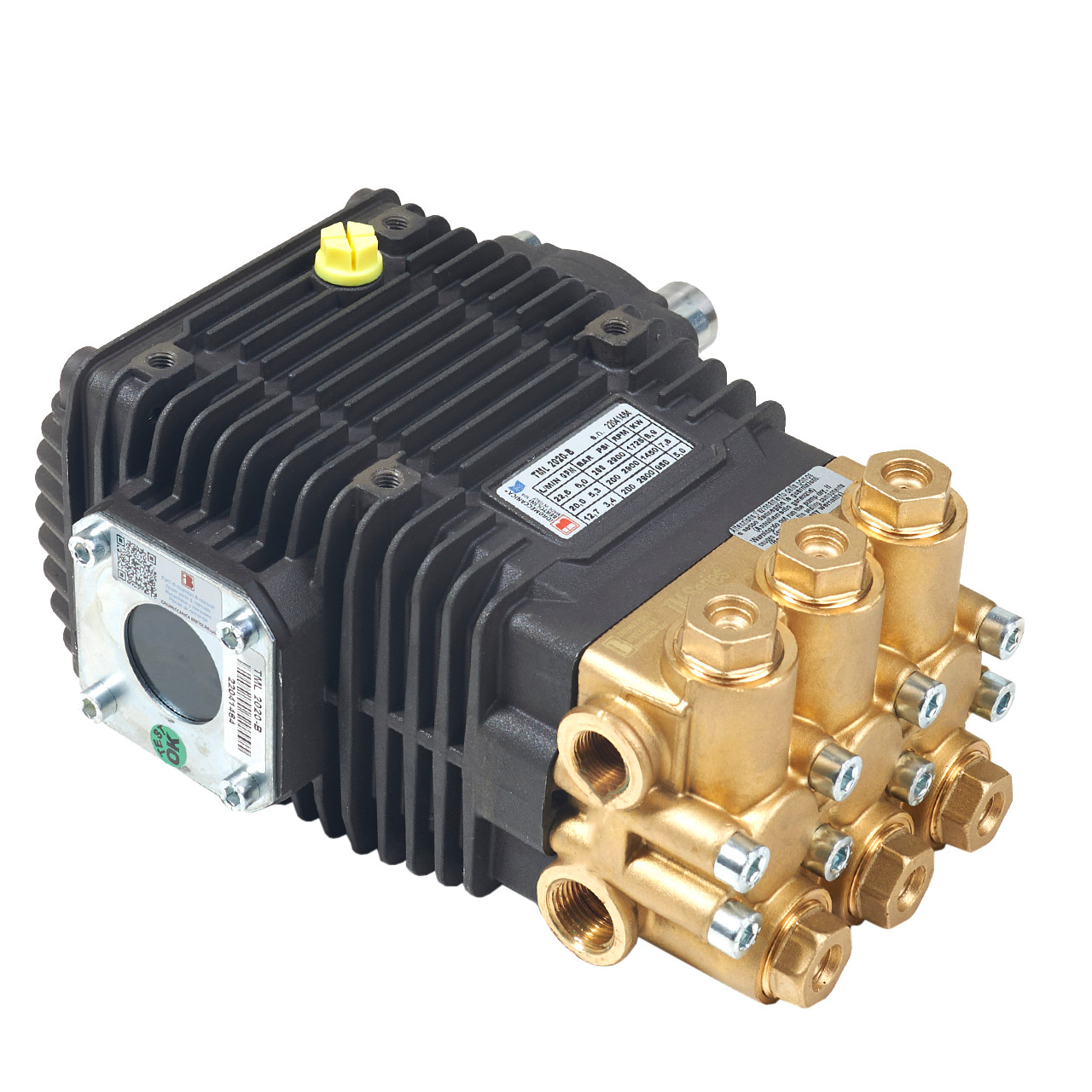

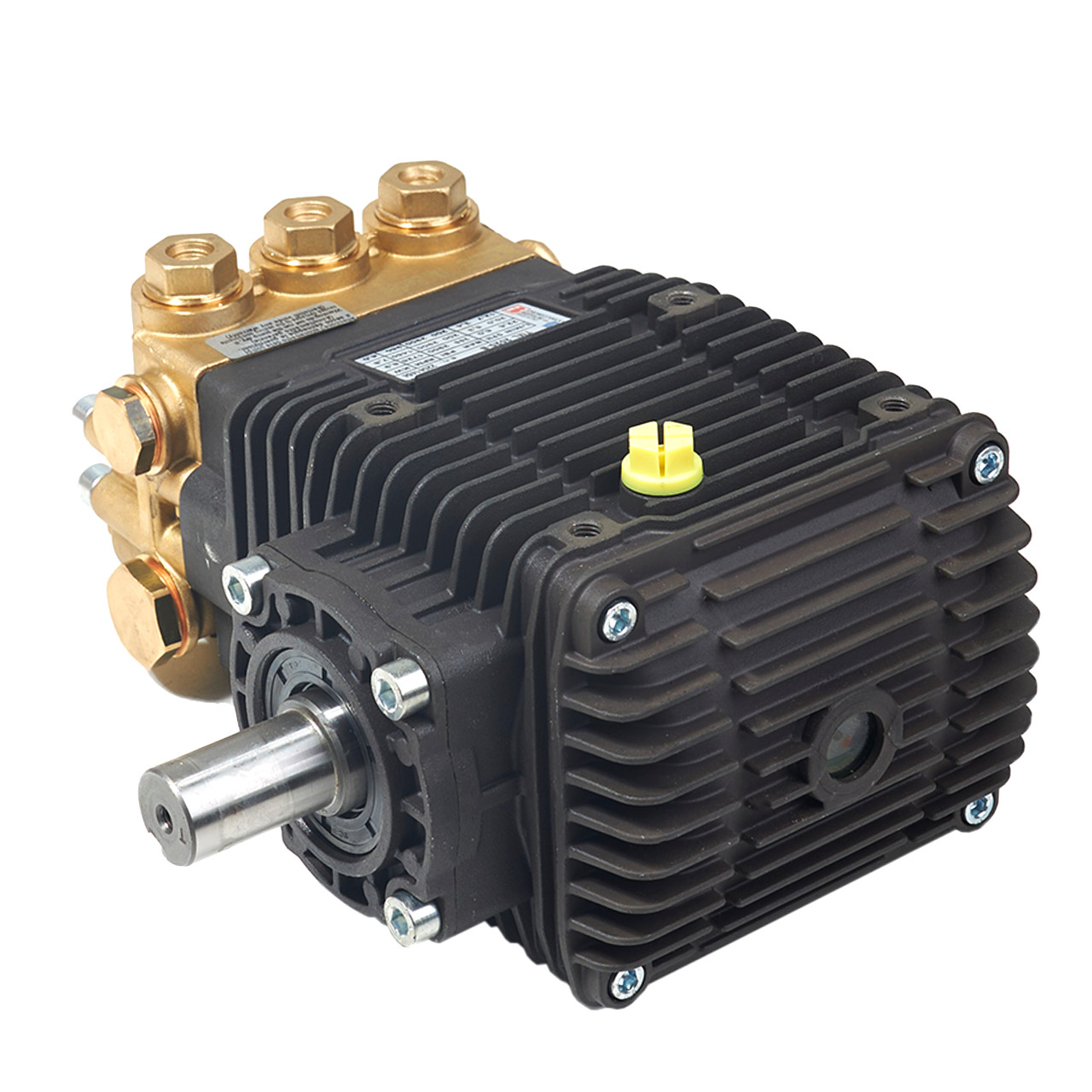

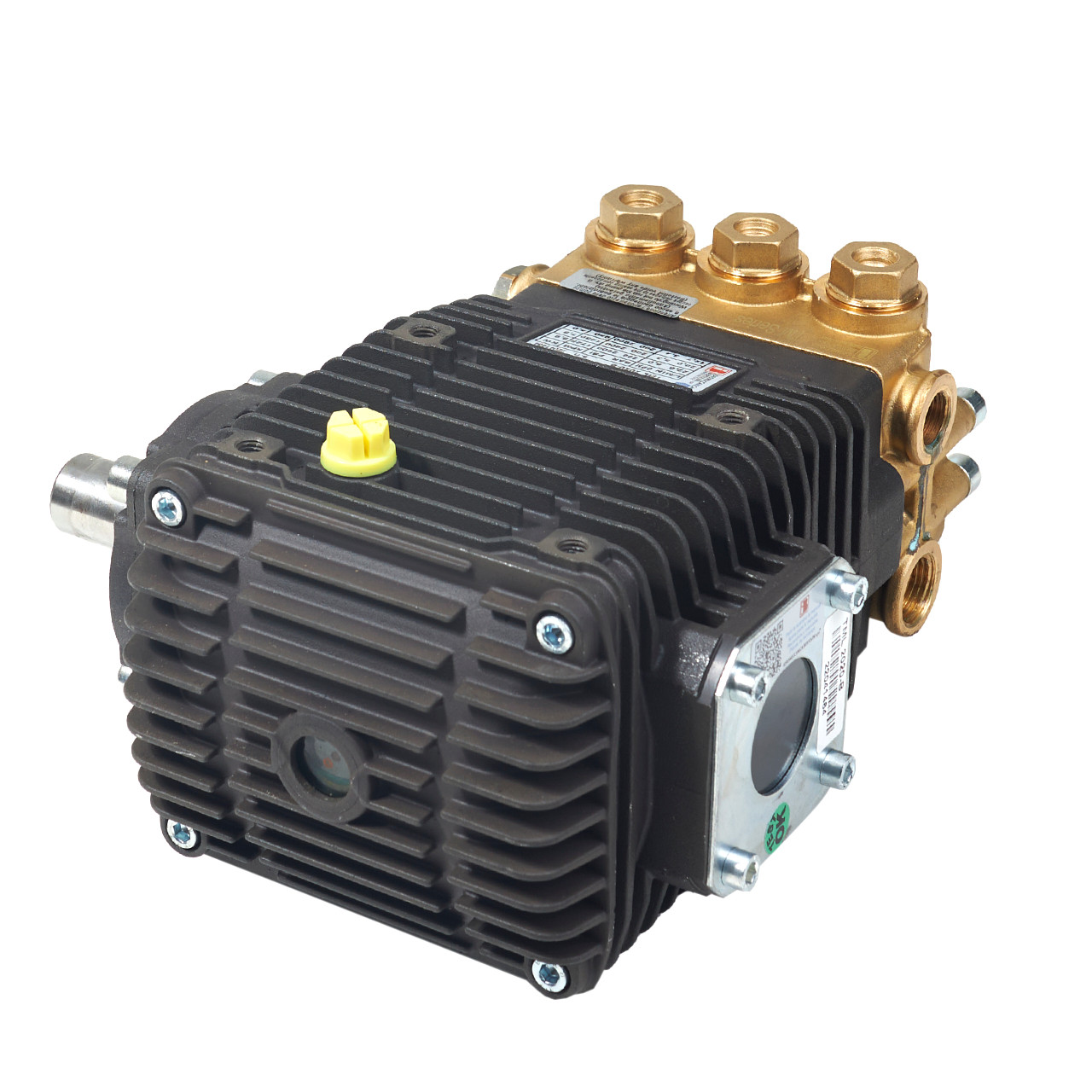

The TML 2020 solid shaft pump is fitted with the new Bertolini sealing system for longer life and efficiency. The pump features a brass head, a crankshaft with premium oversized ball bearings, and valve caps fitted with a new sealing system designed for high pressure and to prevent accidental over pressure.

• Pump mechanism: Triplex plunger
• Inlet: 1/2″
• Outlet: 3/8 ″
• Oil grade: SAE 75W-90
• Compatibility: Belt-driven gas engine setups and hollow shaft electric motors made for 24 mm diameter shafts

Specifications

• Max Pressure: 2,900 PSI
• 950 RPM
  • Flow: 12 L/min
  • Power: 6.7 HP
• 1,450 RPM
  • Flow: 20 L/min
  • Power: 10.5 HP
• 1,725 RPM
  • Flow: 23 L/min
  • Power: 11.9 HP
