Features

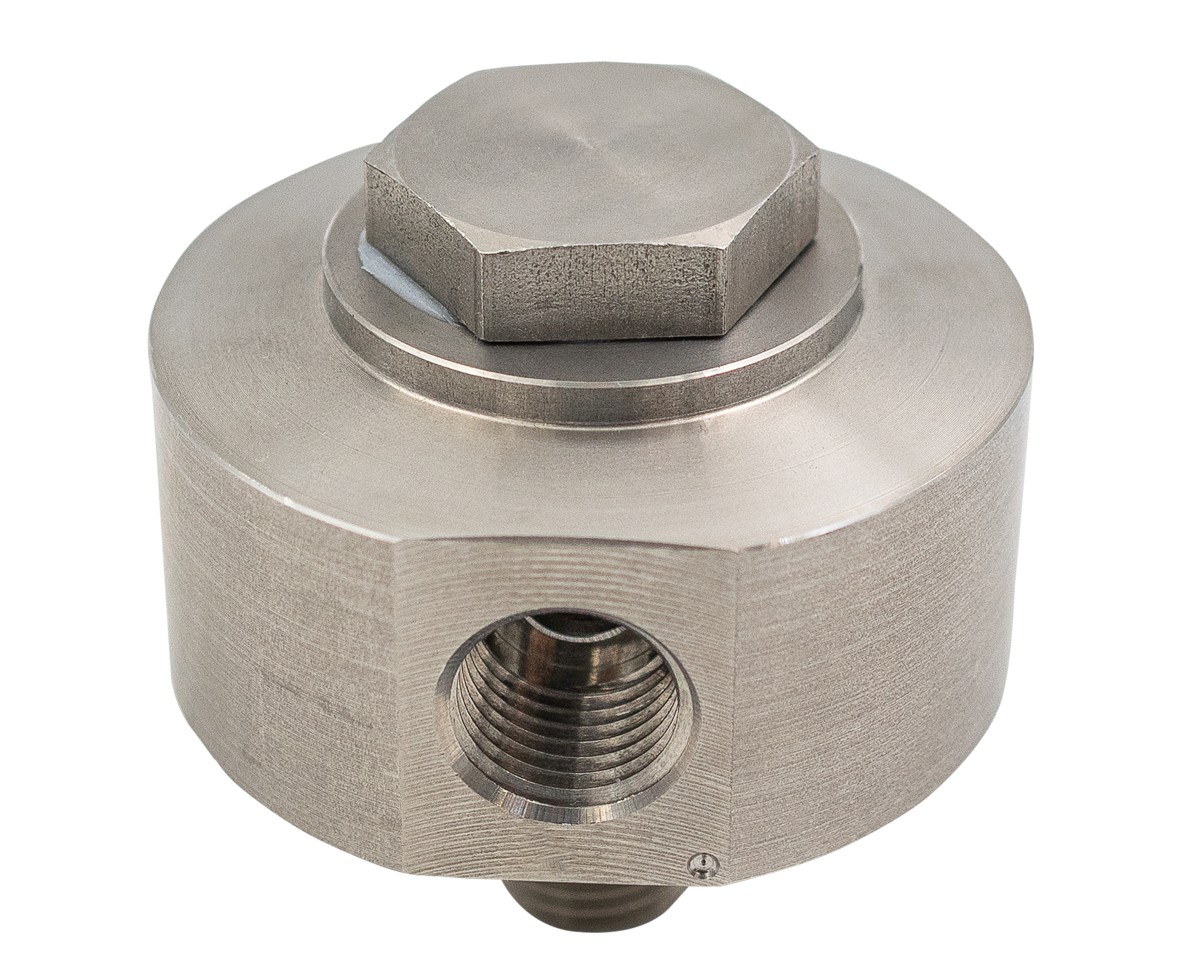

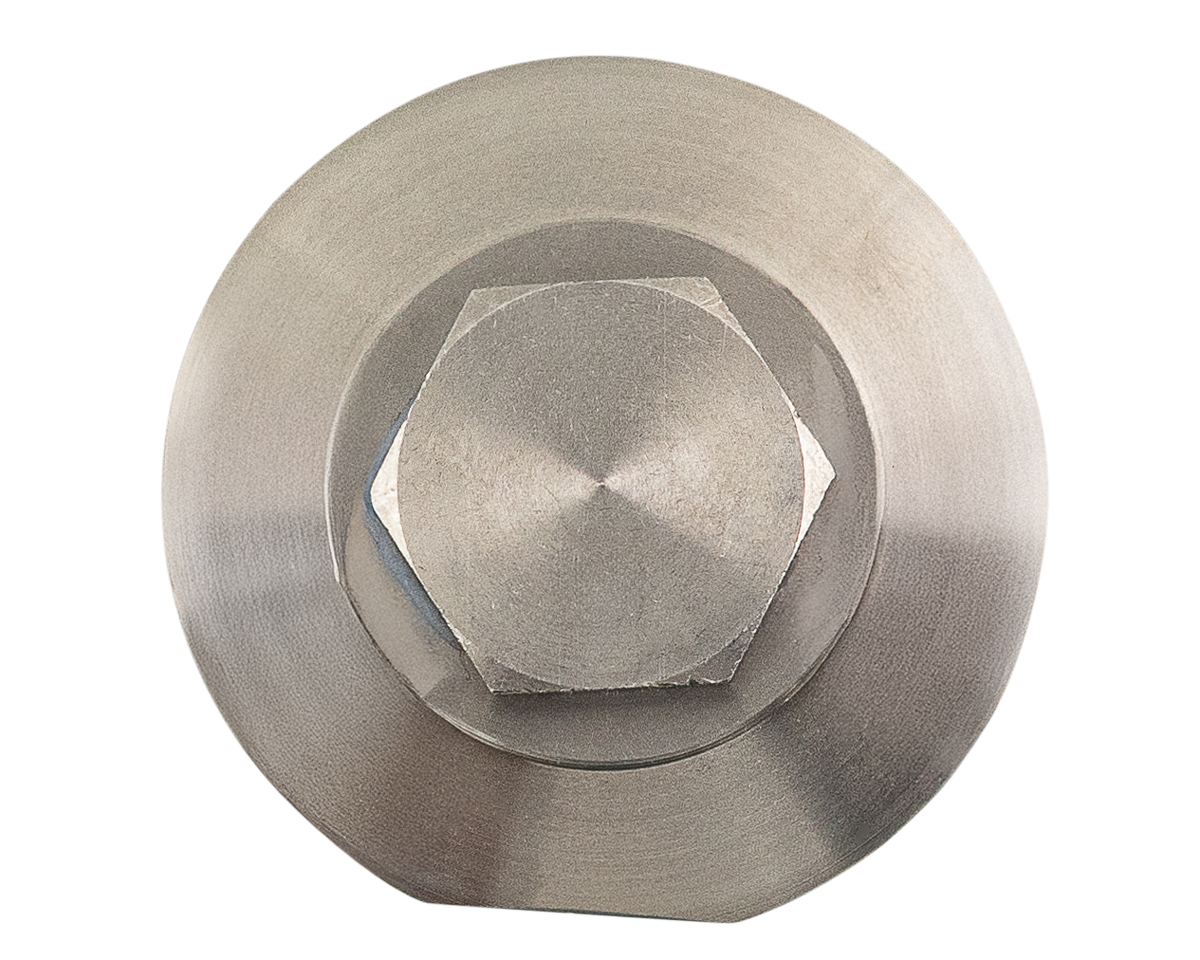

• Mecline 90° Boom Swivel
• Designed to provide maximum freedom of movement, this coupling features a 360° rotation angle and a robust stainless steel construction. The double dynamic seal, consisting of a dynamic contact ring energized by an O-Ring and an O-Ring with back-up ring, ensures outstanding sealing performance, enhanced by EPDM and FPM (Viton®) O-Ring materials.

Specifications

• Pressure: 3,600 PSI (4,060 PSI max.)
• Flow: 45 L/min
• Speed: 30 RPM
• Grades: 360°
• Material: Stainless Steel
• O-Ring:
  • EPDM: Repair Kit – 155 0212106270
  • Viton: Repair Kit – 155 4159900021
• Temperature: 160 °C
• Weight: 395 g

Swivel Boom Option: 147 1181050127
