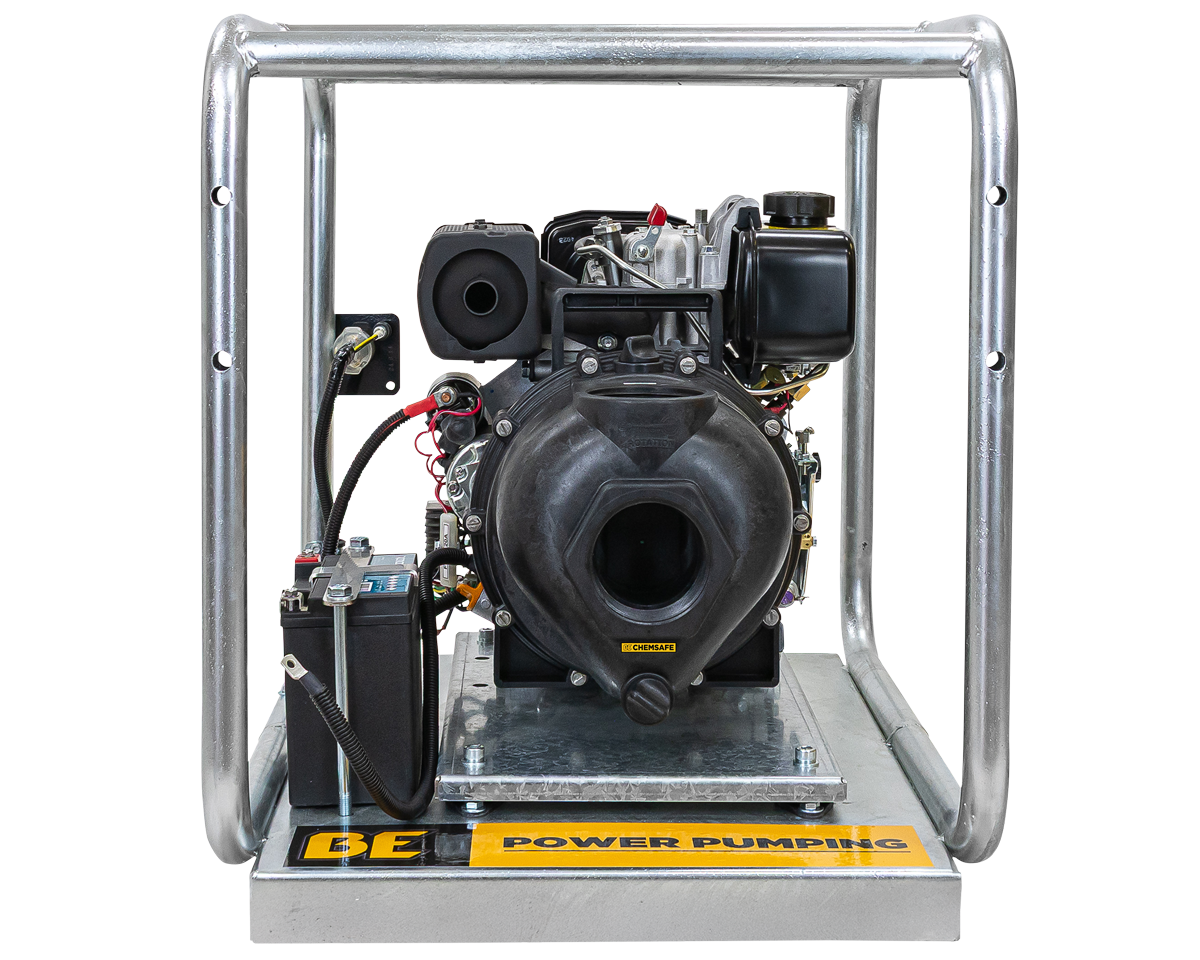

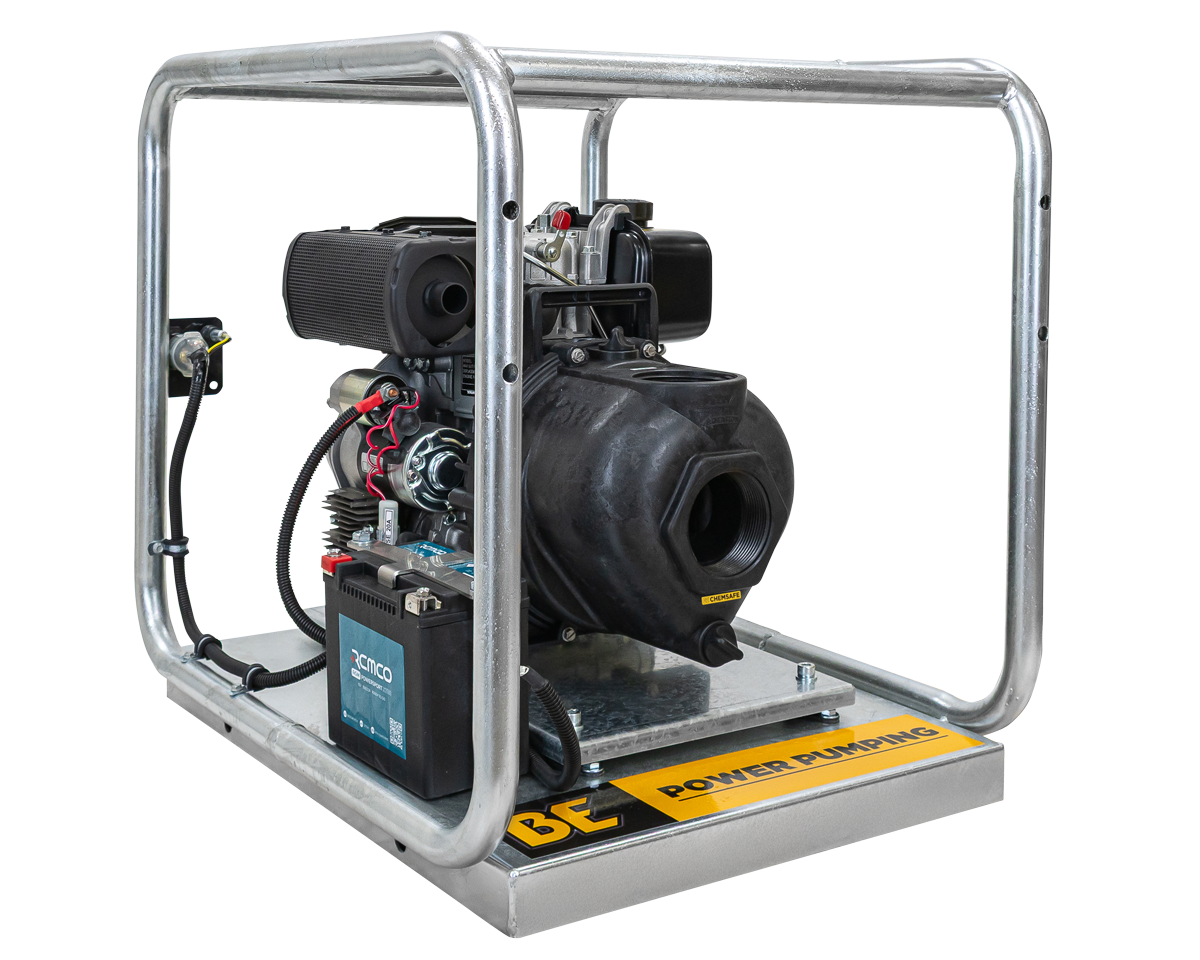

CHEMICAL TRANSFER PUMP – YANMAR DIESEL
BE Yanmar powered poly pumps are heavy duty polypropylene pumps that are fibre glass reinforced making them suitable for pumping corrosive liquids. These high flow pumps are fitted with Viton elastomers and are available in 2” and 3” configuration.
Features
- Diesel powered, self priming injected moulded polypropylene body pump for pumping liquid fertilizers and salt water.
- Powered by Yanmar L48 Electric start commercial series diesel engine.
- Designed with a fiberglass reinforced poly pump and impeller for pumping non-solid chemicals.
- Chemsafe poly pump with Viton seals.
- Commonly used for applications such as agricultural chemical transfer, diesel fuel, brine or salt water and marine salvage.
Specifications
- Max Flow: 1,000 L/min
- Max Head: 25 m
- Engine: Yanmar
- HP: 4.8 hp
- Electric Start: Yes
- Inlet/Outlet: 3″ BSP F
- Suction: 7.6 m
- Unit and Frame: Rugged galvanised frame with battery included.
Pump
- 3” BSP F suction port
- 3” BSP F discharge port
- Standard with viton seals
- 7.6 m vertical lift
- 3 vein impeller
Engine
- Yanmar L48, 4.8 hp electric start diesel engine with recoil back up
- Air-cooled. 4 stroke diesel engine
- Electric start
- 2.4 L fuel tank
- Low oil alert
- Low vibration and low noise
- Compact , direct injection engine with low fuel consumption
Applications
- Liquid fertilizer
- Diesel fuel transfer
- Marine salvage
- High-volume water transfer
- Stock feed
- Batching units
- Ag chemical transfer
- Saltwater pumping
- Marine firefighting salvage
