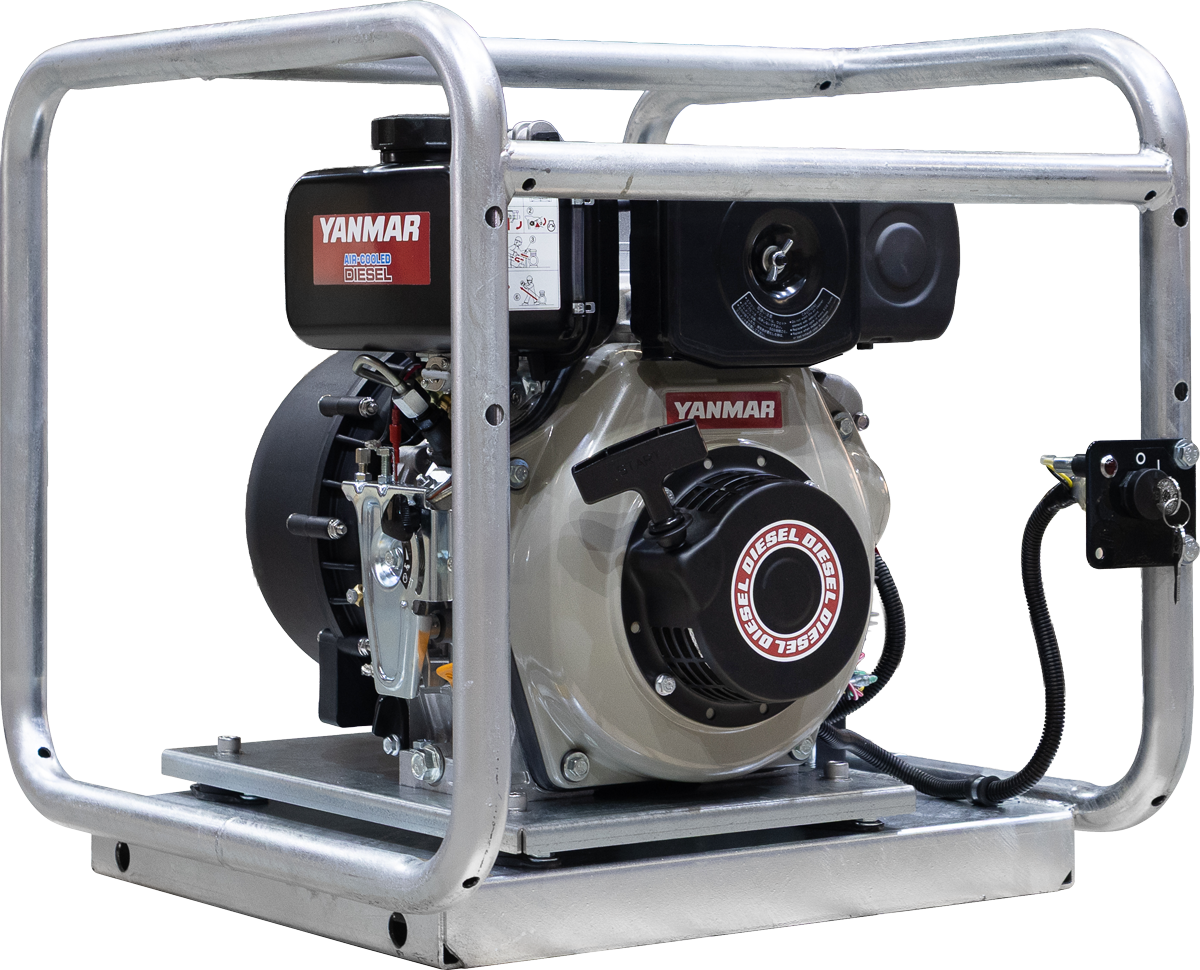

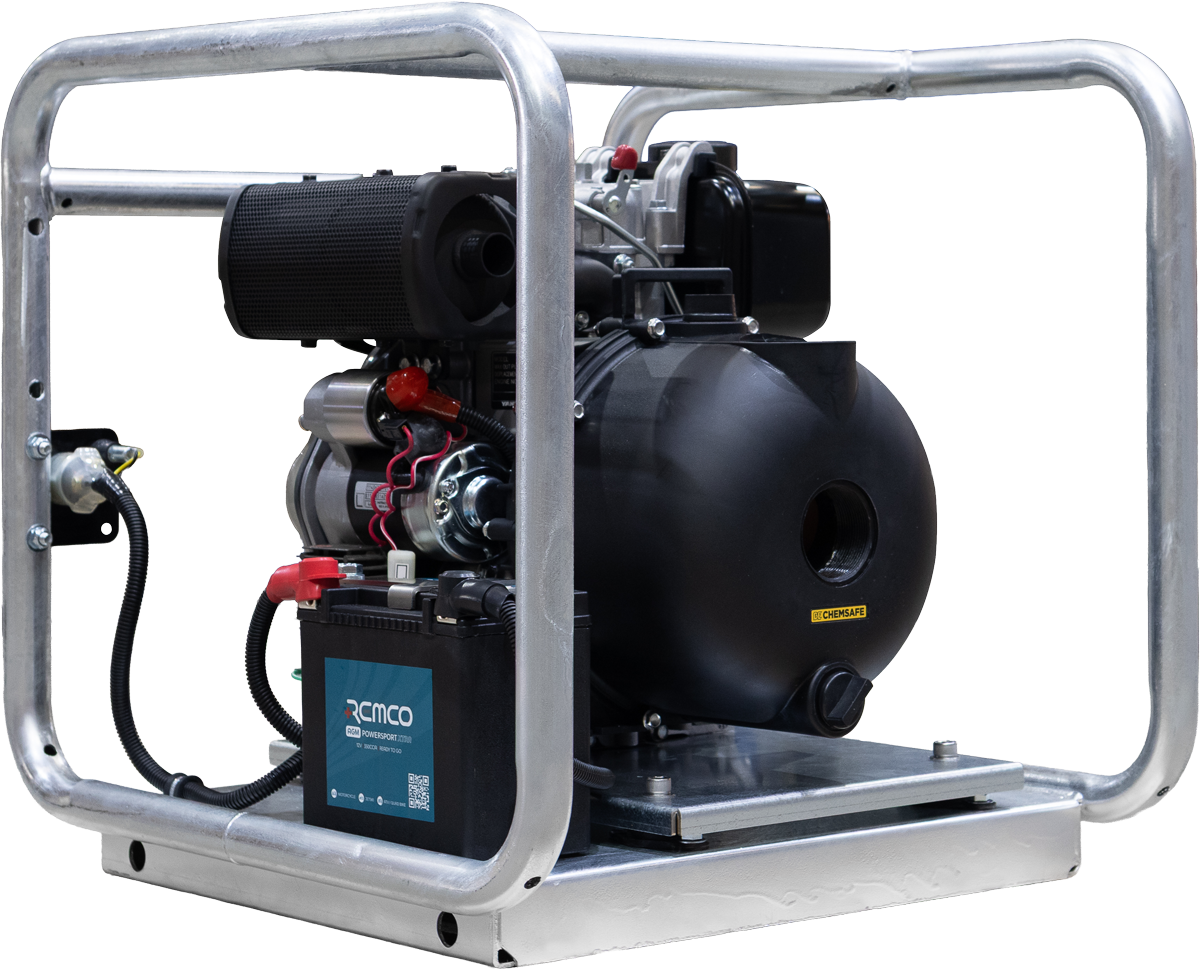

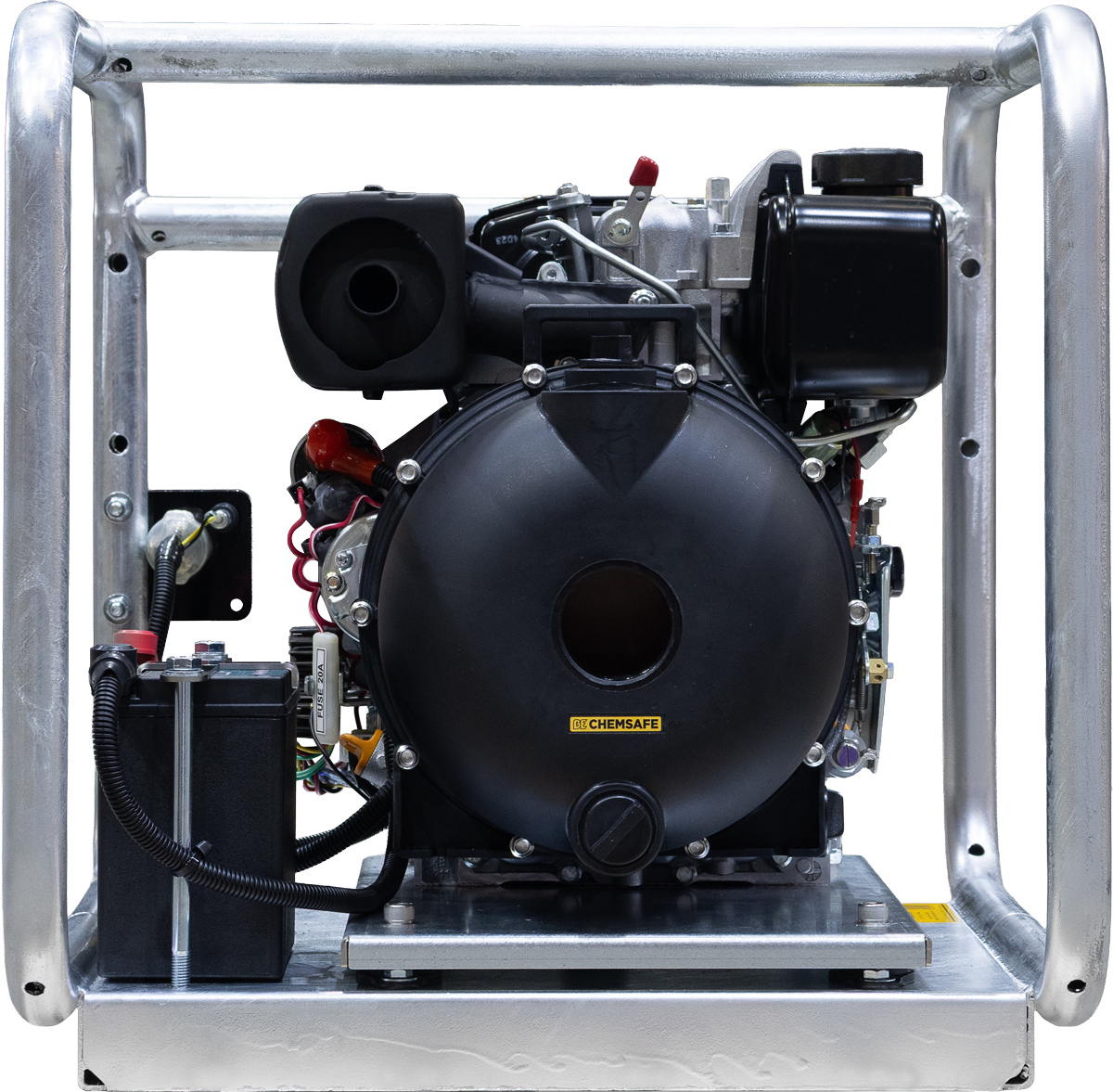

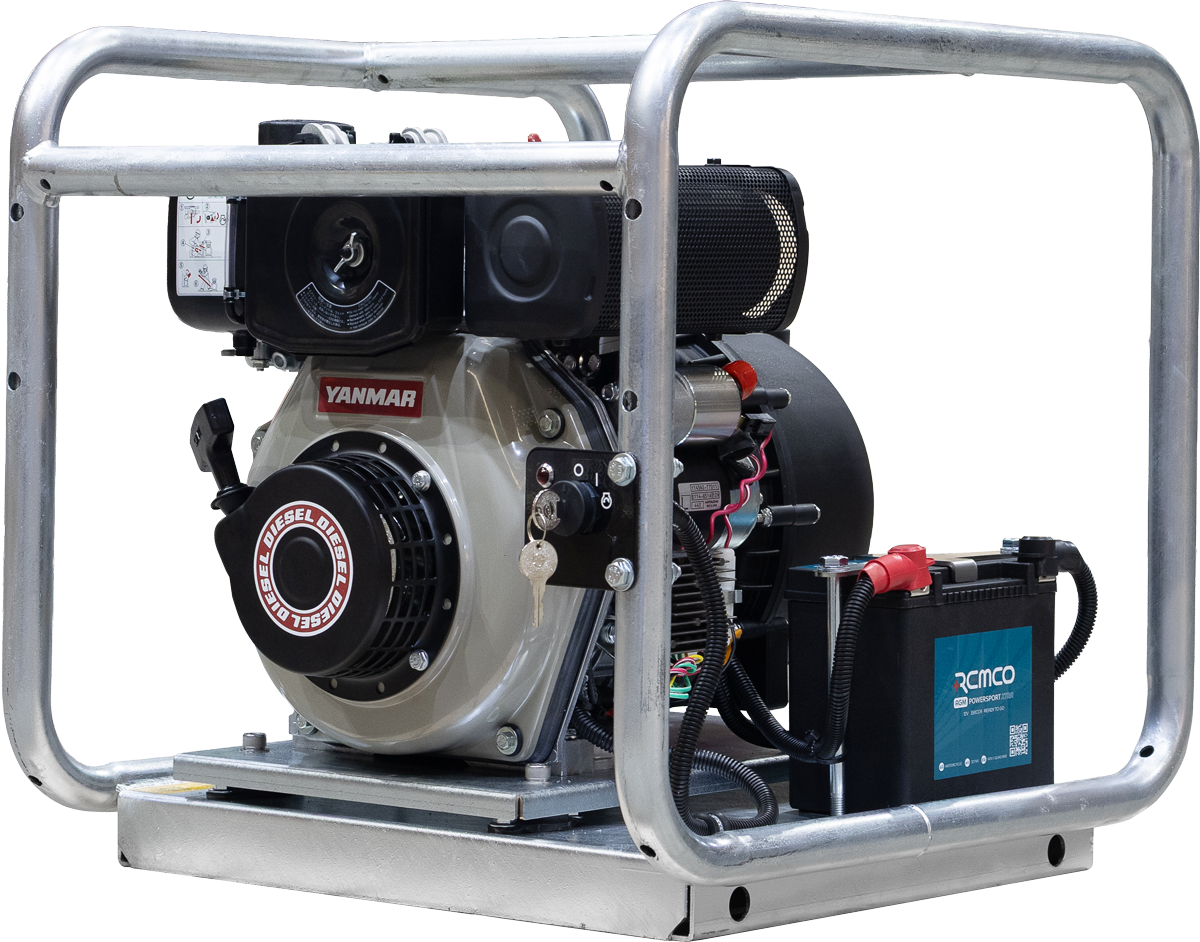

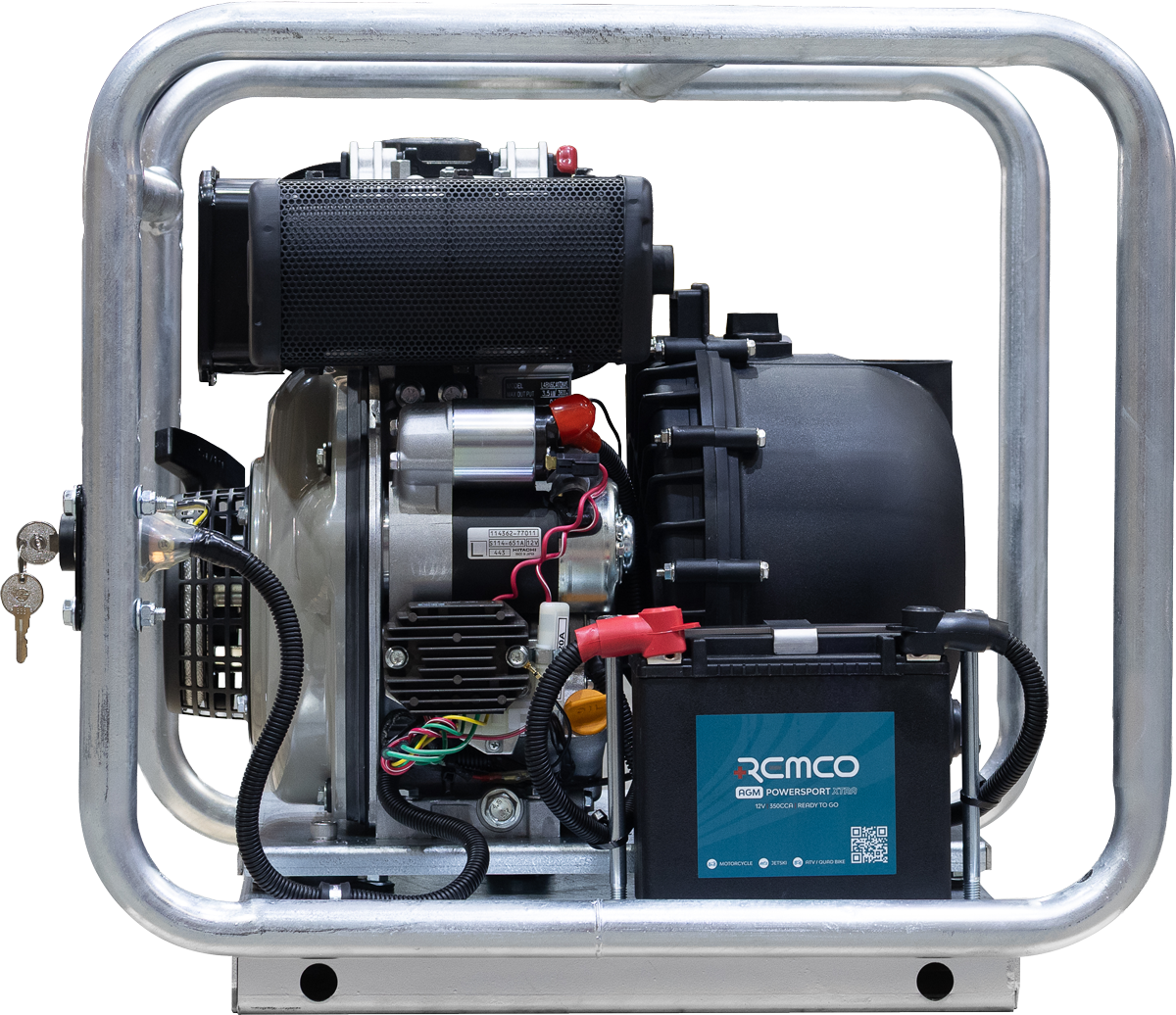

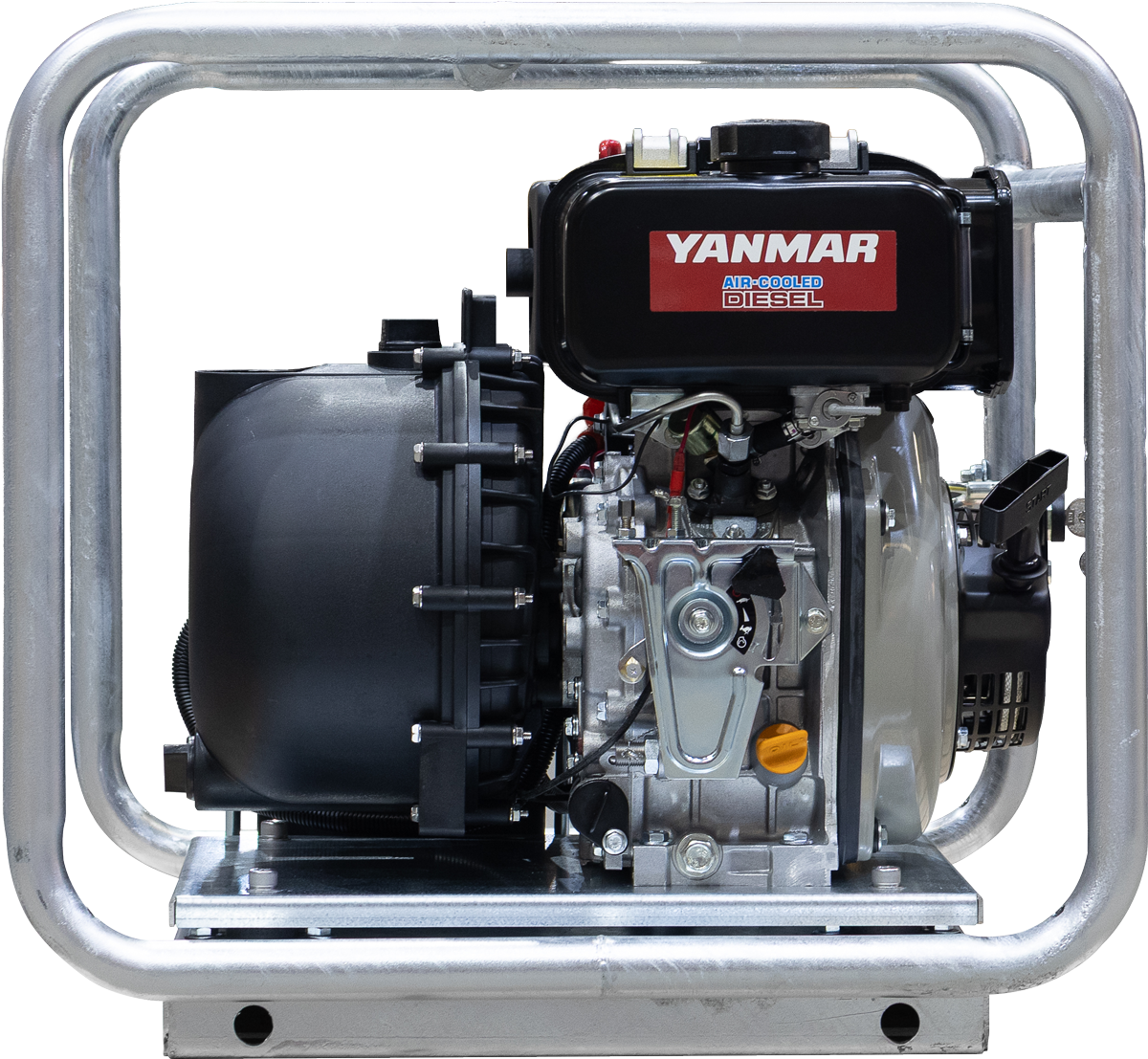

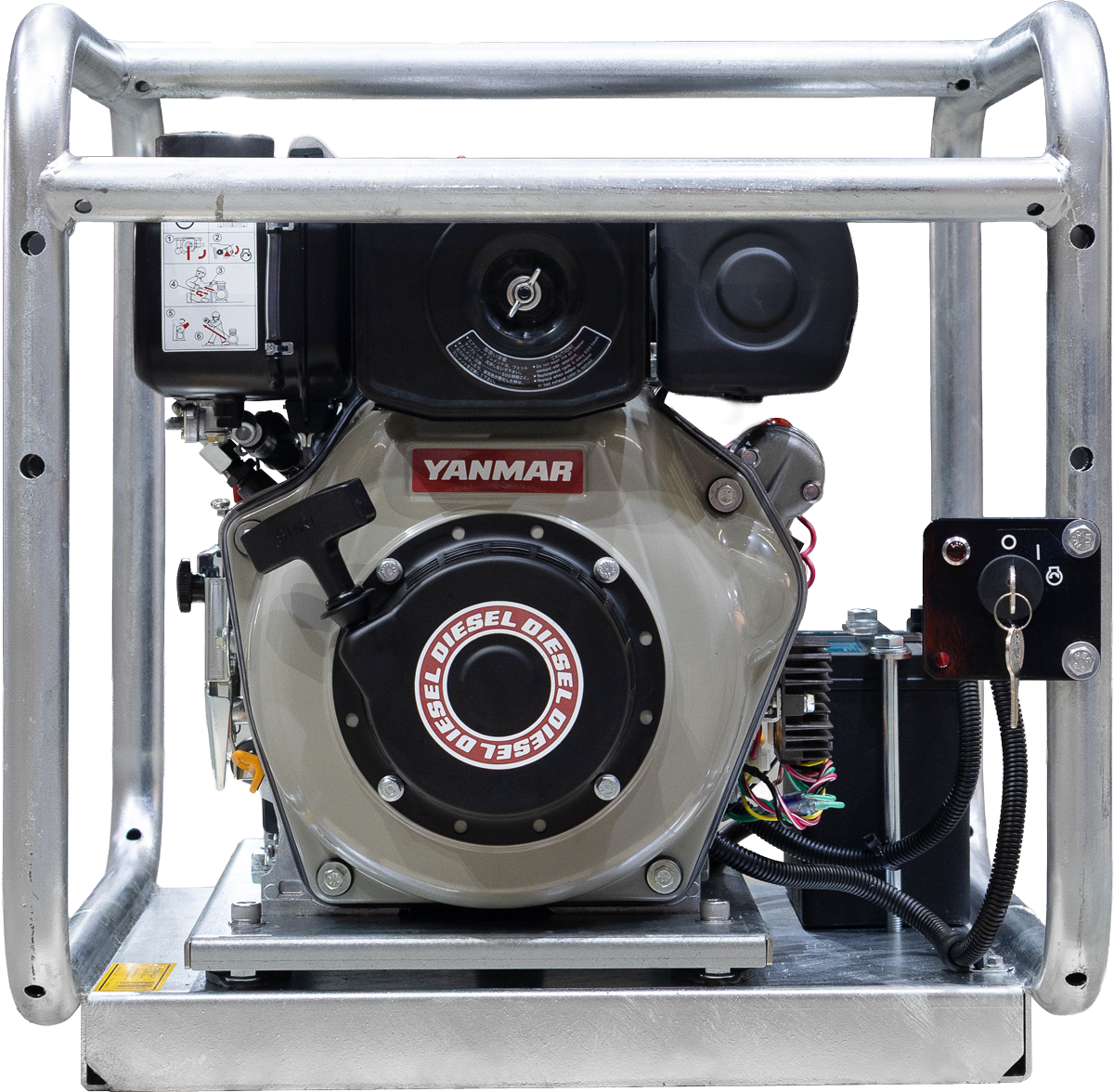

CHEMICAL TRANSFER PUMP – YANMAR DIESEL

BE Yanmar powered poly pumps are heavy duty polypropylene pumps that are fibre glass reinforced making them suitable for pumping corrosive liquids. These high flow pumps are fitted with Viton elastomers and are available in 2” and 3” configuration.

Note: Displayed with Banjo wet end. This model is fitted with a BE Poly Pump

Specifications

• Max Flow: 625 L/min
• Max Head: 35 m
• Engine: Yanmar
• HP: 4.8 hp
• Electric Start: Yes
• Inlet/Outlet: 2″ BSP
• Suction: 7.6 m
• Unit and Frame: Rugged galvanised frame with battery included.

Pump

• 2” NPT suction port
• 2” NPT discharge port
• Standard with viton seals
•  7.6 m vertical lift
• 3 vein impeller
• NPT to BSP thread adaptor for
  inlet /outlet Part# 124 NIP2100

Engine

• Yanmar L48 , 4.8 hp electric start diesel engine with recoil back up
• Air-cooled. 4 stroke diesel engine
• Electric ctart
• 3.5 L fuel tank
• Low oil alert
• Low vibration and low noise
• Compact , direct injection engine with low fuel consumption

Applications

• Liquid fertilizer
• Diesel fuel transfer
• Marine salvage
• High-volume water transfer
• Stock feed
• Batching units
• Ag chemical transfer
• Saltwater pumping
• Marine firefighting salvage
