Features

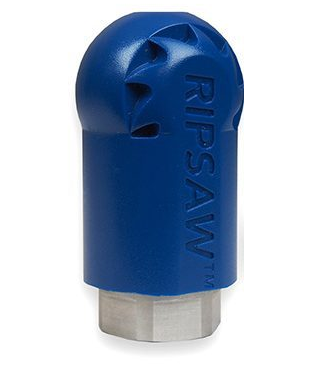

• Heavy–duty, high-impact nozzles designed for the Hydro-Excavation industry to complete jobs faster with less run and downtime. The RIPSAW nozzle blasts a 0° pattern at up to 3,200 PSI while rotating at high speed with an 18° cone of coverage.
• PERFORMANCE – The RIPSAW blasts a 0° straight water stream at up to 3200 PSI while rotating at an optimal speed to provide an 18° cone of coverage. The cone-shaped flow pattern is ideally suited for potholing applications.

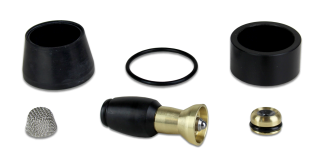

• DURABILITY – These heavy duty, high impact nozzles are constructed with a stainless steel housing and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than ceramic nozzles. Repair kits are also available for extended life and lower operating costs.
• SAFETY – Non-conductive urethane coating on the nozzle body protects users and sensitive underground utilities. Select from the traditional coating or upgrade to the new heavy duty coating – a special formulation designed for use in extreme environments including frost, shale, and other rocky conditions.
• EFFICIENCY – Greater impingement allows you to complete jobs faster or use a smaller nozzle size while getting the same impact as nozzles with higher l/min. flow rates.

Specifications

• Min. Inlet Pressure: 1,000 PSI
• Max. Inlet Pressure: 3,200 PSI
• Flow: Variable
• Nozzle Size: Variable
• Max. Temperature: 82°C
• Housing Material: Stainless Steel
• Coating Material: Urethane
• Nozzle Tip l: Tungsten Carbide
• Inlet Thread: 1/2” FNPT
